Week 9 - Attachment Feature Creation - Challenge 1

AS PER THE DESIGN RULES FOR RIBS IN PLASTIC DESIGN:

THE WALL THICKNESS OF THE PRODUCT IS 2.5MM, SO THE THICKNESS OF THE RIB IS 0.4 x 2.5 = 1MM

THE HEIGHT OF THE RIB SHOULD BE LESS THAN 5 TIMES THE THICKNESS WHICH IS HEIGHT SHOULD BE LESS THAN 12.5MM

THE MINIMUM THICKNESS AT THE TOP IS 0.75MM

THE DISTANCE BETWEEN THE CONSECUTIVE RIBS SHOULD BE 2 X WALL THICKNESS THAT IS 5MM

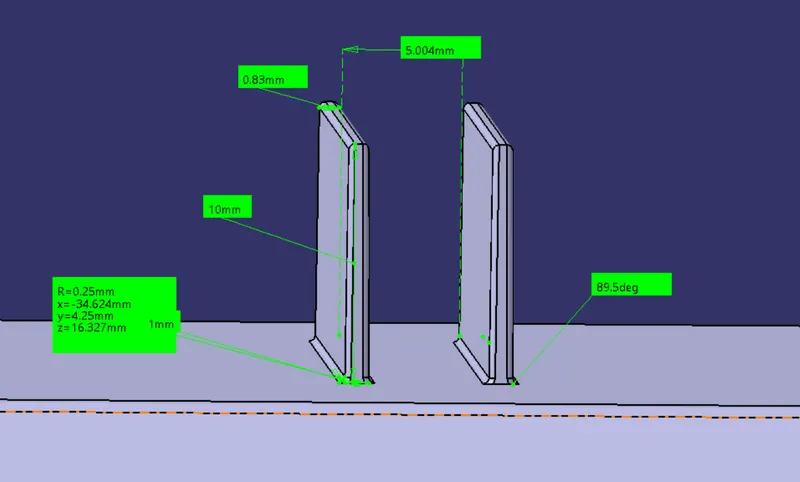

IN MY CASE, THE RIB HEIGHT IS 10MM, THE MINIMUM THICKNESS AT THE TOP IS 0.83MM

FILLET RADIUS = 0.25MM

DRAFT ANGLE = 0.5DEG
