Week 9 - Attachment Feature Creation - Challenge 1

DESIGN RULES FOR RIBS CREATION

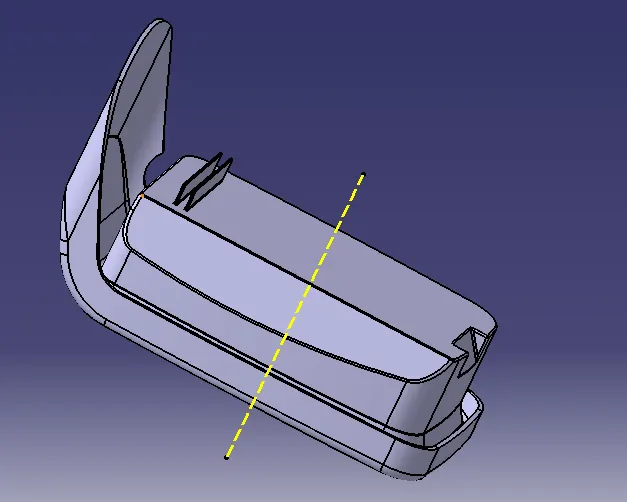

AIM: to design ribs on the coin holder considering every design rules considered in the industry.

THEORY:

Class-B surface contains all the engineer data required for the model to be completed. This data involves designing of various features. Some of the major features of the B-side are:

1. Ribs
2. Screw boss design
3. Dog house design

RIBS:

They increase the stiffness and strength without increasing overall wall thickness of the model which is not desired. They also facilitate:

1. Locating and arresting components of an assembly
2. Providing alignment in mating parts
3. Acting as stopper or guides for mechanisms.

DESIGN RULES FOR RIBS:

1. Draft: 0.5 deg per side (minimum), but this value should not be high enough that it will cause failure for other consideration. For example, more draft will result in less thickness at the top surface.
2. Thickness of ribs: 40% of wall thickness or 0.4*t where t is the wall thickness.
3. Height: ≤ 5 times the wall thickness i.e. 5*t
4. Spacing (for more than 1 rib): 3:1- steel height/width ratio (maximum). h/w =3or2(preferred) where h is the height of the rib and w is the space between two ribs.
5. Minimum thickness at the tip: 0.75
6. Radius: 0.25mm max
7. Ribs on opposite side of the wall should be offset
8. Ribs should be connected to other structural features where possible.

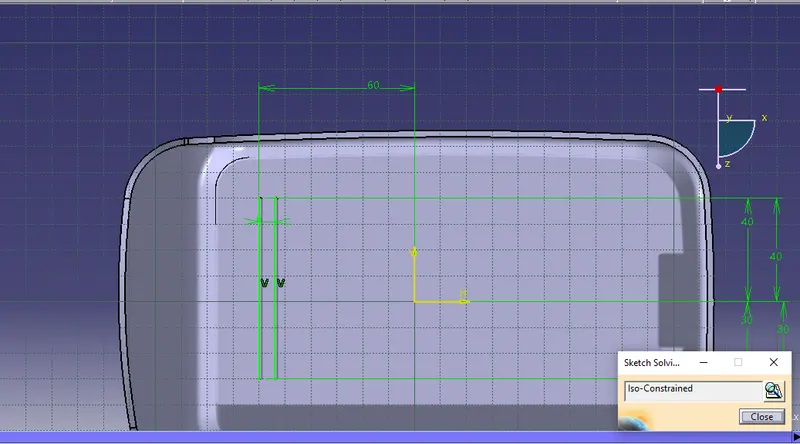

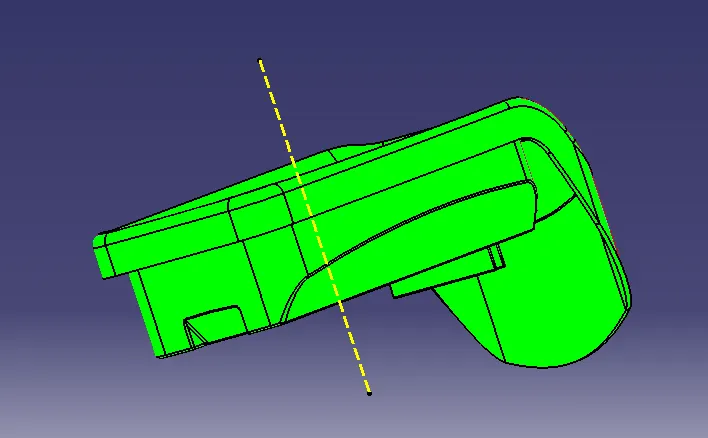

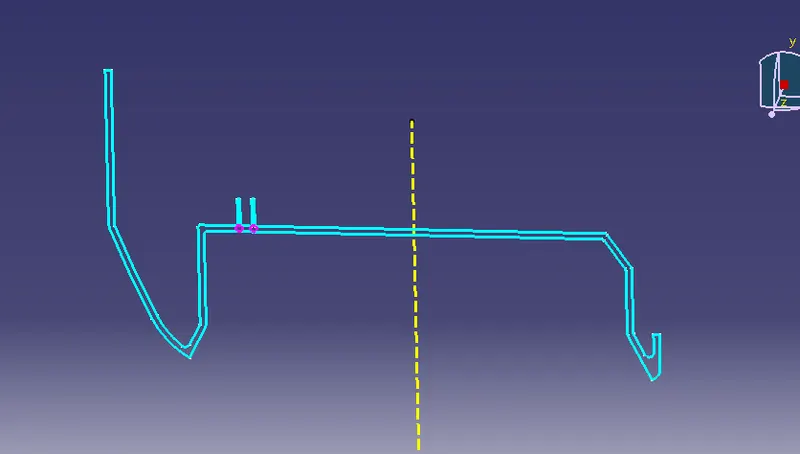

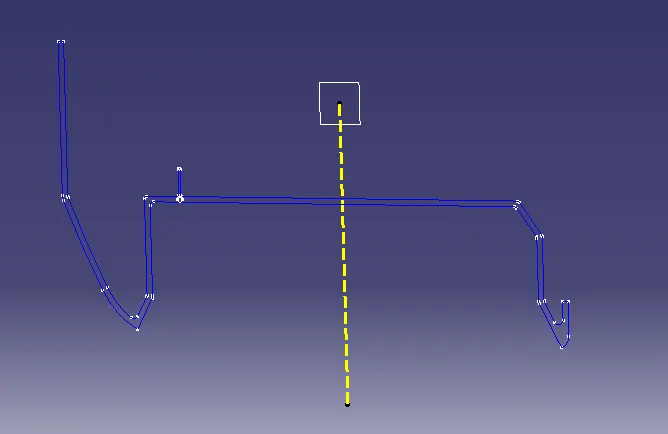

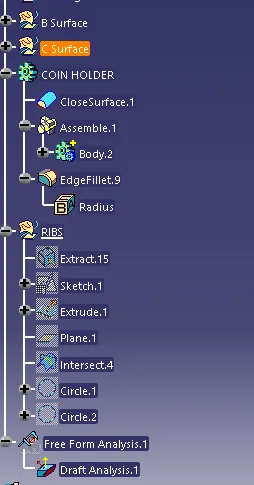

9. Rib root thickness should not be more than 30% of the wall thickness.
