MODELING AND RENDERING AMERICAN CHOPPER USING SOLIDWORKS

OBJECTIVE:-

• To create different parts in American chopper by using solidworks
• To assemble various modelled parts for the chopper
• To create photorealistic model and render the model by using solidworks photoview 360 and solidwork visualize.

PARTS TO BE MODELED FOR AMERICAN CHOPPER:-

       The following parts modelled in solidworks and assembly together.

• TRANSMISSION BELT
• KICKSTAND
• FRONT FENDER
• REAR FENDER
• GAS TANK
• OIL TANK
• FRONT WHEEL
• REAR WHEEL
• ENGINE
• FRONT FORK
• CHASSIS
• CHAIN
• PEDAL

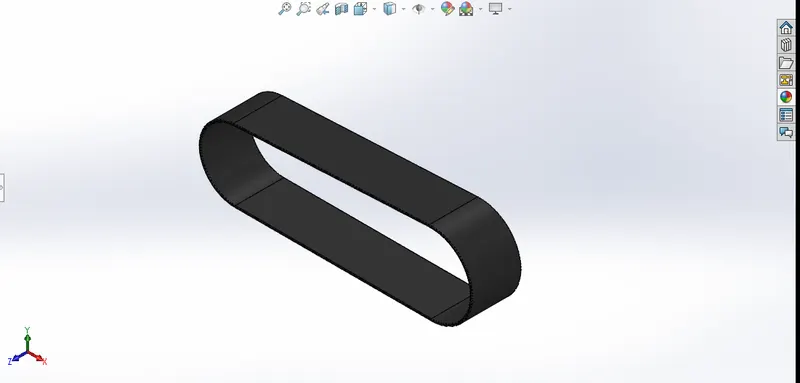

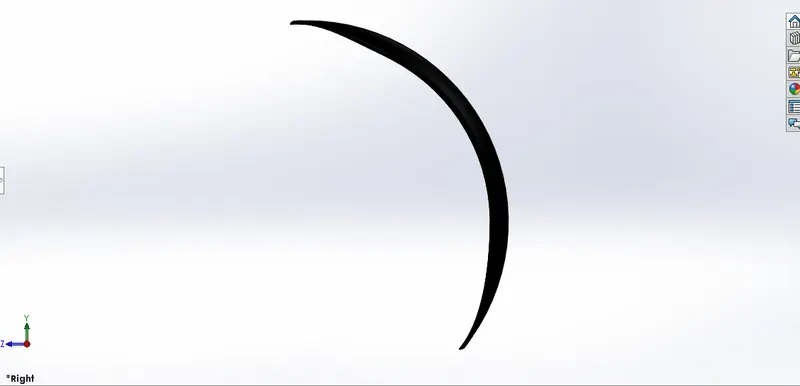

Transmission belt:

Transmission belt in the chopper is used to tansmit power from engine  to gear box



Features used to create transmission belt:

• Sketch
• Offset
• Extrude
• Fillet
• Appearances

Sketch:

Sketch is the two dimensional representation of the model with respect to the plane in solidworks there are different sketch options to create a sketch for example line, Arc ,Spline, Circles, Rectangles. These are known as Sketch Entities in solidwork

Offset:

offset one or more sktech entities select model edge or model face by a specified distance for example offset sketch entities such as lines, arcs and splines

Extrude:

Extrude is a type of feature to convert 2D sketch into 3D model

Fillet:

Fillet creat round internal and external face of parts you can fillet number of faces and edges

Procedures followed to create a model of Transmission belt

• Open solidworks software and create new model
• Select front plane and draw a sketch
• The 2D sketch plane is created in front plane and dimensions relations are given to the sketch and sketch the offset command use to duplicate sketch to some distance.
• After the process extrude the sketch from 2D to 3D model.
• Then apply the fillets as per requirements of the transmission belt .
• After that give appearance to transmission belt and save the model.

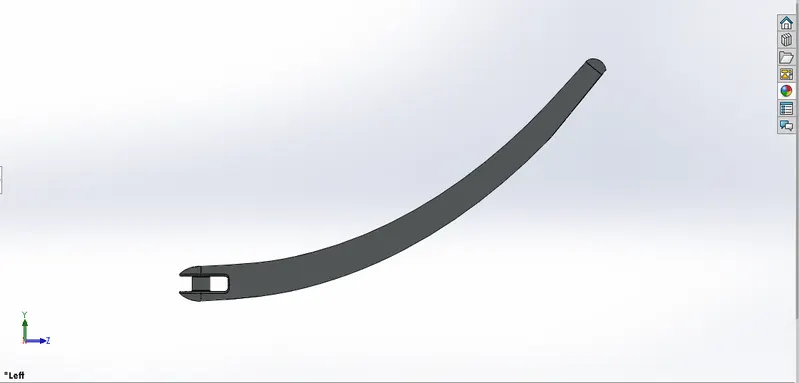

Kickstand:

It is used to support American chopper and it is also called as side stand



Features used to create Kick Stand

• Sketch
• Loft
• Dome
• Extrude boss
• Extrude cut
• Fillets
• Split
• Appearance

Loft:

Loft feature allows to generate complex geometry in single feature by interpolating surface between various cross section of a model these cross section can be face or edge.

Dome:

Dome feature gives smooth face on profile you can apply dome to face whose centroid lies outside the face.This allows you to apply dome to irregular contours

Extrude cut:

Extrude cut is used to remove materials from the 3D models.It is just opposite to Extrude Boss feature you can cut it both directions and mainly used for creating holes, slots etc

Split:

Split tool used to project an entity (sketch, solid, surface, face, plane or surface spline) onto other surface or curved face you are able to split faces on multiple bodies by this command

Procedures followed to create a model of kickstand:

• Open solidworks and creat new model
• Select mid plane (Right plane) draw sketch on it
• Then the 2D sketch is created in the front plane and dimensions are given to the sketch to fully define we will use trim and spline commands are used
• Then creat two new planes and the ellipse are drawn on the new planes as per requirements
• Then use loft command to create loft for kickstand
• Then do extrude cut command to remove unwanted parts for the stand

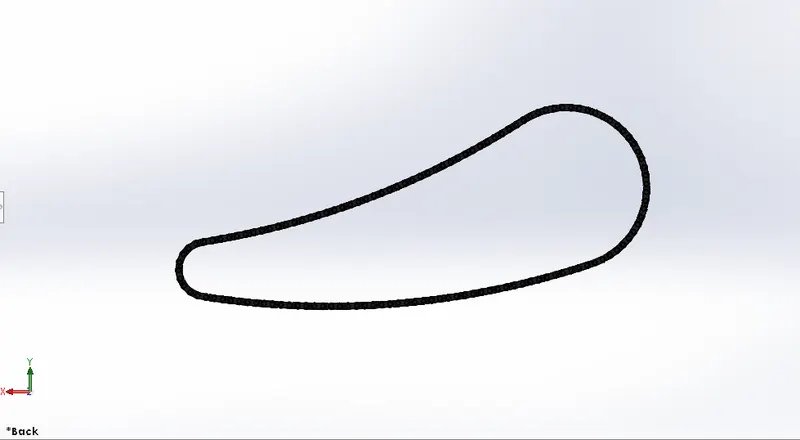

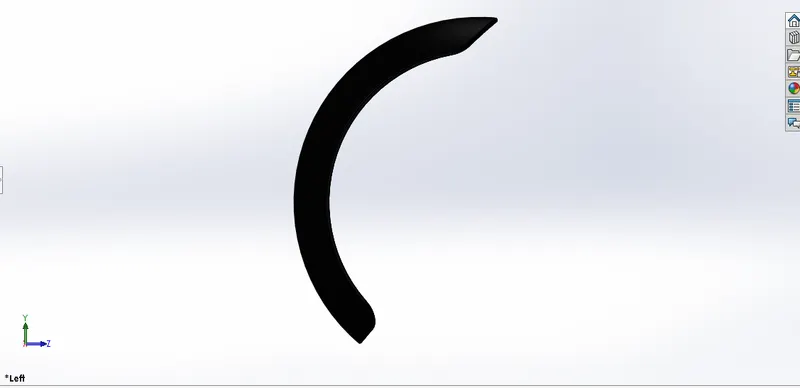

Front Fender:

Front fender is part mounted on the fork above the wheel to protect the rider and the chopper other parts



Features used to create front fender

• Sketch
• Offset Entities
• Trim entities
• Revolve
• Dynamic mirror
• Split
• Appearances

Trim entities

select trim based on the entities you want to trim All trim types are available for 2D sketches and 2D sketches on 3D planes and you can use power trim

Revolve

To create revolve feature u must have one or more profiles and center line to use axis around which the feature revolves

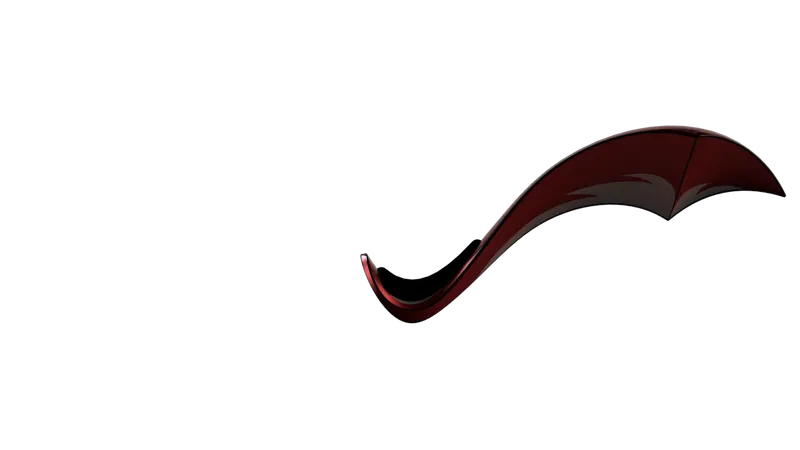

Rear Fender:

Rear Fender is the same as front fender the rear fender is mounted on the chassis of the rear part above the  rear wheel



Features used to create Rear Fender

• Sketch
• Offset Entities
• Trim Entities
• Revolve
• Appearance

Appearances

An appearance is a visual properties of a model including colour and texture

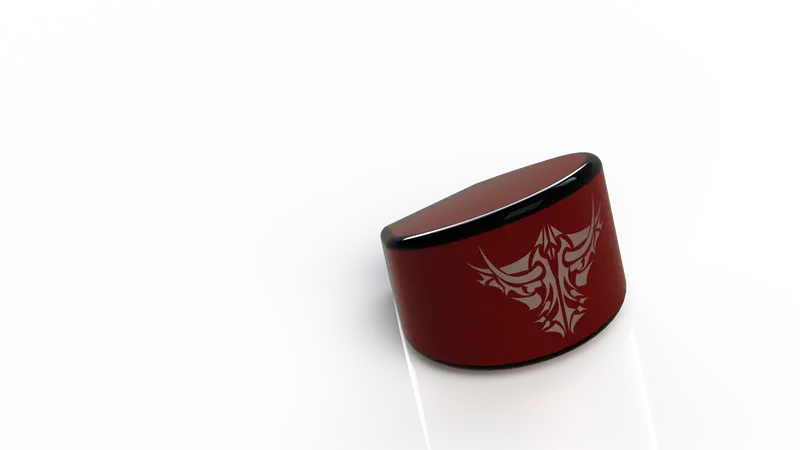

Oil Tank:

Oil tank is one part of the chopper. It is used to store oil and its has 3mm Thickness



Features used to create oil tank

• Sketch
• Boss Extrude
• Combine
• Fillet
• Shell
• Appearances

Combine

Combine is a type of feature in solidworks to combine two bodies

Shell

It is define as thickness of thin and thick shell elements

GasTank:

Gas tank is used to store the gas



Features used to create gas tank

• Sketch
• Trim
• Project curve
• Convert entities
• sweep surface
• Loft surface
• Fill surface
• Surface trim
• Sweep knit
• Sweep cut
• Fillet
• Appearances

Loft surface

Loft surface generated by multiple 3D curve or existing edge create smooth tangency between the selected curve

sweep surface

Surface that are generated from a section curve positioned along a path

Filled surface

Filled surface feature constructs surface path with any number of sides within a boundary defined by existing model edge sketches or curves including composite curves

Surface trim

Primarily used to cut away material from a surface and provide two modes standard and mutual

Surface knit

Surface knit is used to knit the two free edge of the surface together.also it reduce the gap between the two edges of the surface

Chain:

It is a transmission system that is used to transmit power from engine to rear wheel



Features used to creat chain

• Sketch
• Trim
• Fillet
• Blocks
• Extrude

• Pattern
• Appearance

Block

You can edit block and insert blocks for drawings items and sketch entities such as standard notes tittle blocks label positions and so on you can attach blocks to geometry or u can insert blocks into sheet formats

Process to Create a block

1. create a sketch
2. click make blocks (block toolbar)
3. Select sketch to make blocks
4. repeat step once again
5. with sketch in edit mode add the necessary relations
6. save the part

Patterns

curve driven pattern tool allows to creat pattern along 3Dcurve u can do a open or closed curve such as circle in the chains parts curve driven pattern is used

Pedal:

Pedal is a part attached to chassis and pedal used to place leg on that to give comfort



Features used to create pedal

• Sketch
• Extrude
• Fillet
• Liner pattern
• Dome
• Chamfer
• Appearances

Chamber

A cut on the edge or corne rof something that makes it slope slightly rather than being perfectly square

Linear pattern

It is almost like circular pattern.The feature are patterned linearly

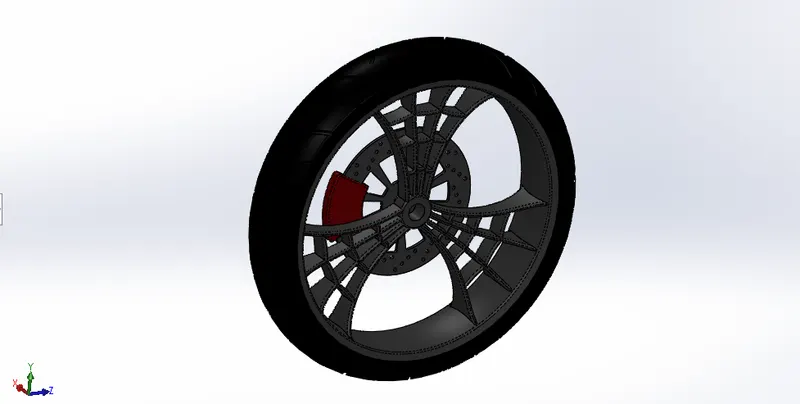

Front wheel

A wheel is a circular block made of the steel material on the top of the wheel tyre is covered these are made up of rubber and it has thin wires within it



Features used to create front wheel

• Sketch
• Revolve
• Trim
• Fillet Entities
• Boss/Base Extrude
• Revolve cut
• Linear pattern
• Chamfer
• Fillet Features
• Cut Extrude
• Circular Pattern
• Appearances

Circular pattern

Circular pattern is used to create a pattern of the sporks and the pattern available in the tyre. Also it is used to create holes in the disc of the front wheel. The features are used to create a different number of instances required to create the pattern circularly

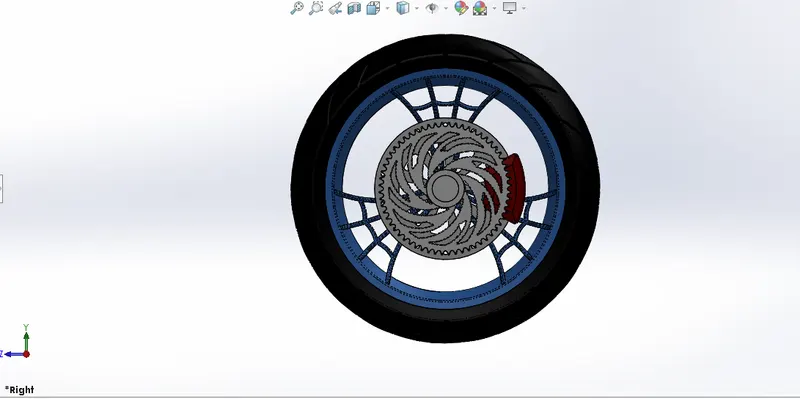

Rear wheel:

A circular object that revolves on an axle and is fixed below a vehicle or other objects to enable it to move easily over The ground the disc and sprockets are attached to rear wheel The chain is connected between engine and rear wheel



Features used to create Rear Wheel

• Sketch
• Revolve
• Trim
• Fillet Entities
• Boss/Base Extrude
• Planes
• Revolve cut
• Linear pattern
• Chamfer
• Fillet Features
• Cut Extrude
• Circular pattern
• Appearances

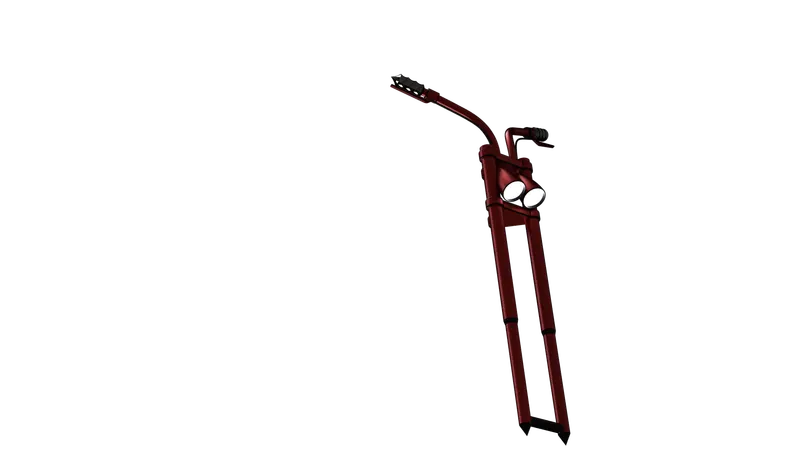

Front fork:

Most motorcycles today use telescope fork for the front suspension The forks can be mostly understood as simple as hydraulic shock absorbers with internal coil springs they allow front wheel to react imperfections in the rod while isolating rest of the motorcycle from the motion



Features used to create front fork

• Sketch
• Extrude
• Trim
• Revolve
• Split
• Plane
• Convert Entities
• Move/Copy Body
• Dome
• Mirror
• Combine
• Curve (Project curve)
• Sweep
• Appearance

Move/Copy Body

It is used to move body from one place to another

Mirror

By using mirror face with a mid-plane selected only the chosen within the revolve will be mirrored.mirroring bodies can be used whether in a single or multi body part and allows you to select solid geomentry instead of the features and faces in a body In the fork part  the one part of the fork is created and the other part is mirrored.Then the parts are manually combined.

Project curve

Project curve is the kind of 3D cure which is projected on the basis of the two different 2D sketches

Sweep

With the Sweep feature we can create a shape by moving a 2D sketch profile along a 2D or 3D sketch path

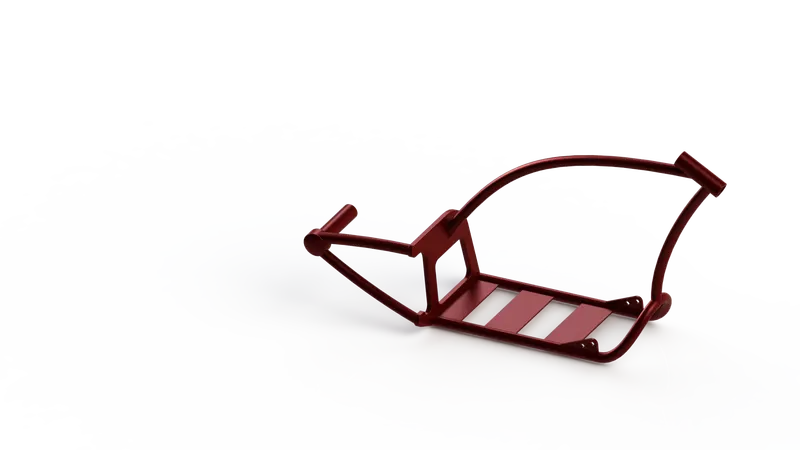

chassis

A chassis or a frame forms its skeleton All components of a motorcycle like the wheels fuel tank seats handlebars etc are attached to base structure



Features used to create chassis

• Sketch
• Offset
• Convert Entities
• Project Curve
• Trim
• Plane
• Sweep
• Split
• Revolve
• Cut Extrude
• Fillet
• Combine
• Appearance

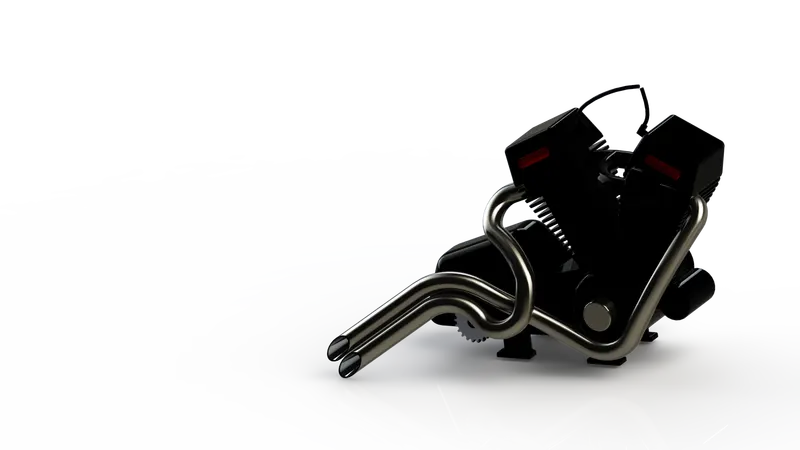

Engine:

Engine is the prime mover for the bike. The engine converts a chemical energy into heat energy

and then heat energy is converted into mechanical energy.



Features used to creat engine

• Sketch
• Convert Entities
• Trim
• Revolve
• Boss Extrude
• Cut Extrude
• Offset
• Dome
• Fillet
• Projection Curve
• Composite Curve
• Sweep
• Mirror
• Circular Pattern
• Split

Assembly of chopper:

• Initially the chassis part is inserted in the assembly by using insert parts in the option after that the part is inserted in the assembly make it fix the chassis
• After That the other parts of the chopper are inserted into the assembly and give possible mate conditions



Features used to assemble chopper

• Mates
• Insert part

Mates

Mates create geometric relationships between assembly components as we add mates we define the allowable direction of linear or rotational motion of the component we can move a component within degrees of freedom visualizing the assembly behaviour

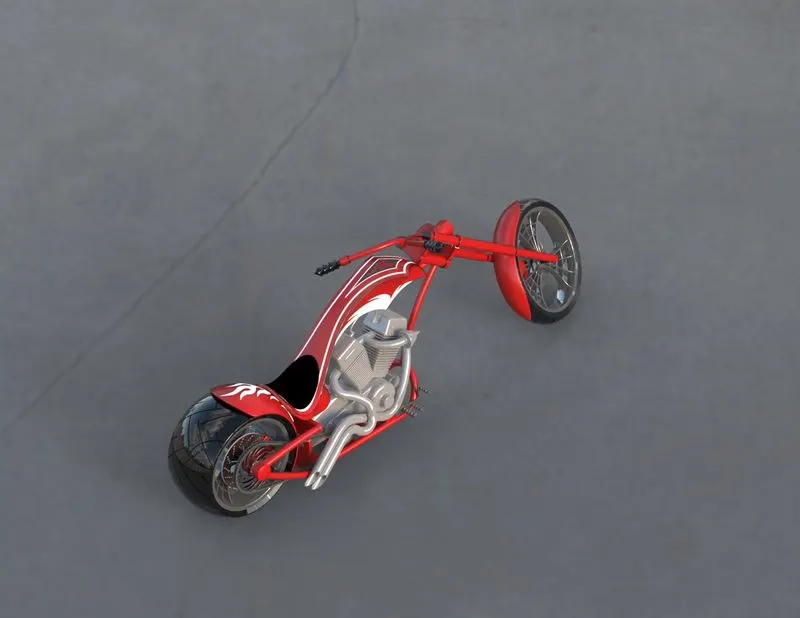

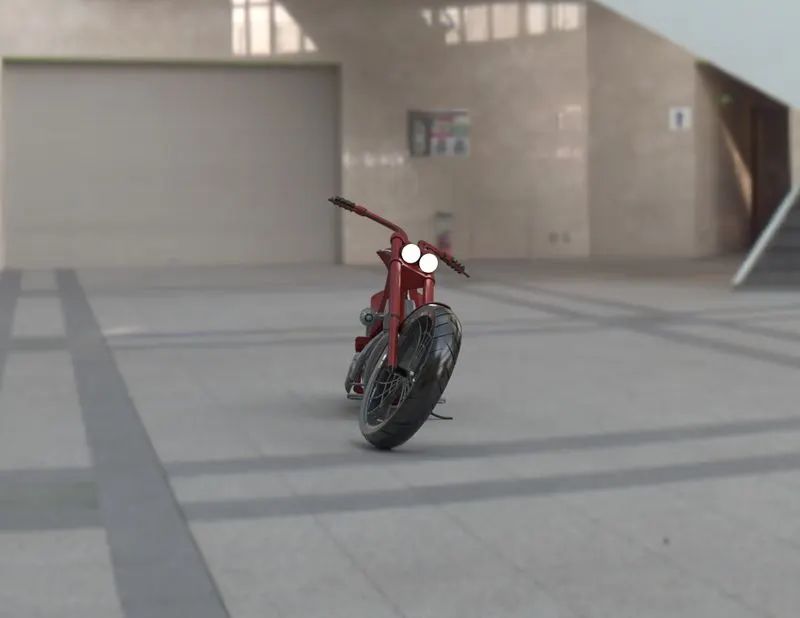

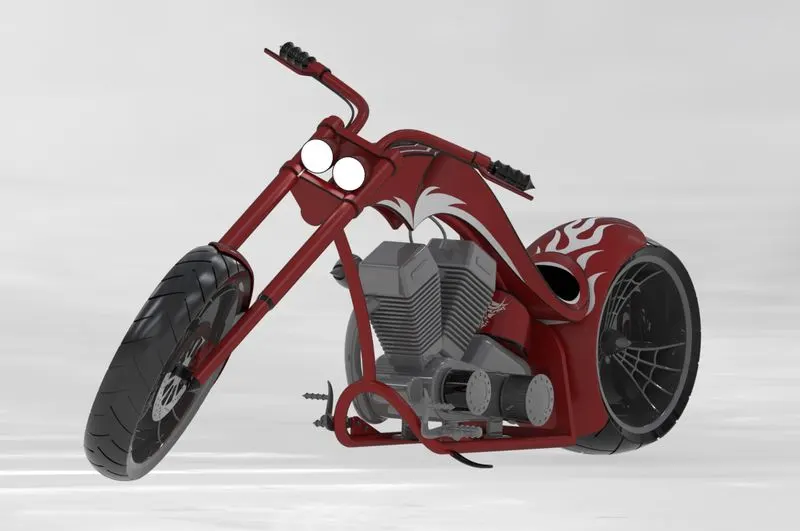

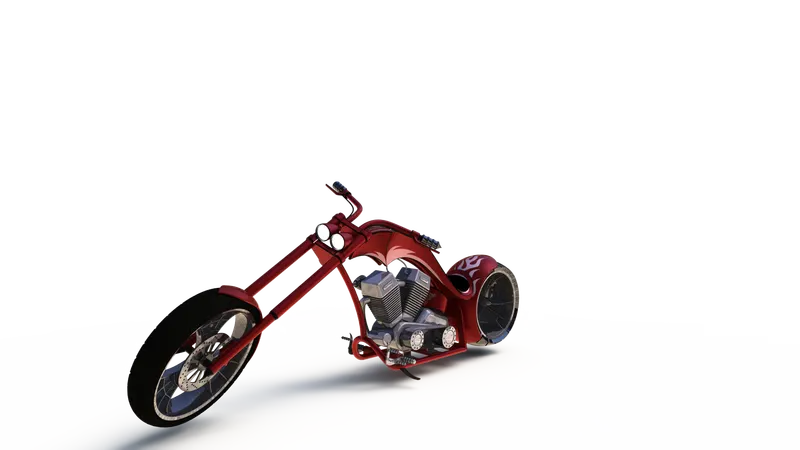

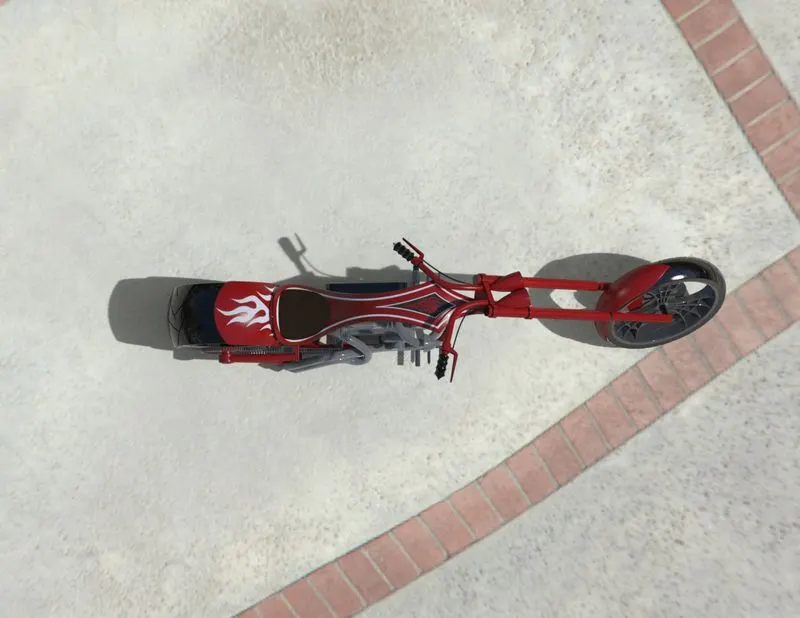

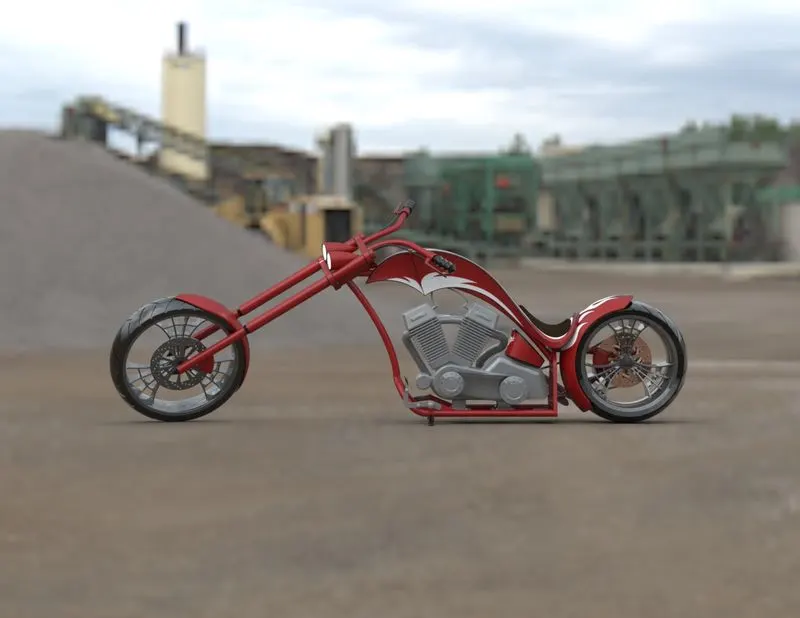

Rendering:

• Rendering is the process of creating realistic images of the photorealistic model with the environment.
• rendering can be done in two ways in solidworks.
• Photoview 360
• solidworks visualize.
• In photorealistic model some of the mate conditions and positions are changed to render realistic model.











Conclusion:

• The parts of the chopper are modeled.
• The parts are inserted to assembly environment and the chopper is assembled.
• The realistic image was rendered with the use of the photoview 360 and solidworks visualize.
