Week 9 - Attachment Feature Creation - Challenge 1

Week 9 - Attachment Feature Creation - Challenge 1

GUIDELINES FOR RIBS DESIGN

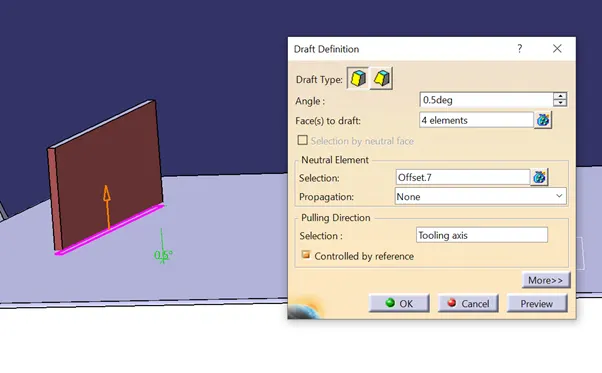

1. DRAFT: 5 degree per side minimum draft allows the rib to release from the mold.

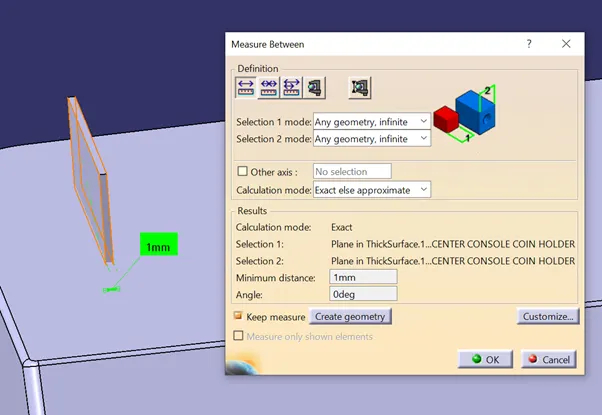

2. THICKNESS: typically, 40% wall thickness= 0.4*t

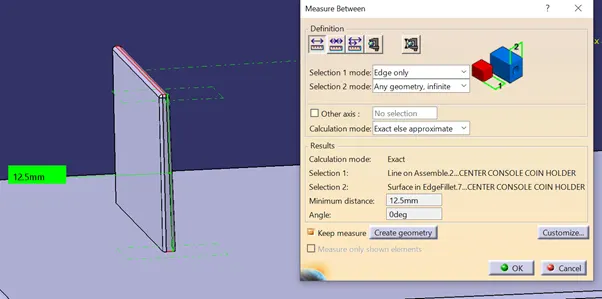

3. HEIGHT: less than equal to 5 times the wall thickness

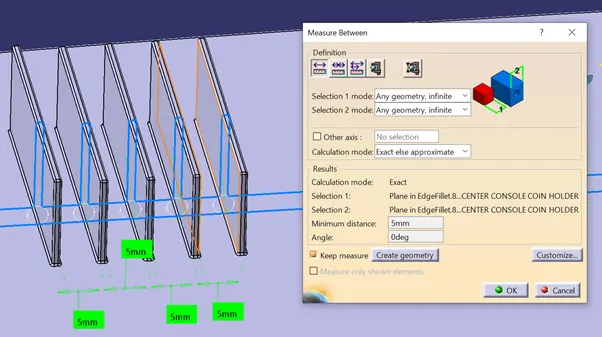

4. SPACING : 3:1- steel height/ width ratio maximum

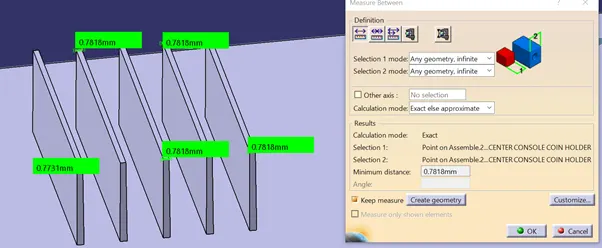

3. THICKNESS AT TOP: minimum thickness at tip is 0.75








4. OPTIONAL RADIUS: 25mm maximum







5. RIB ROOT THICKNESS: 0.25mm maximum

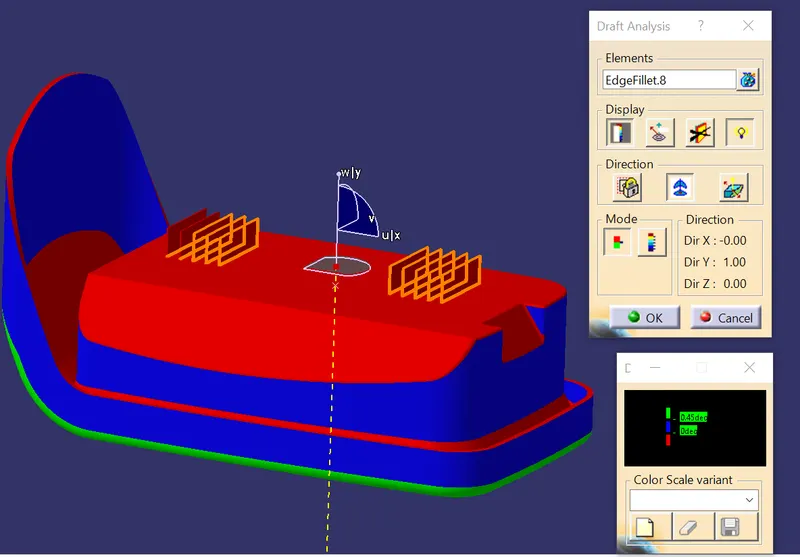

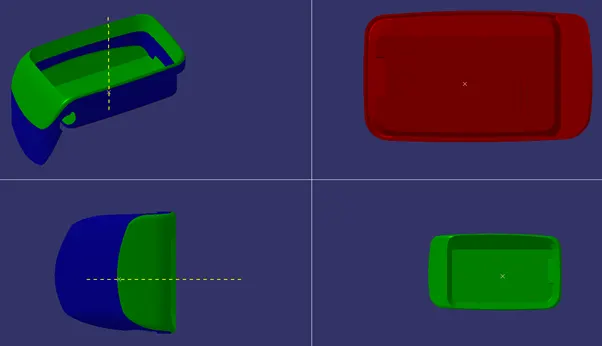

DRAFT ANALYSIS: maximum of 1.5 degree draft is allowable
