Week 8 Worm Gear Challenge
Objective:
To cut the worm gear as half by using spaceclaim and run the simulation by using stuctural steel asa a material and find the total deformation, total equivalent stress and strain.

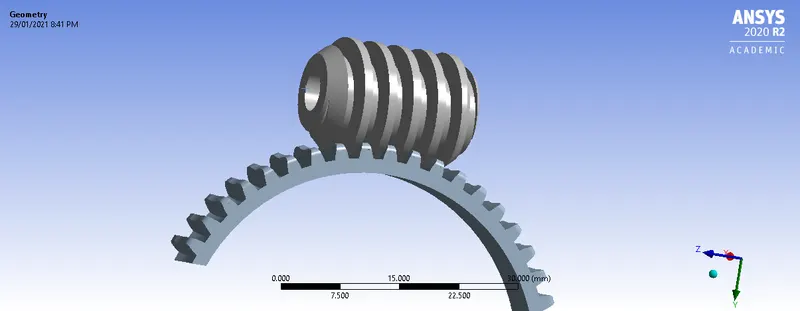

Model:

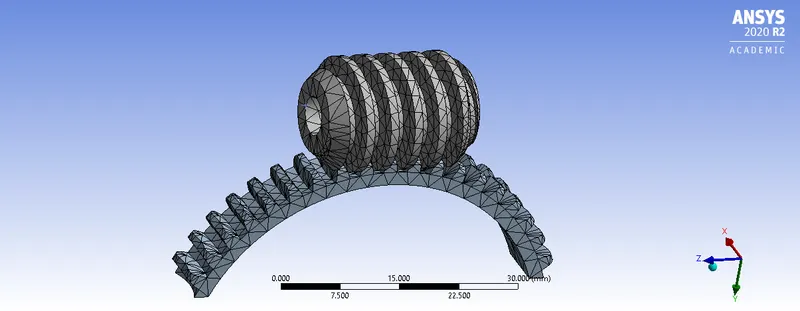

Mesh:

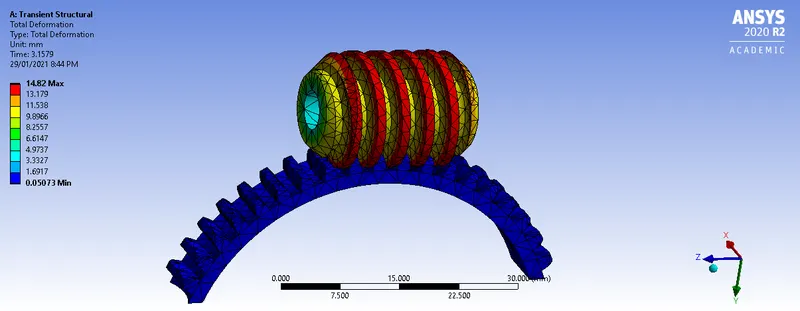

Total Deformation:
The total deformation is 14.8mm

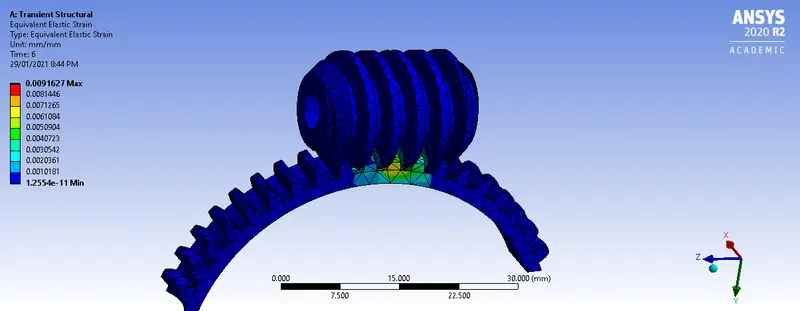

Equivalent strain:
The equivalent strain is 0.0091

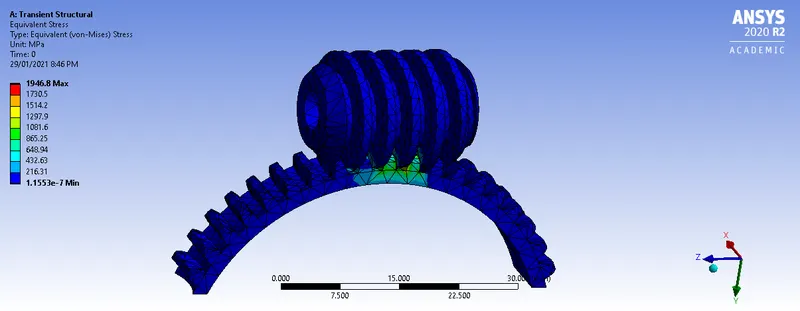

Total Equevalent stress:
Total equivalent stress is 1946.8Mpa
The videos and the archive files are attached below.
