Week 8 Worm Gear Challenge

OBJECTIVE

To perform a transient strucrural analysis on a worm gear assembly and determine the total deformation , Equivalent stress and Equivalent Elastic Strain developed in the model

PRODECURE

Create Transient Structural analysis and in engineering data select the material structural steel

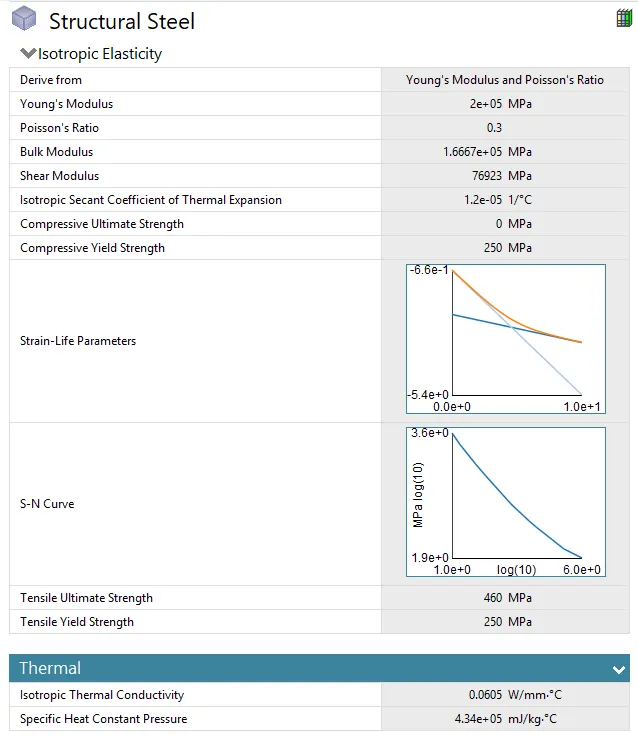

Structural Steel

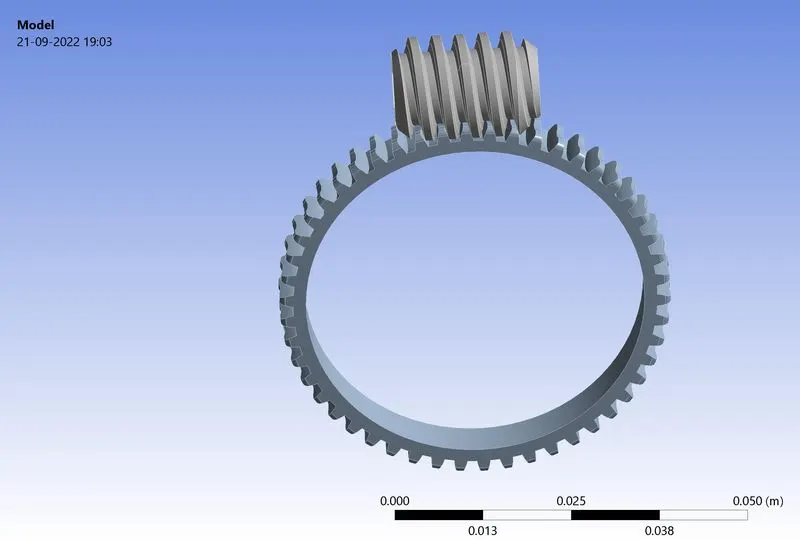

Import the geometry and check in Spaceclaim for any irregularties

Then open Ansys mechanical and rename the component as worm and gear then assign the structural steel material to all components

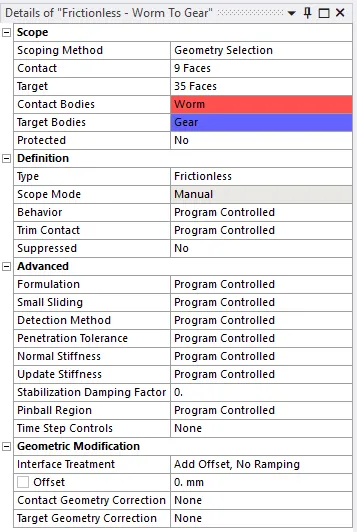

Contact   One contact created as frictionless contact

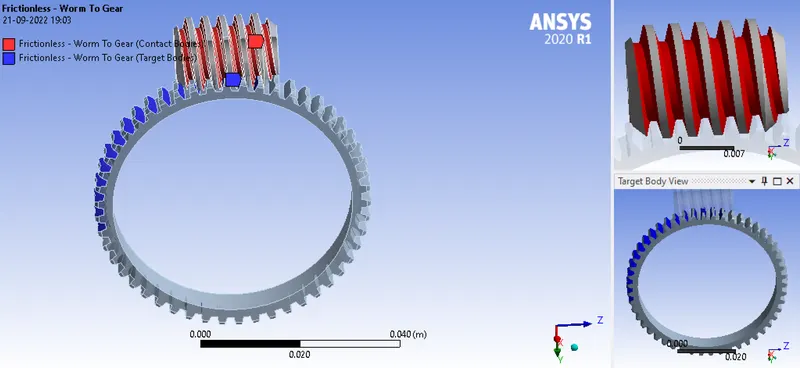

Frictionless Worm to Gear





Joints

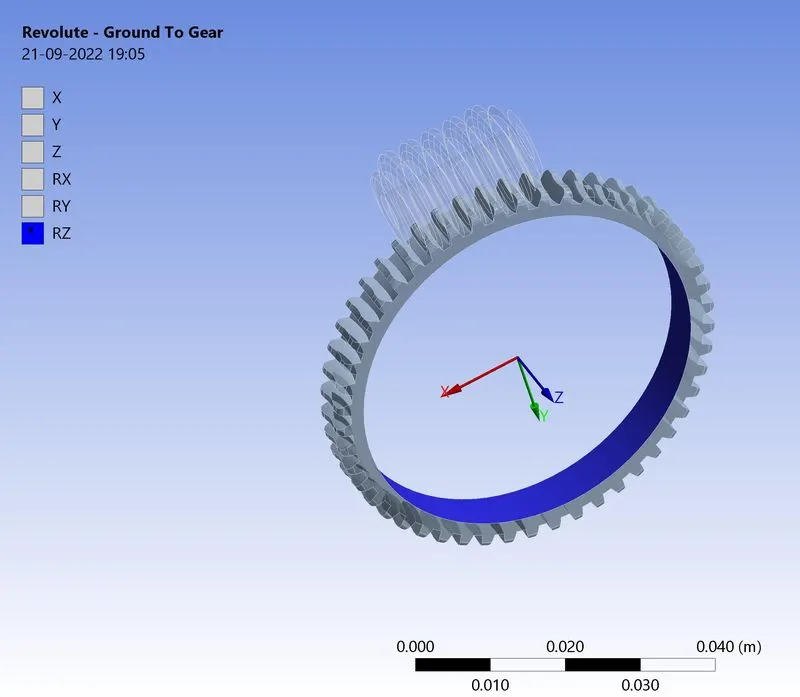

Revolute Ground to gear

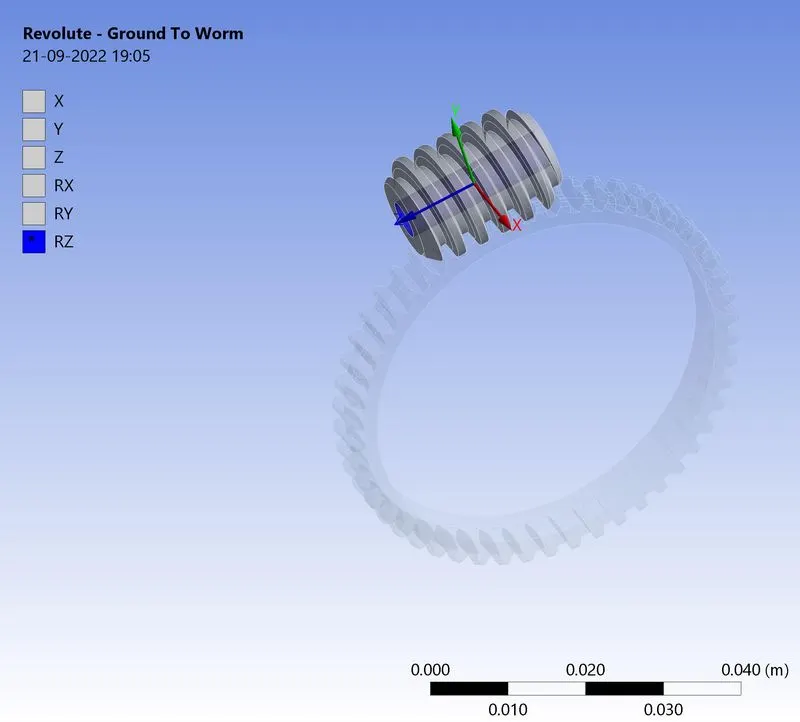

Revolute Ground to Worm

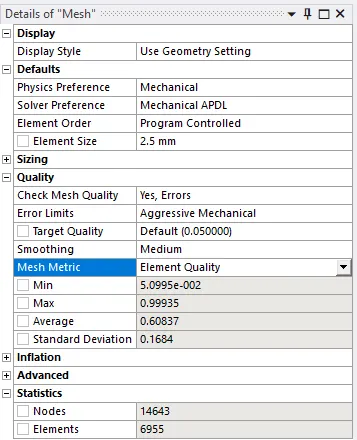

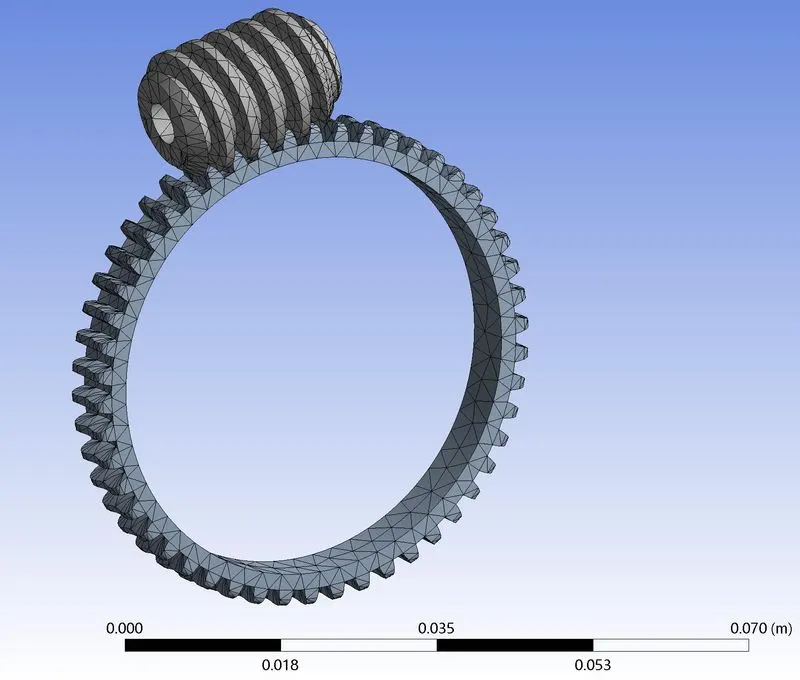

Mesh   Mesh the whole geometry with 2.5mm element size

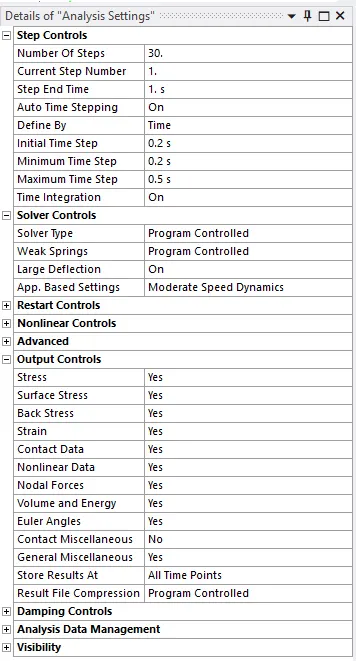

Analysis Setting   The simulation for 30 steps. So the number of steps is set as 30

Large deflection set to on weak springs set to program controlled auto time stepping to on defined by time.Intial time step set to 0.2s Minimum time step set to 0.2s and maximum time step set to 0.5s .For second to thirty step set carry over time step to on .In output control set all output to yes.

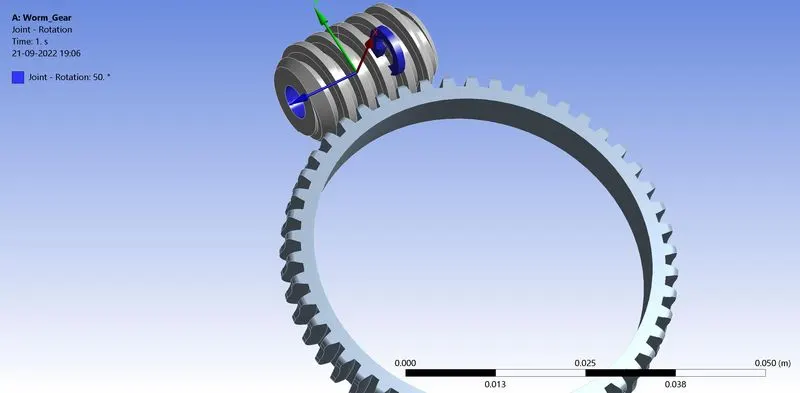

Joint Rotation   The revolute joint on the worm is provided a rotation of 1500 degrees



Run the simulation and results obtained

Result  The analysis runs successfully and results obtained

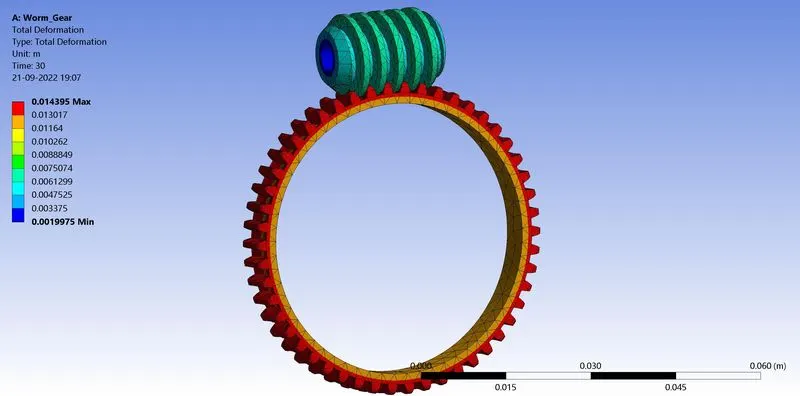

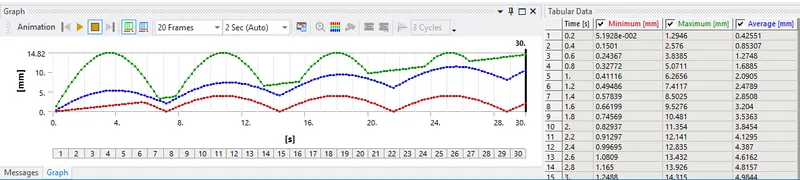

Total Deformation Max-14.395mm

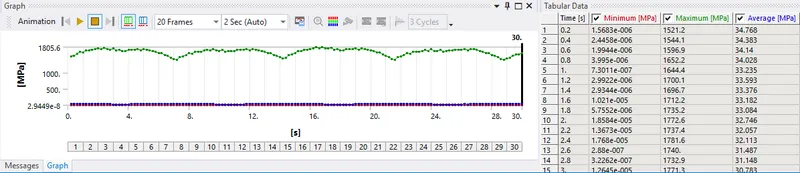

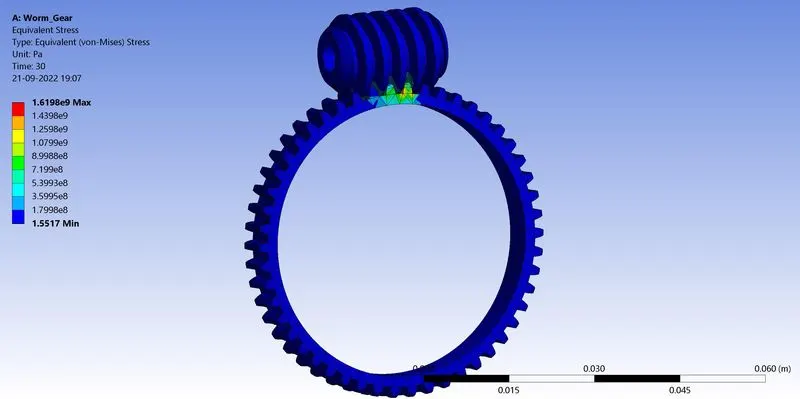

Equivalent Stress Max - 1619.8Mpa

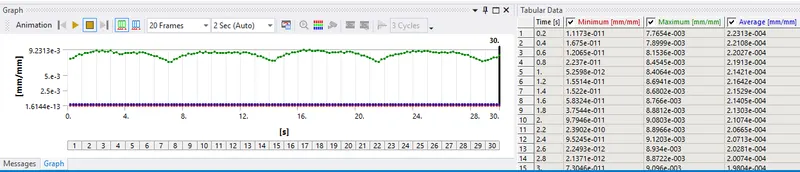

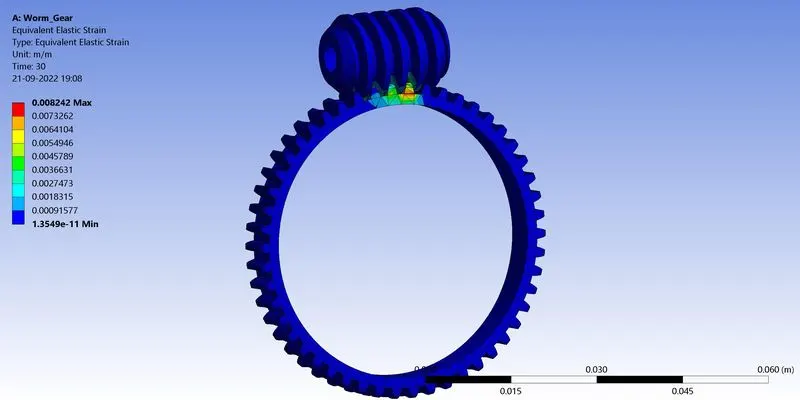

Equivalent Strain Max - 0.008242mm/mm

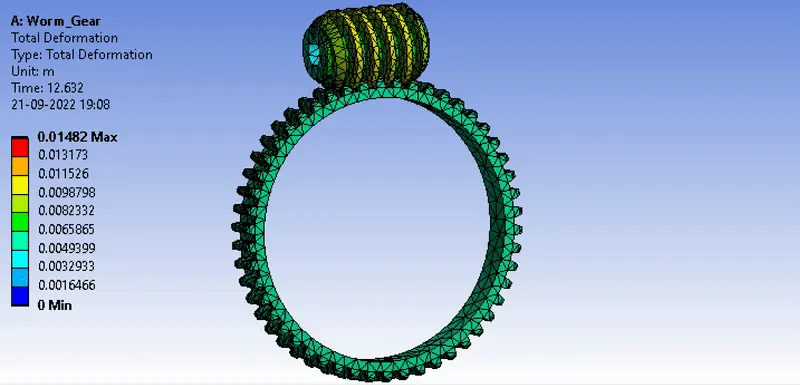

Total Deformation



CONCLUSION

• The maximum stress occurs at point of contact
• The maximum defornation are basically measurements of displacement of a worm gear assembly with respect to its intial position
• The maximum stress and strain is observed at the length root of gear
