Week 8 - Universal Joint

OBJECTIVE

To perform a transient structural analysis on a double universal joint with a spring using three different materials

Case 1 Structural Steel

Case 2 Stainless Steel

Case 3 Titanium Alloy

The three material must be used on the joint with the spring alone

Create Transient Structural analysis and the in engineering data select the material structural steel

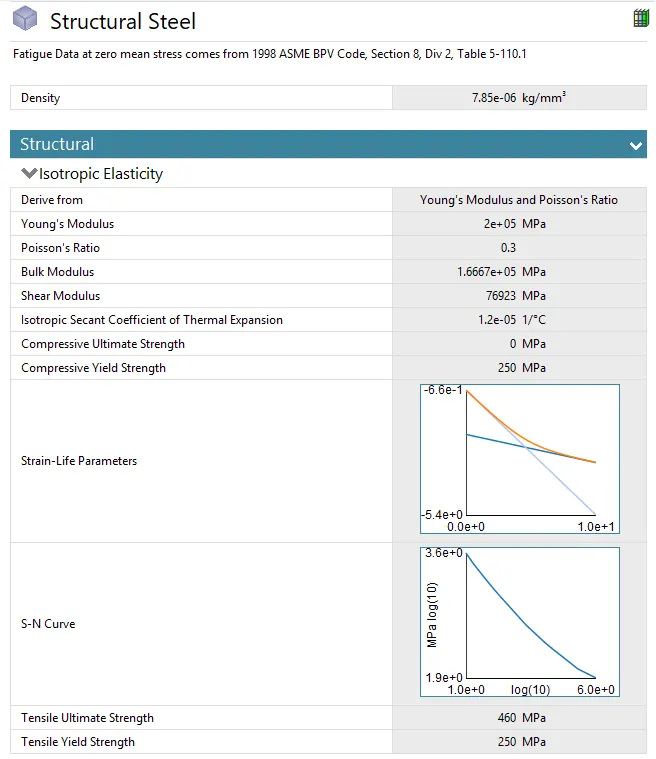

Structural steel

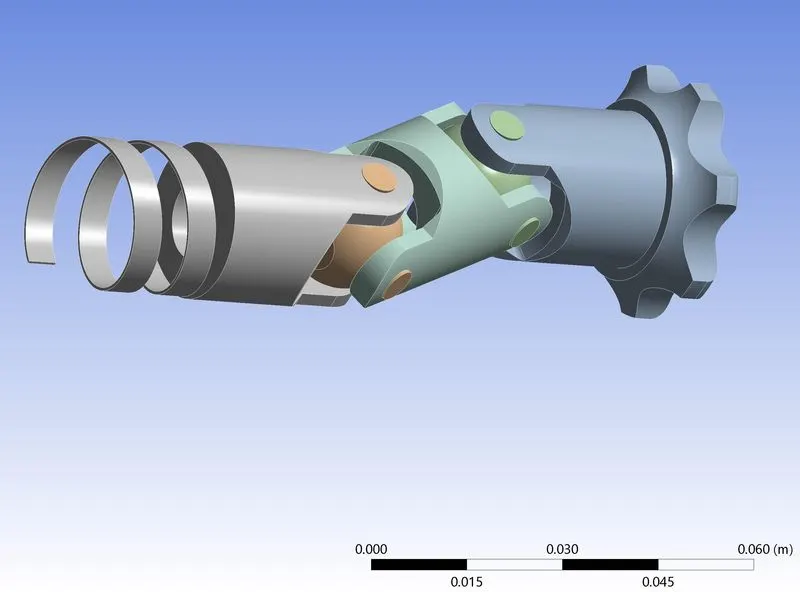

Import the geometry and check in Spaceclaim for any irregularties

Then open ansys Mechanical and assign the structural steel material to all the components



Joints

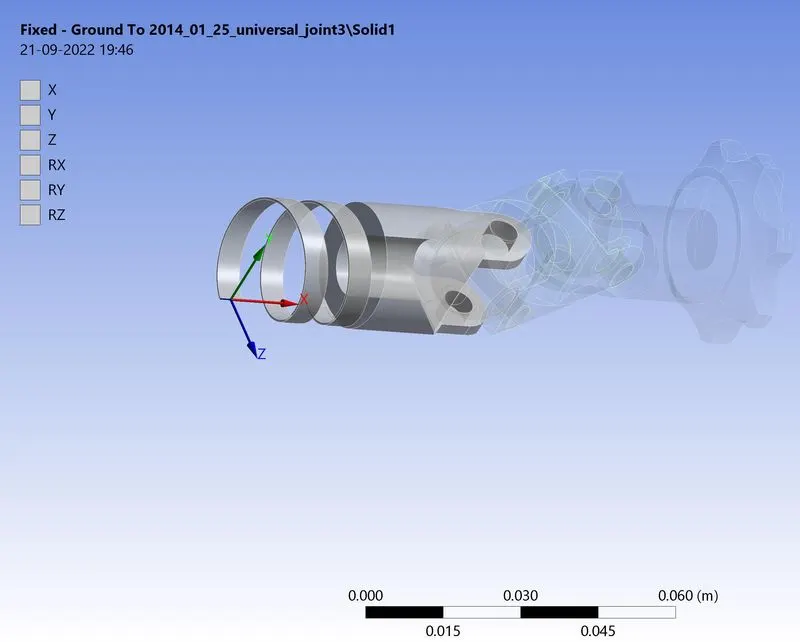

Fixed Body to Ground Joint   The spring at the end it provided a fixed joint

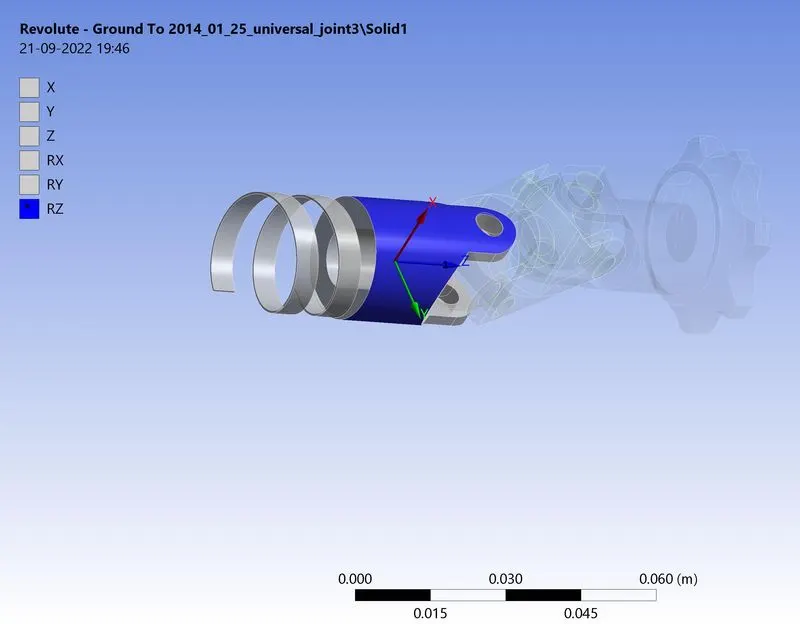

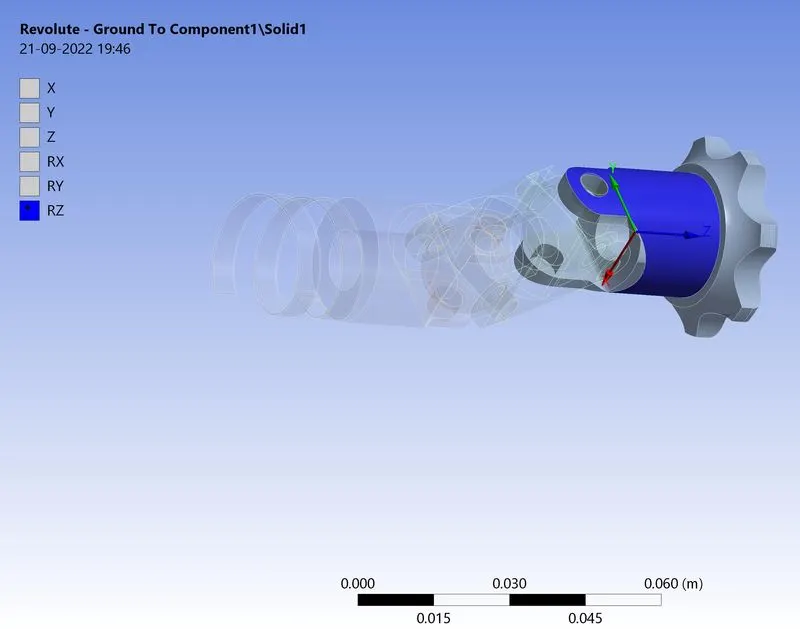

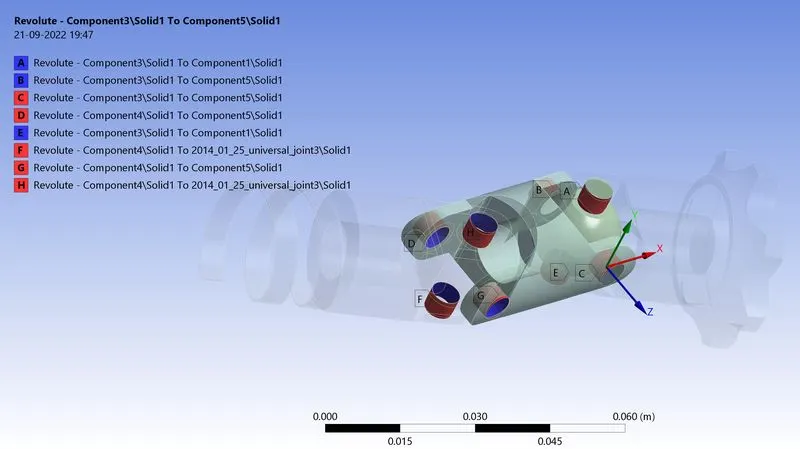

Revolute  Body  to ground Joint



Revolute Body to ground Joint



Revolute Body To Body Joint  is given to all the pins and gears

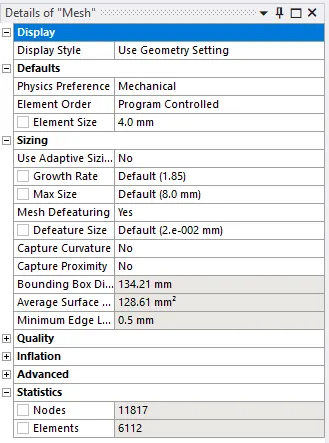

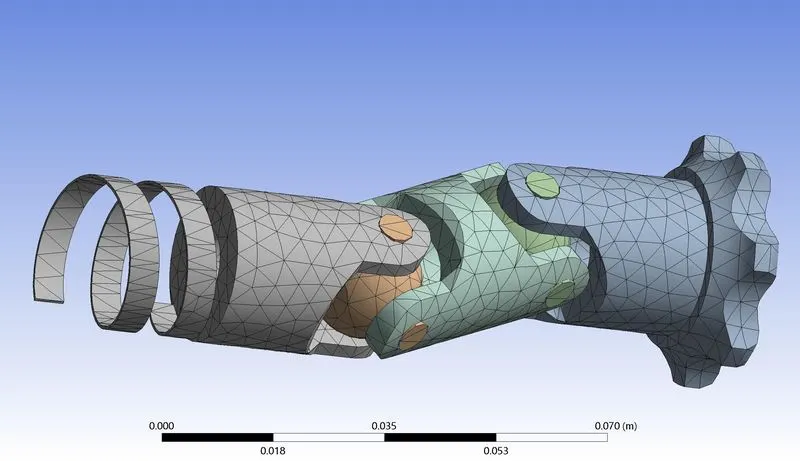

Mesh     Mesh the whole geometry with 4mm element size and set adaptive sizing to no

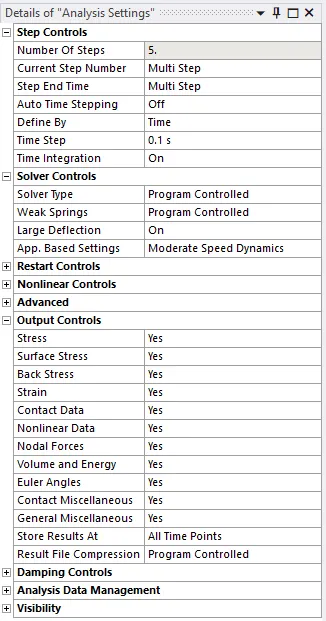

Analysis Settings  The simulation runs for 5 steps so that number of steps is set as 5

Large deflection set to on auto time stepping to off  defined by time and time step set to 0.1s .In output control set all output to yes.

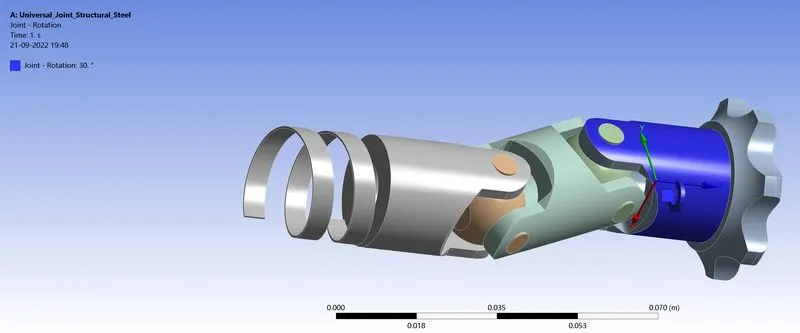

Joint Rotation   The revolute joint of the gear is provided a rotation of 150 degrees



Run the simulation and results obtained

Result  The analysis runs successfully and results obtained

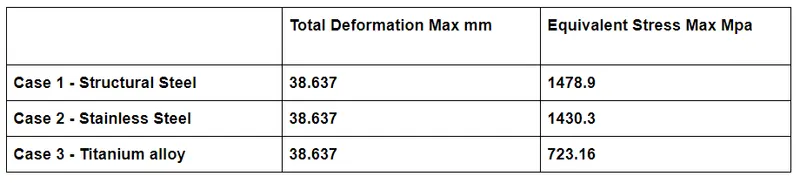

Case 1 Structural Steel is assigned for all the parts of the assembly

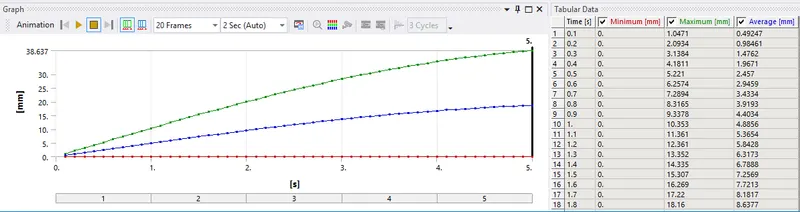

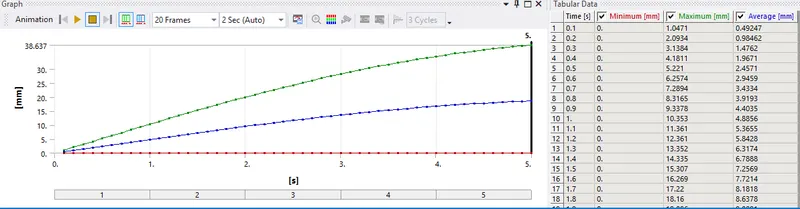

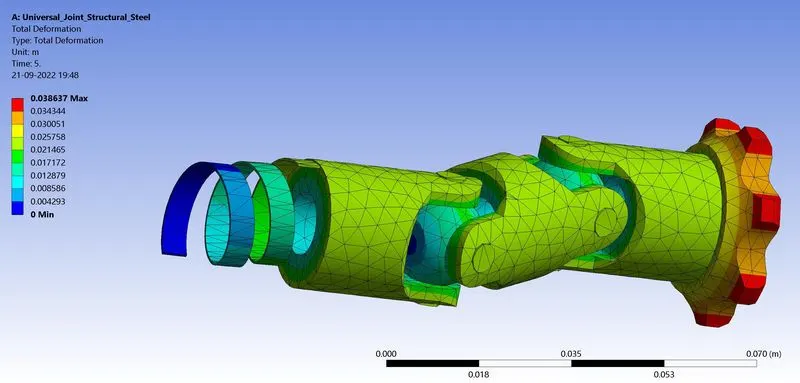

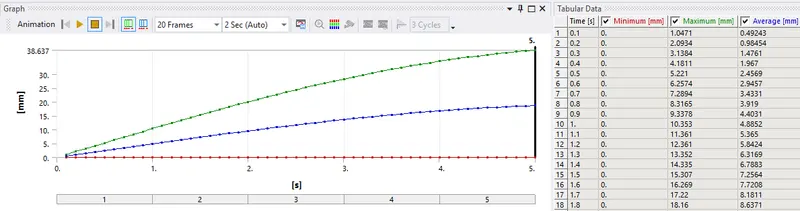

Total Deformation Max - 38.637mm

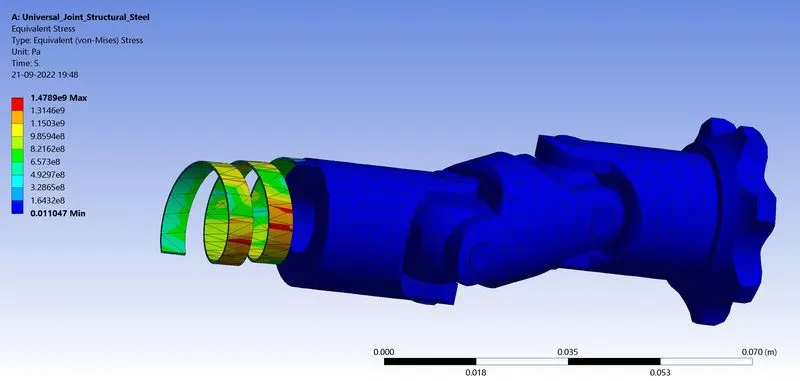

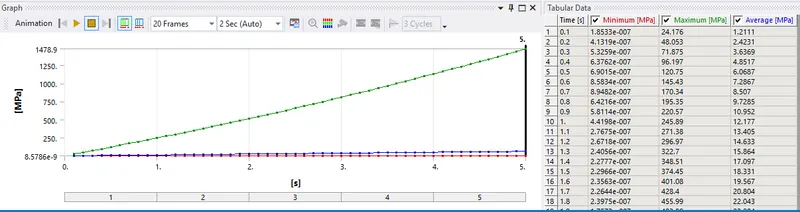

Equivalent Stress Max - 1478.9Mpa

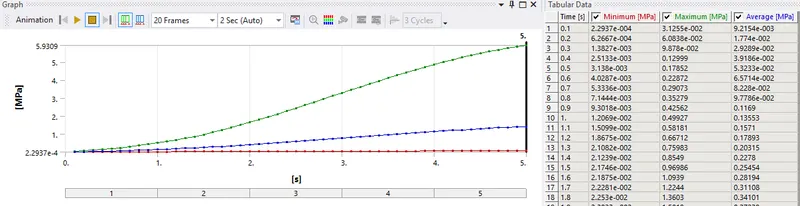

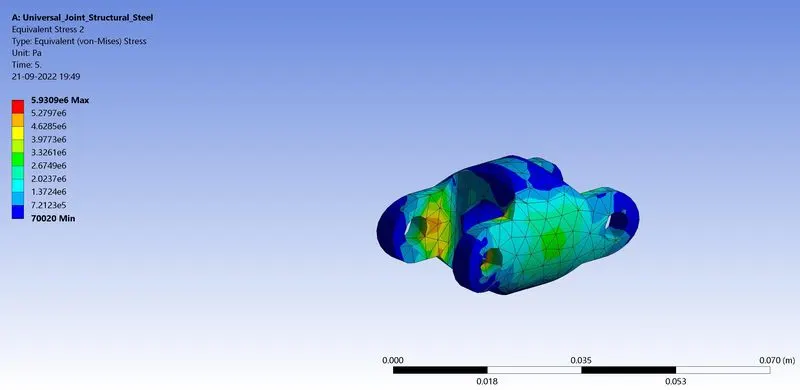

Equivalent Stress at Joint Max - 5.9309Mpa





Case 2

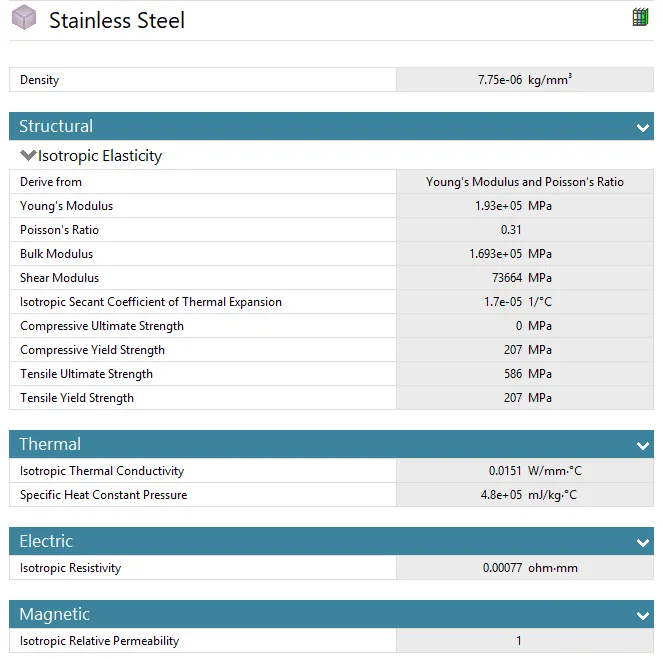

 Stainless Steel  is assigned on the joint with the spring alone

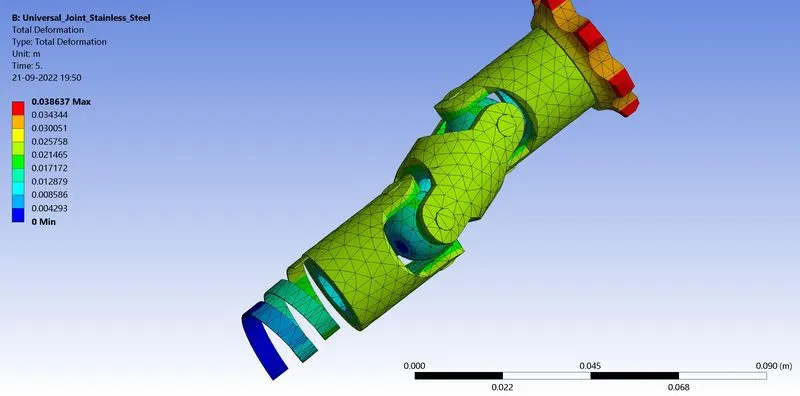

Total Deformation Max - 38.637mm

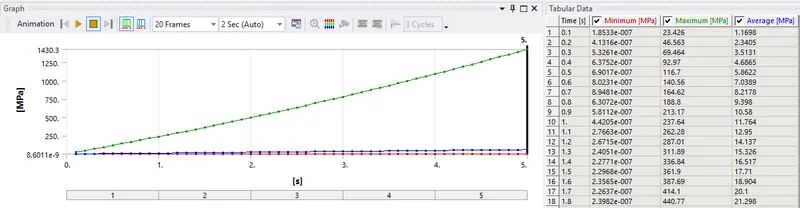

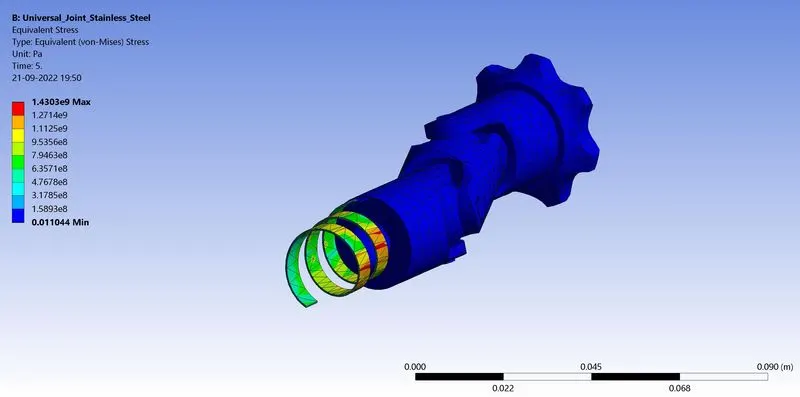

Equivalent Stress Max - 1430.3Mpa

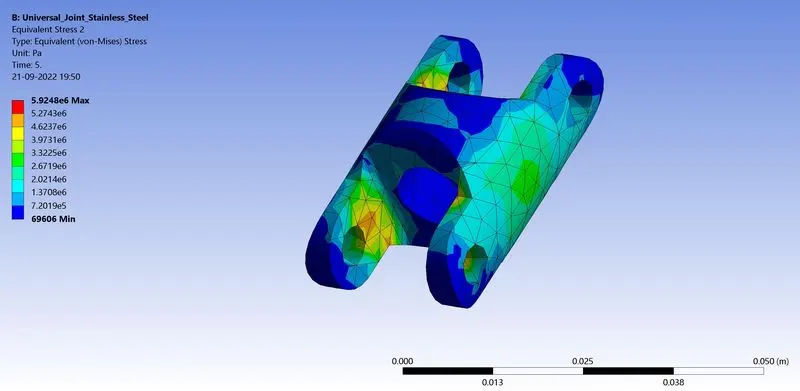

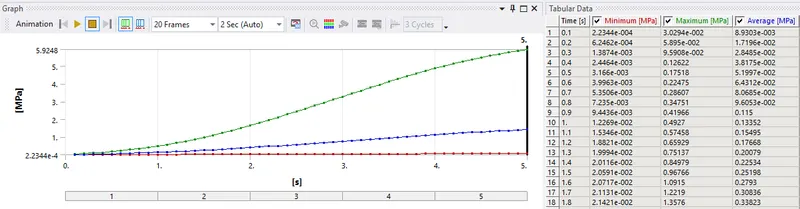

Equivalent Stress at Joint Max - 5.9248Mpa

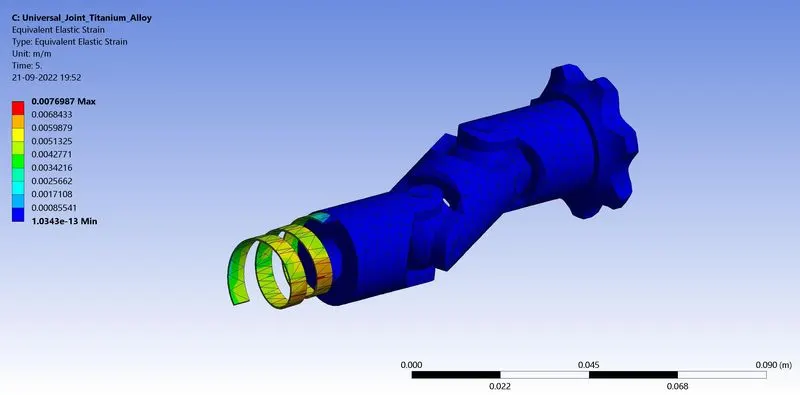

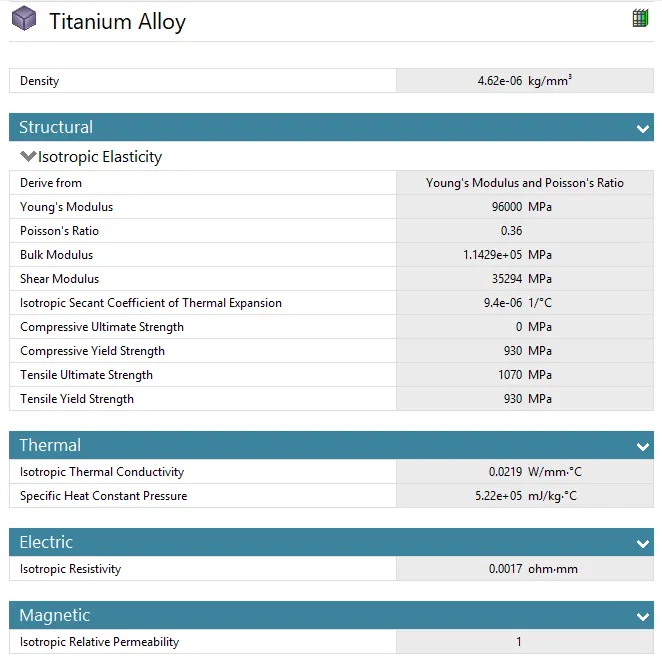

Case 3 Titanium Alloy is assigned on the joint with the spring alone

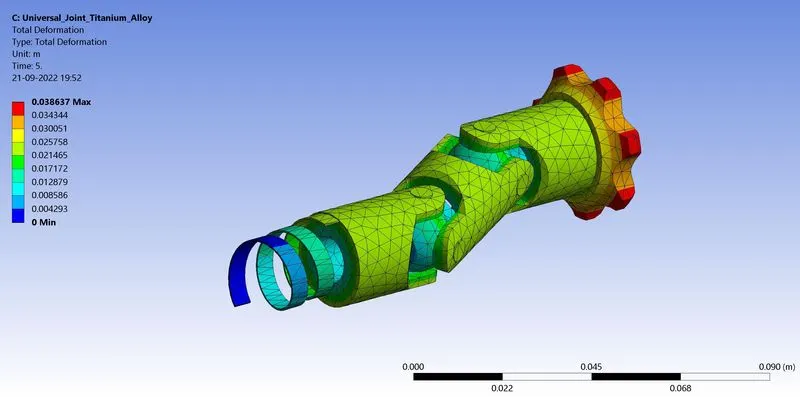

Total Deformation Max - 38.637mm

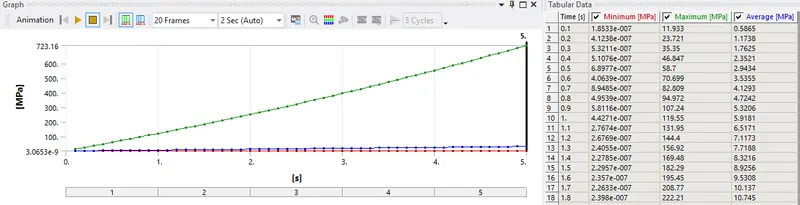

Equivalent Stress Max - 723.16 MPa

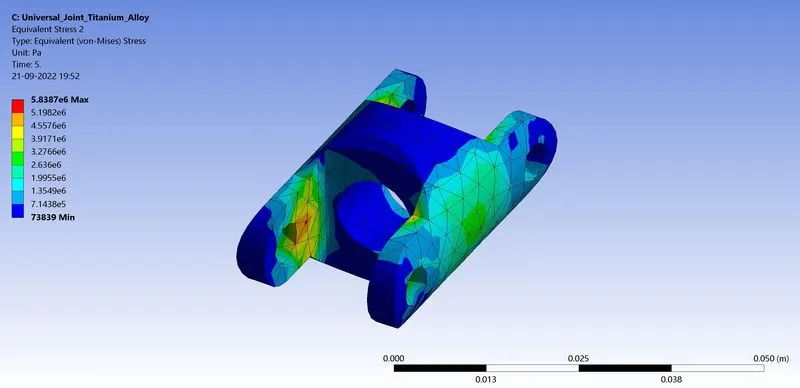

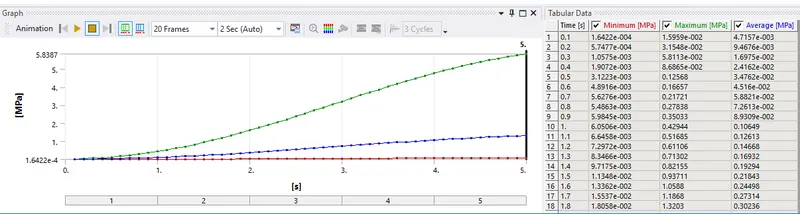

Equivalent Stress  at Joint Max - 5.8387 Mpa





CONCLUSION

• Structural Steel  experience maximu stress due to the highest youngs modulus .Stress is directly Proportional to youngs modulus. So the maximum value is in structural steel and the minimum value is in titanium alloy
• Total Deformation is the same in all the cases due to the equal amount of rotation given
