Week 8 - Simulation of a backward facing step in OpenFOAM
Objective:
- To simulate an incompressible-laminar-viscous flow through the backwards-facing step geometry and perform a transient
simulation. - Case 1 - To Simulate the flow without using any grading factor (i.e., GF = 1).
- Case 2 - To Simulate the flow with a grading factor of 0.2. The cells should be finer near the walls (including the step wall).
Incompressible-laminar-viscous flow:
incompressible flow:
The flow in which there is no change in the density is called the incompressible flow.
Mathematically, an incompressible flow can be expressed as
laminar flow:
- A laminar flow is one where the fluid motion is regular and there is no mixing. It can be visualized by the pathlines that do not intersect
each other. - In fluid dynamics, laminar flow is characterized by fluid particles following smooth paths in layers, with each layer moving smoothly
past the adjacent layers with little or no mixing. - At low velocities, the fluid tends to flow without lateral mixing, and adjacent layers slide past one another like playing cards. There are
no cross-currents perpendicular to the direction of flow, nor eddies or swirls of fluids. - In laminar flow, the motion of the particles of the fluid is very orderly with particles close to a solid surface moving in straight lines
parallel to that surface. Laminar flow is a flow regime characterized by high momentum diffusion and low momentum convection. - Reynolds number is the parameter to differentiate a flow as laminar or turbulent.
- Whenever the Reynolds number is less than about 2,000, flow in a pipe is generally laminar, whereas, at values greater than
2,000, flow is usually turbulent.
Mathematically, Reynolds number is the ratio of inertial force to the viscous force.
- ρ is the density of the fluid (kg/m^3 ).
- u is the flow speed (m/s)
- L is a characteristic linear dimension (m)
- μ is the dynamic viscosity of the fluid (Pa·s or N·s/m^2 or kg/(m·s))
- ν is the kinematic viscosity of the fluid (m^2 /s)
Viscous flow:
- A type of fluid flow in which there is a continuous steady motion of the particles; the motion at a fixed point always remains constant.
Also called streamline flow; laminar flow; steady flow. - The fluid flow in form of a layer. The layer which sticks with the wall has zero velocity which is called no-slip condition and it develops
the frictional effect at the wall. Frictional effects are also present between two layers of fluid and slower layer tries to slow down the
faster layer which can be measured by using viscosity.

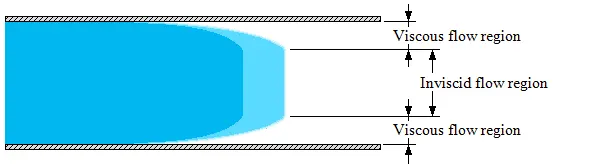

effects of viscosity are maximum near the boundary so laminar sublayer exists near the boundary that is shown in the below figure.
Mesh Grading:
Mesh grading is a factor that is:
Procedure:
- First, we are creating the run folder in OpenFOAM in which we will be running our simulations.
- And then need to copy the cavity folder to the run folder so that we can make the changes in the blockMeshDict, controlDict,
and pressure and velocity files as to run our required simulations, we copying the folder because we are not supposed to make
any changes in the original folders in the OpenFOAM. - Then will make the required changes in the blockMeshDict file that is naming the vertices for and then creating the blocks, in this
case, there are 21 vertices and 5 blocks while creating blocks we also need to specify the number of mesh points needed along
the x, y, and z-direction and also the simple grading should be done along the boundaries. - Then, we need to assign the boundary conditions here, we need to define all the faces in OpenFOAM refers to patches and giving
them type that is the inlet and outlet will be the faces (type patch), for front and back type will be empty faces, for top and
bottom which are the boundary conditions in this case type will be wall type and setting up these will constitute a particular
boundary, then will save these changes in the blockMeshDict. - Then, in the velocity and pressure files, we have to give the value of the velocity at the inlet type will be fixed value here we
should assign some value as initial velocity and pressure will be zerogradient and at the outlet velocity type will be zerogradient
and pressure will be type fixedvalue that value will be uniform 0, then at front and back velocity type empty and pressure, as
well as type empty at the no slip boundaries that is top and bottom velocity, will be type noslip and pressure type empty. And in
the transportProperties we can change the nu value in order to obtain the lower courant number. - And in the controlDict file the simulation time and the time step need be assigned in the way that the courant number should be
less than 0.5. - And then creating the block mesh and then run the simulation using the respective solver after the completion of simulation
open the paraview in the paraFoam and plot the velocity profile for the given value.
CODE:
BLOCKMESHDICT:
For without applying grading factor,
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\ / M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 0.01;
vertices
(
(0 0 0)
(8 0 0)
(8 0.5 0)
(0 0.5 0)
(8 1 0)
(0 1 0)
(20 1 0)
(20 0.5 0)
(20 0 0)
(20 -1 0)
(8 -1 0)
(0 0 0.6)
(8 0 0.6)
(8 0.5 0.6)
(0 0.5 0.6)
(8 1 0.6)
(0 1 0.6)
(20 1 0.6)
(20 0.5 0.6)
(20 0 0.6)
(20 -1 0.6)
(8 -1 0.6)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 10 1) simpleGrading (1 1 1)
hex (3 2 4 5 14 13 15 16) (80 10 1) simpleGrading (1 1 1)
hex (2 7 6 4 13 18 17 15) (120 10 1) simpleGrading (1 1 1)
hex (1 8 7 2 12 19 18 13) (120 10 1) simpleGrading (1 1 1)
hex (10 9 8 1 21 20 19 12) (120 20 1) simpleGrading (1 1 1)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
outlet
{
type patch;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(0 3 2 1)
(11 12 13 14)
(3 5 4 2)
(13 15 16 14)
(2 4 6 7)
(13 18 17 15)
(1 2 7 8)
(12 19 18 13)
(10 1 8 9)
(21 20 19 12)
);
}
noslipwall
{
type wall;
faces
(
(4 5 16 15)
(4 15 17 6)
(0 1 12 11)
(9 20 21 10)
(1 10 21 12)
);
}
);
mergePatchPairs
(
);
CONTROLDICT
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\ / M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 3;
deltaT 1e-3;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
PRESSURE FILE
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\ / M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
frontAndBack
{
type empty;
}
noslipwall
{
type zeroGradient;
}
}
// ************************************************************************* //
VELOCITY FILE
Schedule
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\ / M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.066 0 0);
}
outlet
{
type zeroGradient;
}
frontAndBack
{
type empty;
}
noslipwall
{
type noSlip;
}
}
// ************************************************************************* //
TRANSPORT PROPERTIES
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\ / M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 1e-6;
// ************************************************************************* //
Output:

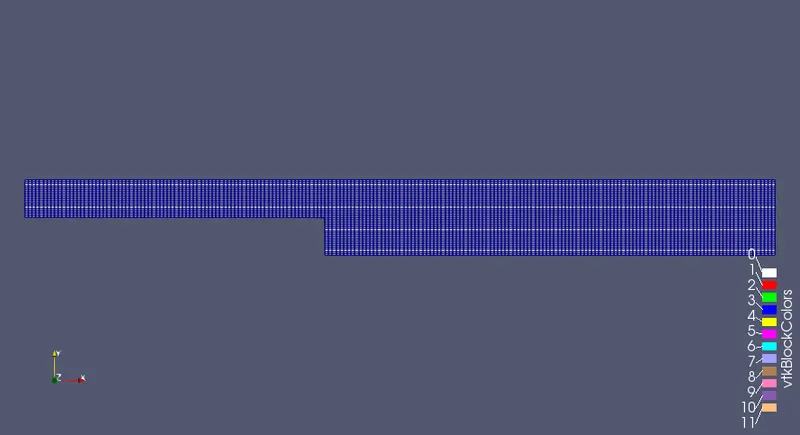

Without assigning any grading factor the block mesh is as shown below.

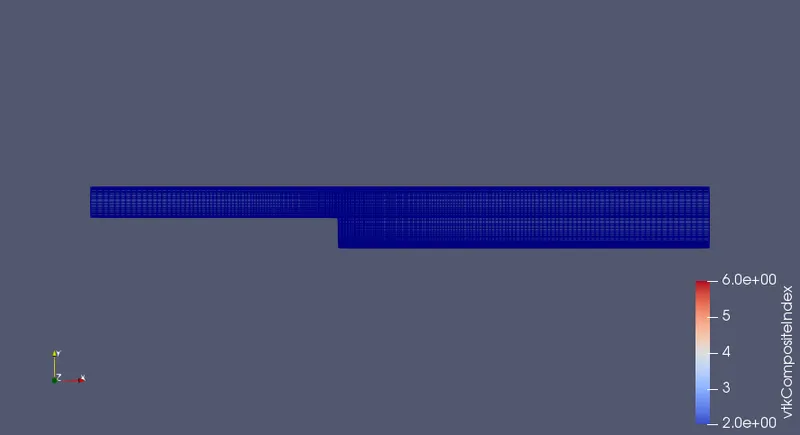

For the given grading factor 0.2 the results are as follows.

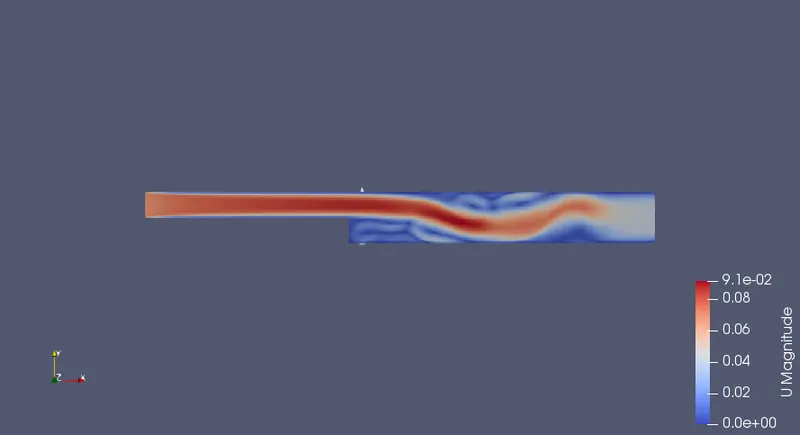

The velocity flow diagram without applying grading factor

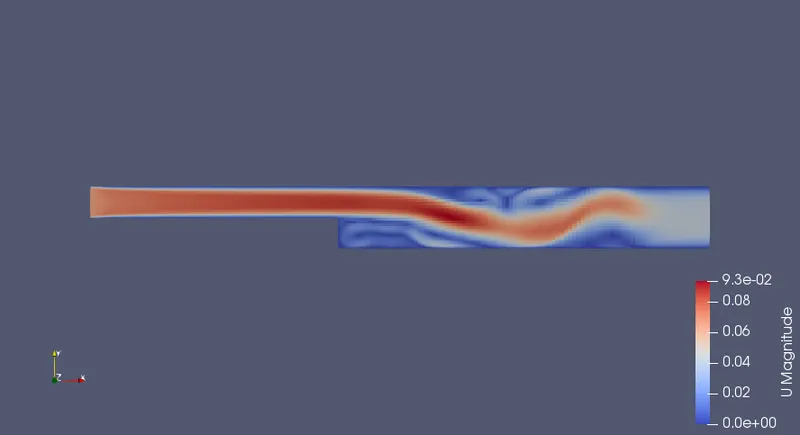

The velocity flow diagram for the grading factor 0.2

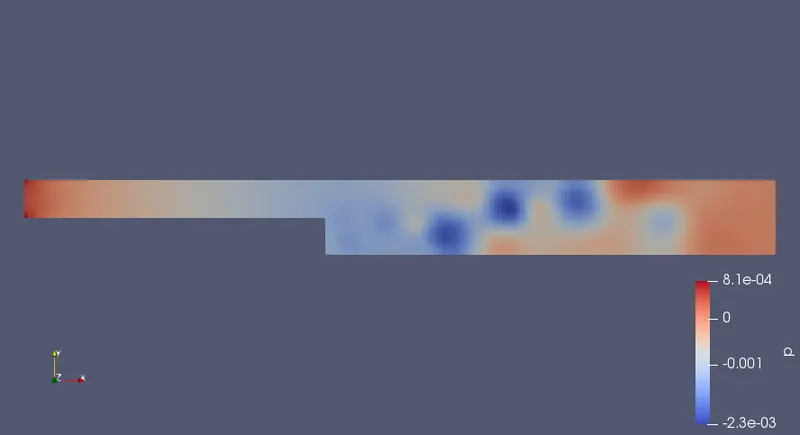

The pressure flow diagram without applying grading factor.

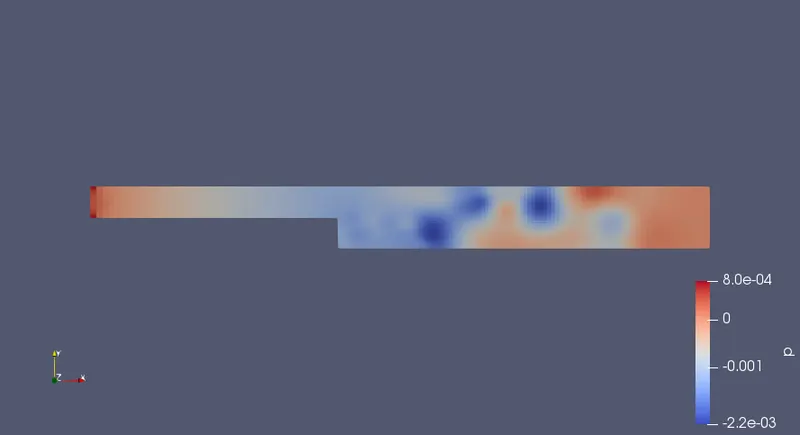

The pressure flow diagram for the given grading factor 0 2

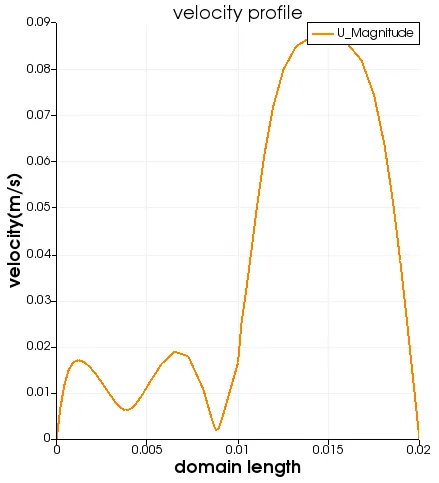

The plot for the velocity at 0.085 without applying grading fcator
The plot for the velocity at 0.085 for the given grading fcator 0.2 is as follows.
Conclusion:
- By changing the simple grading factor from the value of 0.2 to 1 the mesh becomes finer and the solution becomes very accurate.
- Overall the change in the size of simple grading factor (mesh size) the results remains the same as approximately.
- The execution time is lower for lower meshing grading factor.
