Week 8 - Simulation of a backward facing step in OpenFOAM
PROJECT-
- Simulation of a backward facing step in OpenFOAM.
THEORY-
- We are using OpenFoam to stimulate an incompressible-laminar-viscous flow through the backward facing step geometry ,In cfd various numerical approces to stimulate fluid motion and heat transfer but in this case we are using OpenFoam .
-OpenFoam (for 'Open-source Field Operation And Manipulation') is a C++ toolbox for the development of customized numerical solvers and pre/post-processing utilities for the solution of continuum mechanics problems, most prominently including computational fluid dynamics.
OBJECTIVES-
- To simulate an incompressible-laminar-viscous flow through the backward facing step geometry and perform a transient simulation.
- Case 1 - Simulate the flow without using any grading factor (i.e., GF = 1).
- Case 2 - Simulate the flow with grading factor of 0.2. The cells should be finer near the walls (includig the step wall).
MESH SPECIFICATION
- Number of cells along the x direction (longer dimension)
- Number of cells along the longer y direction = 20;
BOUNDARY CONDITION SPECIFICATION-

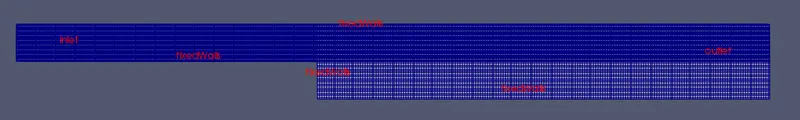

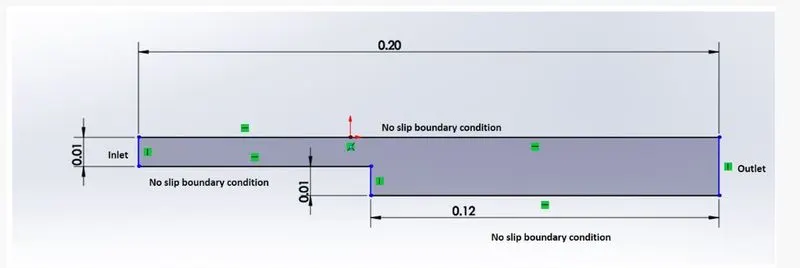

- The figure below shows the boundary conditions.

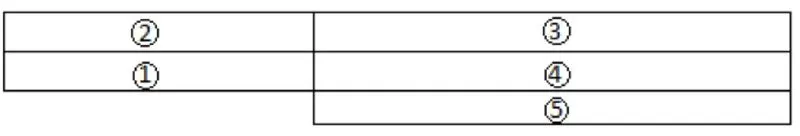

Distribution of blocks

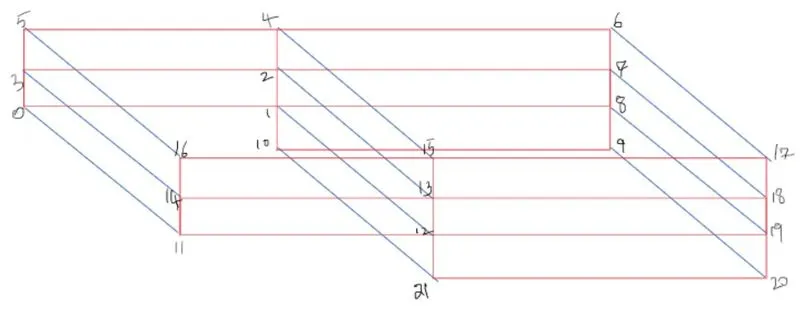

Indexing the vertices
EXPLANATION-
-First we chose a solver , in this case wee chose icoFoam (incompressible laminar navier strokes equation) , inside this we have cavity is using for this project. then we creat a geometry for cavity.
-In cavity we have to edit the blockMeshDict,controlDict , and initial condition(presure,velocity)as per the boundary conditions given.
Comands used for this problem-
- tut - shortcut for tutorials
- app - is for applications
- sol - is for solvers
- cp - to copy
- ls - list
- cd - to change directory
- gedit- to edit the text
- cd .. - is used for previous directory
- $FOAM_RUN - openFoam run directory
- paraFoam- to open the paraview
MAIN CODES-
BLOCKMESHDICT FILE
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 0.1;
vertices
(
(0 0 0)
(0.08 0 0)
(0.08 0.005 0)
(0 0.005 0)
(0.08 0.01 0)
(0 0.01 0)
(0.20 0.01 0)
(0.20 0.005 0)
(0.20 0 0)
(0.20 -0.01 0)
(0.08 -0.01 0)
(0 0 0.1)
(0.08 0 0.1)
(0.08 0.005 0.1)
(0 0.005 0.1)
(0.08 0.01 0.1)
(0 0.01 0.1)
(0.20 0.01 0.1)
(0.20 0.005 0.1)
(0.20 0 0.1)
(0.20 -0.01 0.1)
(0.08 -0.01 0.1)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (0.2 5 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (0.2 0.2 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (5 0.2 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (5 5 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (5 5 1)
);
edges
(
);
boundary
(
inlet
{
type wall;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
outlet
{
type wall;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(11 12 13 14)
(14 13 15 16)
(13 18 17 15)
(12 19 18 13)
(21 20 19 12)
(0 3 2 1)
(3 5 4 2)
(2 4 6 7)
(1 2 7 8)
(10 1 8 9)
);
}
fixedWalls
{
type wall;
faces
(
(5 16 15 4)
(0 1 12 11)
(4 15 17 6)
(10 9 20 21)
(10 21 12 1)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //EDITING THE BLOCKMESHFILE-
Here we edit the vertices and mesh grading as per the cinditions are given.
CONTROLDICTFILE-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 2;
deltaT 0.00001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //INITIAL CONDITION-
-Initial condition are assigend as per boundary condition.
Presure initial condition file-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
fixedWalls
{
type zeroGradient;
}
frontAndBack
{
type empty;
}
}
// ************************************************************************* //Velocity intial condition file-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (1 0 0);
}
outlet
{
type zeroGradient;
value uniform (0 0 0);
}
fixedWalls
{
type noSlip;
}
frontAndBack
{
type empty;
}Now lets view the result is paraview using 'paraFoam' comand.

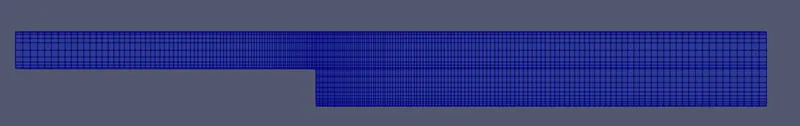

MeshGrid-

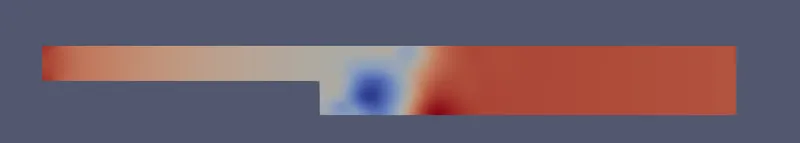

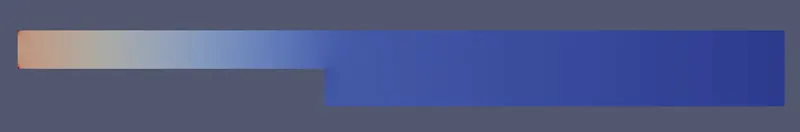

Pressure distribution along the domain-

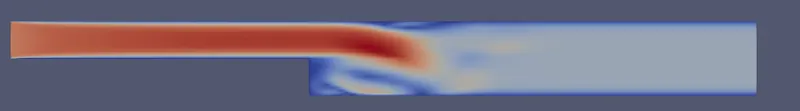

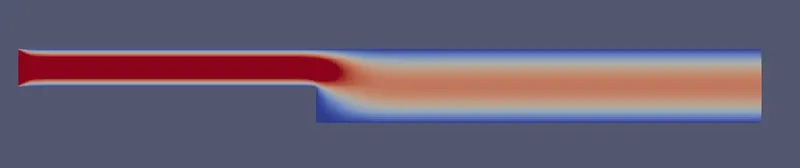

Velocity distribution along the domain-

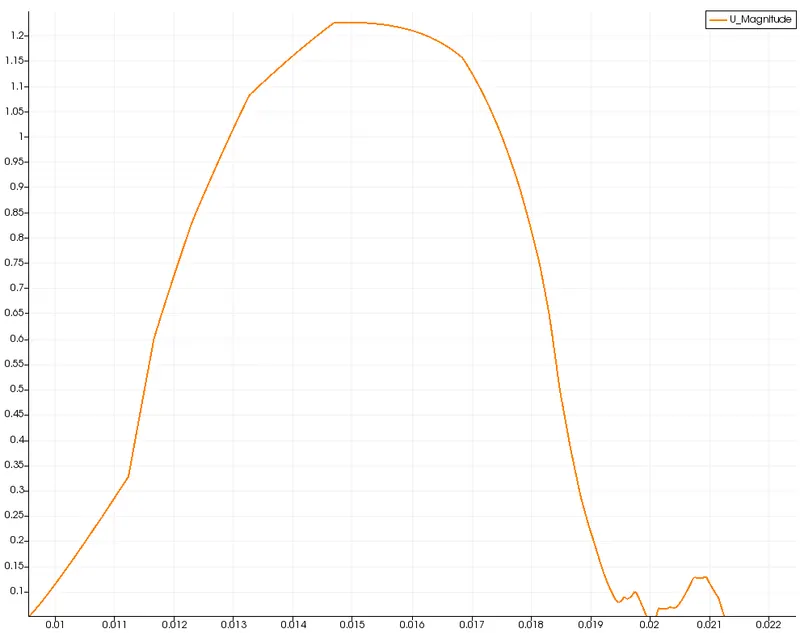

Velocity plot-
With Grading Factor 0.2(cell near fixed wall)-
BlockMeshDict File-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 0.1;
vertices
(
(0 0 0)
(0.08 0 0)
(0.08 0.005 0)
(0 0.005 0)
(0.08 0.01 0)
(0 0.01 0)
(0.20 0.01 0)
(0.20 0.005 0)
(0.20 0 0)
(0.20 -0.01 0)
(0.08 -0.01 0)
(0 0 0.1)
(0.08 0 0.1)
(0.08 0.005 0.1)
(0 0.005 0.1)
(0.08 0.01 0.1)
(0 0.01 0.1)
(0.20 0.01 0.1)
(0.20 0.005 0.1)
(0.20 0 0.1)
(0.20 -0.01 0.1)
(0.08 -0.01 0.1)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (0.2 5 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (0.2 0.2 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (5 0.2 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (5 5 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (5 5 1)
);
edges
(
);
boundary
(
inlet
{
type wall;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
outlet
{
type wall;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(11 12 13 14)
(14 13 15 16)
(13 18 17 15)
(12 19 18 13)
(21 20 19 12)
(0 3 2 1)
(3 5 4 2)
(2 4 6 7)
(1 2 7 8)
(10 1 8 9)
);
}
fixedWalls
{
type wall;
faces
(
(5 16 15 4)
(0 1 12 11)
(4 15 17 6)
(10 9 20 21)
(10 21 12 1)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //OUTPUT MESH-
For graade 0.2-
Velocity distribution along the domain-
Pressure distribution allong the domain-

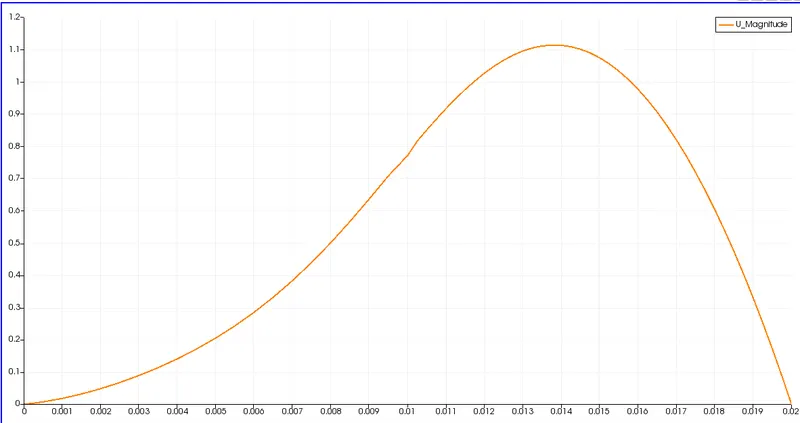

Velocity Plot -
CONCLUSION-
From the solution we knew the ,ther is not much difference in velocity magnitude both the cases,but to the accurate at the edge , we could see the flow affecteed on the corner of the region.
