Week 8 - Simulation of a backward facing step in OpenFOAM
AIM: To simulate an incompressible-laminar-viscous flow through the backward facing step geometry. Also should perform a transient simulation. The solver can be chosen based on the described physics of the flow.
Procedure:
Create the following geometry and divide them into 5 segments as explained in the question.
Now providing the vertices and creating a imaginary rectangular cubes
Open openfoam
open cavity and then system after you have copied the tutorials files to the new folder created.
open blockMesh dict in system and update vertices, front and back, no slipwalls,hex creation.
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 0.1;
vertices
(
(0 0 0)
(8 0 0)
(8 0.5 0)
(0 0.5 0)
(8 1 0)
(0 1 0)
(20 1 0)
(20 0.5 0)
(20 0 0)
(20 -1 0)
(8 -1 0)
(0 0 0.1)
(8 0 0.1)
(8 0.5 0.1)
(0 0.5 0.1)
(8 1 0.1)
(0 1 0.1)
(20 1 0.1)
(20 0.5 0.1)
(20 0 0.1)
(20 -1 0.1)
(8 -1 0.1)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (1 1 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (1 1 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (1 1 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (1 1 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (1 1 1)
);
edges
(
);
boundary
(
Inlet
{
type wall;
faces
(
(0 11 14 3)
(14 16 5 3)
);
}
Outlet
{
type wall;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(2 4 6 7)
(1 2 7 8)
(10 1 8 9)
(11 12 13 14)
(14 13 15 16)
(13 18 17 15)
(12 19 18 13)
(21 20 19 12)
);
}
Noslipwalls
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
(0 1 12 11)
(10 21 12 1)
(10 9 20 21)
);
}
);
mergePatchPairs
(
);

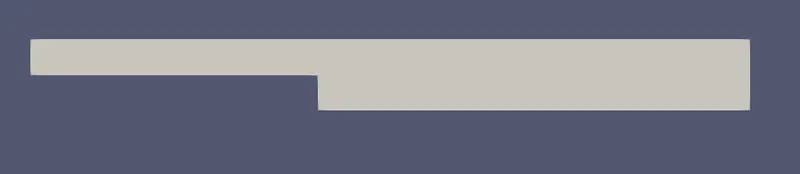

// ************************************************************************* //After this step run the block mesh to check if all the vertices are created successfully and check the parafoam. This is how the 3d should look like
No update transport properites, controldict, pressure and velocity
controldict
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 0.5;
deltaT 0.0001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //Transport properties
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 0.01;
// ************************************************************************* //Pressure
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
Inlet
{
type zeroGradient;
}
Outlet
{
type fixedValue;
value uniform 0;
}
frontAndBack
{
type empty;
}
Noslipwalls
{
type zeroGradient;
}
// ************************************************************************* //Velocity
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0.15 0 0);
boundaryField
{
Inlet
{
type fixedValue;
value uniform (0.15 0 0);
}
Outlet
{
type zeroGradient;
}
frontAndBack
{
type empty;
}
Noslipwalls
{
type noSlip;
}
}
// ************************************************************************* //After this step run icoFoam after skipping to the cavity folder

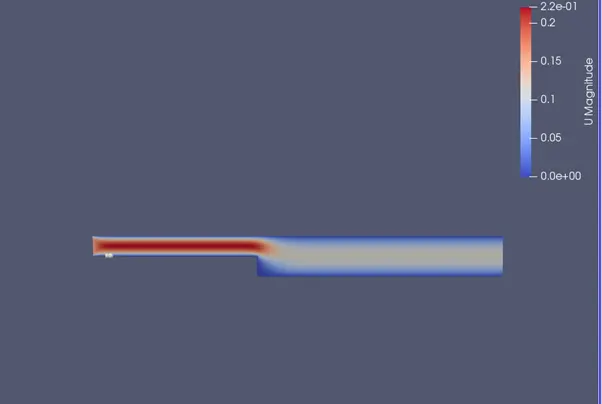

Open paraFoam

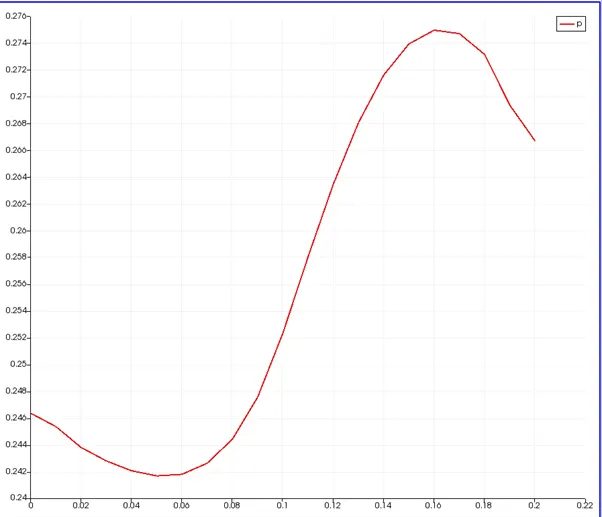

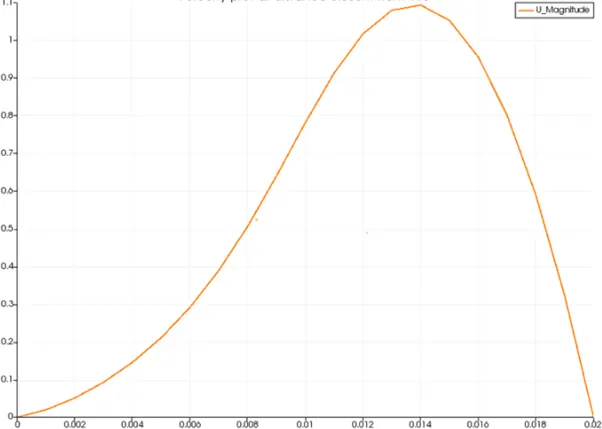

Plot P and U at 0.085
Now running the case of different grading along the sides change the blcokmeshdict grading so that it is finer in the edges compared to the middle rest all remain thye same.
blockmeshdict
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 0.1;
vertices
(
(0 0 0)
(8 0 0)
(8 0.5 0)
(0 0.5 0)
(8 1 0)
(0 1 0)
(20 1 0)
(20 0.5 0)
(20 0 0)
(20 -1 0)
(8 -1 0)
(0 0 0.1)
(8 0 0.1)
(8 0.5 0.1)
(0 0.5 0.1)
(8 1 0.1)
(0 1 0.1)
(20 1 0.1)
(20 0.5 0.1)
(20 0 0.1)
(20 -1 0.1)
(8 -1 0.1)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (1 5 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (1 0.2 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (5 0.2 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (5 5 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (5 5 1)
);
edges
(
);
boundary
(
Inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
Outlet
{
type patch;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(2 4 6 7)
(1 2 7 8)
(10 1 8 9)
(11 12 13 14)
(14 13 15 16)
(13 18 17 15)
(12 19 18 13)
(21 20 19 12)
);
}
Noslipwalls
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
(0 1 12 11)
(10 21 12 1)
(10 9 20 21)
);
}
);
mergePatchPairs
(
);

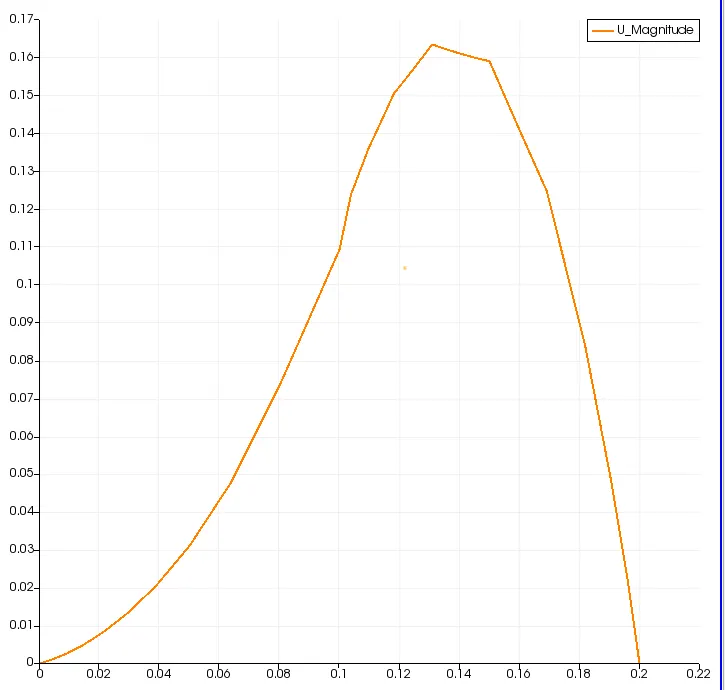

// ************************************************************************* //graphs for U at 0.85

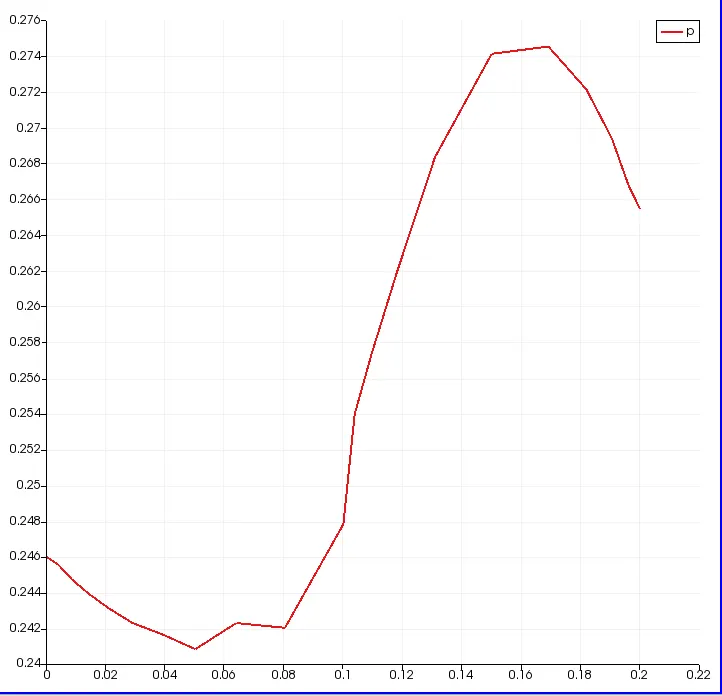

graph for p
INFERENCE
In this case there isn't much difference in the change in pressure and velocity after the chage in the grading factors
