Week - 8 - Morphing

AIM:

     To do morphing at given both the models.

OBJECTIVE:

•  To do morphing at various techniques.

PROCEDURE:

                          MODEL 1

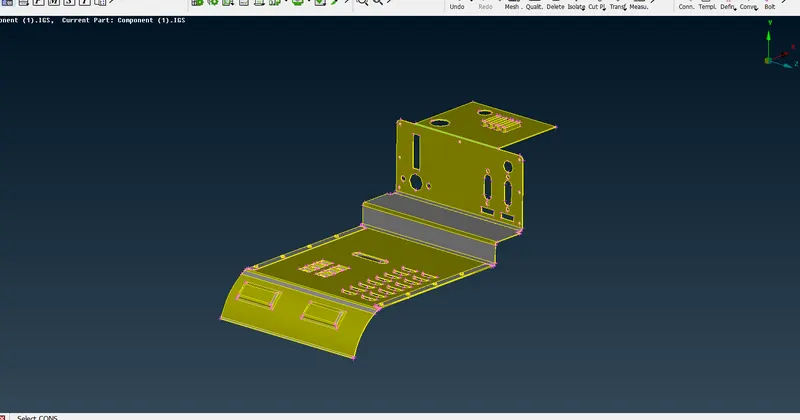

  STEP 1:





   STEP 2:

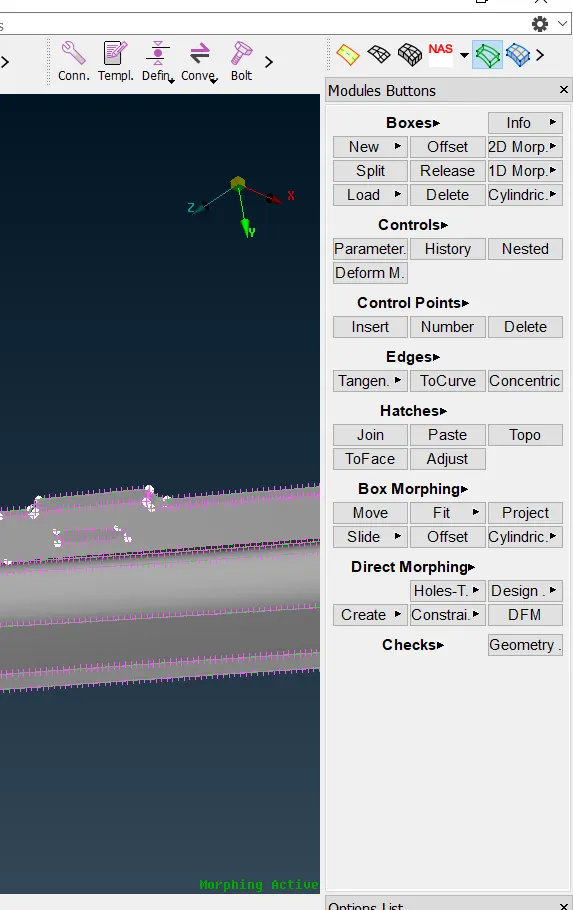

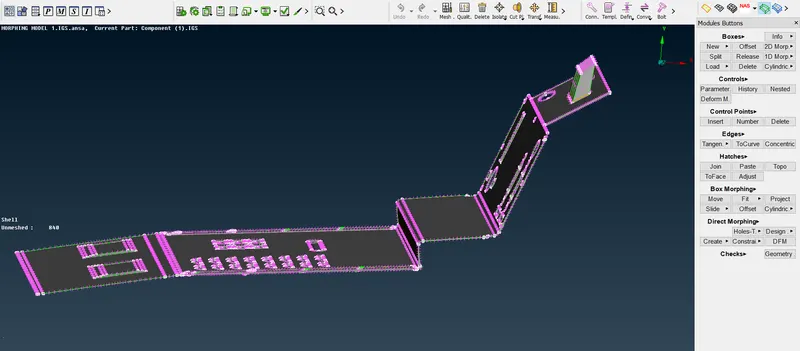

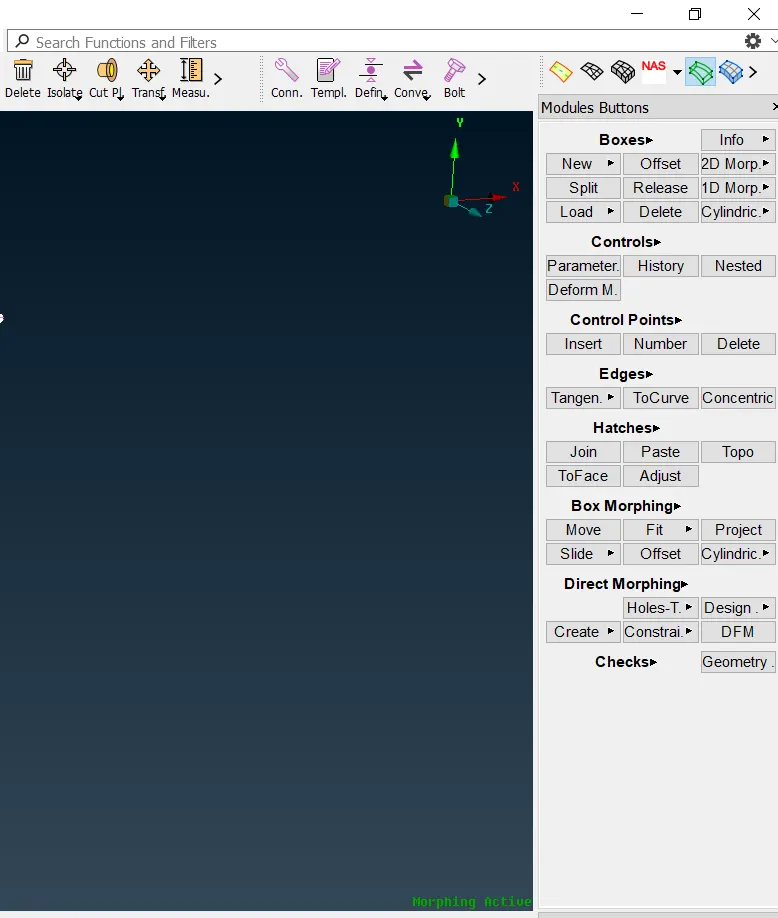

         GO to morph box it should be in active.



  STEP 3:

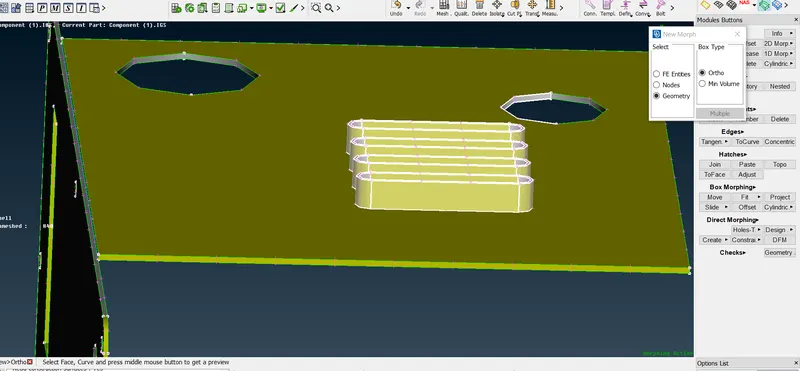

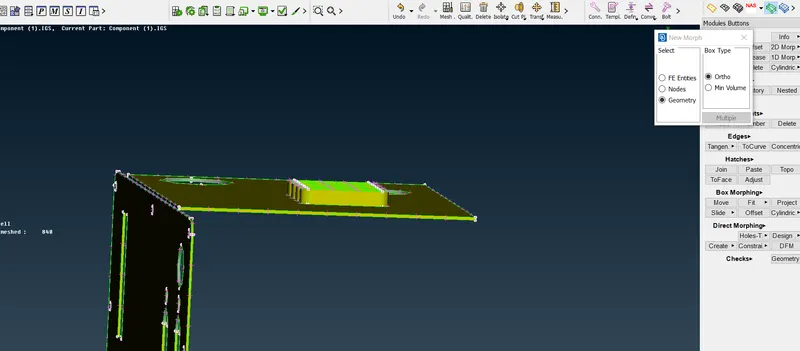

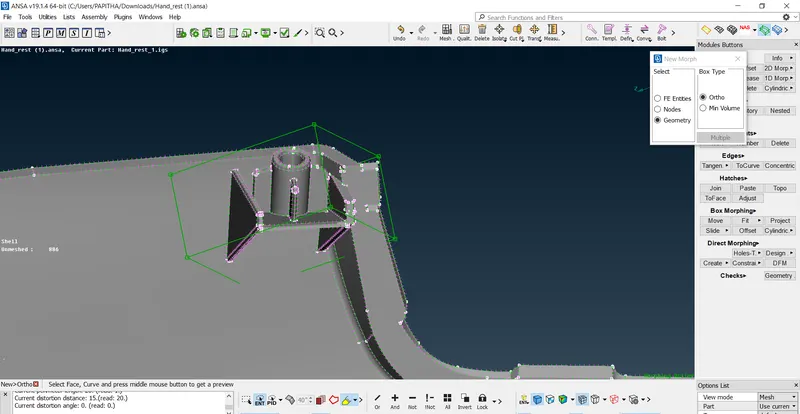

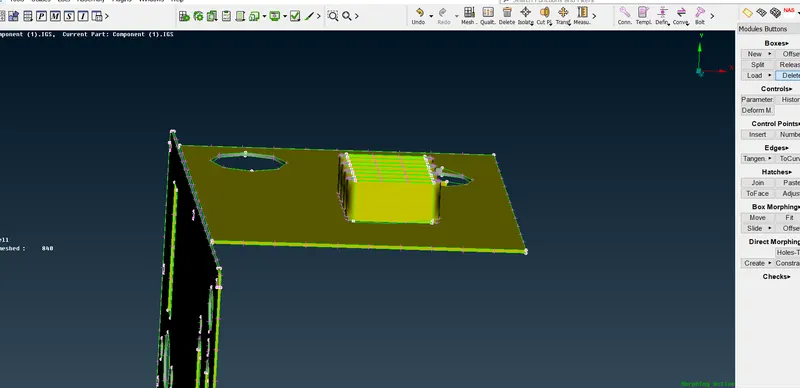

         Go to boxes----new----select the particular are---then morph it.





                    The morph new volume has been created.



   STEP 4:

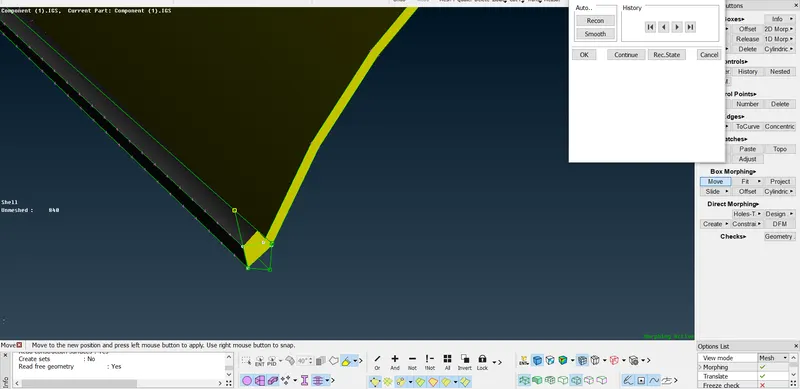

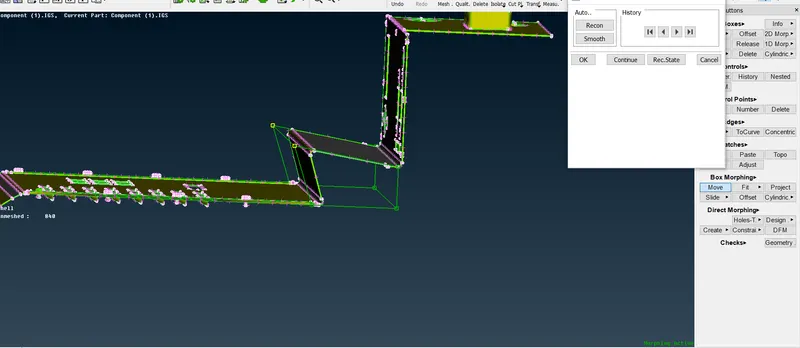

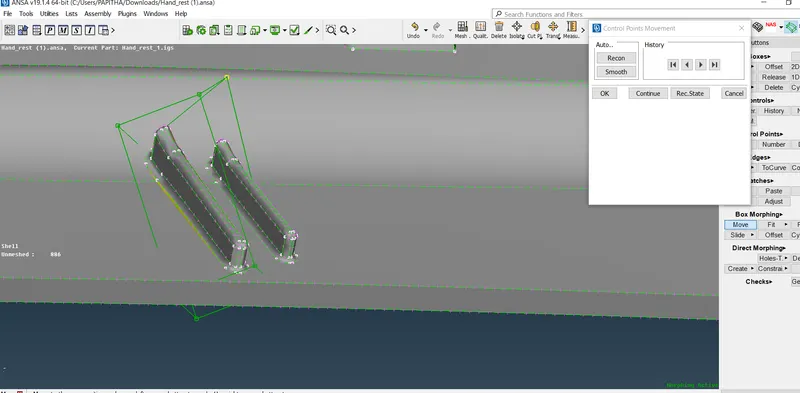

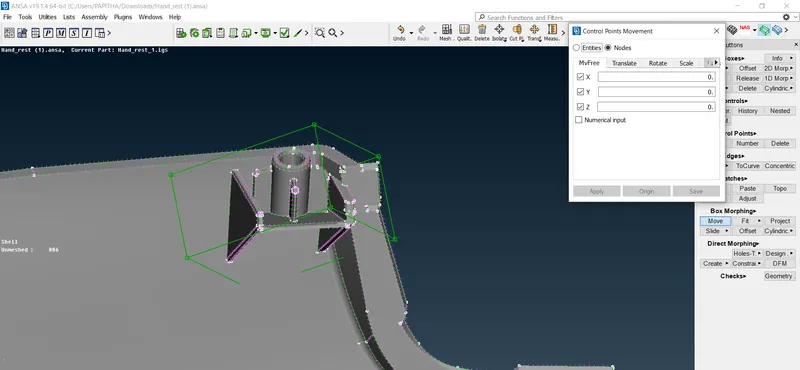

            Then Go to box morphing----move ---select the particular point then drag it



                  The point has been selected.



                 Drag the model.



     STEP 5:

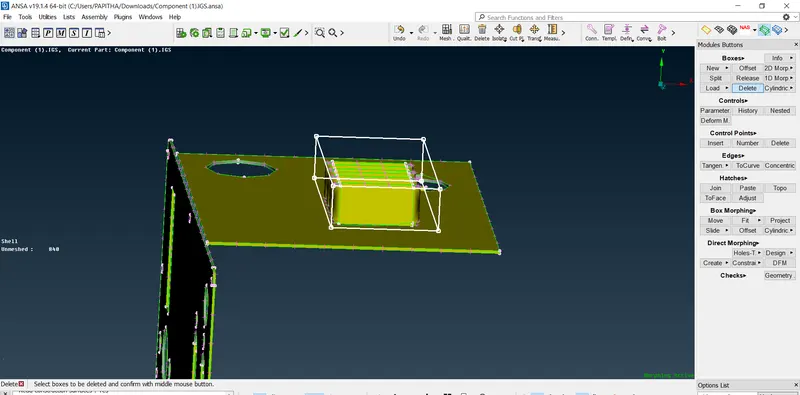

                 Go to boxes---delete the box volume.





      STEP 6:

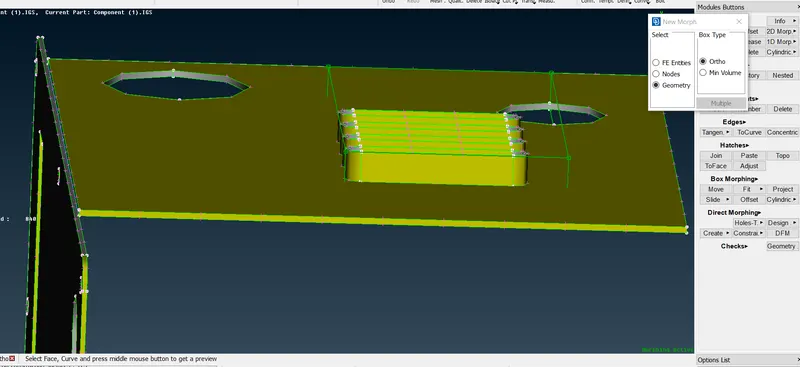

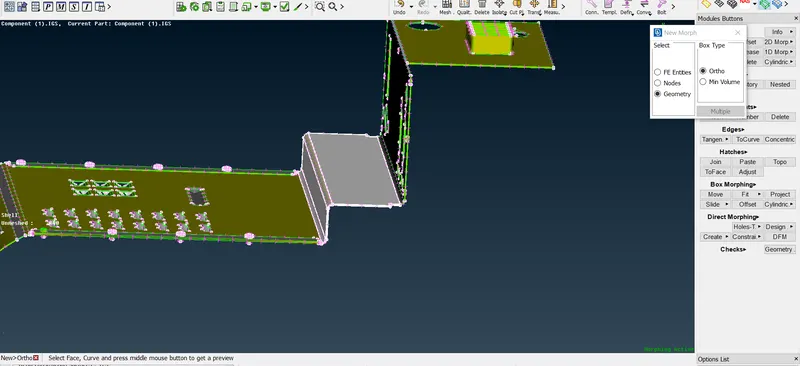

              Go to other place----box---new---new volume has been created.



                Drag it







                 As same for other part





    STEP 8:

          With given technique the model has been morphed.



              MODEL 2

   STEP 1:

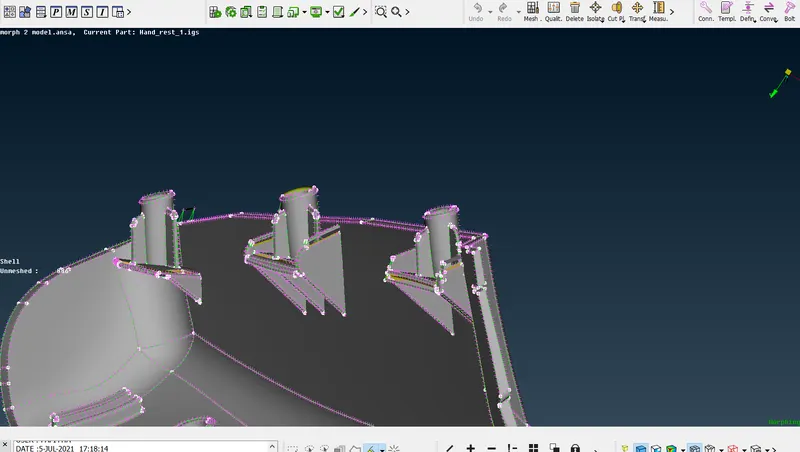

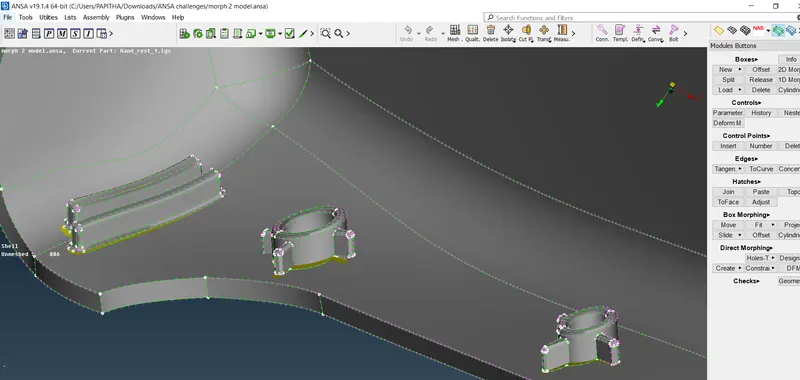

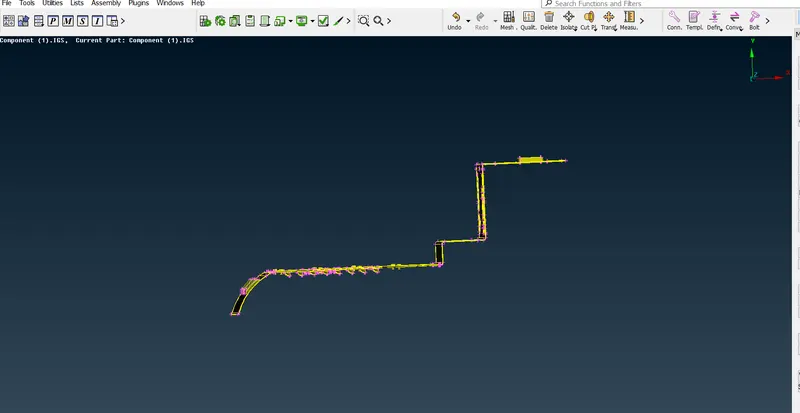

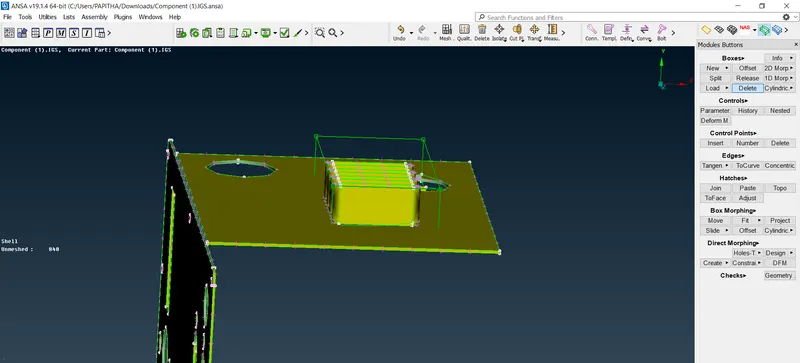

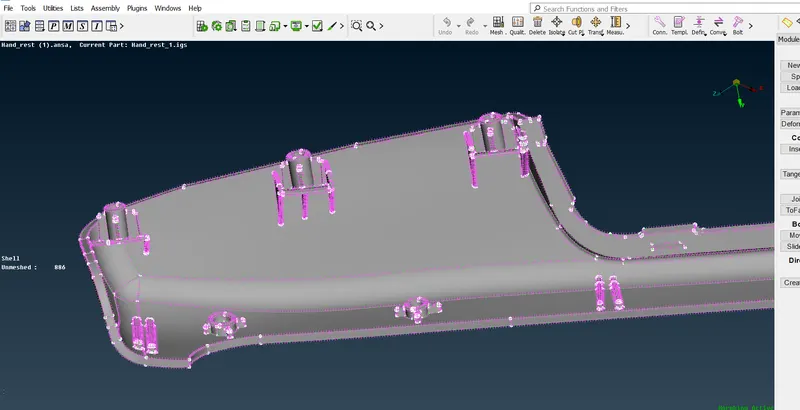

              The given model.

          In this the height rise of ribs should be done.



 STEP 2:

      Go to morph box section.make it in active.



  STEP 3:

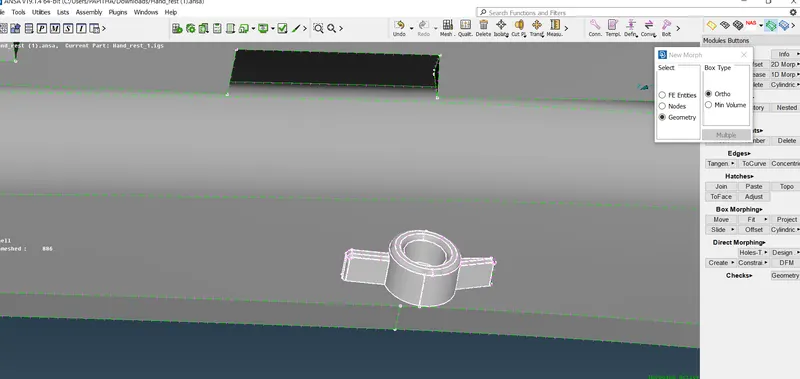

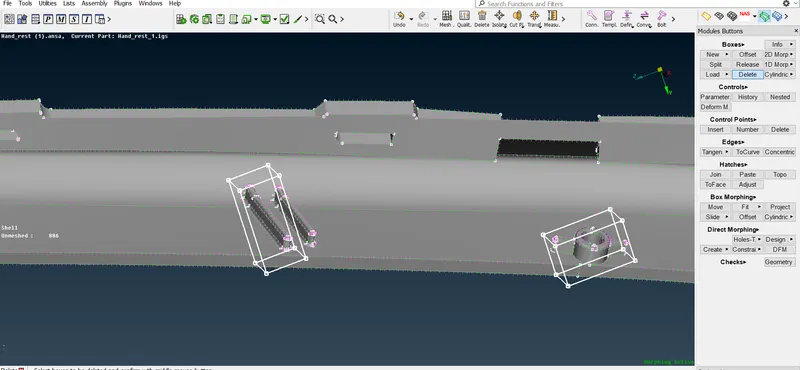

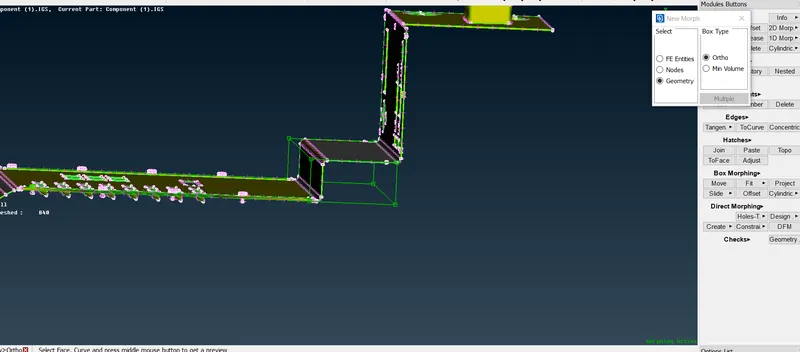

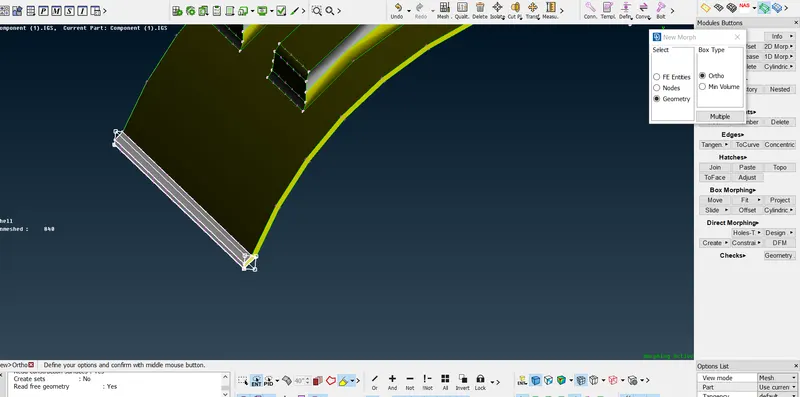

            Go to boxes----new----select the particular are---then morph it.

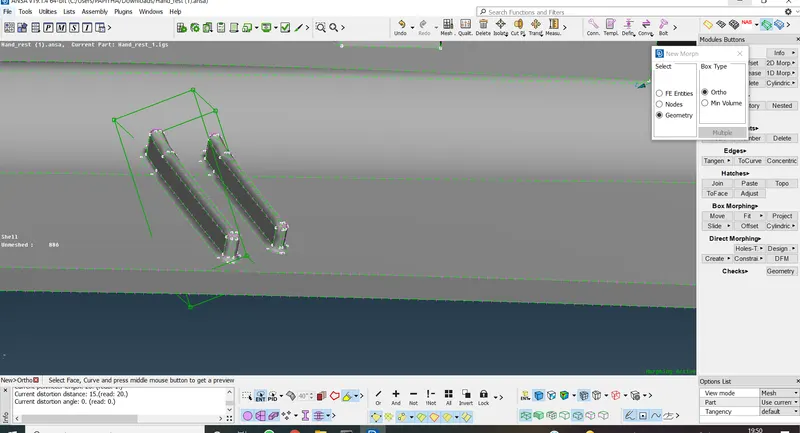

          Select the portion of morph area.



   STEP 4:

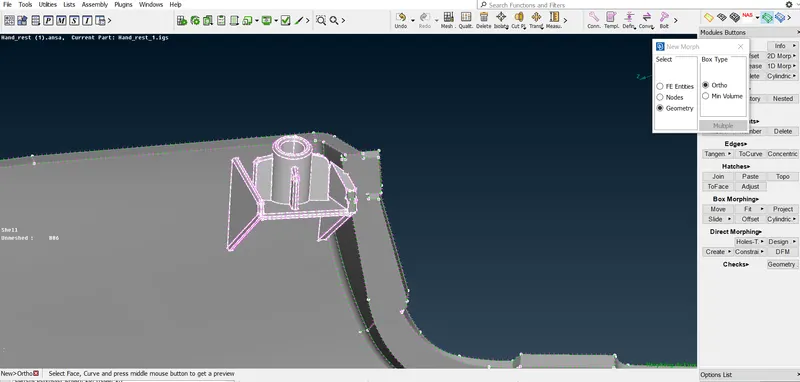

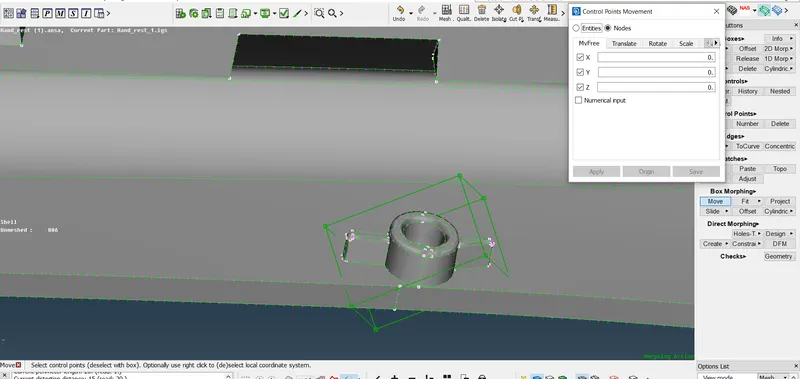

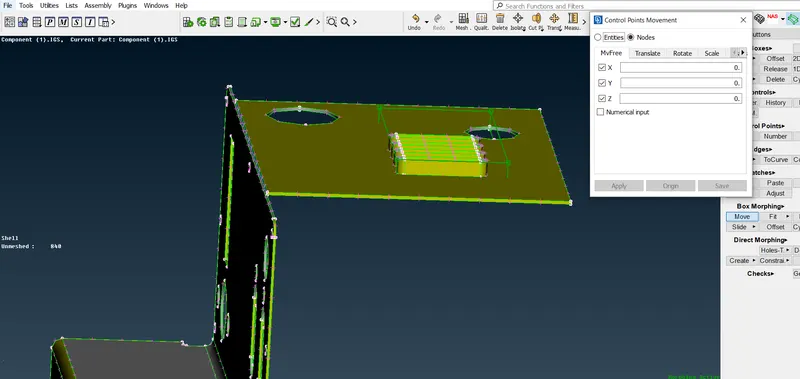

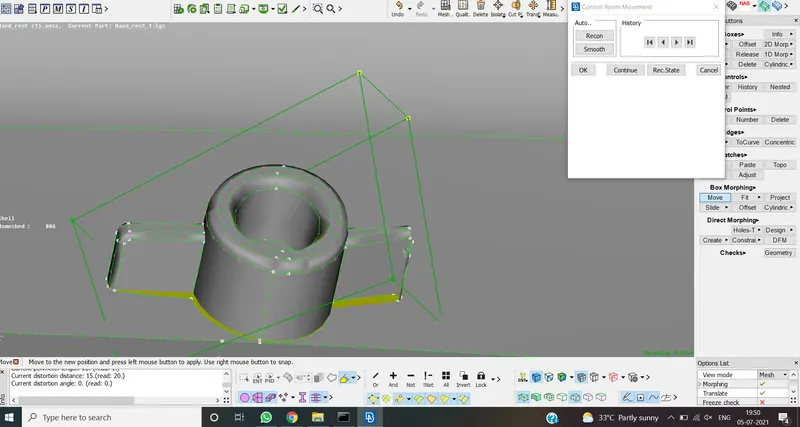

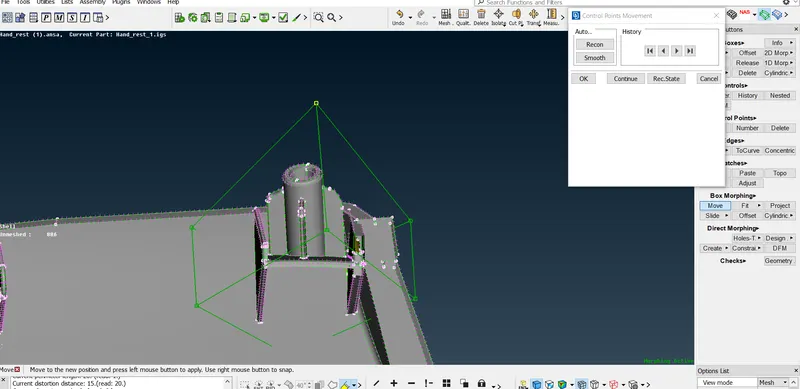

            Go to box morphing----move---select the point ---then morph the volume.



          The point has been selected.



     STEP 5:

            As same for other part.





    STEP 6:

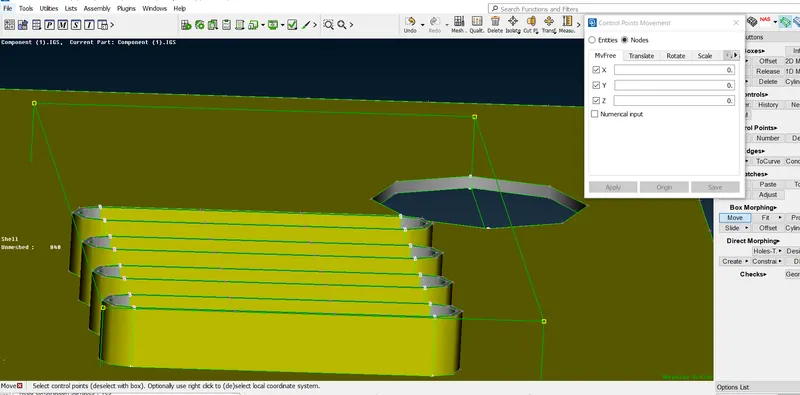

         Select the volume morph point to move the volume.



    STEP 7:

             As same for other part.







  RESULT:

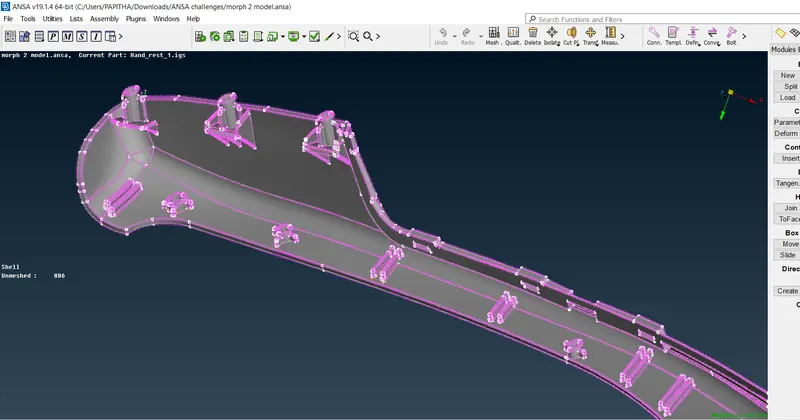

          The volume of morph has been rised.
