Week - 8 - Morphing

MORPHING:

• Morphing is the process of modifying the design of the model without the invovelment of any numerical inputs and is an adapation of given shape to anew form.
• The geometry of given concept model can be modified to required proportions to create new designs.

WHY INDUSTRY NEEDS MORPING:

• Minimizes the times spent on design modification by working directly at the mesh level.
• Automatic control blocks creation methods require less skill and effort and allow fast and efficient design creations.
• Easy transformation of model from the original design to a new concept.

APPLICATIONS :

• Common application of morphing invovles transforming the type of a car.For example, Maruti Suzuki was a sedan, but its tail was morphed and made a hatchback for its use in high traffic condition.some stand for Honda Amaze, where the actual and bigger Honda city is transformed to its smaller version.The same is done for increasing the size of the tail or making the sedan to SUVs OR SUVs to TUVs

MODEL 1:

AIM:

• To Practice all the Morphing techniques that were shown in the video for Model-1.

PROCEDURE:

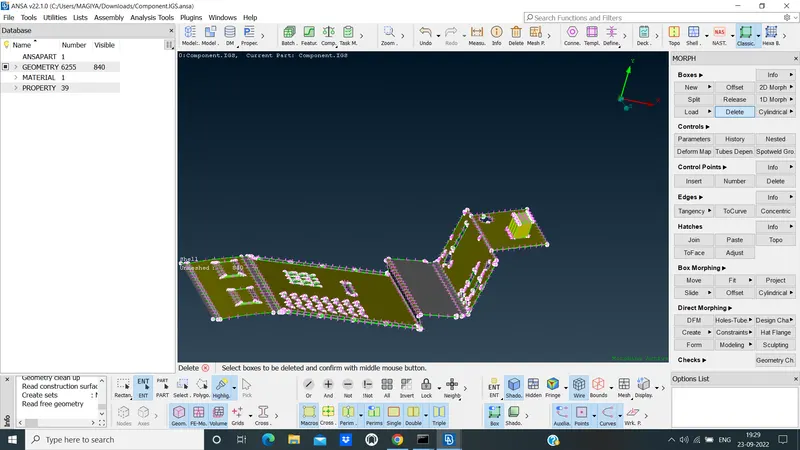

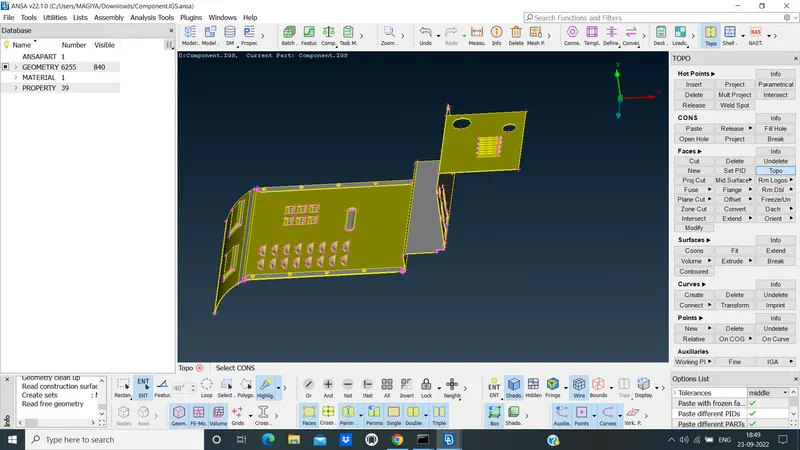

• Import the geometry and topo cleanup and is the before Morphing,as shown in below.

• After that ,go to the classic morph deck and they have a NEW option under the Boxes.

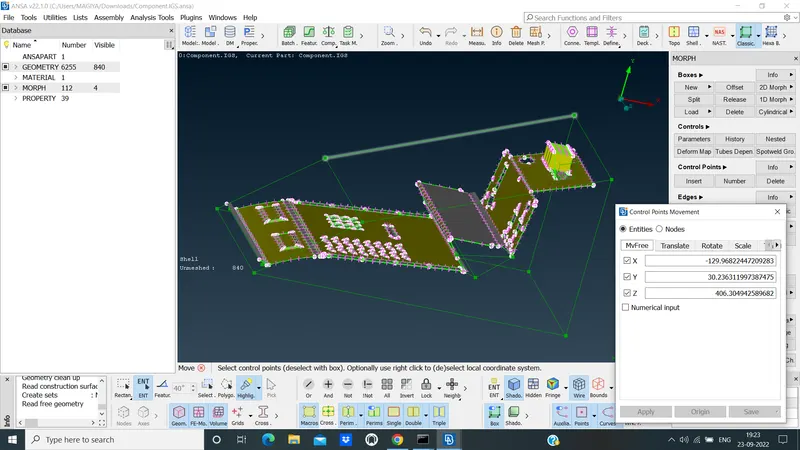

• Using the option of MOVE under the Box Morphing and do the required heights and model,as shown in below.

• After that Box are deleted using the DELETE option under the Boxes,as shown in conclusion.

CONCLUSION:

• Here, I can Morphed the given model as per required the model video as shown in below

.

MODEL 2:

AIM:

• To perform the Morphing for to Increase the height of the Ribs and Dog houses.

PROCEDURE:

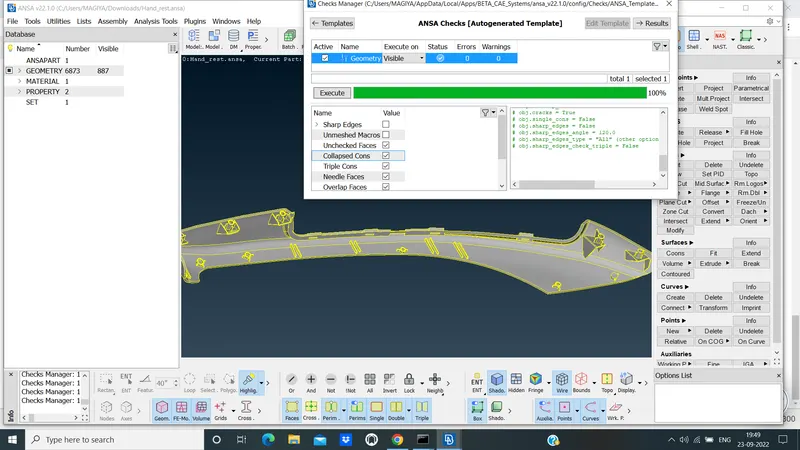

• Import the geometry and checks geometry and topo cleanup,as shown in below.

• After that ,go to the classic morph deck and they have a NEW option under the Boxes.
• Create the new Box for all the Ribs and Dog houses.

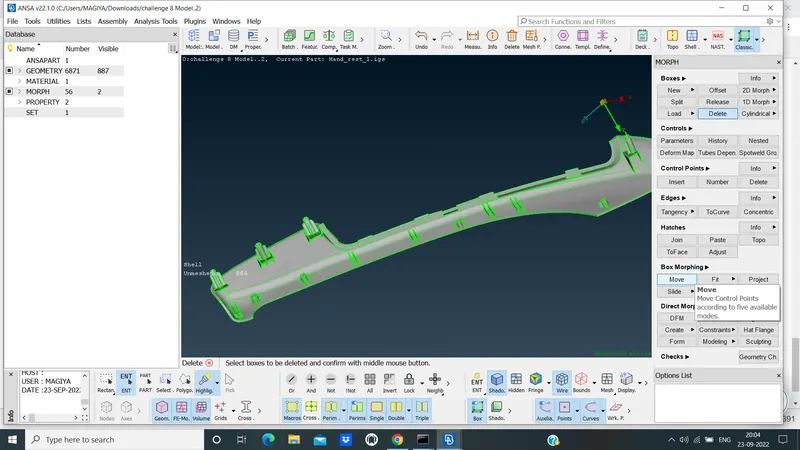

• Using the option of MOVE under the Box Morphing and Do Increase the heights Ribs and Dog House of the given model,as shown in below.

.

• After that Box are deleted using the DELETE option under the Boxes,as shown in conclusion.

CONCLUSION:

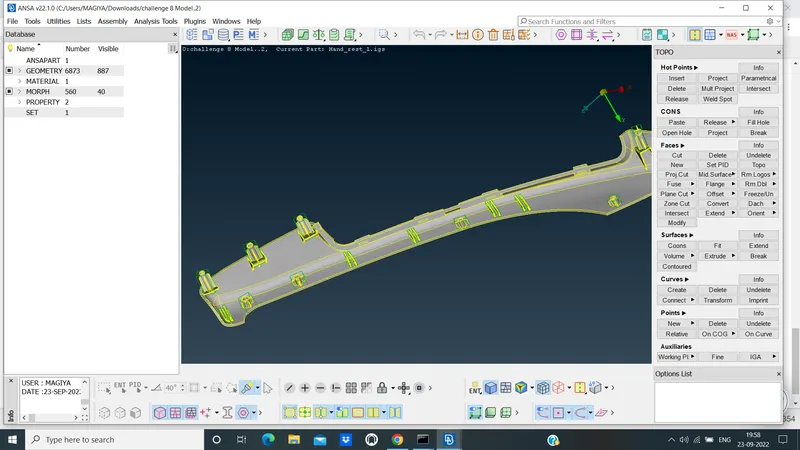

• Here,I can Increased the Height of all Ribs and Dog house for the given model,as shown in below.

.

LEARNING OUTCOMES:

• Its saves lot of time and work in industries,so its required.
• I taught how to increase the height of Ribs an Dog house with the global coordinate axis.
• I learned what is Morphing and Why needs morphing in Industries and its applications.
