AIM:
To take the mid surface for all the components afters checking the geometrical errors and mesh the mid surfae with the given element criteria,for the given hood model.
OBJECTIVES:
To rectify the given models geometrical errors.
Give the geometry checks and the mid surface of all parent geometry.
Give the good mesh flow and Assign the thickness of the all model.
PROCEDURE:
Import the geometry.

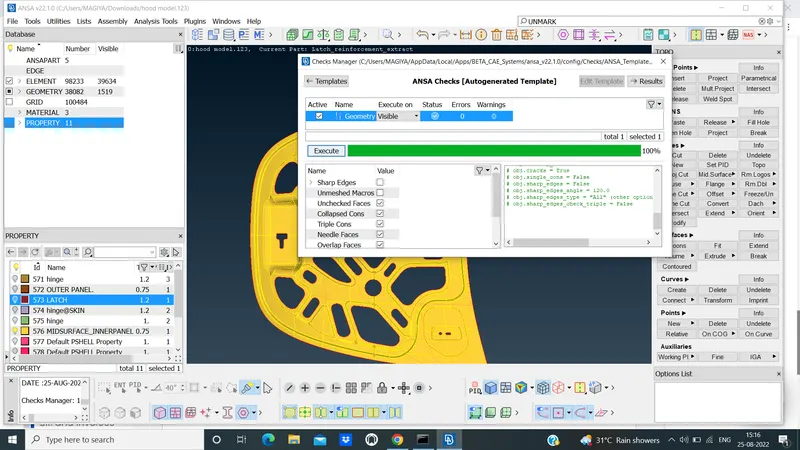

- I can do the geometry checks, as shown in below.
- I can do the mid surface for all the geometry property of Mid surface inner panel,Outer panel,Latch,Hinges.
Go to the mid surface skin option and offset is automatically done by ansa.
Give the length (perimeter/marcos) of the given length.
Topo all the part and suppress the all unwanted lines and curves of the geometry property.
Give the quality criteria of components of the given target element quality criteria.

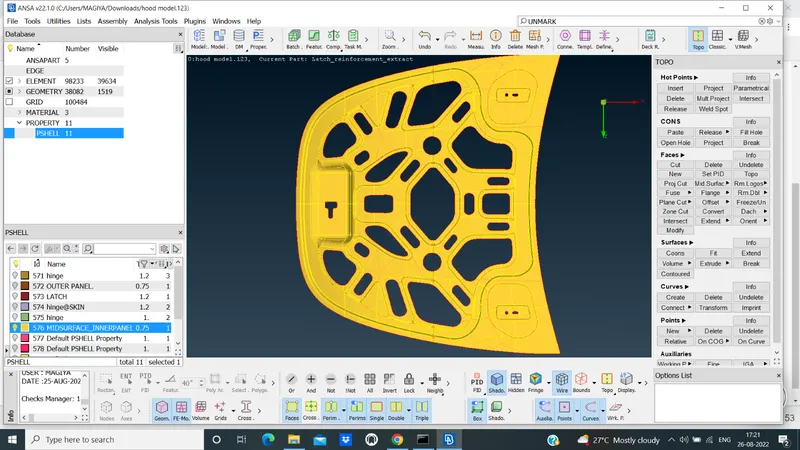

Topo mode of the mid surface inner panel,as shown in figure.
And go to classic mesh and use the best mesh .
Use the improve option for good and smooth mesh flow.

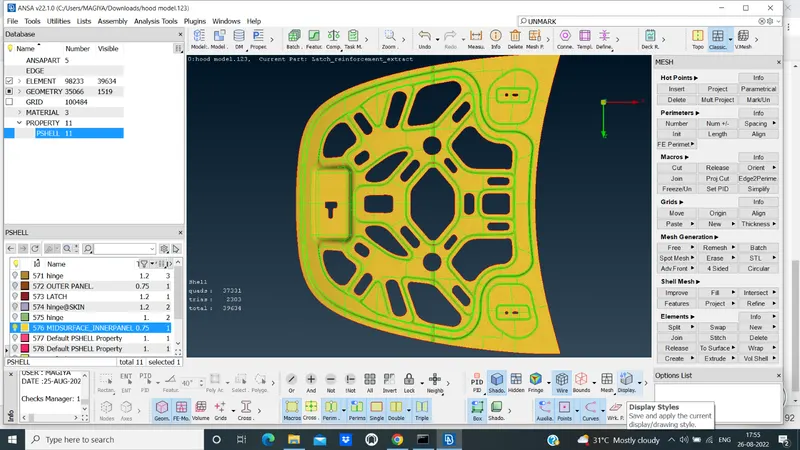

After meshing,the mid surface inner panel,as shown in below.

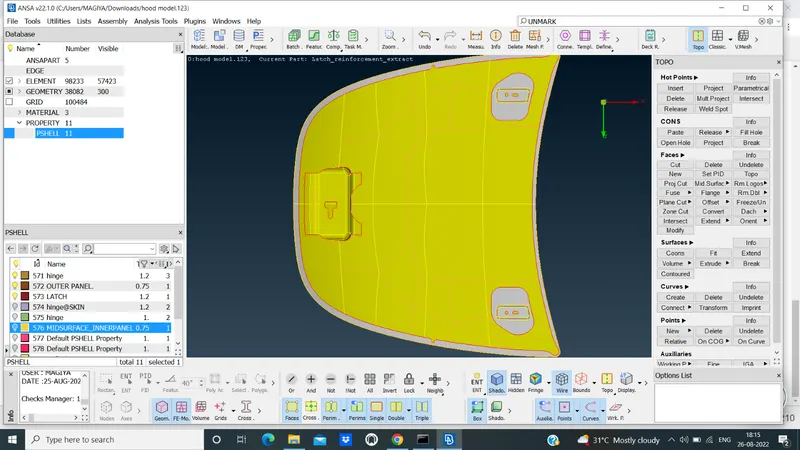

similarly,Repeat the procedures again for Outer panel,Latch,Hinges are in topo mode,as shown in below.

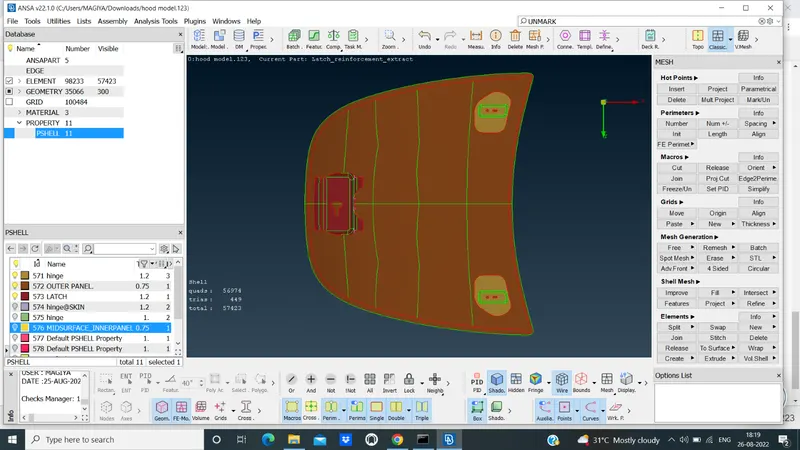

After meshing,components of Outer panel,Hinges and Latch as shown in below.
CONCLUSION:

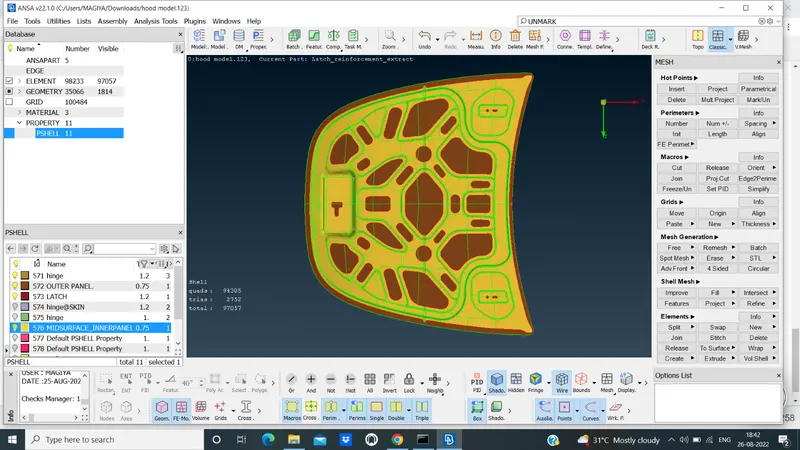

Here the given target element quality criteria has been done with the zero percentage geometrical errors and the good and smooth mesh flow has been done of all geometry property,as shown in below.
