Week - 8 - Morphing

REPORT

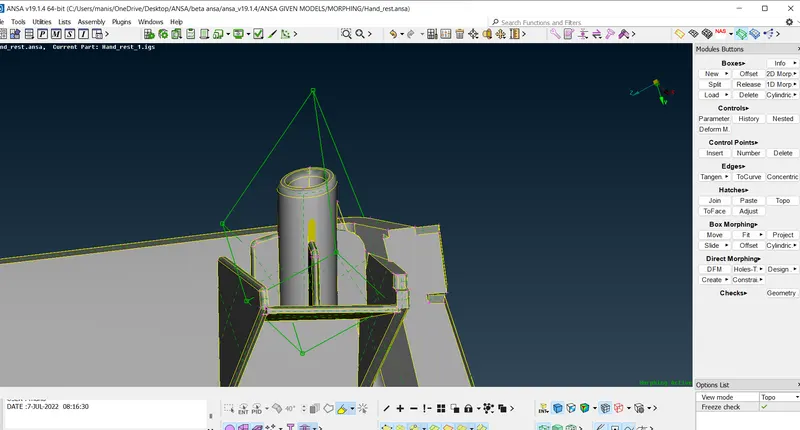

AIM: TO MORPH THE GIVEN COMPONENTS OF SHEET METAL AND HAND REST COMPONENT.

PROCEDURE:

1.IMPORT THE GIVEN FILE FROM THE FOLDER.

2.PERFORM TOPO.

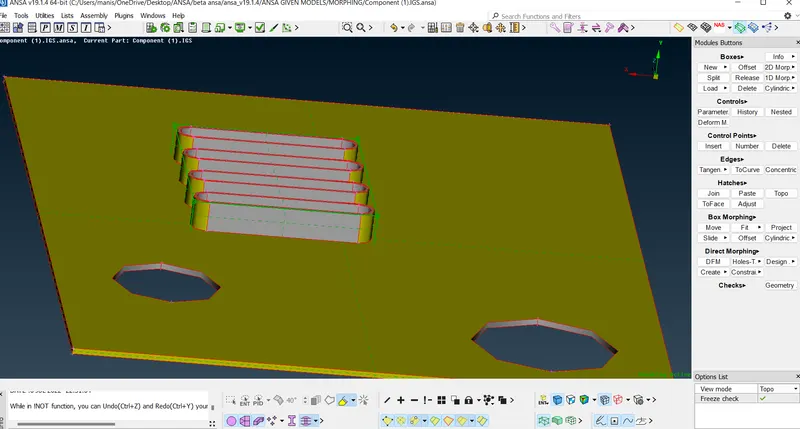

3.CHECK FOR GEOMETRICAL ERRORS.

4.AFTER CLEARING MOVE TO MORPH MODULE.

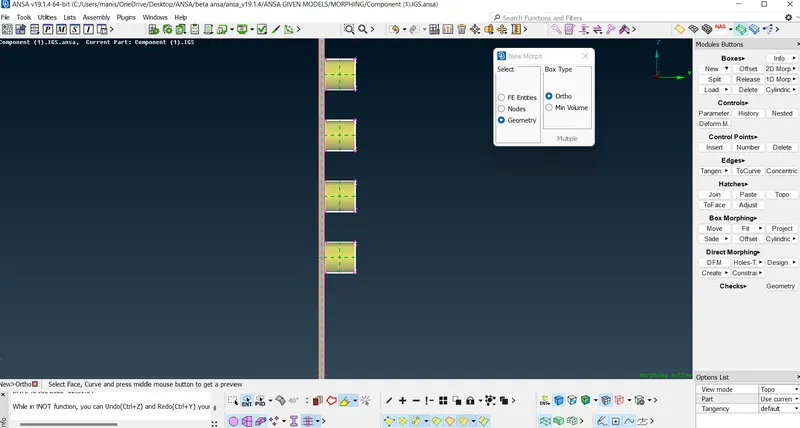

5.SELECT NEW FROM BOX.

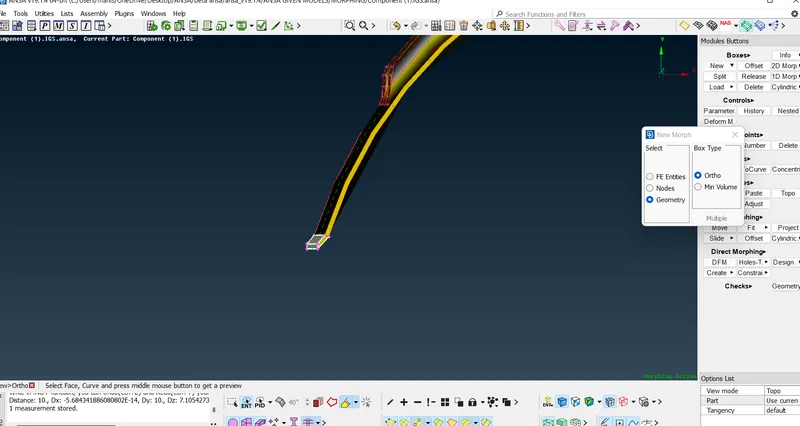

6.SELECT THE ENTITY THAT WILL BE MORPHED.

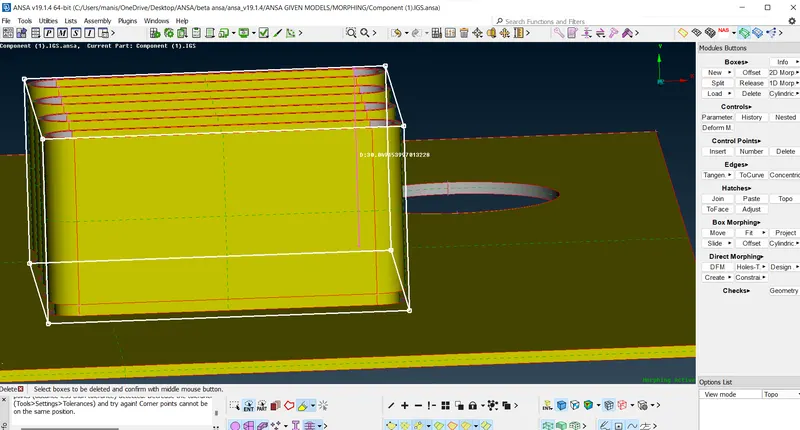

7.SELECT GEOMETRY FOR MORPHING IN NEW >ORTHO.

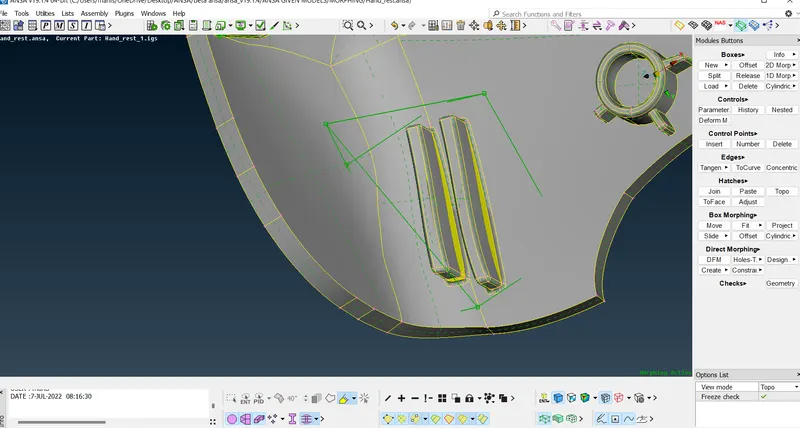

8.A GREEN BOX WILL ARRIVE AROUND THE SELECTED GEOMETRY.

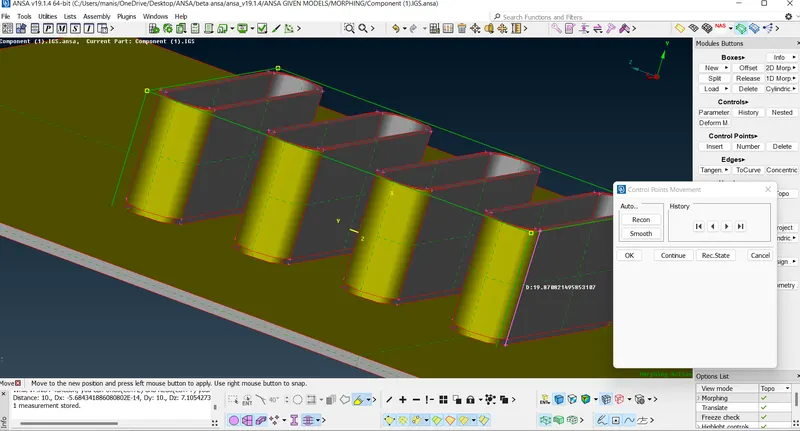

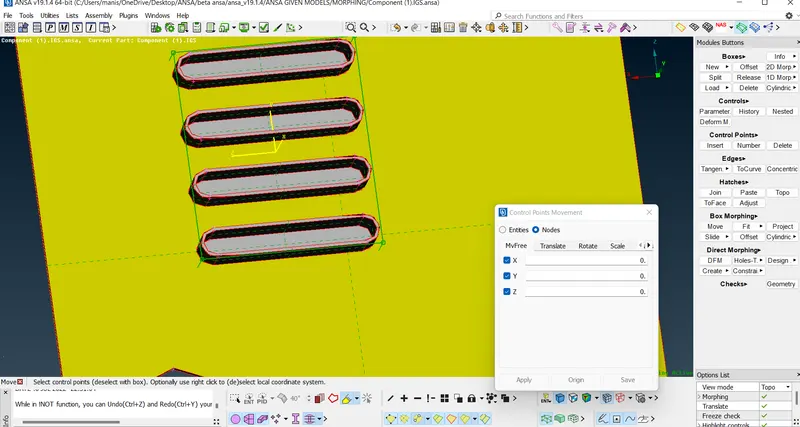

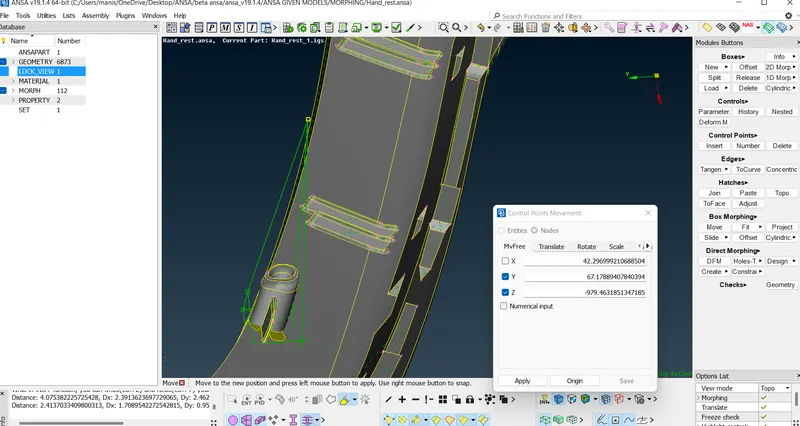

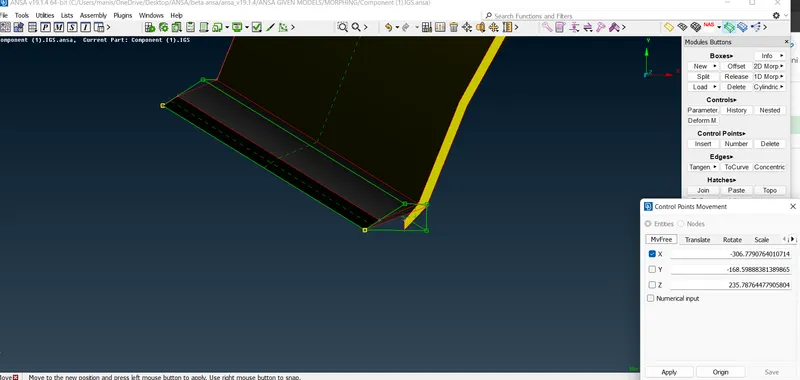

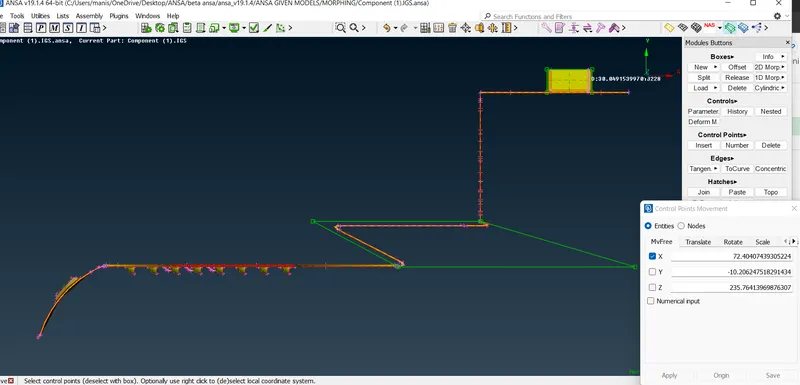

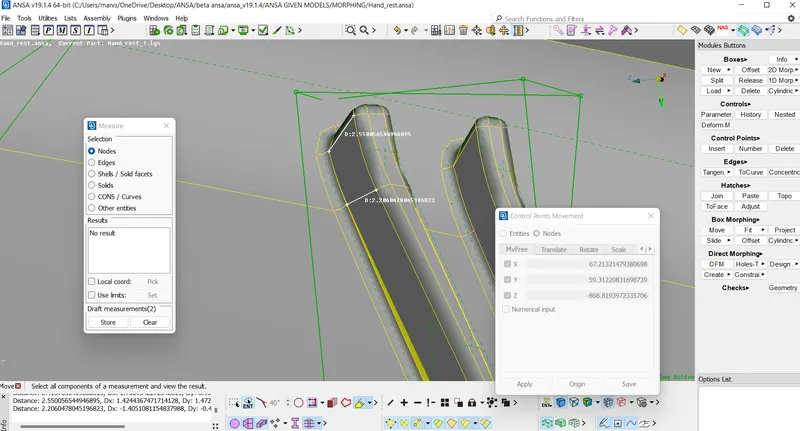

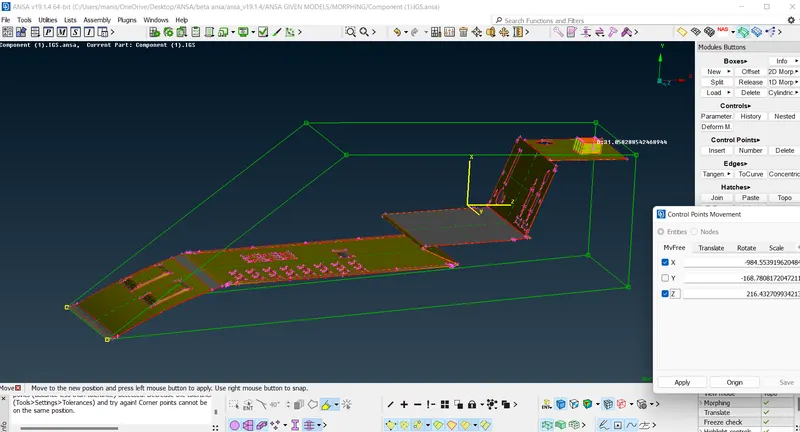

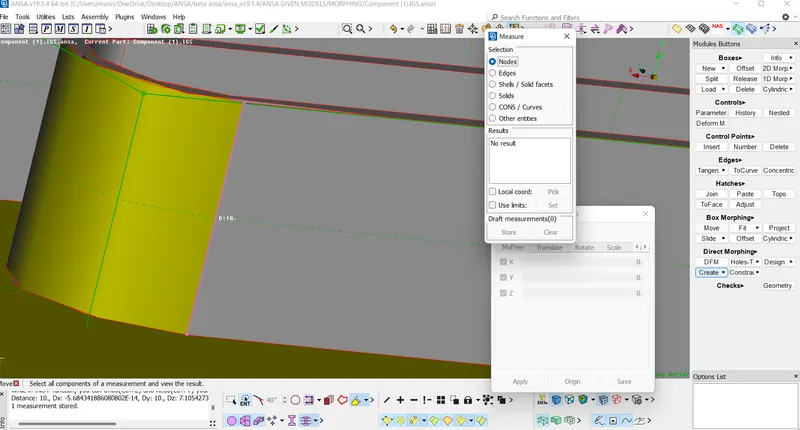

9.SELECT MOVE FROM BOX MORPHING AND THEN SELECT THE NODE AND FREE THE X,Y,Z COORDINATES ACCORDING TO THE MOVEMENT OF THE COMPONENT DESIREED TO MOVE.

10.SELECT APPLY AND OK

11.AFTER THAT GIVE THE LENGTH FOR PERIMETER AND MACROS.

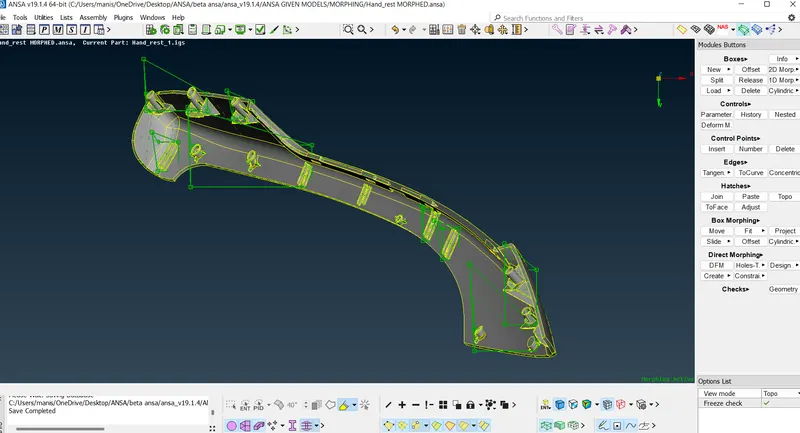

12.AND THE MORPHED COMPONENGTS ARE READY.

INDUSTRIAL APPLICATION:

1.THE MORPHING IS USED IN AUTOMOBILE INDUSTRIES FOR CHANGING THE DESIGN OF THE VEHICLES FROM THE EXISTING.

2.EXAMPLE:HATCHBACK CAR TO SEDAN.

LEARNING OUTCOME:

1.DESIGN CHANGES USING MORPHING.

2.MOVE THE COORDINATES FOR RESHAPING.

CONCLUSION:

1.MORPHING IS PERFORMED ON THE SHEET METAL COMPONENT AND THE HAND REST.
