Week - 8 Mass Scaling

Aim:-

To perform the simulation by reducing and stabilizing the runtime with the help of mass-scale factor.

Objective:-

• To understand the motive of a computing time with and without a mass-scale factor.
• By ensuring the stability of mass scaling at 8%.
• Comparing implicit vs explicit runtime.

Basic Theory:-

Mass scaling:-

In an explicit method, the time step usually is very small to maintain numerical stability. However, small step size prevents this method from being useful for routine analysis work. To reduce the CPU cost and improve the performance, mass scaling is often used to increase the time step size in each cycle. Several methods can be used with LS-DYNA to accomplish this. The simplest method is to use a large mass density for the blank. Alternatively, the user may specify the desired minimum time step size in *CONTROL_TIMESTEP.

Mass-scaling refers to a technique whereby nonphysical mass is added to a structure in order to achieve a larger explicit timestep. One can employ mass scaling manually by artificially increasing the material density of the parts you want to mass-scale. This manual form of mass scaling is done independently of the automatic mass scaling invoked with DT2MS in *CONTROL_TIMESTEP. When DT2MS is input as a negative value, mass is added (with a safety factor; see note at end of this file) only to those elements whose timestep would otherwise be less than TSSFAC * |DT2MS|. By adding mass to these elements, their timestep becomes equal to TSSFAC *|DT2MS|. The trend is that the smaller the TSSF, the greater the added mass. In return, stability may improve as TSSF is reduced (just as in non-mass-scaled solutions). If stability is a problem with the default TSSF of 0.9, try 0.8 or 0.7. If you reduce TSSF, you can increase |DT2MS| proportionally so that their product, and hence timestep, is unchanged.

The difference between using a positive or negative number for DT2MS in*CONTROL_TIMESTEP is as follows:
Negative: Mass is added to only those elements whose timestep would otherwise be less than TSSF*abs(DT2MS). When mass scaling is appropriate, I recommend this method.
Positive: Mass is added or taken away from elements so that the timestep of every element is the same. My opinion is there is no advantage to using this method over the negative DT2MS method.

Procedure:-

Case 1:- Explicit Analysis(With Mass-scale)

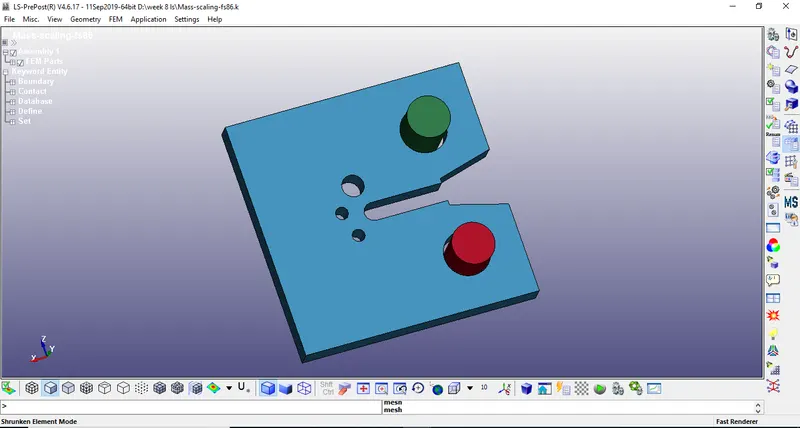

Step 1:- Import keyword file:-

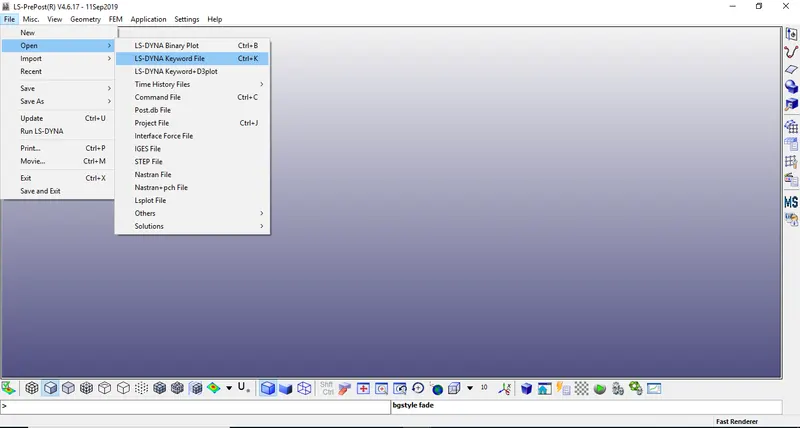

• We have to open the given LS-Dyna keyword (.k file) file in LS-PrePost, using option File>Open>LS-Dyna Keyword File as shown in below snap.

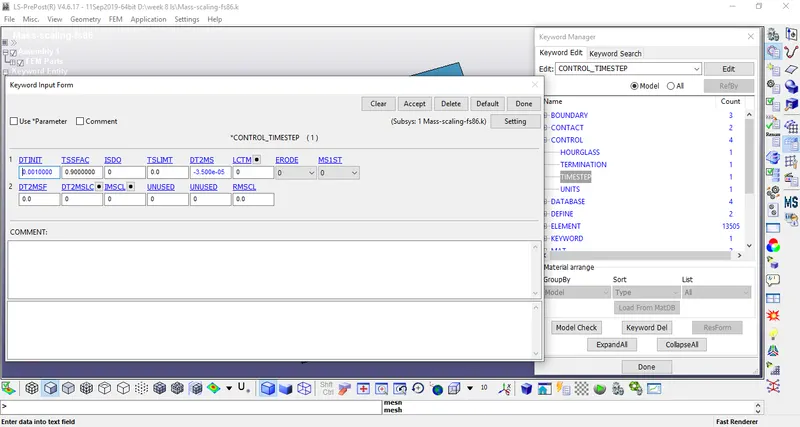

Step 2:- *CONTROL_TIMESTEP :-

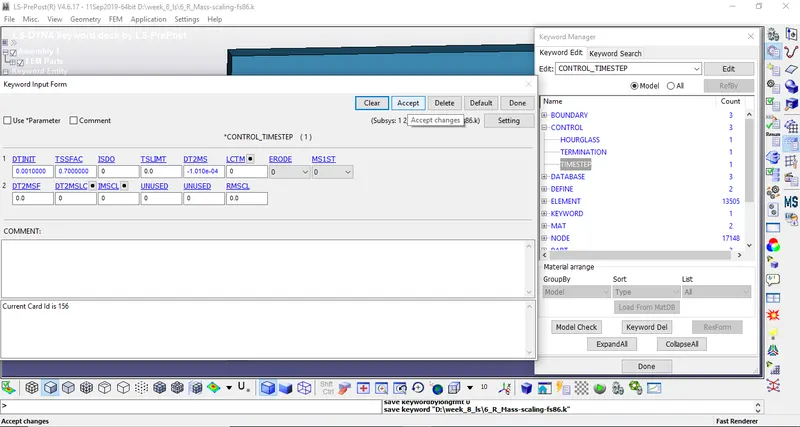

• Since DTMS and TSSFAC are the important parameters in the *CONTROL_TIMESTEP card that transforms the timestep and the runtime of the simulation.
• In order to that, we could change these values in each iteration to obtain an optimized runtime with a stable solution and to make sure mass scaling accomplishes 8%.

DTINIT - Initial time step size (Default)
TSSFAC - Scale factor for computed time step
DT2MS - Time step size for mass scaled solution

• Now we will try to run the simulation as per above default inputed values.

Step 3:- Run Default File and Then Run All Changed Files One By One:-

1}:- Iterations-1 DT2MS: -3.5e-5 & TSSFAC: 0.9

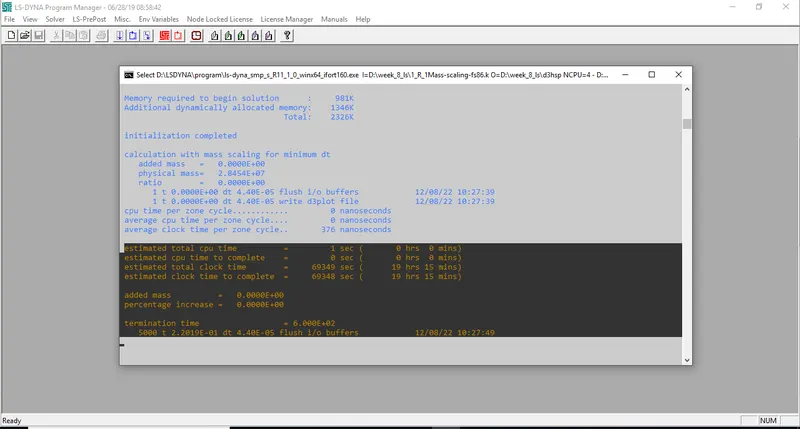

• From the above image, the computation time is 19 hrs 15 mins. As a result, there is no mass added with given DT2MS of -3.500e^-05, this can be varied by changing the values of DT2MS and TSSFAC

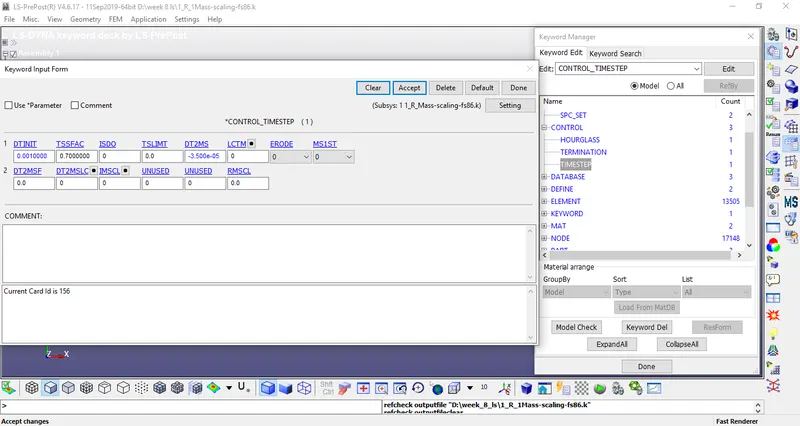

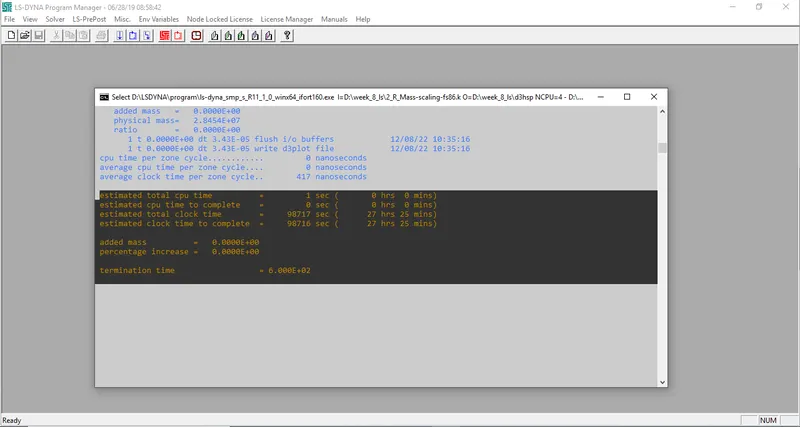

2}:- Iterations-2 T2MS: -3.5e-5 & TSSFAC: 0.7

• Now we will change the value of TSSFAC to 0.7 and see what happens to solution time.

• From the above image, the computation time is increased by 19 hrs 15 mins to 27 hrs 25 mins, as a change in TSSFAC=0.7 leads to a rise in timing. However, we can see that the mass-scale factor still pertains to zero factor.

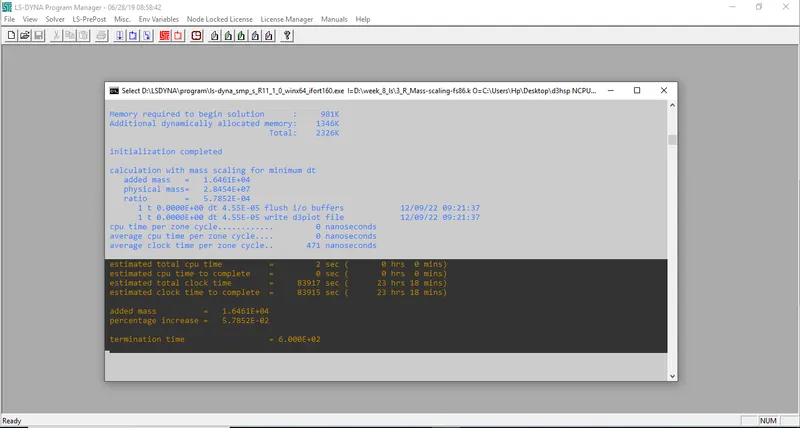

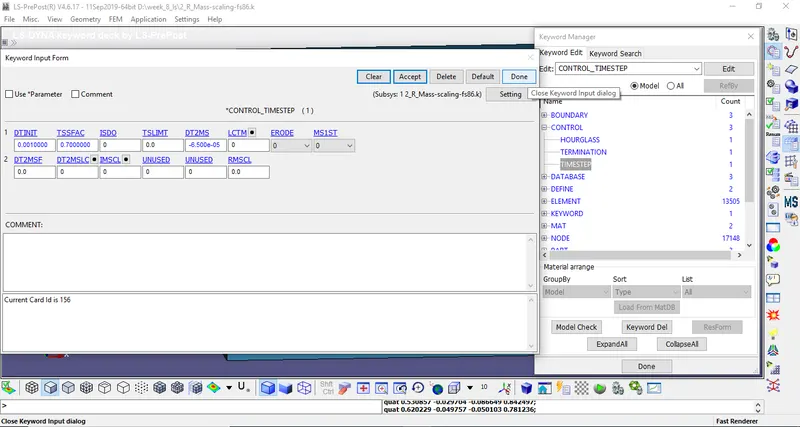

3}:- Iterations-3 DT2MS: -6.5e-5 & TSSFAC: 0.7

• Here we will change the value of DT2MS and see if we get mass scaling factor.

• From the above image, the computation time for is decreased rapidly from 27 hrs 25 mins to 23 hrs 18 mins, there is a considerable decrease in computational time.
• However, mass added with a default value of TSSFAC=0.7, DT2MS of -6.500e^-05 with a percentage of mass increase in 5.7852E^-02
• Since the added mass the limit is very low, the energy values also vary considerably. Values need to be increased.

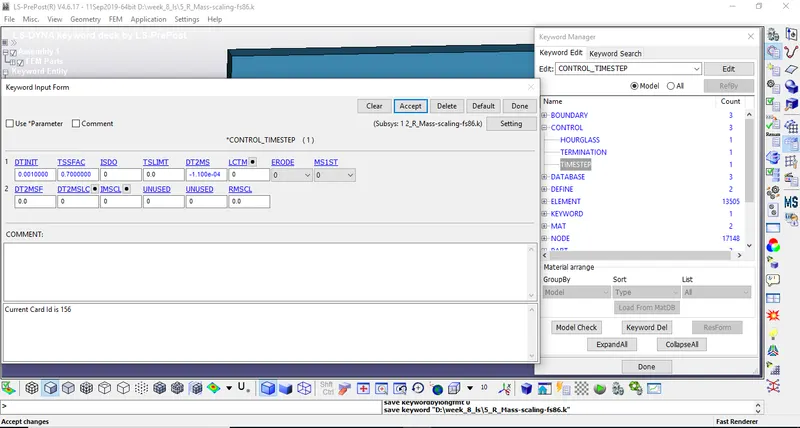

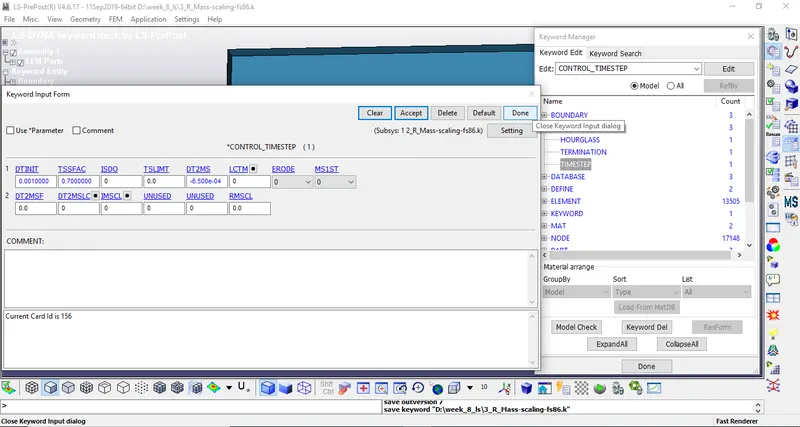

4}:- Iterations-4 DT2MS: -6.5e-4 & TSSFAC: 0.7

• Again we will change the DT2MS Value.

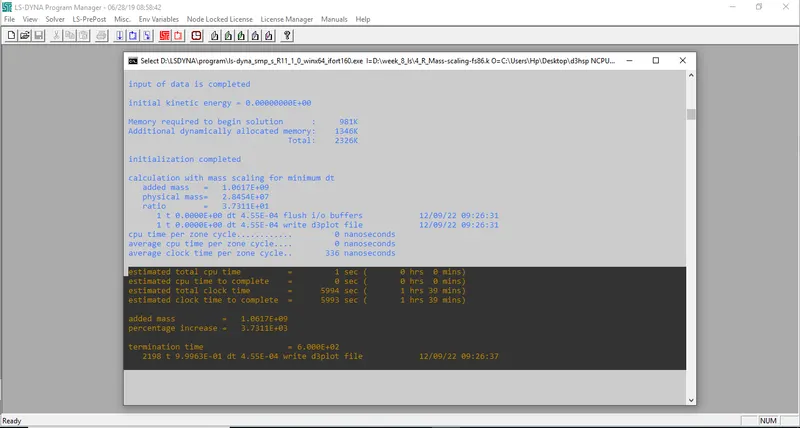

• From the above image, the computation time for is decreased rapidly from 23 hrs 18 mins to 1 hrs 39 mins, there is a considerable decrease in computational time.
• However, mass added with a default value of TSSFAC=0.7, DT2MS of -6.500e^-04 with a percentage of mass increase in 3.7311E+03.
• Since the added mass exceeding the limit, the energy values also vary considerably. Values need to be reduced.

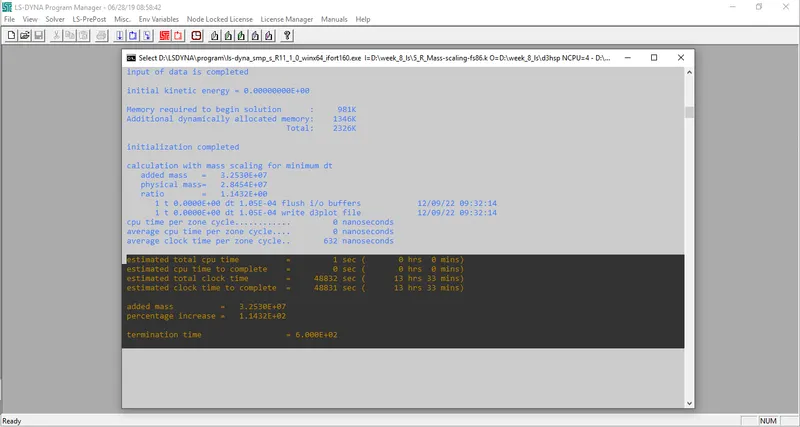

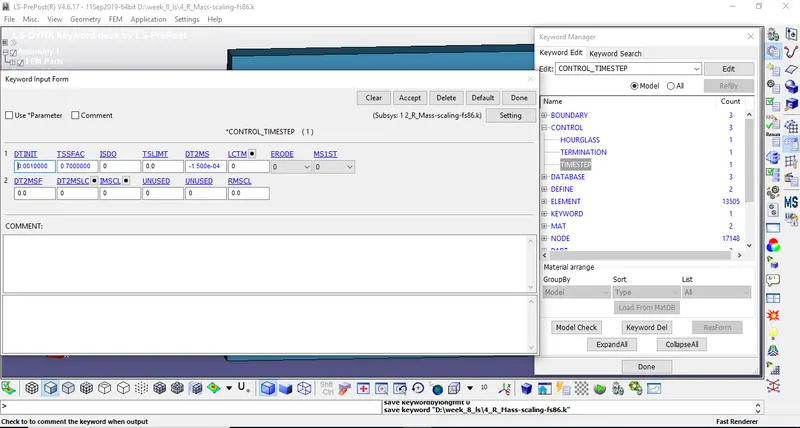

5}:- Iterations-5 DT2MS: -1.5e-4 & TSSFAC: 0.7

• From the above image, the computation time for is increased rapidly from 1 hrs 39 mins to 13 hrs 33 mins, there is a considerable increase in computational time.
• However, mass added with a default value of TSSFAC=0.7, DT2MS of -1.500e^-04 with a percentage of mass increase in 1.1432E+02.
• Since the added mass exceeding the limit, the energy values also vary considerably. Values need to be reduced.

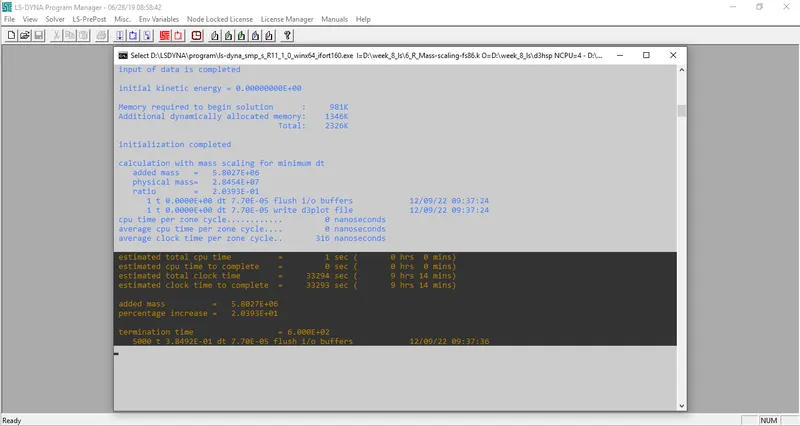

Iterations-6 DT2MS: -1.1e-4 & TSSFAC: 0.7

• From the above image, the computation time for is decreased slightly from 13 hrs 33 mins to 9 hrs 14 mins, there is a considerable increase in computational time.
• However, mass added with a default value of TSSFAC=0.7, DT2MS of -1.100e^-04 with a percentage of mass increase in 2.0393E+01.
• Since the added mass still exceeding the limit, the energy values also vary considerably. Values need to be reduced.

7}:- Iterations-7 DT2MS: -1.01e-4 & TSSFAC: 0.7

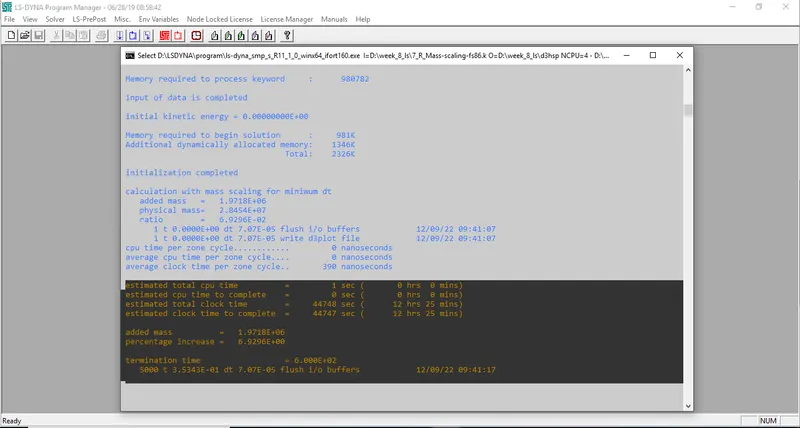

• From the above image, the computation time for is increased slightly from 9 hrs 14 mins to 12 hrs 25 mins, there is a considerable increase in computational time.
• However, mass added with a default value of TSSFAC=0.7, DT2MS of -1.010e^-04 with a percentage of mass increase in 6.9297E+00.
• Since the added mass has reached nearly the required limit, the energy values vary considerably. Values need to be reduced slightly.

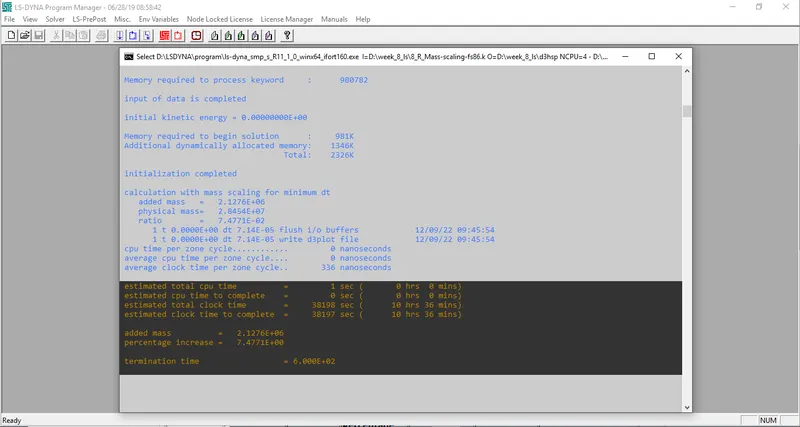

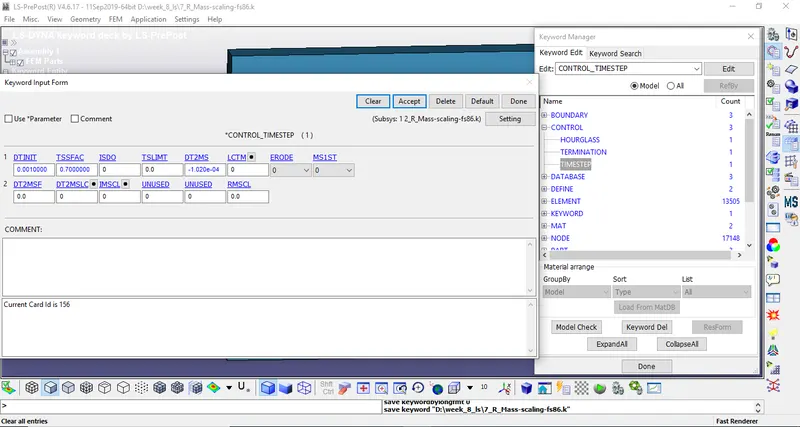

Iterations-8 DT2MS: -1.02e-4 & TSSFAC: 0.7

• From the above image, the computation time for is decreased from 12 hrs 25 mins to 10 hrs 36 mins, there is a considerable decrease in computational time.
• However, mass added with a default value of TSSFAC=0.7, DT2MS of -1.02e^-04 with a percentage of mass increase in 7.4771e+00.
• Since the added mass has reached the required limit.

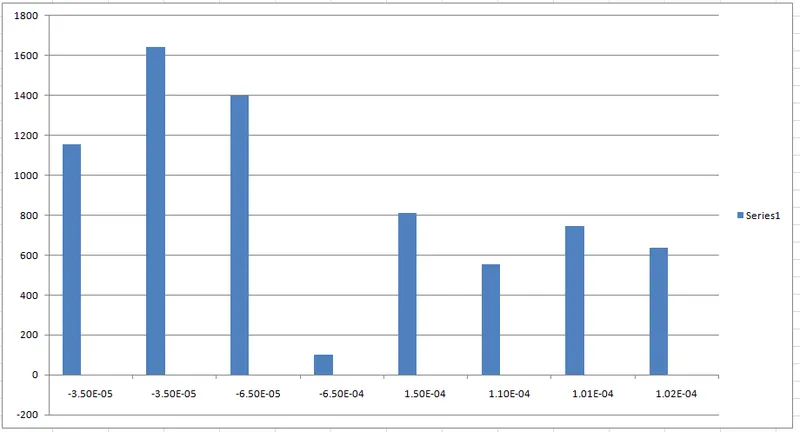

Histogram for the Above Mass Scaling Trails-

Sr. No.	DT2MS	TSSFAC	Mass Percentage	Computation Time
				Evaluated	In minutes
1	-3.5e-5	0.9	0	19 hrs 15 min	1155 min
2	-3.5e-5	0.7	0	27 hrs 25 min	1645 min
3	-6.5e-5	0.7	0.0057852	23hrs 18 min	1398 min
4	-6.5e-4	0.7	3.7311e+3	1 hr 39 min	99 min
5	1.5e-4	0.7	114.32	13 hrs 33 min	813min
6	1.1e-4	0.7	20.393	9 hrs 14 min	554 min
7	1.01e-4	0.7	6.9297	12 hrs 25 min	745 min
8	1.02e-4	0.7	7.4771	10 hrs 36 min	636 min

Case-2 Implicit Analysis-

• Generally in LS pre-post, the solver practices an Explicit method for all the FE models. In order to perform an Implicit method, the solver requires the following keywords to switch from Explicit to Implicit analysis.

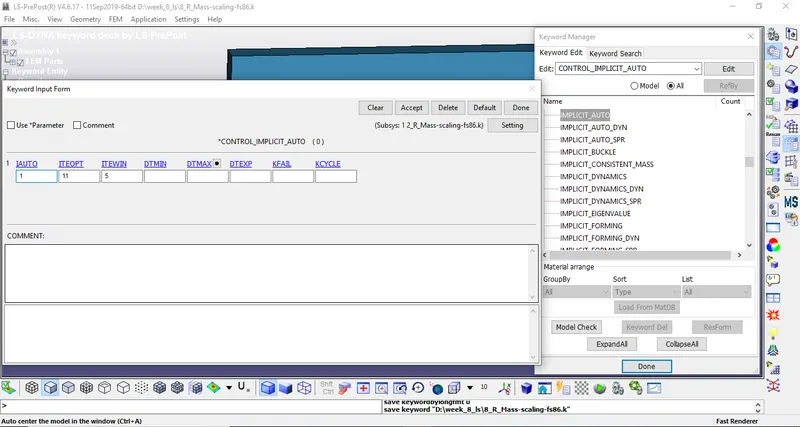

CONTROL_IMPLICIT_AUTO

IAUTO: Automatically adjust the time step size.
ITEOPT: Optimum equilibrium iteration count per time step.
ITEWIN: Allowable iteration window. If the iteration count is within ITEWIN iterations of ITEOPT, the step size will not be adjusted.

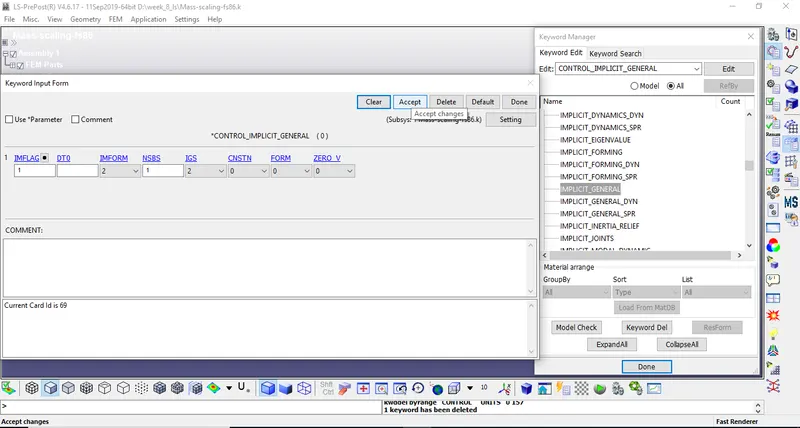

IMFLAG - Implicit/Explicit analysis type flag: 1- implicit analysis.
DT0 – Initial time step size for implicit analysis (Termination time/100).
IMFORM - Element formulation flag for seamless spring back: 2 retain original element formulation (default).

• Now we will run the simulation.

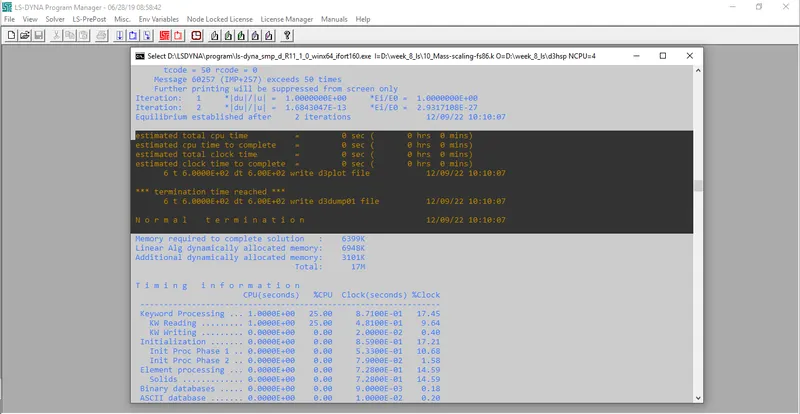

• From the above image, there is no mass added during the computational time, also attached with CONTROL_TIMESTEP.
• In this method, the computation time is less then 1 seconds maximum for this setup case.

Conclusion-

• The objective of mass scaling is achieved for the given model by varying the values of DT2MS and TSSFAC using the trial and error method.
• By considering the hard limit on mass scaling being 8%, the optimized value of DT2MS = -1.029E-4 and TSSFAC= 0.9 with the lowest possible runtime required to complete the simulation being 10 hrs. 18 mins. And the TSSFAC value should be in between 0.5 to 0.9.
• The values of DT2MS and TSSFAC does not affect the runtime required to complete the simulation for implicit analysis.
• After, that we have run the analysis using implicit control cards which gives us the result that the implicit analysis is based on iterations to acheive equillibrium and doesn't depend on mass scaling. The concept of mass scaling and its necessity is in explicit analysis only.
