Week - 4 - 2D meshing for Plastic components
AIM ;- To check for the geometrical errors and take the mid surface by suitable mid surfacing techniques. PID and Thickness assignment has to be done for all the mid surfaces. Mesh the same with given element Quality criteria.
step ;1 I check for the geometrical error. and clean the geometry 100%.

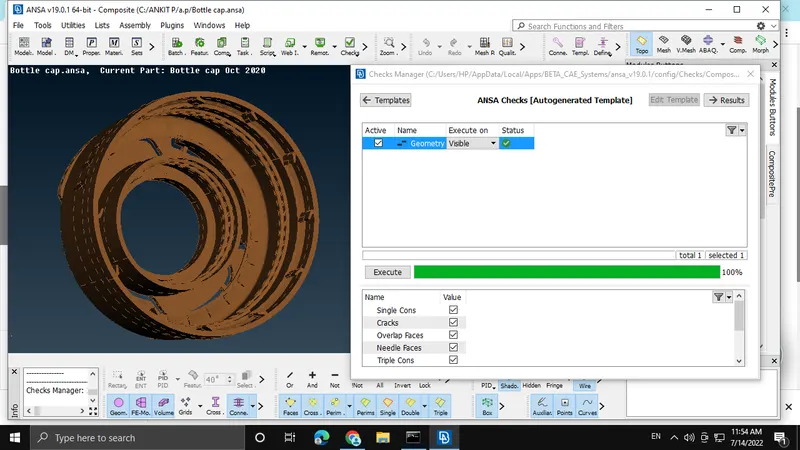

1:- For Plastic Bottle Cap model

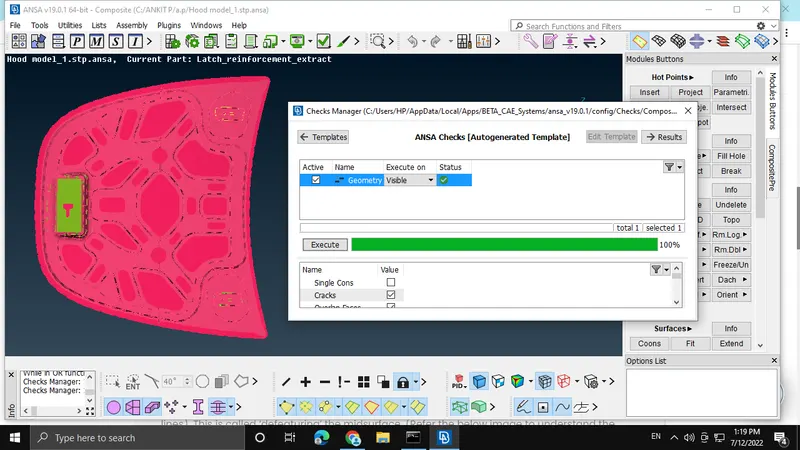

2:- for Hood Model .
step 2 :- Make Mid Surface one by one for total geometry.

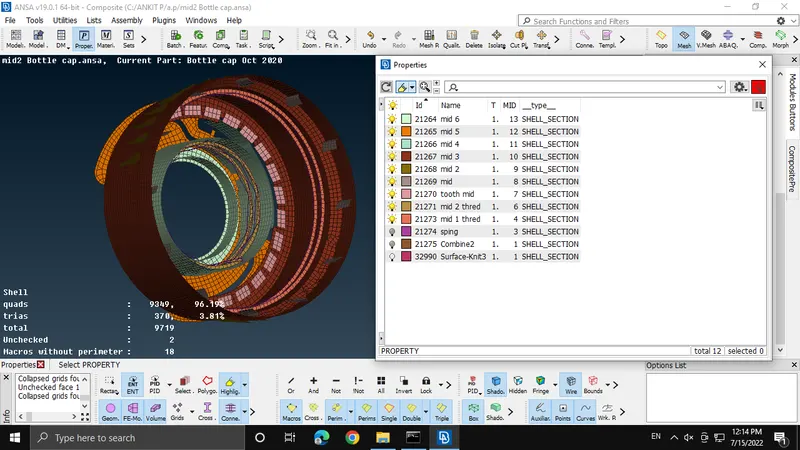

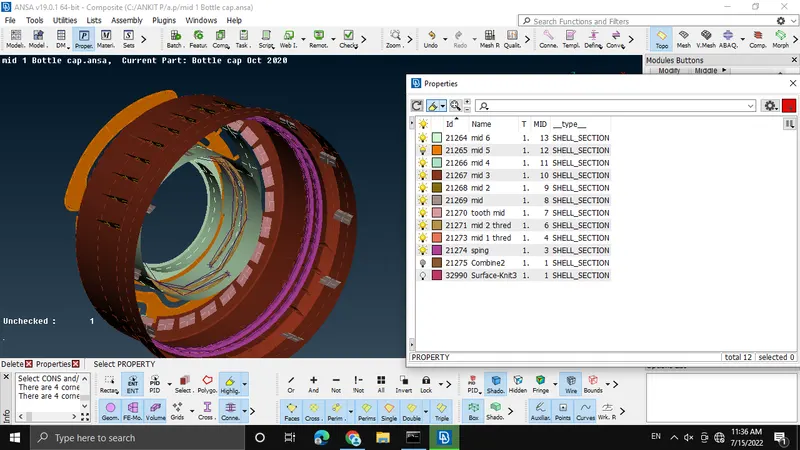

1:- For Plastic Bottle Cap model

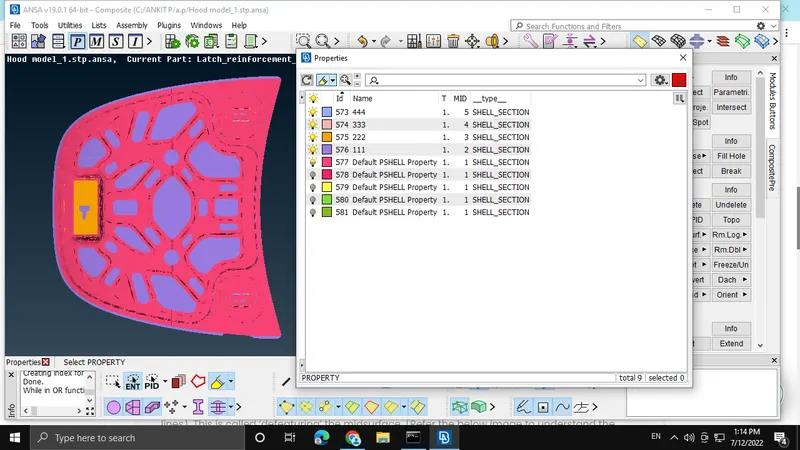

2:- for Hood Model .
Step 3:- Mid Surface Meshing with given element Quality criteria.
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
1 |
|
2 |
Minimum Length |
0.5 |
|
3 |
Maximum Length |
3 |
|
4 |
Aspect |
3 |
|
5 |
Warpage |
15 |
|
6 |
Skewness |
45 |
|
7 |
Jacobian |
0.7 |
|
8 |
Minimum Quad Angle |
45 |
|
9 |
Maximum Quad Angle |
135 |
|
10 |
Minimum Tria Angle |
30 |
|
11 |
Maximum Tria Angle |
120 |
|
10 |
Tria Percentage |
15 |

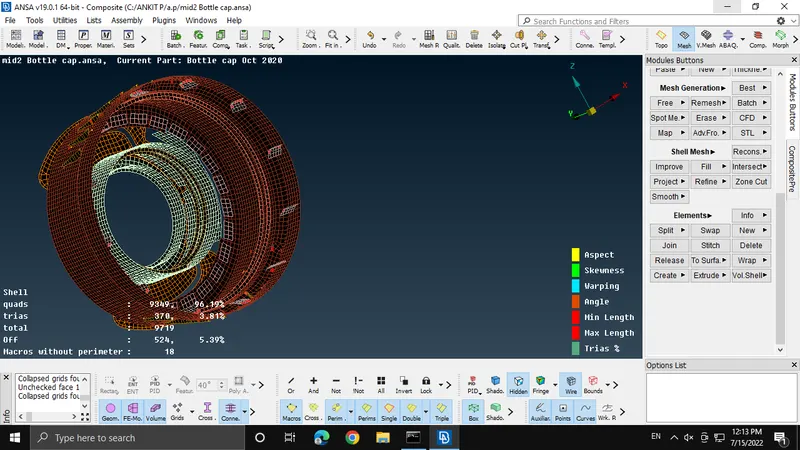

1:- For Plastic Bottle Cap model.

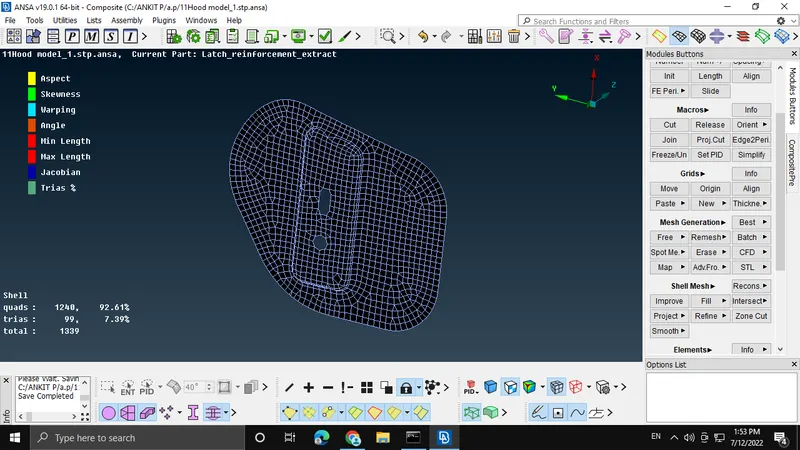

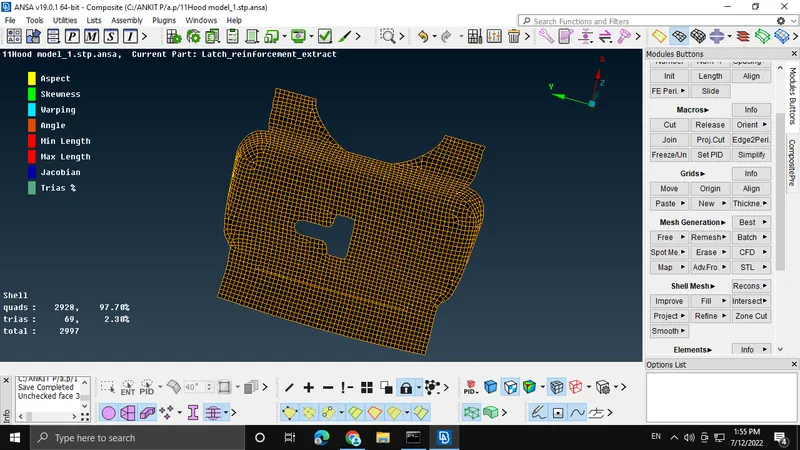

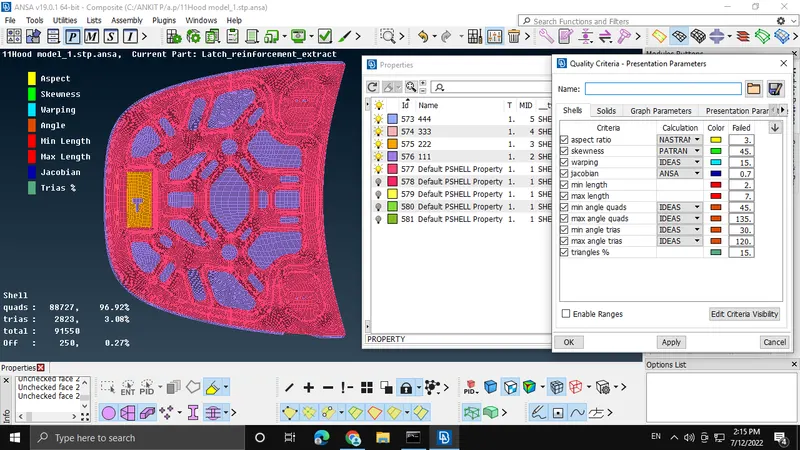

2:- for Hood Model .
