Week 8 - Challenge 6 - Core & Cavity Design
A detailed report should be done explaining the draft analysis and the tooling axis creation.
AIM – To create the tooling axis and do the draft analysis of the switch bezel.
INPUTS – 1. Class A Surface.
- The minimum Draft Angle Should be 3 degrees.
- The component thickness should be 2.5 mm.
TOOLING AXIS

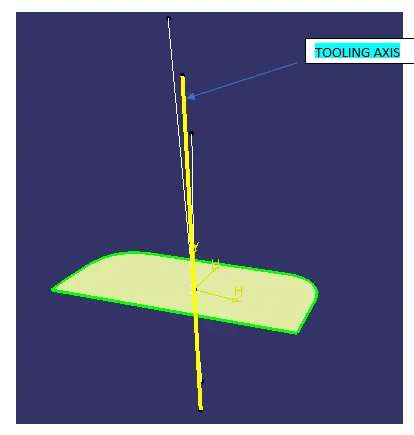

- CREATION OF Y DIRECTION TOOLING AXIS
We have created the tooling axis in the y direction by bisecting method
2. CREATION OF X DIRECTION TOOLING AXIS

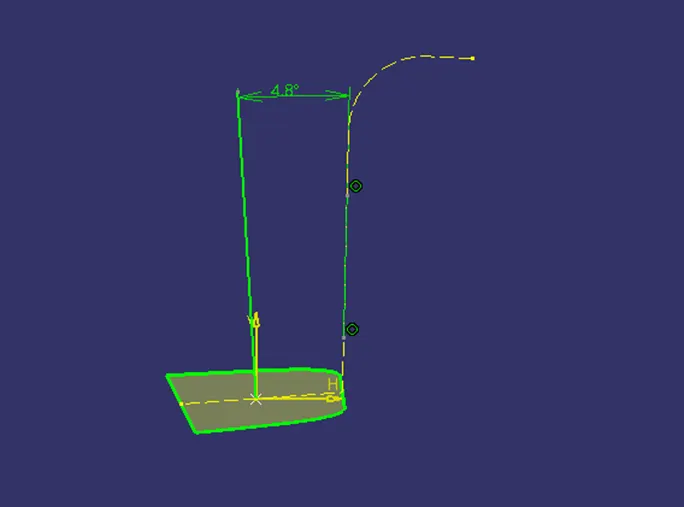

Since we cannot extract the tooling axis here with bisecting method because only one edge is available, so we have created the tooling axis by assuming the draft angle of 4.8 degrees from the edge.

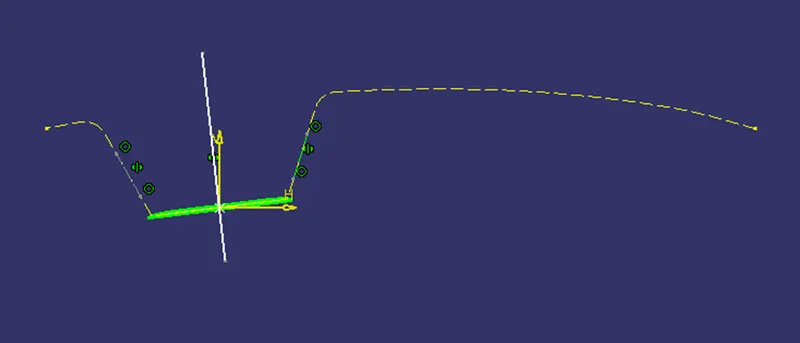

3. CREATION OF FINAL TOOL AXIS
By using the bisection of the two above tooling axis final tooling has been generated.

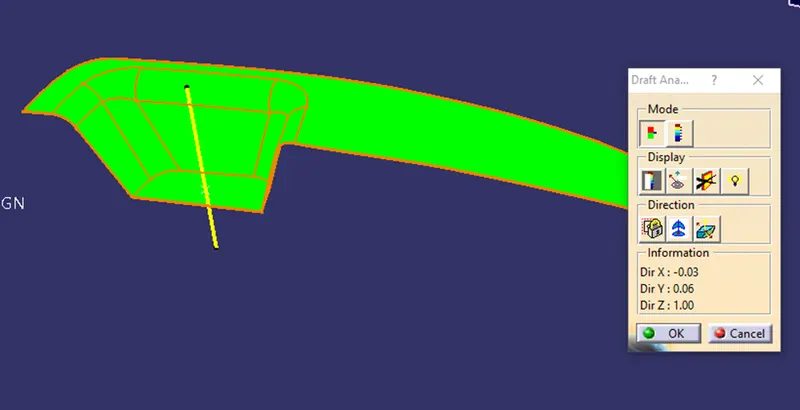

4. DRAFT ANALYSIS OF A CLASS SURFACE

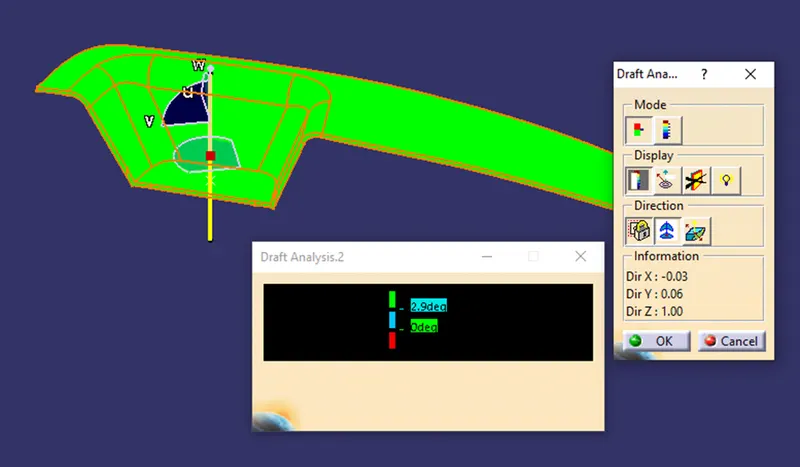

DRAFT ANALYSIS OF FINAL COMPONENT

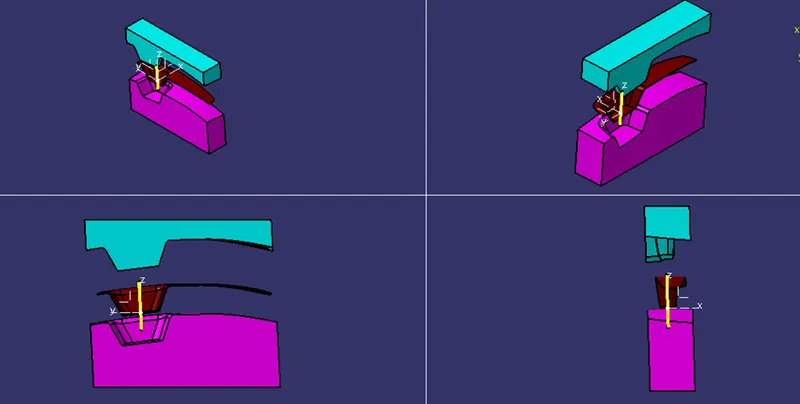

DIFFERENT VIEWS OF CORE AND CAVITY
