Week 8 - Challenge 6 - Core & Cavity Design
Draft analysis,
The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.
Tooling axis,
- In Molding machine the opening is done in mould along a direction which is known as Tooling Direction.
- The mould is built from two separate halves (Core and Cavity) and tooling direction basically defines the direction of mould pulls apart.
- Tooling direction is known as primary direction.
- This provides the job ejection pin and were the injectors are placed.

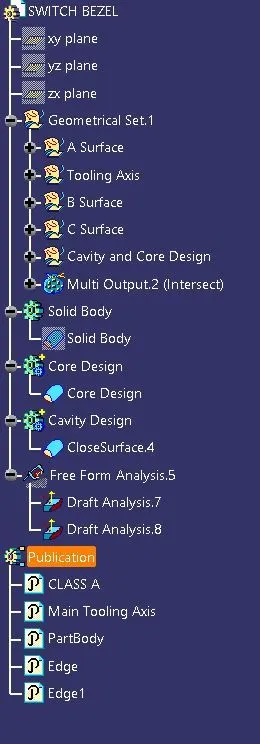

Tree Struture

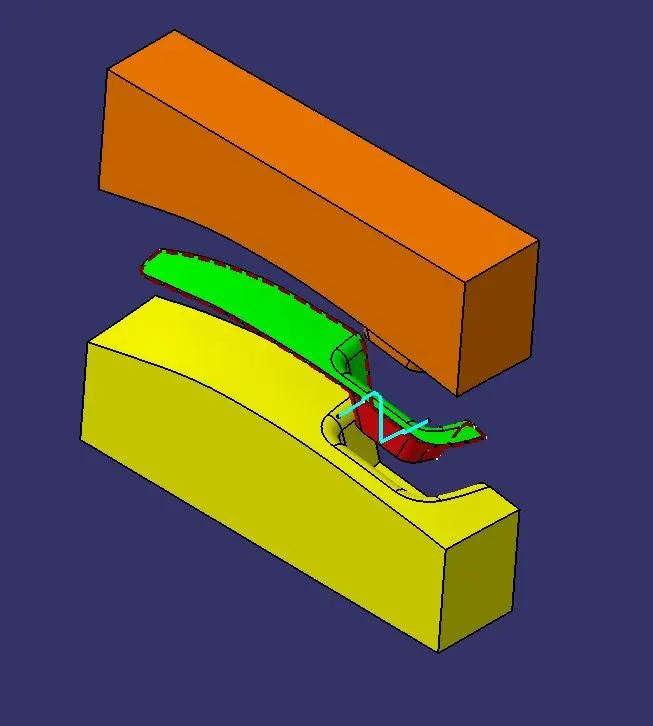

Isometric View

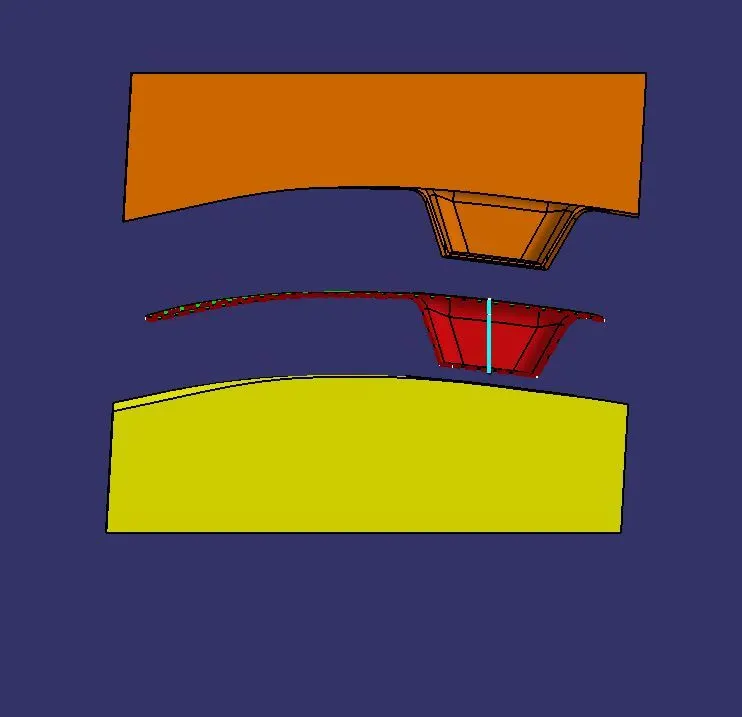

Front View

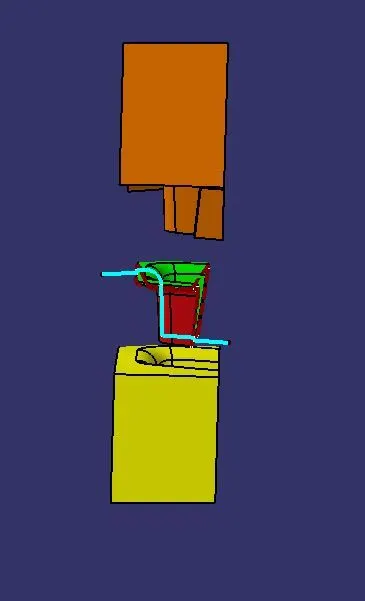

Side View

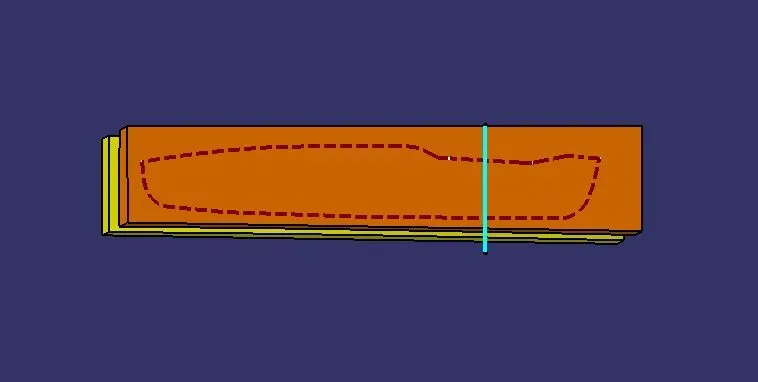

Top View
