Week 8 - Challenge 6 - Core & Cavity Design

Switch Bezel:

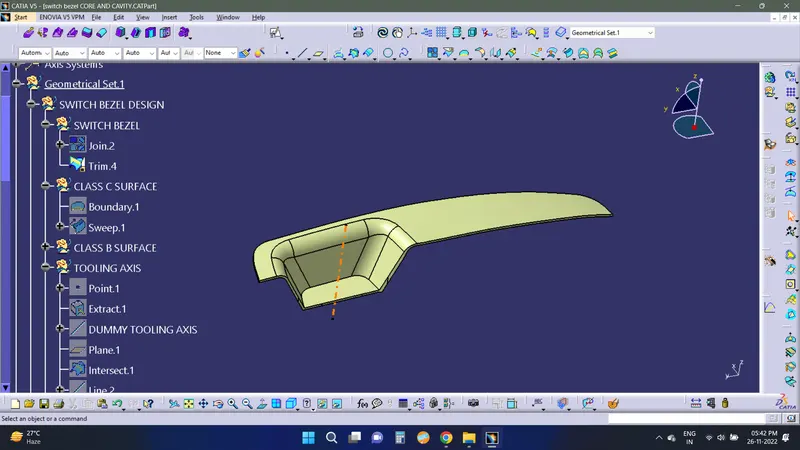

surface body :

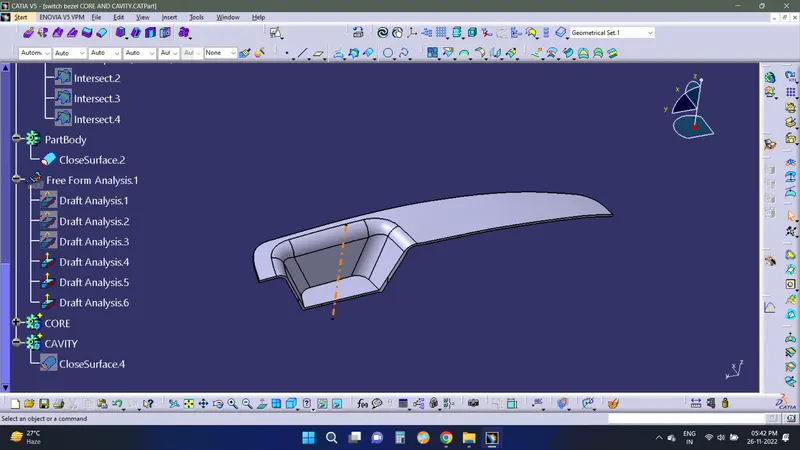

solid body :

Switch Bezel Core & Cavity Design:

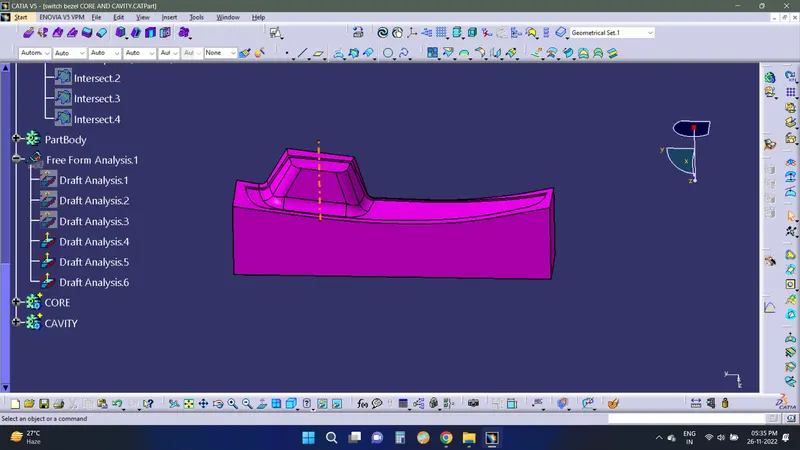

Core block design :

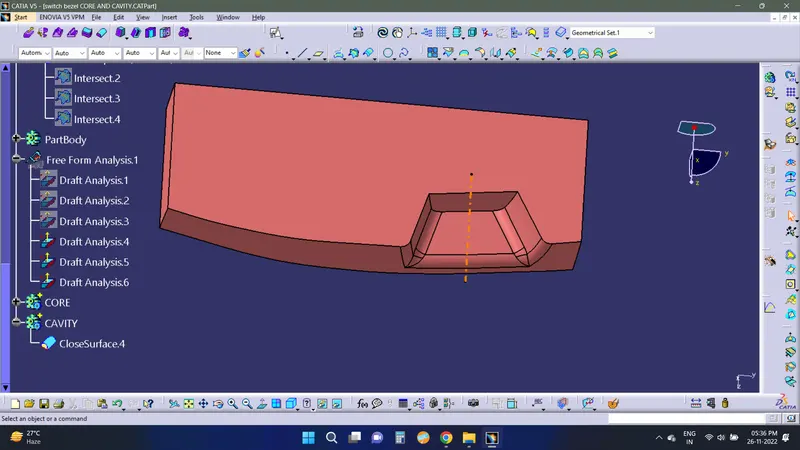

Cavity design :

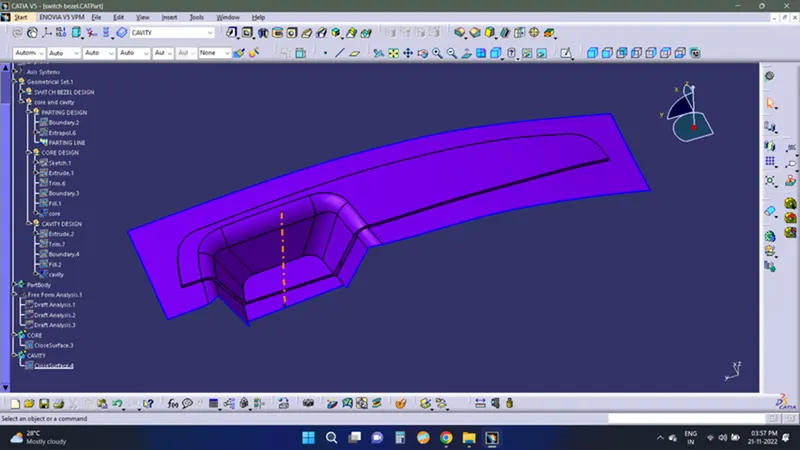

PARTING SURFACE :

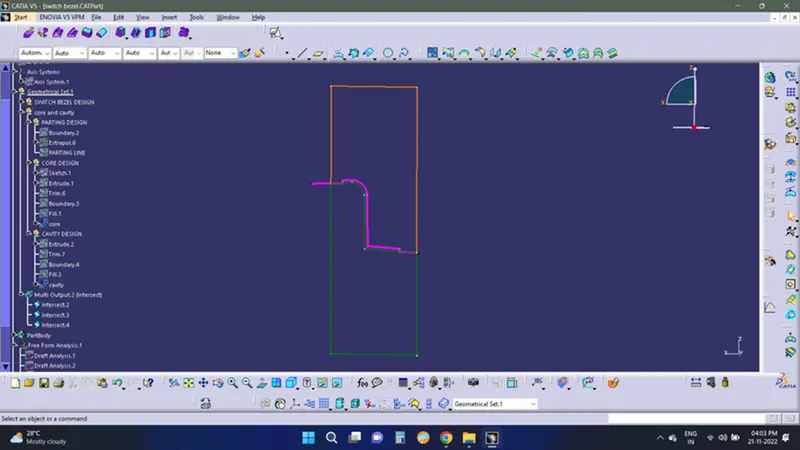

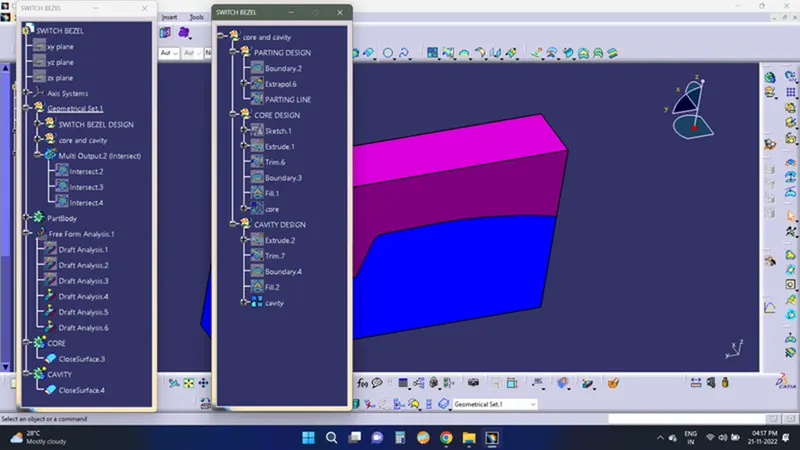

TREE STRUCTURE :

WORK DETAILS :

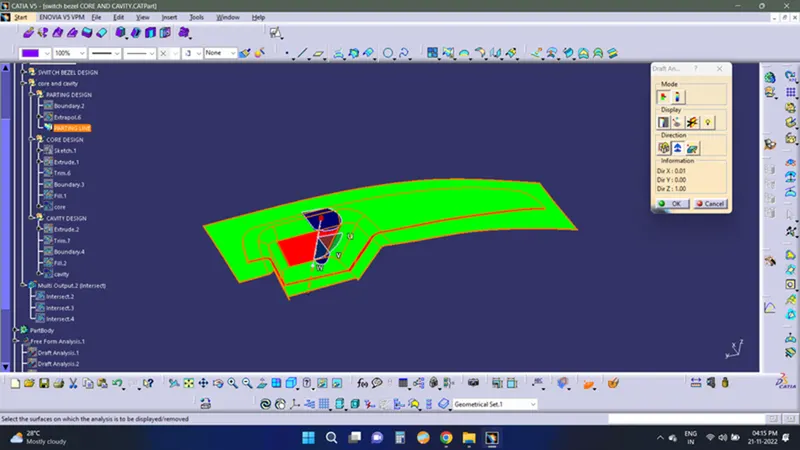

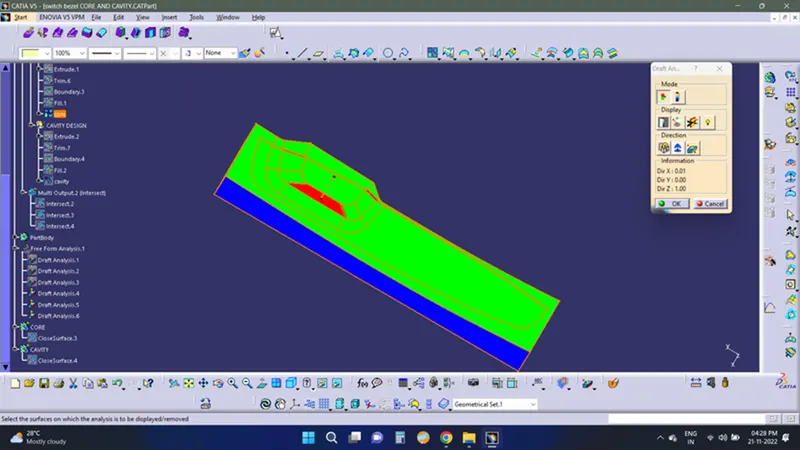

PARTING SURFACE DRAFT ANALYSIS : THE SURFACE IS ABOVE 3 DEGREE DRAFT ANGEL BESIDES THE SUFACE IN MIDDLE DUE TO CLASS A SURFACE

PARTING SURACE DESIGN : PARTING SURFACE IS DESINED BY USING CLASS A SURFACE AS REFERENCE .

CORE SURFACE DESIGN : CORE SURACE IS DESIGN WITH THE REFERENCE OF PARTING SURFACE AND RECTANGLE SKETCH WITH IN PARTING SURFACE AND BY USING FILL CORE SURFACE IS CLOSED .

CORE BLOCK : USING FEATURE IN PART DESIGN 'CLOSE SURAFCE' CORE BLOCK IS CREATED .

CORE BLOCK DRAFT ANALYSIS : THE SURFACE IS ABOVE 3 DEGREE DRAFT ANGEL BESIDES THE SUFACE IN MIDDLE DUE TO CLASS A SURFACE .

CAVITY SURACE DESIGN :CAVITY SURACE IS DESIGN WITH THE REFERENCE OF CLASS B SURAFCE AND RECTANGLE SKETCH WITH IN PARTING SURFACE AND BY USING FILL CORE SURFACE IS CLOSED .

CAVITY BLOCK : USING FEATURE IN PART DESIGN 'CLOSE SURAFCE' CAVITY BLOCK IS CREATED .

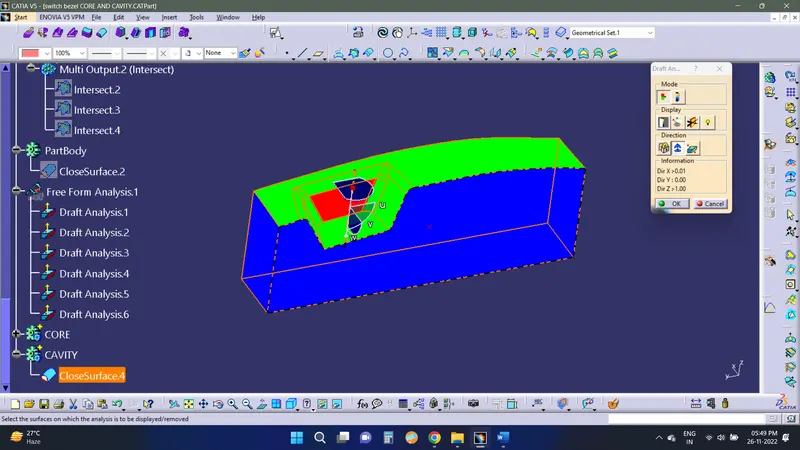

CAVITY BLOCK DRAFT ANALYSIS : THE SURFACE IS ABOVE 3 DEGREE DRAFT ANGEL BESIDES THE SUFACE IN MIDDLE DUE TO CLASS A SURFACE .
