Week 8 - Challenge 6 - Core & Cavity Design

The Core and cavity blocks for the switch bezel design:

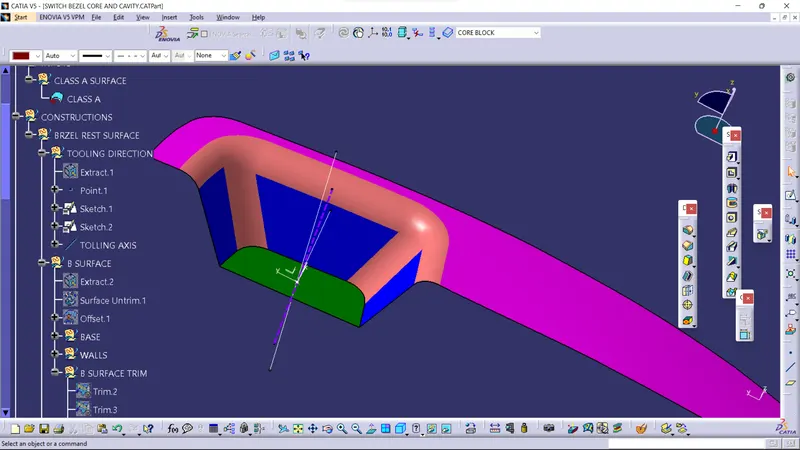

The tooling axis of the switch bezel is created by using bisecting method and for sketch 2 have taken 6deg.

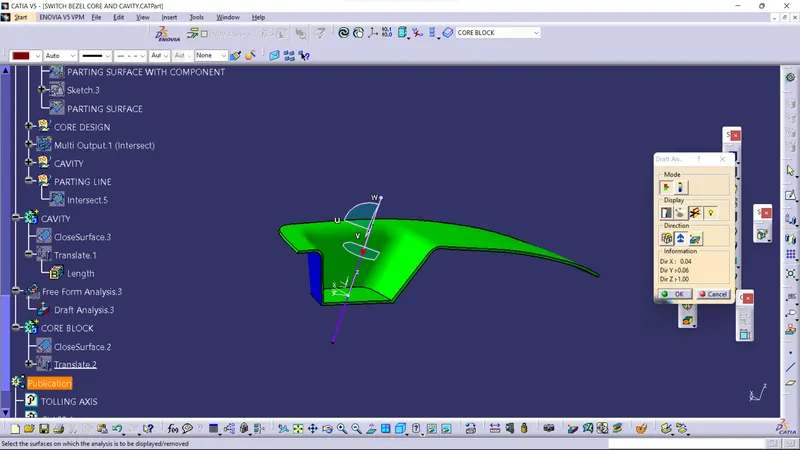

And the draft analysis of the switch bezel has been done and the results are in the image below

The report on the creation of class A, Class B, Class C surface of switch bezel has been done in previous challenge.

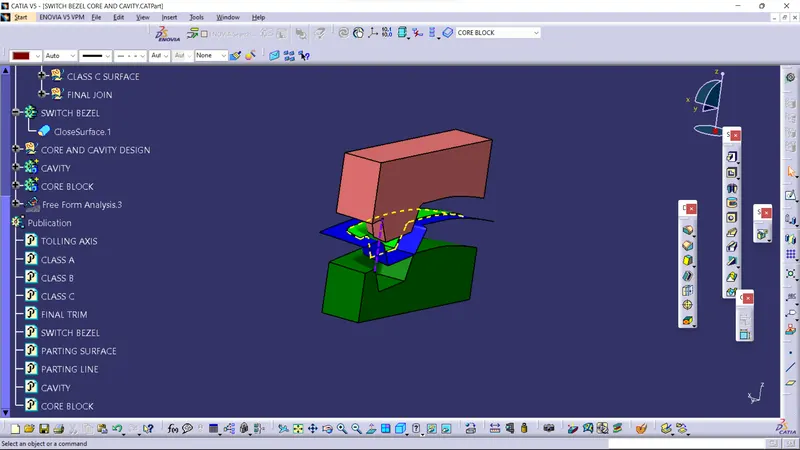

The Core and Cavity design has been created with Parting line and Parting Surface
