Week 8 - Challenge 3 - Coin Holder Design

COIN HOLDER:

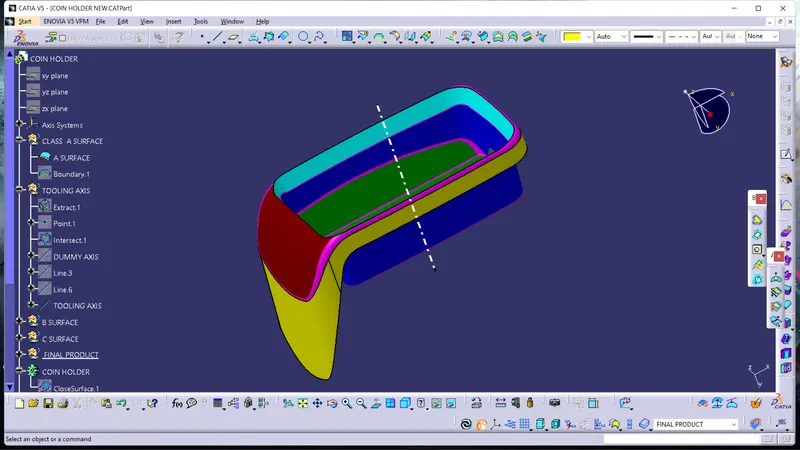

TOOLING AXIS: By looking at the class A surface we can understand where the axis of the tool will be placed, taking intersection of the class A surface. creating a line on both the side of A surface and bisecting them. we get the line which is tooling axis.

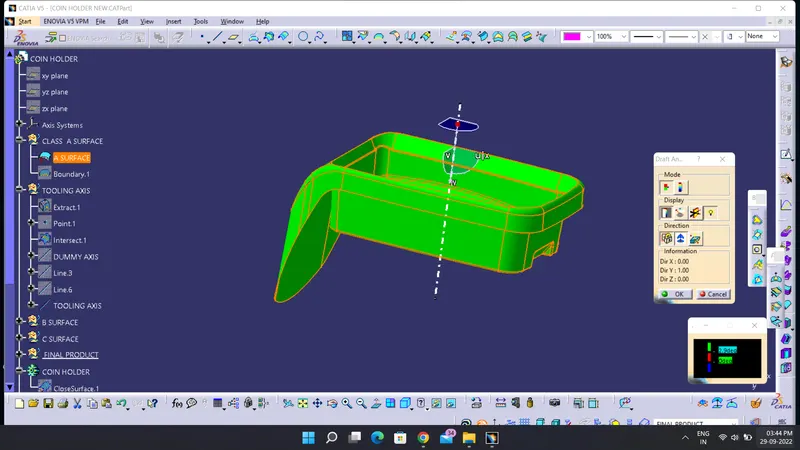

Draft analysis of A surface:

As you can see in the image, analysis of the Class A Surface which is in green means the whole Class A Surface is more than 3 deg to the axis.

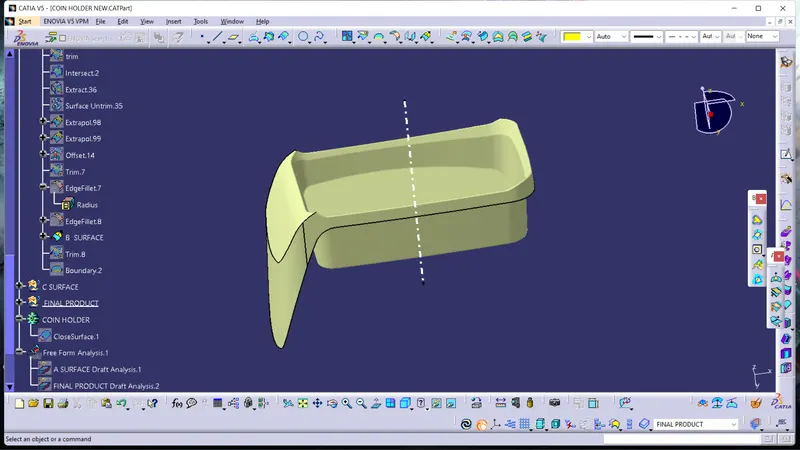

Class B surface:

class B surface is the offset of Class A surface according to given thickness 2.5mm. By extracting the Class A surface step by step we get B surface.

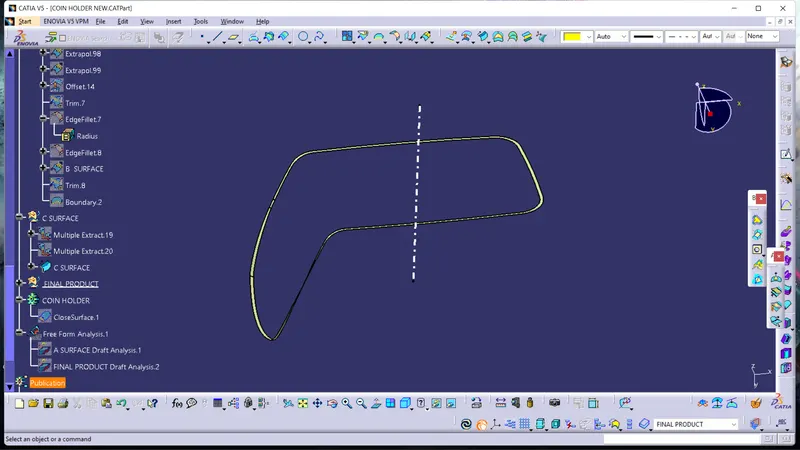

Class C surface:

C surface is the thickness between Class A and B surface. extracting the boundry of A surface and adjacent wall of A surface create a sweep at 90 deg inside direction. trimming the sweep with B surface, and join A surface with B and C means (A+B+C= Final product)

C surface:

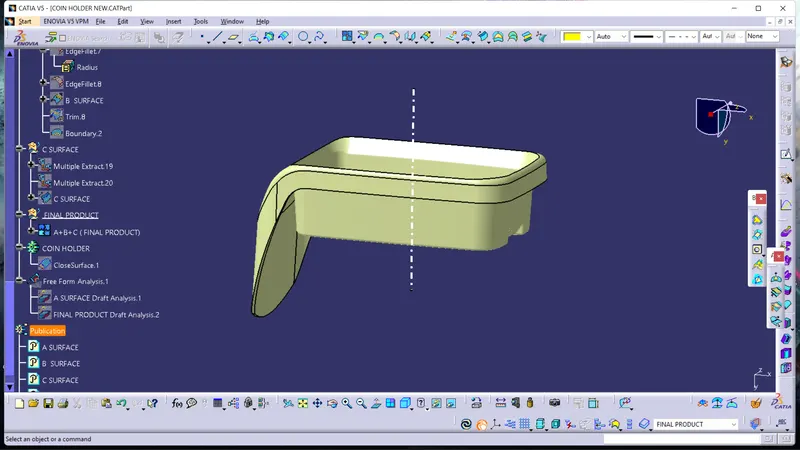

Final Product (A+B+C)

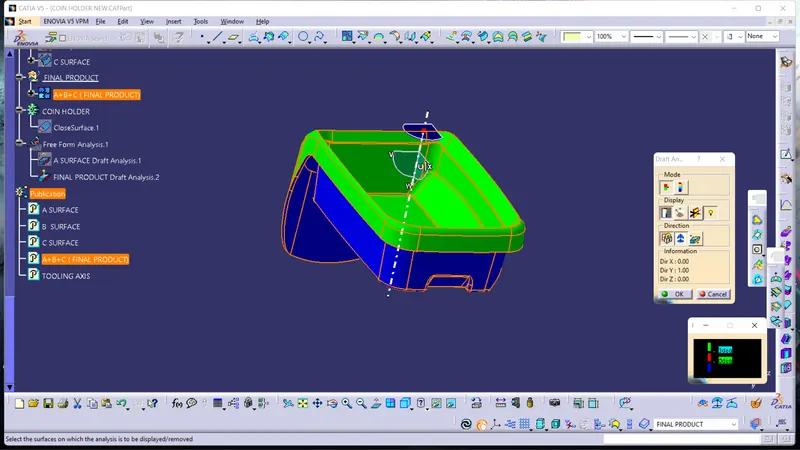

Draft Analysis on Final product:

The green colored parts are more than 3 deg to axis. and blue colored parts are in negative.

The below images are of a closed body

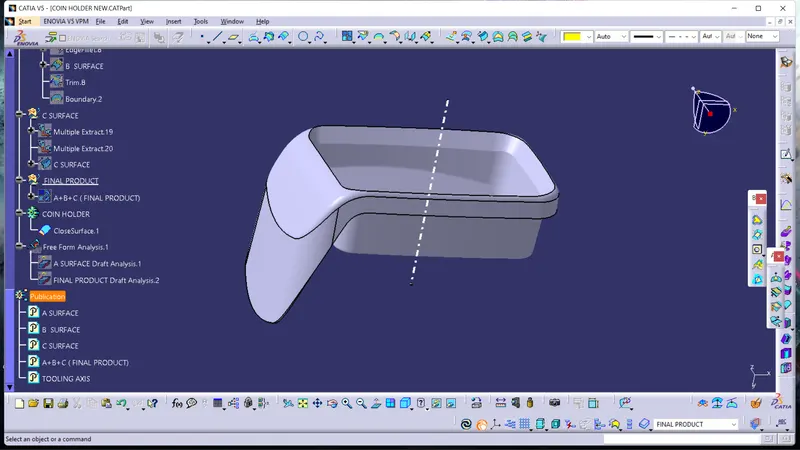

Tree Structure:

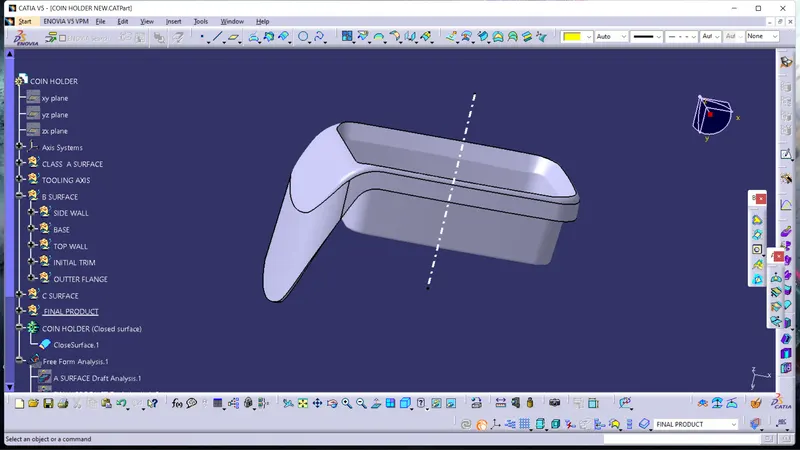

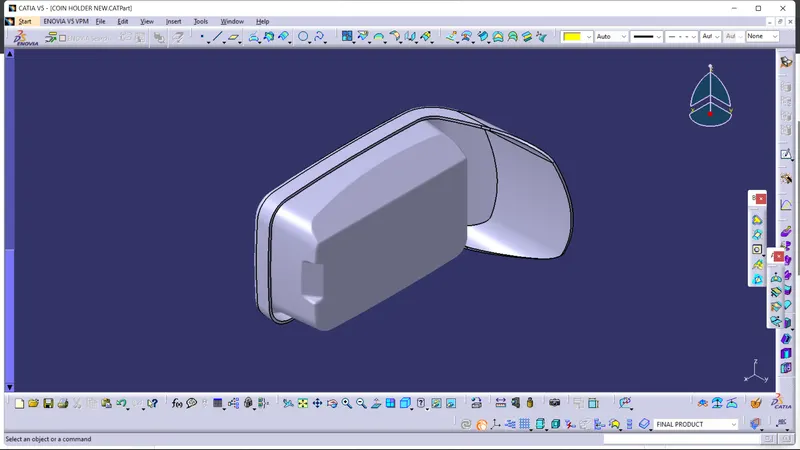

Isometric View:

Front View

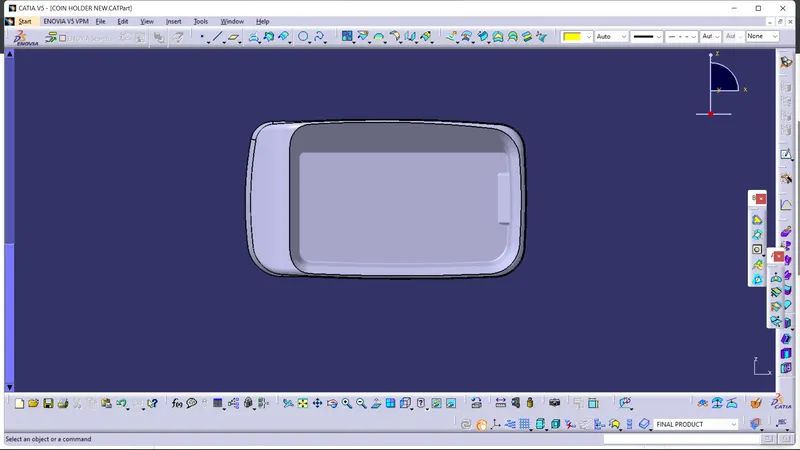

Top View:
