Week 8 - Challenge 6 - Core & Cavity Design

VVinojin Babu18 Sept 2022

front view

Top view

side view

isometric view

Drafting analysis : The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

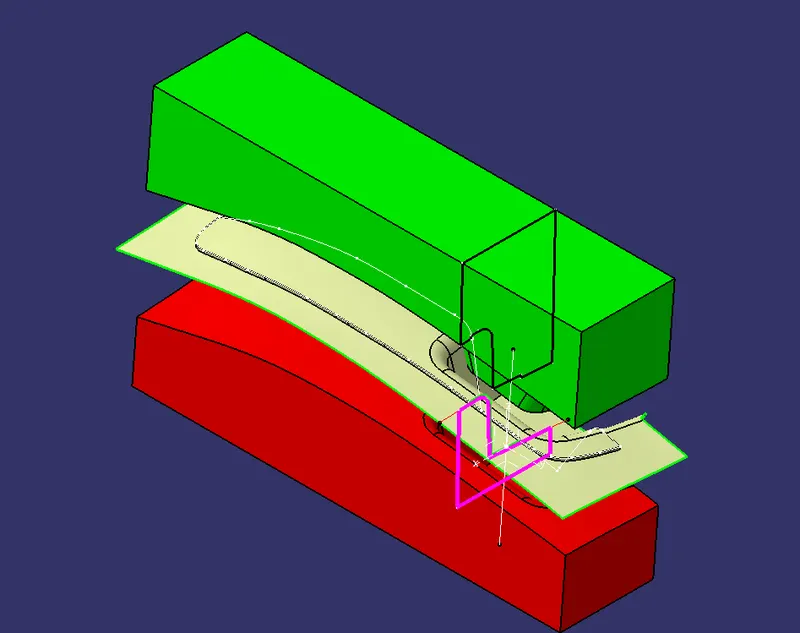

PARTING SURFACE :

Generally,injection mold has two major components : the movable halve and the fixed halve , during the injecction molding process, these two halves are pressed tightly from a sealed hollow to avoid the melt flow leakage and maintain certain holding pressure, the pressed surface are called parting surface , usually parting surface are the biggest projection outline of the part.

Parting surface design principles

Parting bsurface design directly affects the product quality , ease of construction and opearation of the injection mold , the mold design is one of the key facctors to success.

DESIGN PARTING SURFACE SHOULD FOLLOW THE FOLLOWING PRINCIPLES :

Design the injection mold simple as possible .Avoid or reduce side parting as much as possible to reduce complexity of the mold making.
Ease of de-molding as far as possible, for instance the plastic parts should stay in fixed halve of injection mold and should ejected by ejection system avoid , side de-molding action,
Ensure the dimension accuracy of the molded parts ,Try to make the parts similar dimension accuarcy reqirements in same mold to reduce manufacturing and assembly errors .
Ensure apperance reqirement of molded parts,finish or mismatch usually occurs on parting surface , so the parting surface should not be designed on high quality requiremnent surfaces.
Ensure adequate venting.If possible parting surface should be place at the end of the mold flow.This is going to be advantage of fillng and venting.

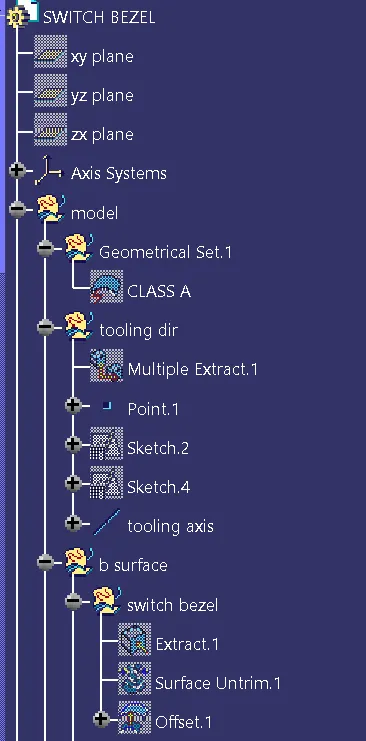

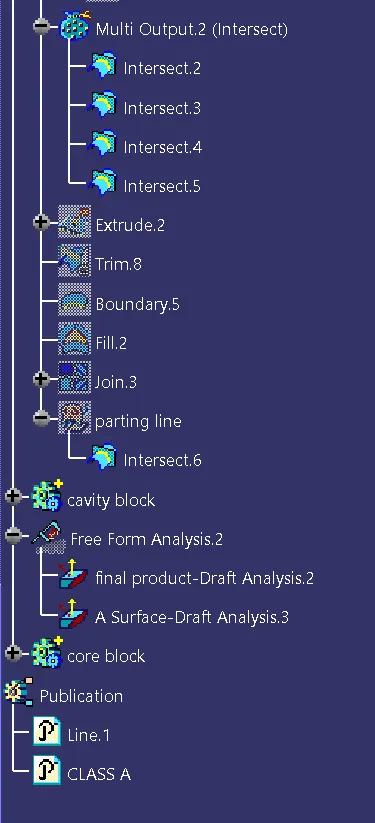

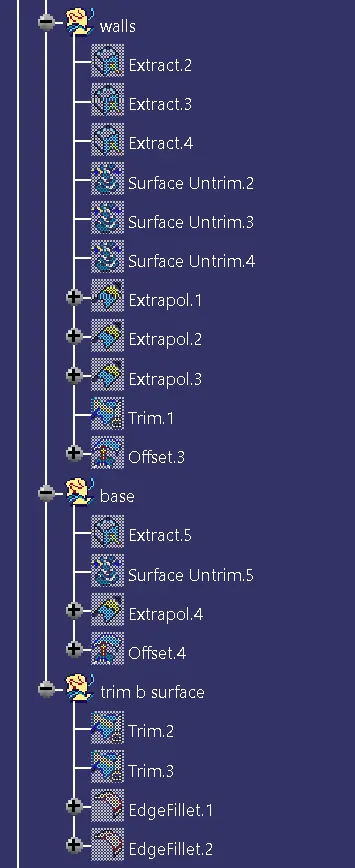

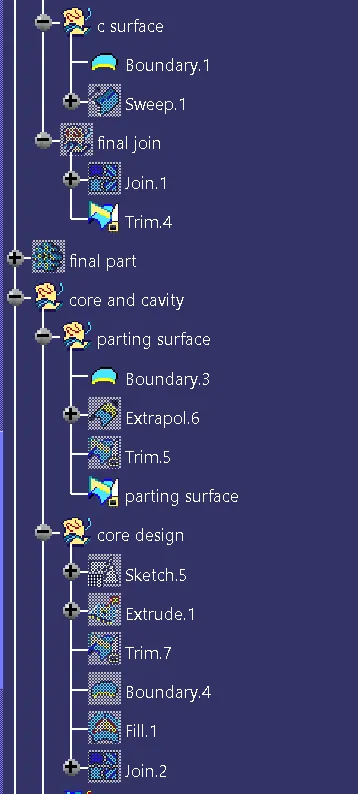

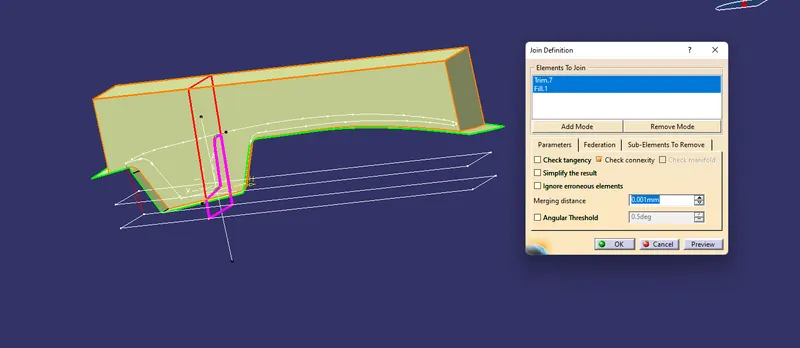

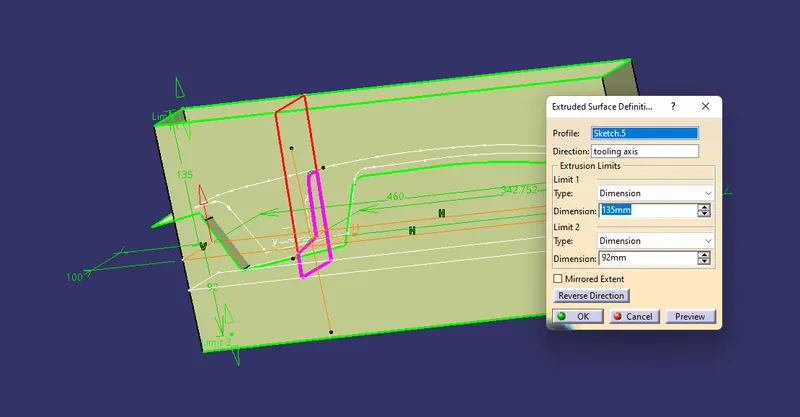

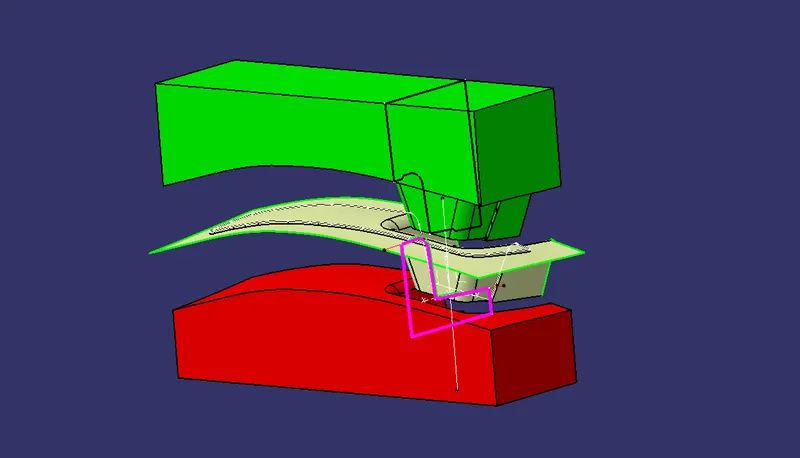

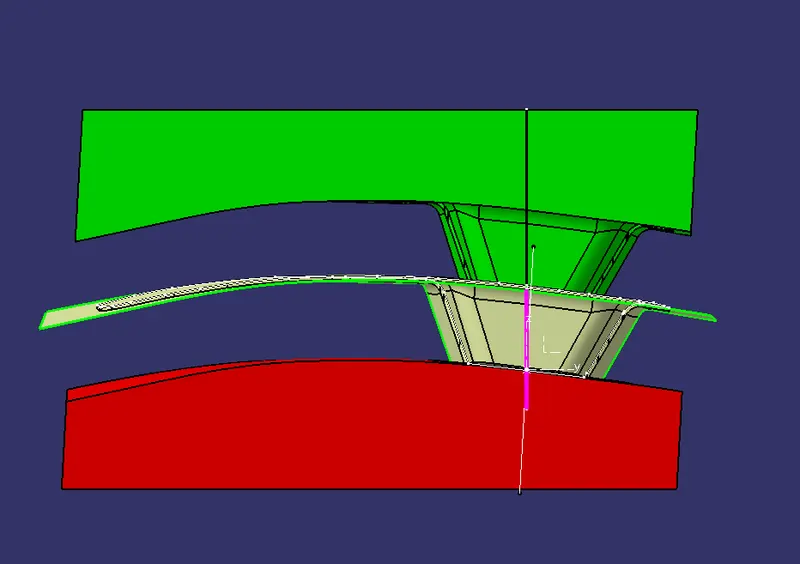

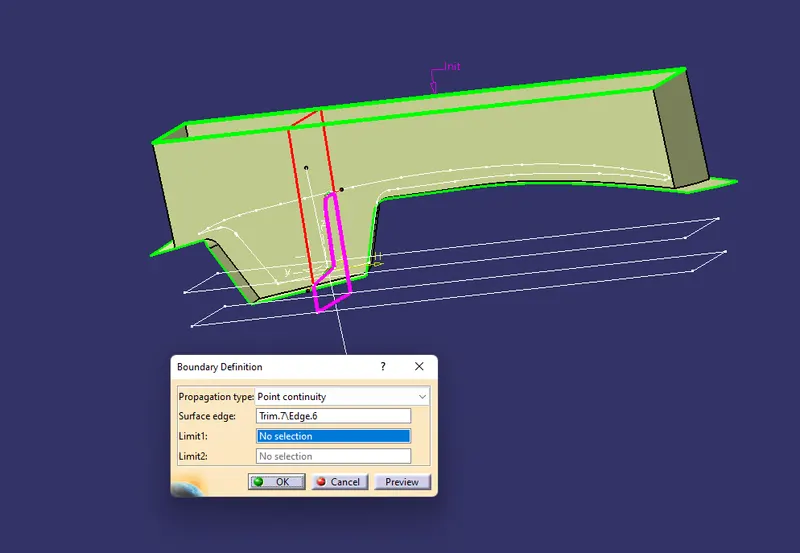

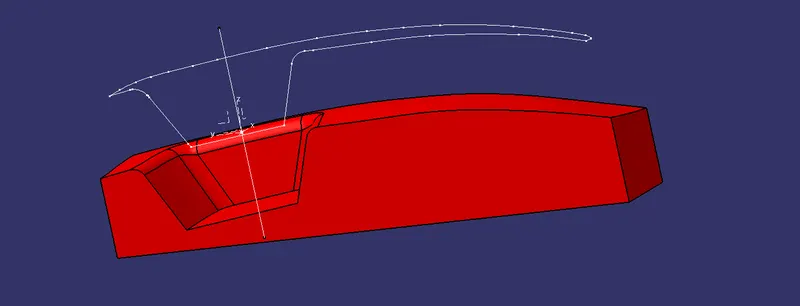

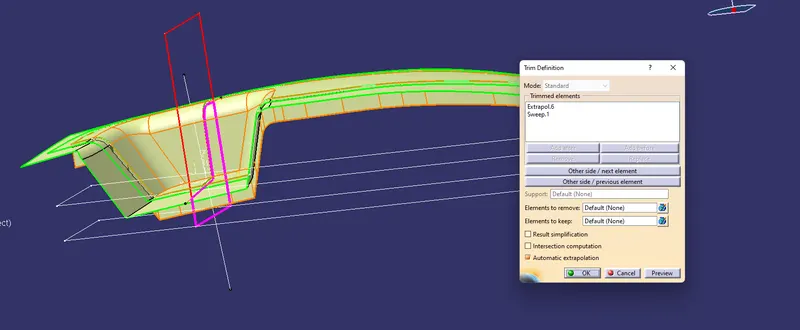

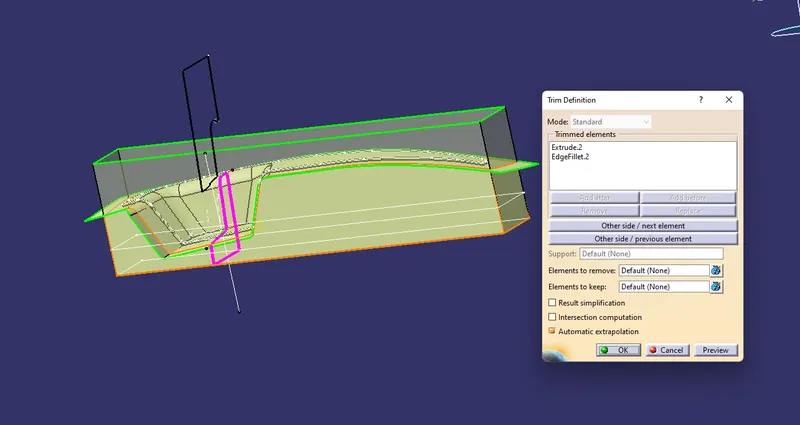

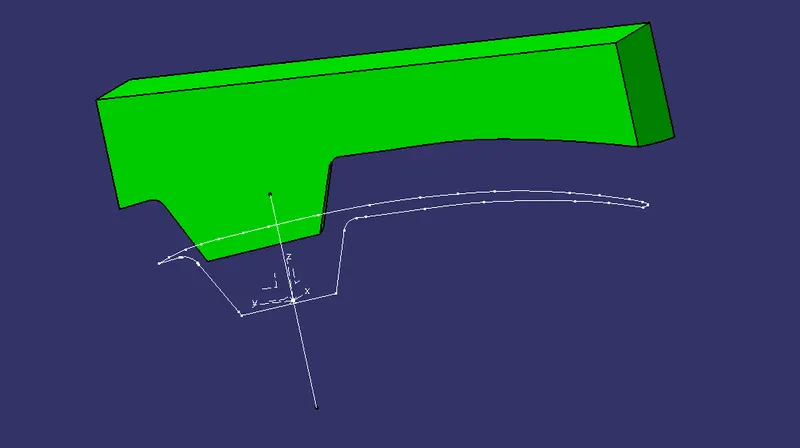

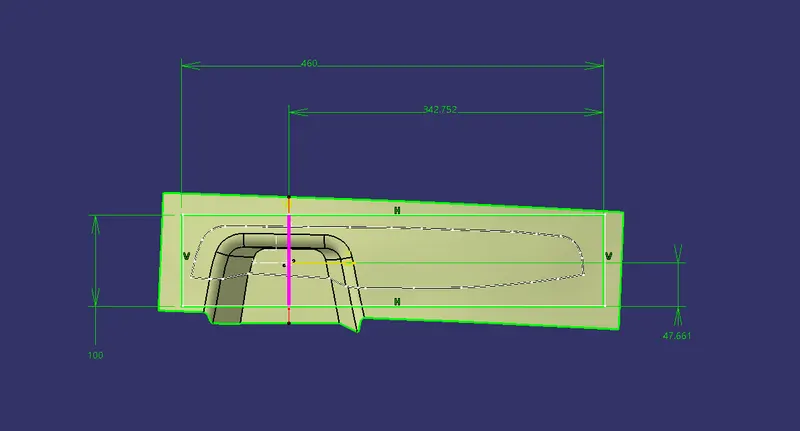

Design of core in step by step explanation in image portration .

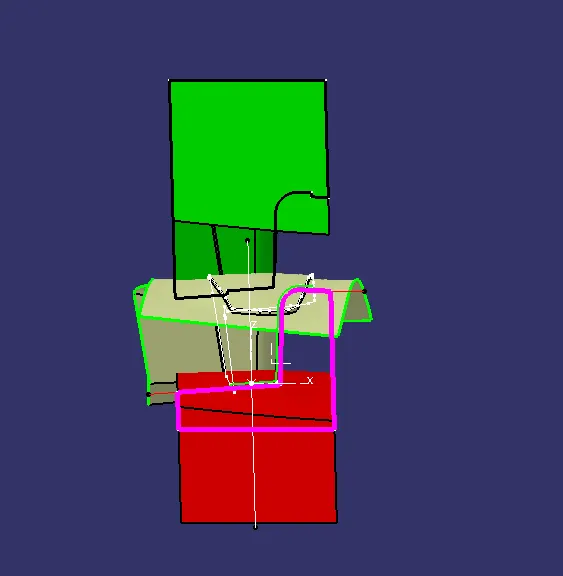

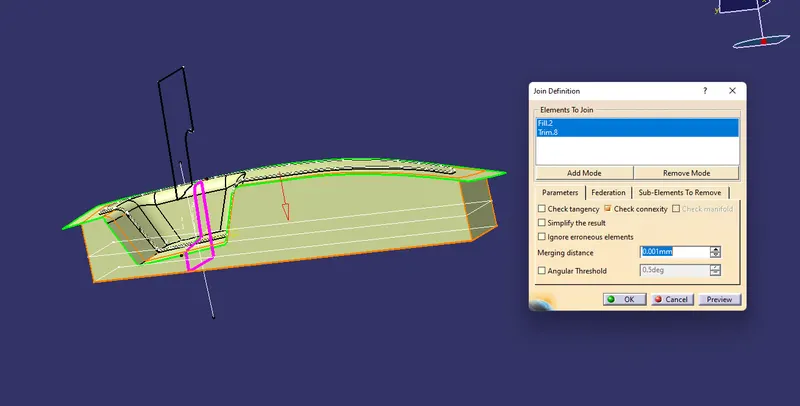

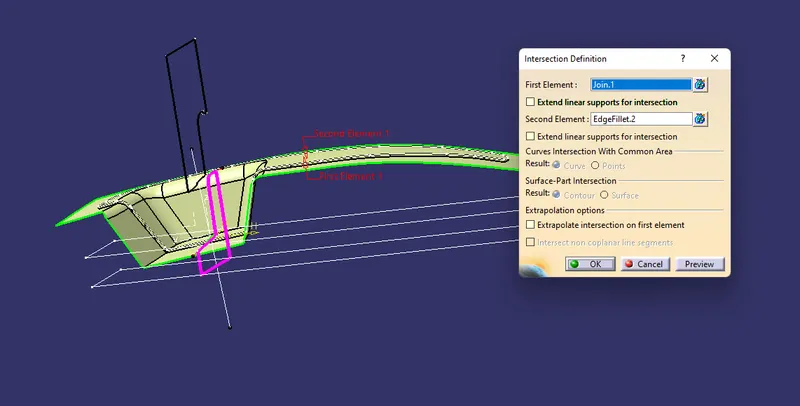

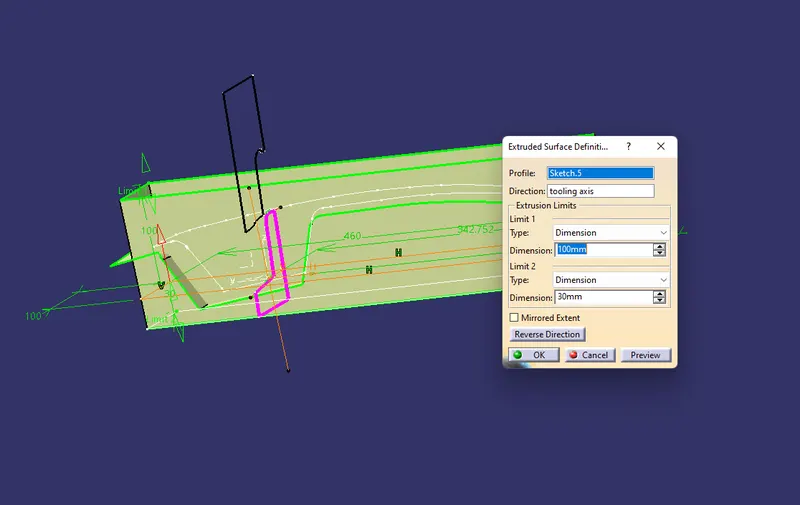

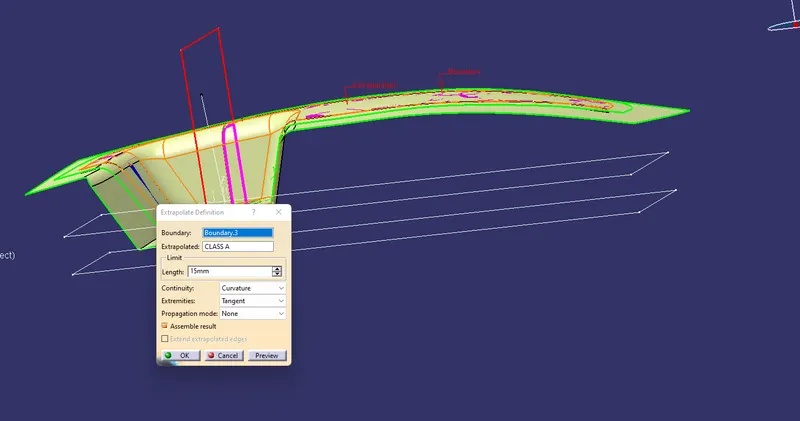

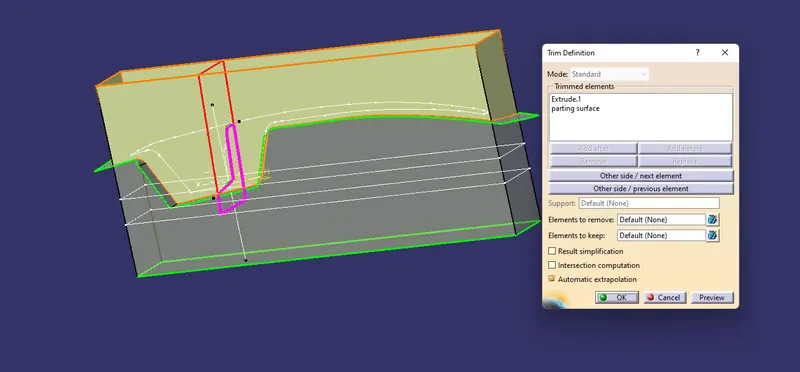

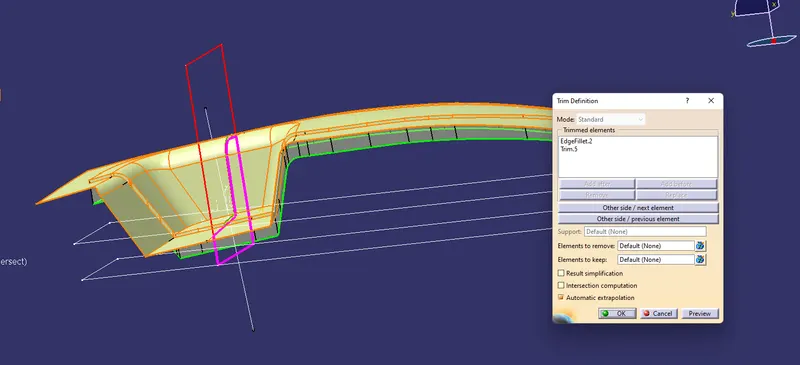

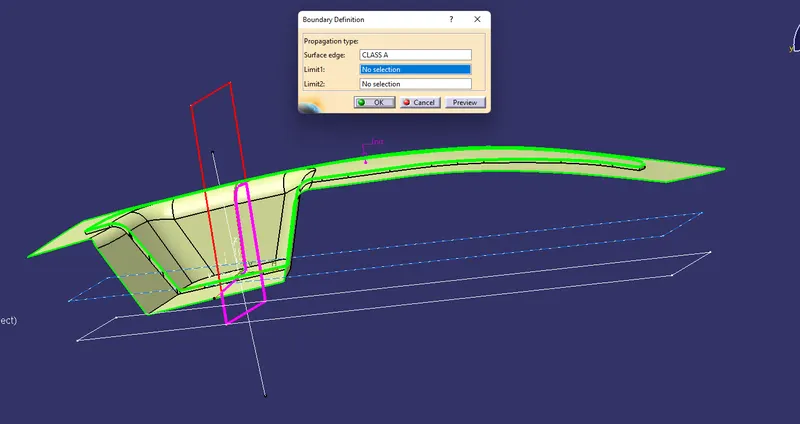

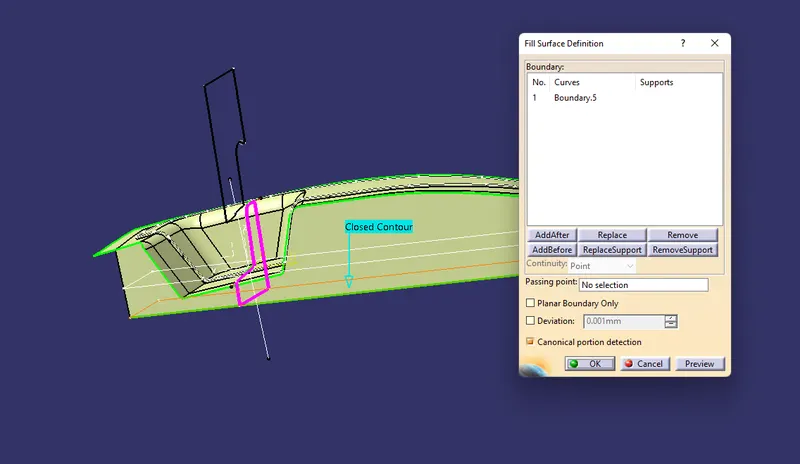

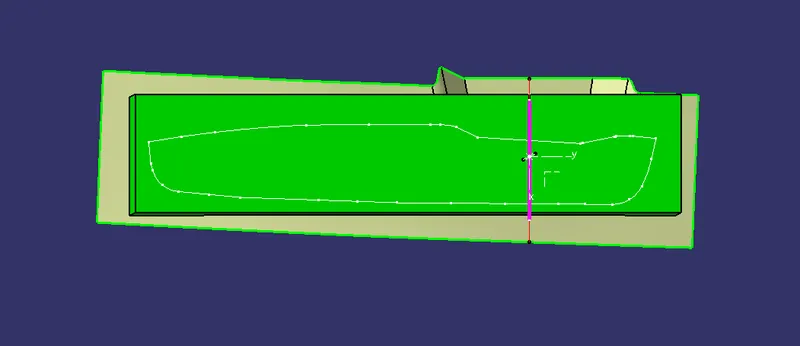

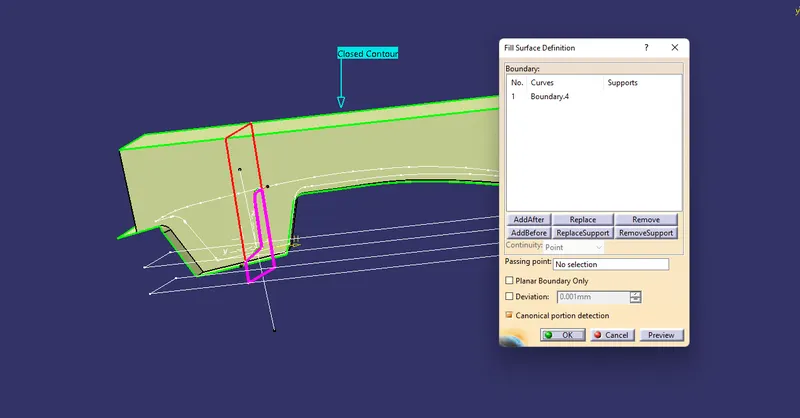

Create parting surface:
