                                                           DOOR TRIM LOWER CHALLANGE REPORT

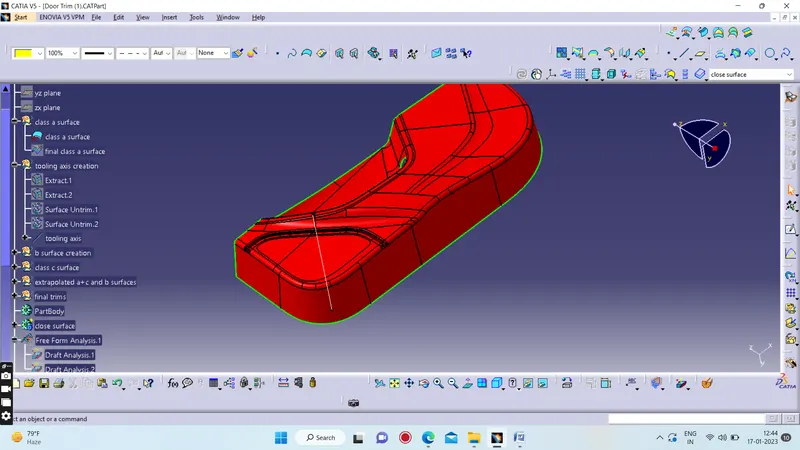

TOOLING AXIS CREATION AND SURFACE PARTIAL DRAFT ANALYSIS .

• CHECKED THE SURFACES WITH RESPECTIVE ALL THE AXIS AND EXTRACTED ONE FLAT SURFACE THROUGH WITH ALL THE SURFACES ARE SEEN WHEN PARTIAL DRAFT ANALYSIS IS DONE
• CREATED A POINT ON THE SURFACE
• CREATED A LINE NORMAL TO THE SURFACE EXTRACTED AND NAMED IT AS TOOLING AXIS

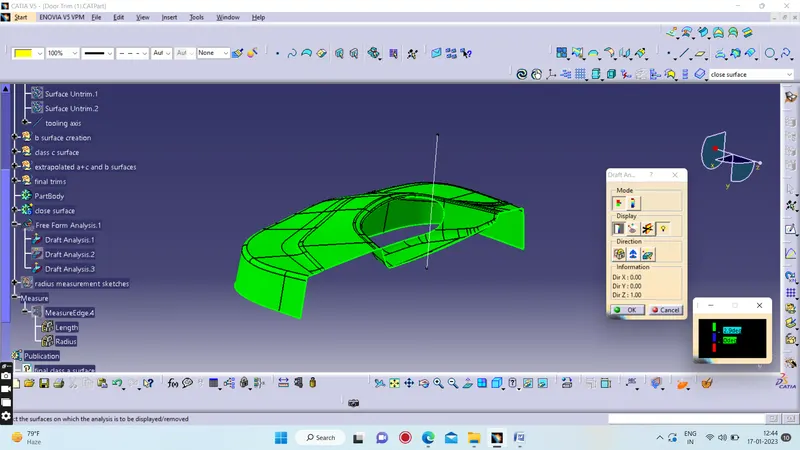

• WITH RESPECTIVE THE TOOLING AXIS CREATED PERFORMRD DRAFT ANALYSIS AND THE DRAFT ANALYSIS GOT JUSTIFIED



CLASS B SURFACE CREATION

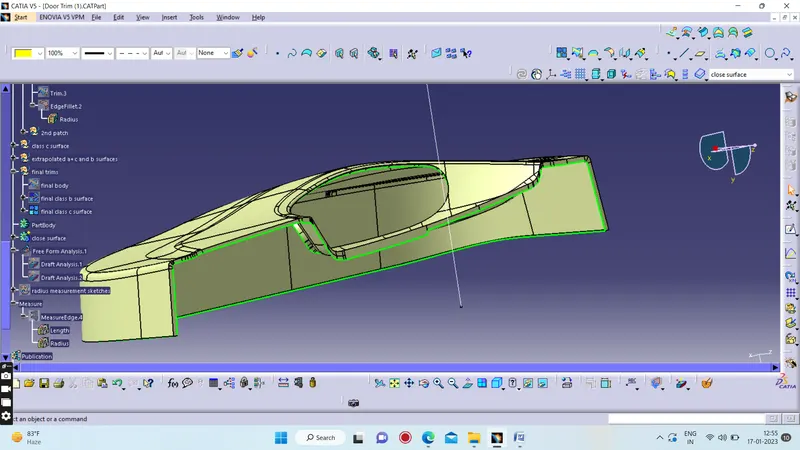

• INTIALLY CHECKED THE B BY TAKING THE INPUTS FROM THE CLASS A SURFACE CREATED THE C SURFACE WHICH CONNECTS BETWEEN A NAD B SURFACE AND BY USING OFF SET METHOD OFFSETTED THE CLASS A SURFACE WITH 2.5 MM DOWNWARDS
• AND FOUND FEW SURFACES GOT MISSED ESPECIALLY FILLET AREAS

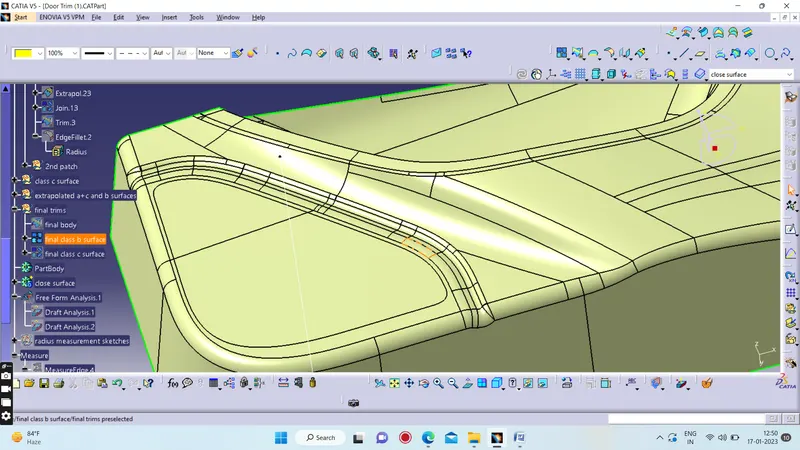

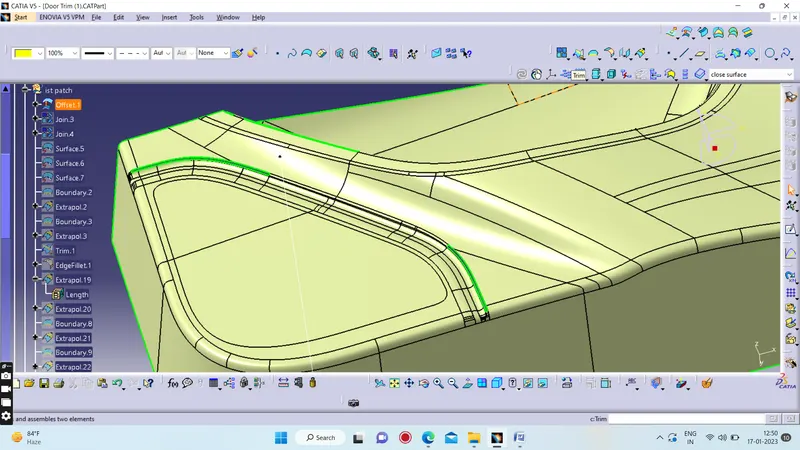

• WORKED ON THOSE ARES AND FILLED THOSE AREAS BY USING EXPOLATION ,MULTI EXTRACTS ,MULTI SECTION SURFACE AND SWEEP
• AND CHECKED ALL THE AREAS FILLED WITH PROPER BOUNDRY WITH RESPECTIVE CLASS A SURFACE
•

CLASS C SURFACE CREATION :

• BY TAKING THE INPUTS FROM THE CLASS A SURFACE CREATED A SURFACE WHICH CONNECTS CLASS A SURFACE AND B SURFACE BY USIND SWEEP COMMAND WITH REPECTIVE DRAFT DIRECTION AND WITH REFERENCE SURFACE DIRECTION OUTSIDE AND JOINED THEM USING 0.003 AS MERGING DISTANCE AND ALSO TRIM AND SPLIT COMMAND

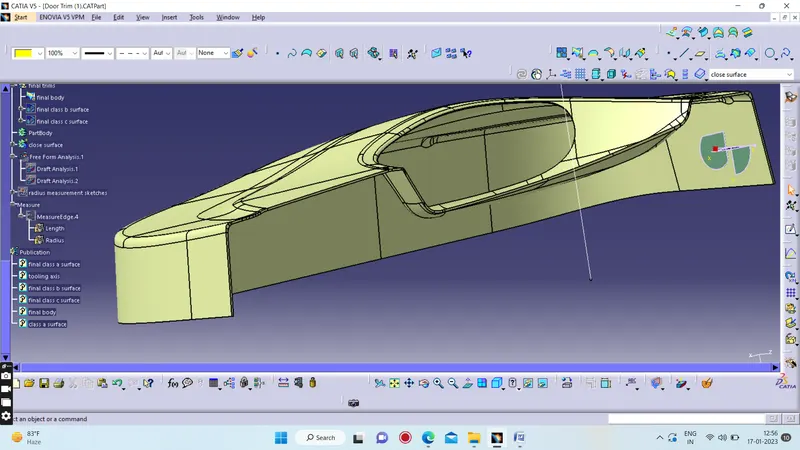

• JOINED A AND C SURFACE AS ONE BODY AND TRIMED IT WITH THE B SURFACE TO FORM A CLOSED BODY WITH TRIM COMMAND

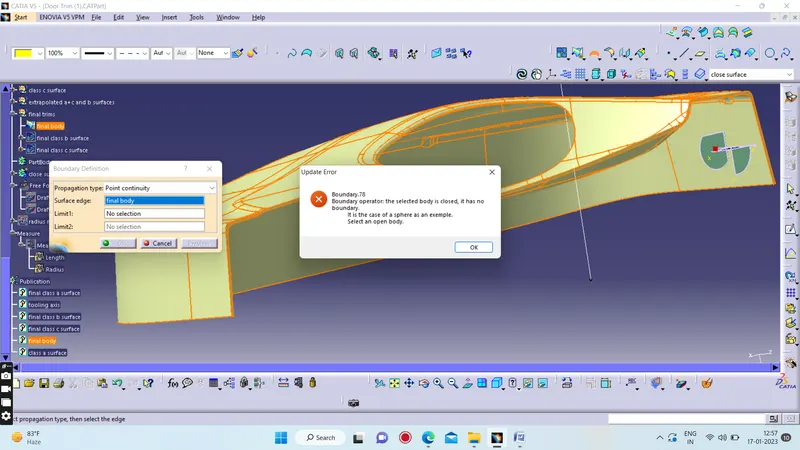

• CHECKED WITH INTERSECT AND BOUNDRY COMMAND
•

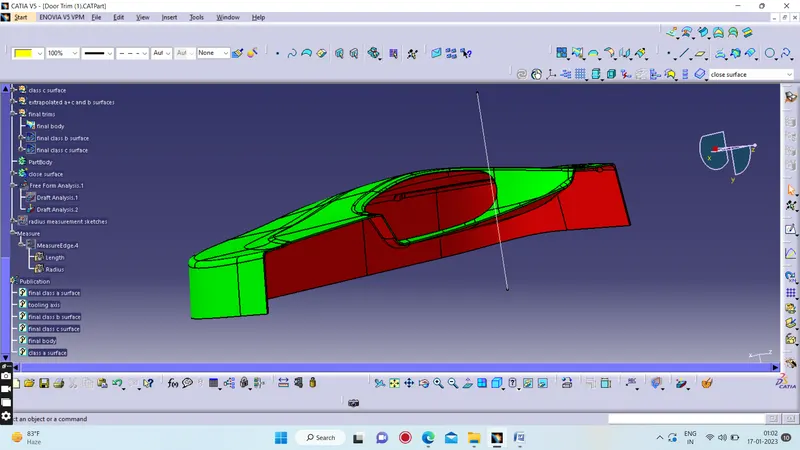

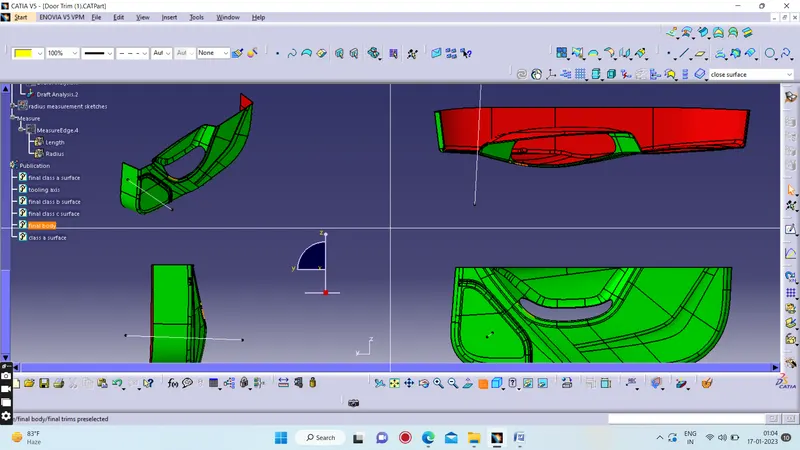

FINAL DRAFT ANALYSIS AND REPORT

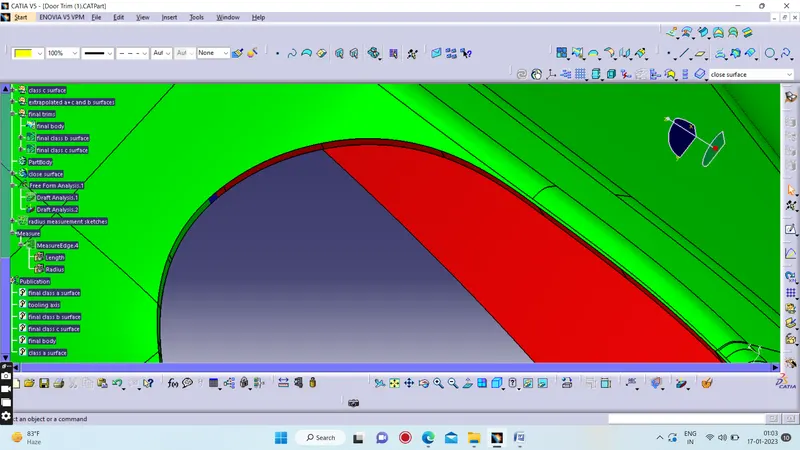

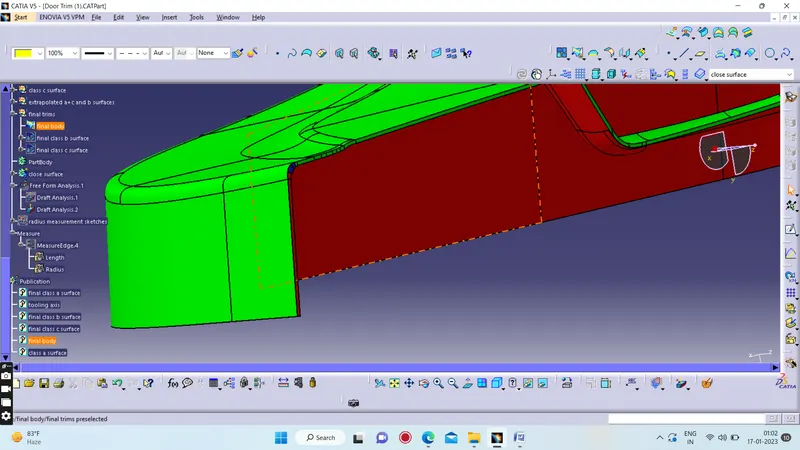

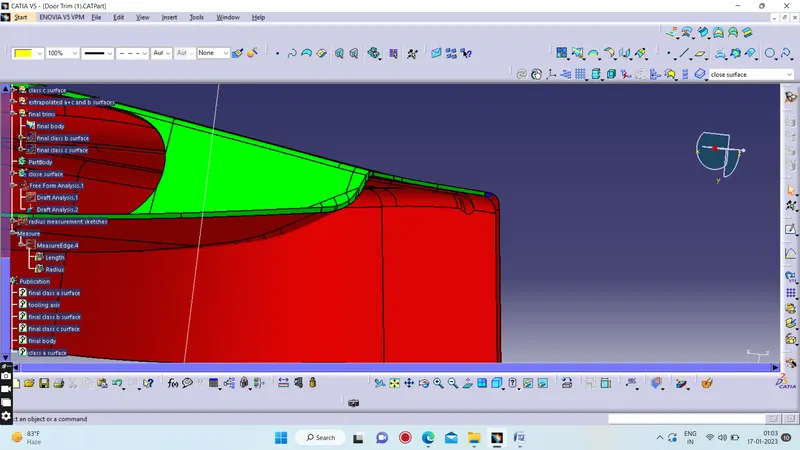

• PERFORMED THE DRAFT ANALYSIS ON THE FINAL BODY  AND FOUND FEW SURFACES NEED ALTERNATIONS IN THE CLASS A SURFACE SO THAT THOSE SURFACE WILL GET CLEARED WITH RESPECTIVE TOOLING AXIS
•
