Week 8 - Challenge 5 - Core & Cavity Design

Report

Aim:Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.

Procedure:

import geometry

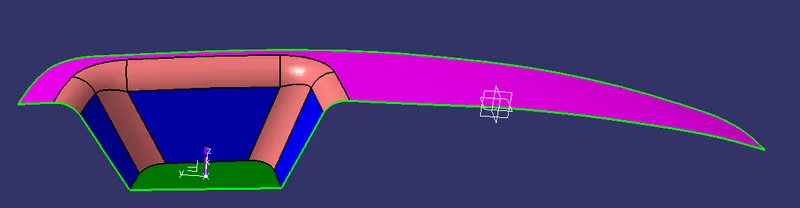

join a and c surface, trim with b surface,create parting surface

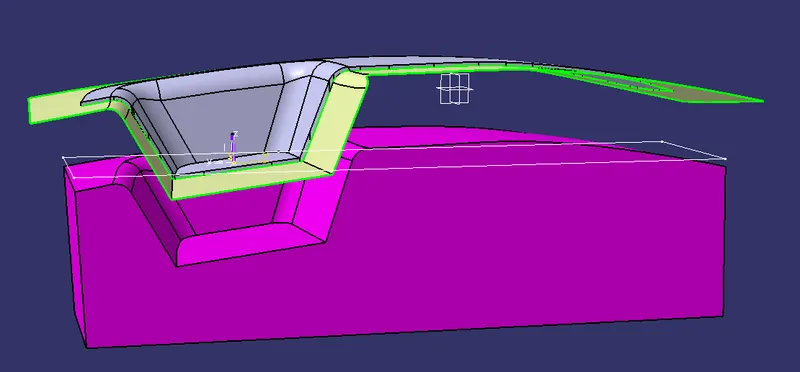

craete a sketch extrude to create core,create solid with closed surface

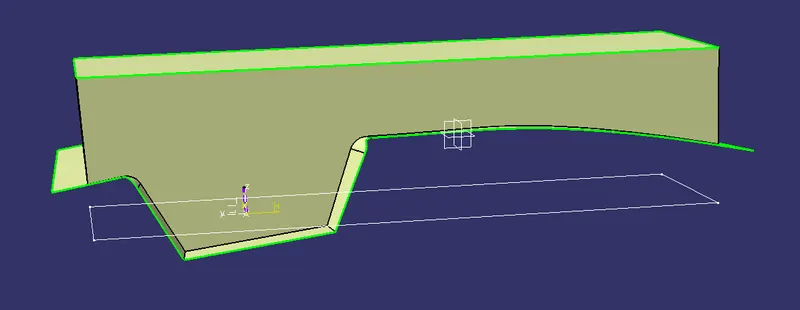

use same method to create cavity

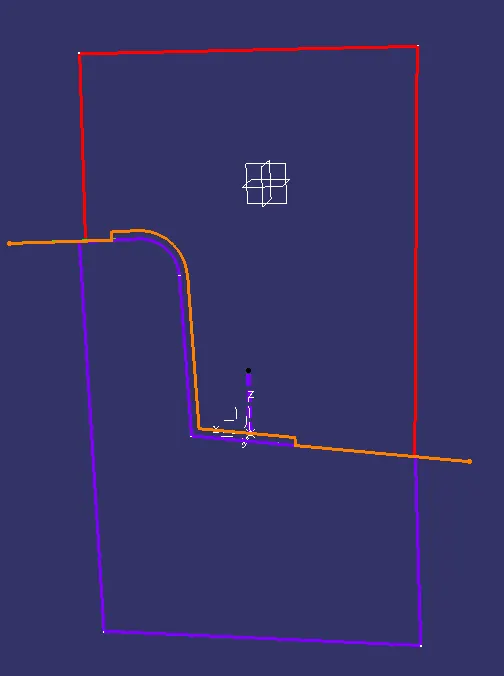

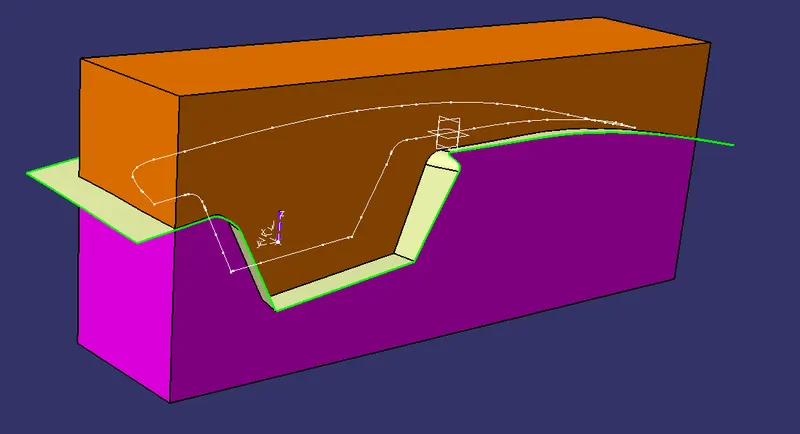

intersection with xz plane,orange line is parting surface

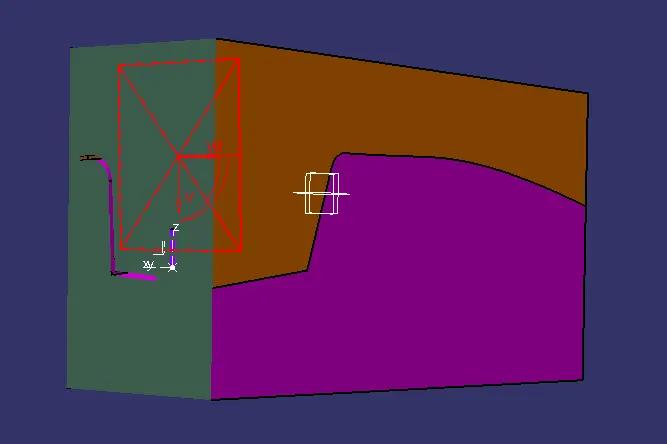

section view

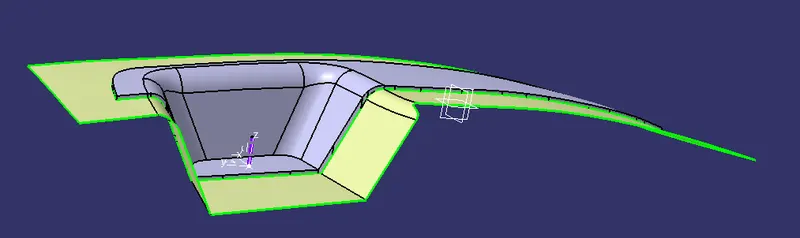

intersect component with parting surface to get parting line

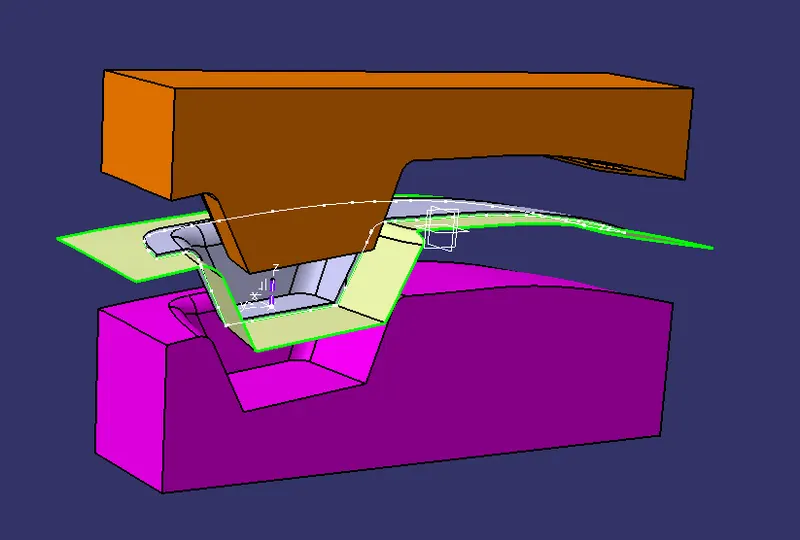

trim parting surface with parting line to get true paring surface, translate core and cavity to get a better view of core, cavity, part, parting line and parting surface

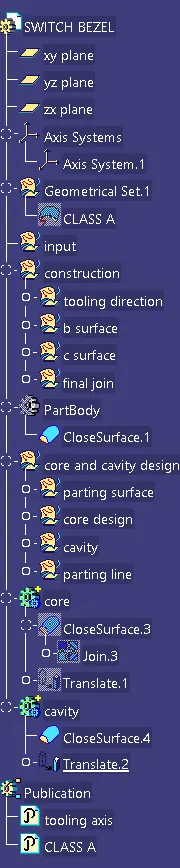

Tree structure

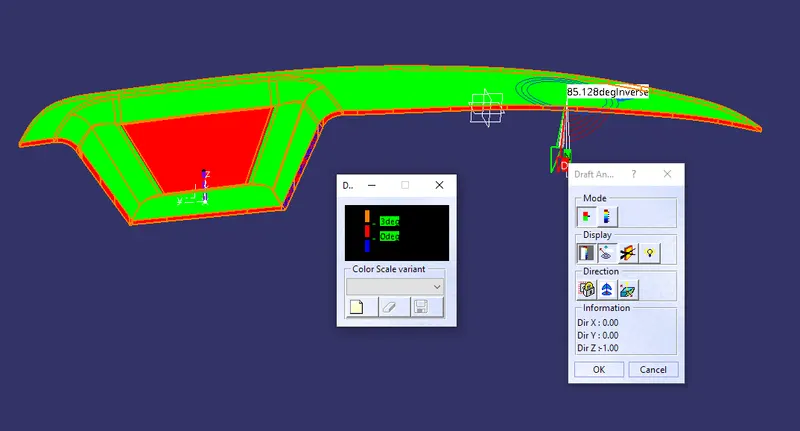

Draft Analysis
