Week 8 - Challenge 5 - Core & Cavity Design

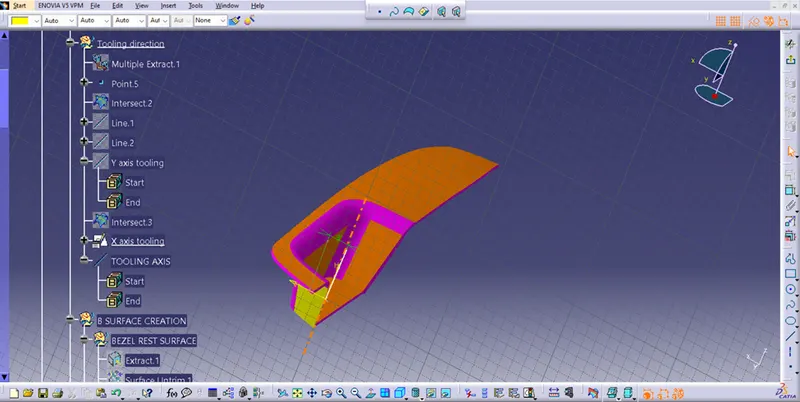

X AND Y TOOLING AXIS ARE MADE BY CONSIDERING ZX AND ZY PLANE

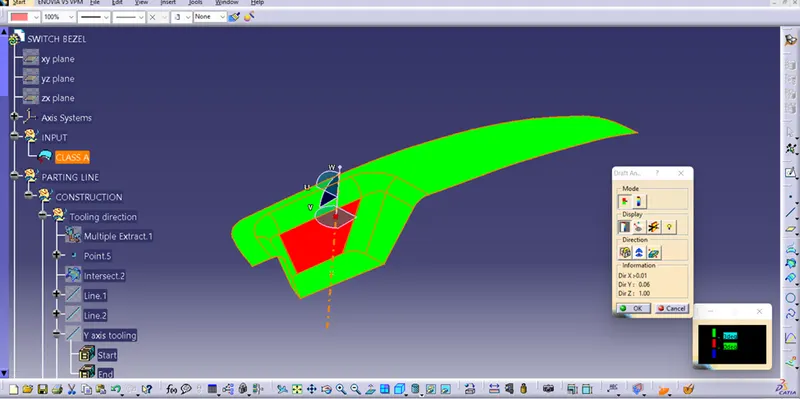

DRAFT ANALYSIS OF A-SURFACE

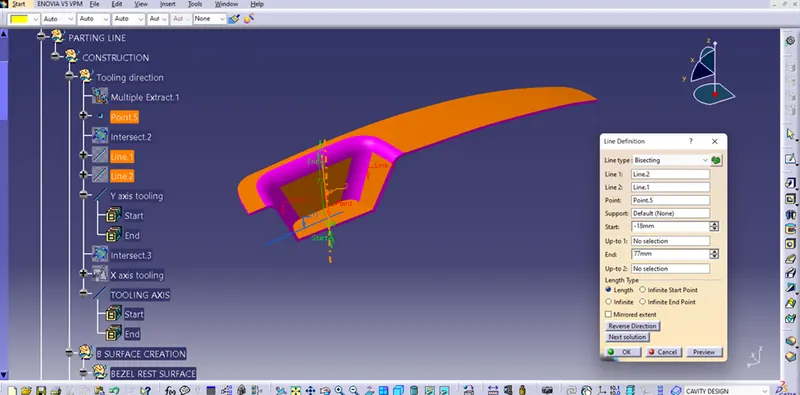

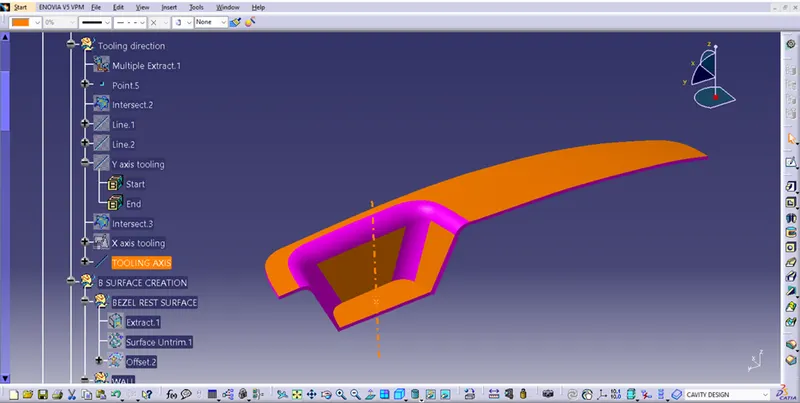

BY BISECTING THE X AND Y AXIS TOOLING, AN TOOLING AXIS WHERE MADE AS SHOWN IN FIGURE

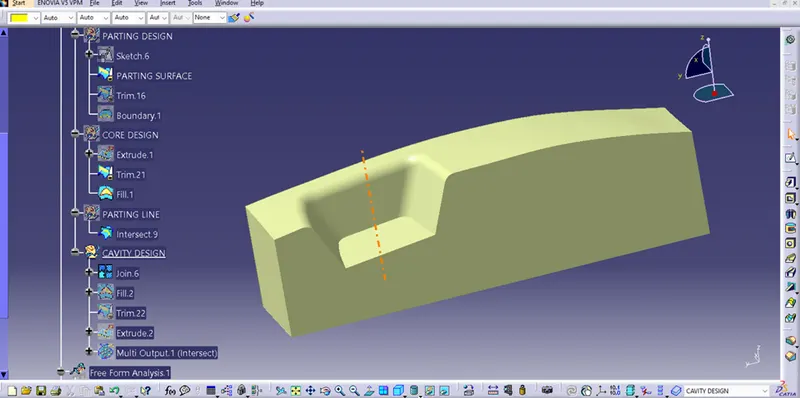

CAVITY DESIGN OF SWITCH BEZEL ARE SHOWN IN FIGURE

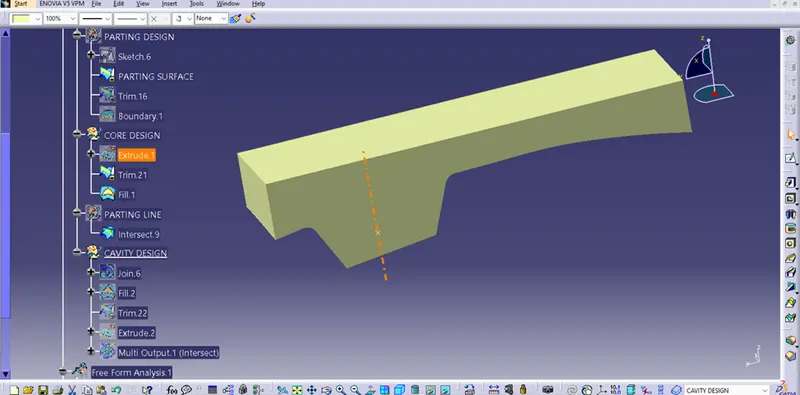

CORE DESIGN OF SWITCH BEZEL ARE SHOWN IN FIGURE

PARTING SURFACE IS SHOWN IN FIGURE

PARTING LINE IS SHOWN IN FIGURE

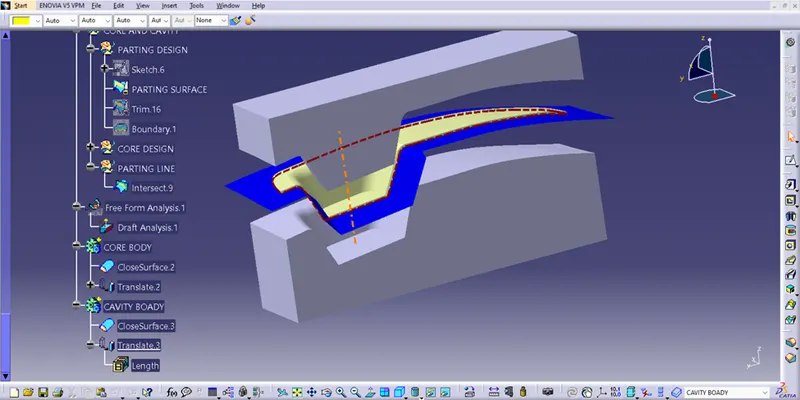

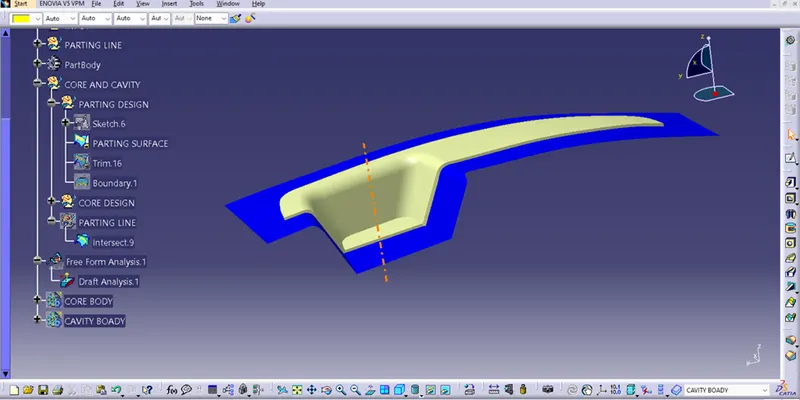

CORE, CAVITY, PARTING SARFACE AND PARTING LINE OF SWITCH BEZEL AT 50 mm TRASALATION AS SHOWN IN FIGURE

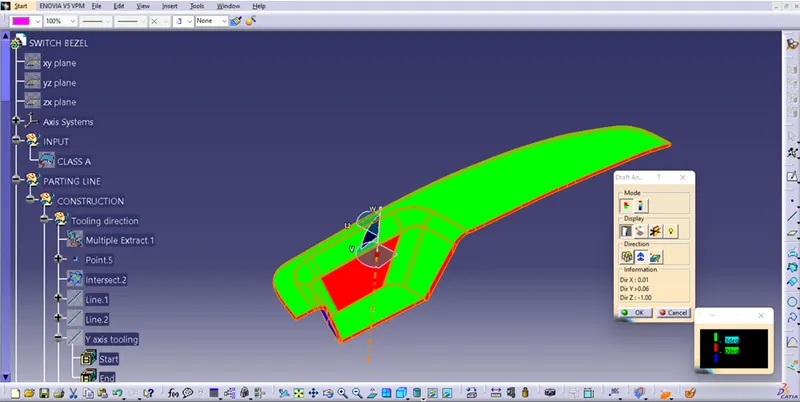

DRAFT ANALSYSIS FOR C SURFACE IN WHICH GREEN AND RED COLOR INDICATE THE SURFACE ARE 3 DEGREE AND ZERO DEGREE INCLINED FROM THE AXIS TOOL
