Week 8 - Challenge 5 - Core & Cavity Design

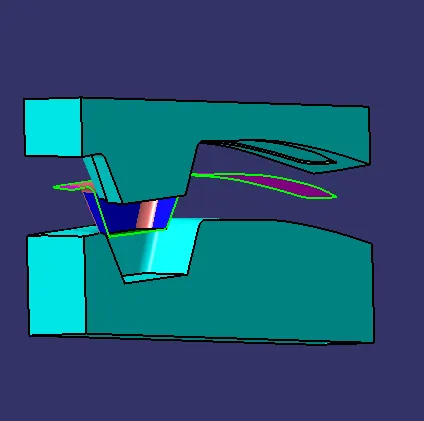

AIM : Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.
The core is the part which forms the internal shape of molding. The cavity is the part which forms external shape of molding.Core isthe side of the tool where the plastic part is injected from; also known as the bottom half of the tool. The upper half of the
mold
is called CORE.A tool with one impression is often called a single impression (cavity) mould. A mould with two or more cavities of thesame parts is usually called a multiple impression (cavity) mould.
The outside of the enclosure will be a cavity in the A-side of the mold and the inside will be a core on the B-side.
Gonna work the parting line and the parting surface.

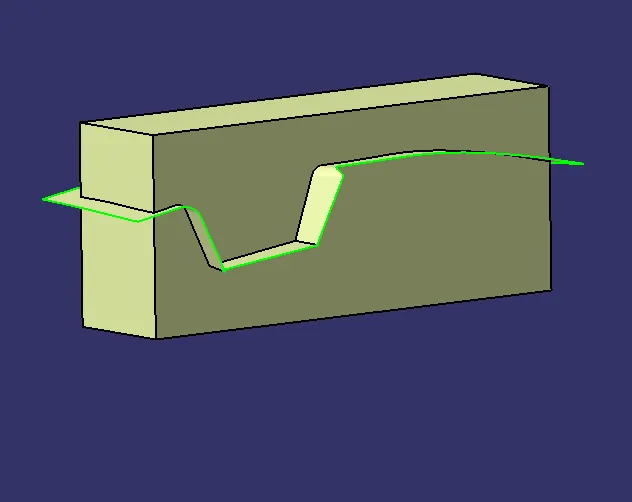

1ST to create a core side in the give switch bezel.
inser the geometric----name as core cavity design.
in the generative design.
extract the boundary of class A.
AND extrapolation the boundary.2
and extrapolation the class A.
length 15mm.
curvature and tangent
click ok.
unhide the class B surface and joinwith the class C.
