Week 8 - Challenge 4 - Coin Holder Design

PROCEDURE:
1.
Check for any openings in the given
Center Console Coin Holder
model by using
BOUNDARY
. In
BOUNDARY > select edges
- select the surface to create the boundary at the openings.

BISECTING METHOD:
CREATING TOOLING AXIS:
2.
Create a point at the center of the base by using
Point Definition
by extracting the surface and selecting the surface.
3.
Create an Axis system at the point that is created at the surface using Axis System Definition by selecting the point.
4.
Now create an intersection in the
ZY plane
by Intersection Definition for the
Center Console Coin Holder.
5.
Now using Point-Point in Point Definition extend the line to take reference drafted lines on both sides and bisect those lines to get thedirection in the ZY plane.
6.

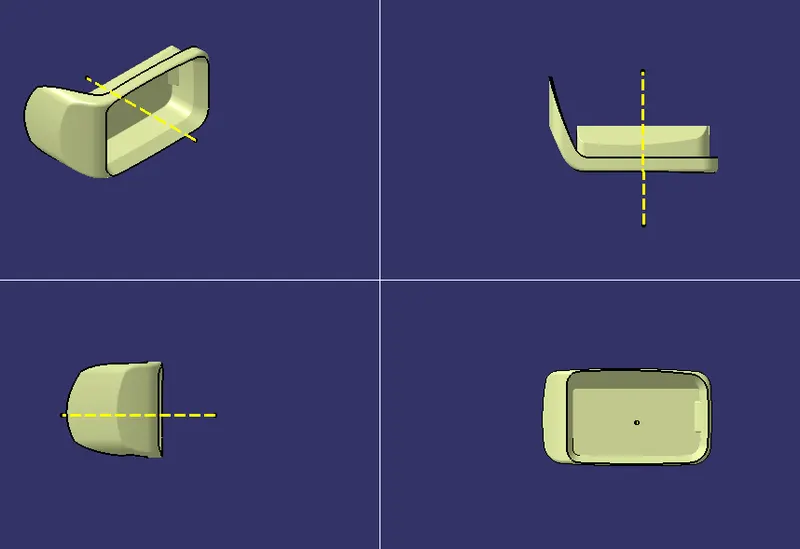

Create an intersection in the ZX plane and create a Tooling axis in the ZX plane.
7.

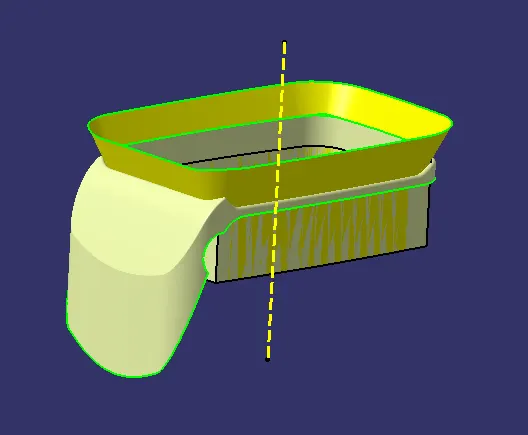

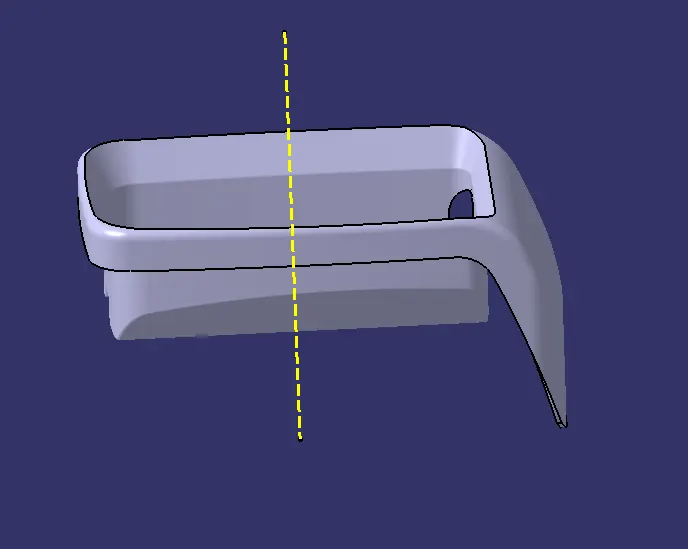

Bisect those two tooling axis lines and create a Main Tooling axis and name the bisected line as
Main Tooling Axis

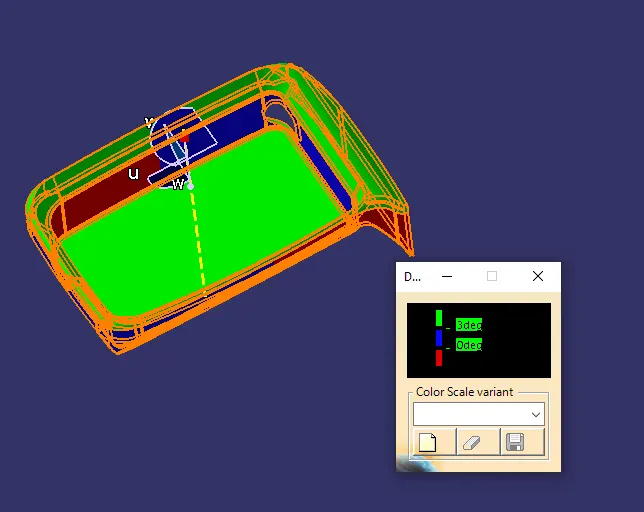

and do the draftanalysis for the Class A surface.
