Week 8 - Challenge 2 - Base Bracket Design

AIM:

Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

INTRODUCTION:

1. Class A surface: A surface that is given to the plastic modeler which is of aesthetic and outermost surface. The surface made by the designer is known as a Class A surface.
2. Class B surface: A surface that is below the Class A surface, at a certain thickness, which contains engineering aspects on it is known as Class B surface.
3. Class C surface: A surface that joins the Class A and Class B surface is known as a Class C surface.

PROCEDURE:

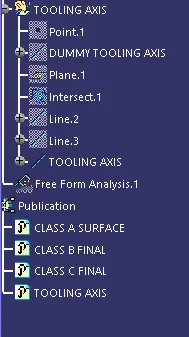

1. Creating a tooling axis

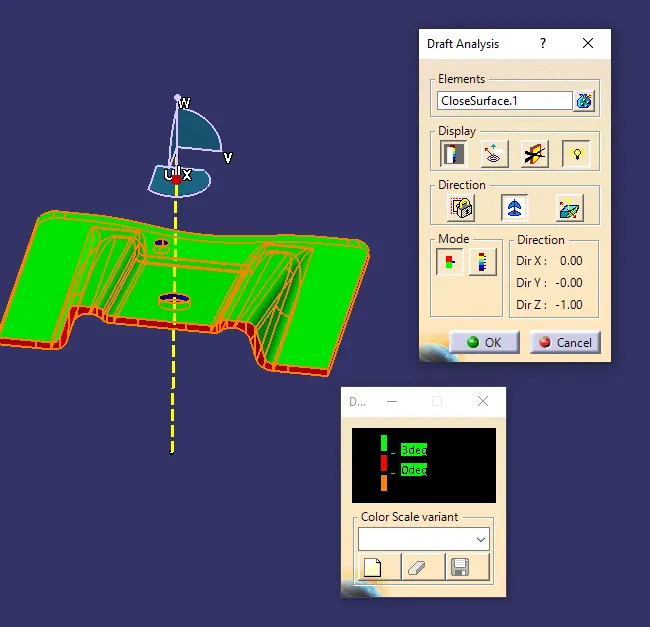

2. Performing draft analysis

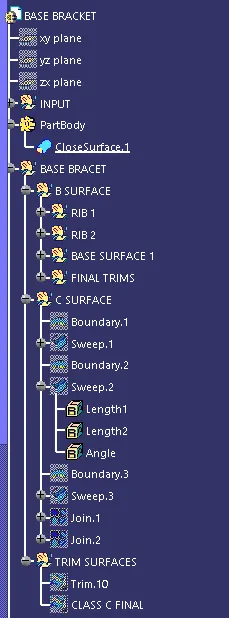

3. Creating a Class B surface
4. Creating a Class C surface

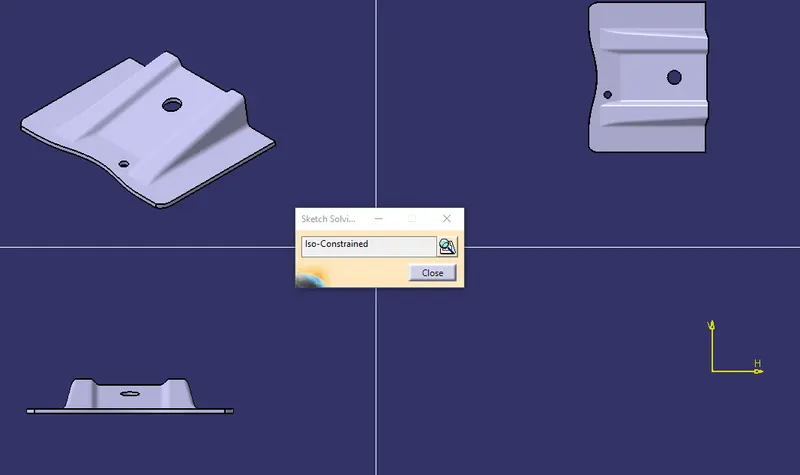

5. Creating a solid model
