Week 8 - Challenge 5 - Core & Cavity Design

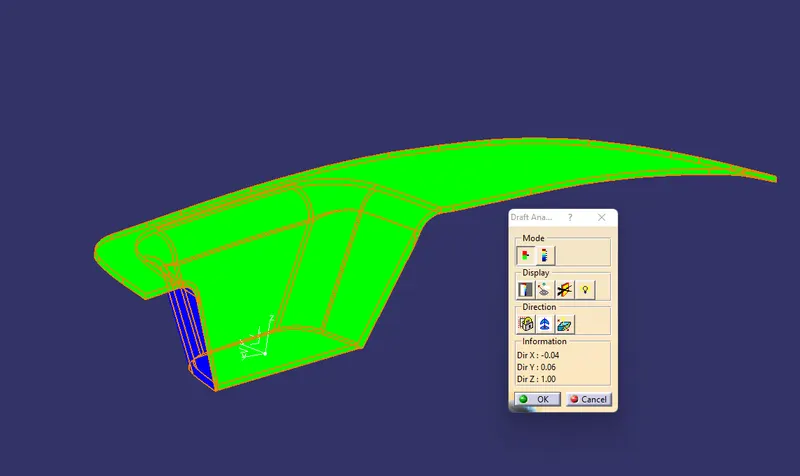

Draft analysis of the Switch bezel.

Green clolor side represents Core side and Blue represents Cavity side.

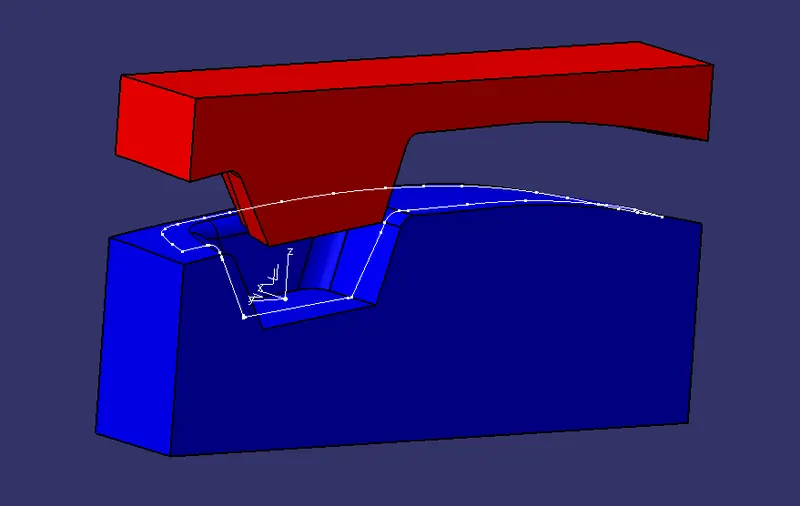

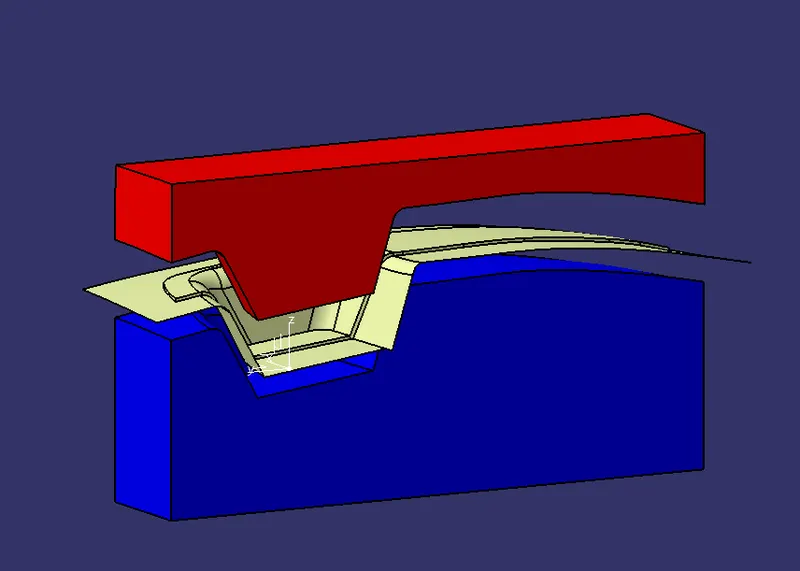

Above image represents the Core and Cavity of the Switch bezel.

red represents Core, AND Blue represents Cavity.

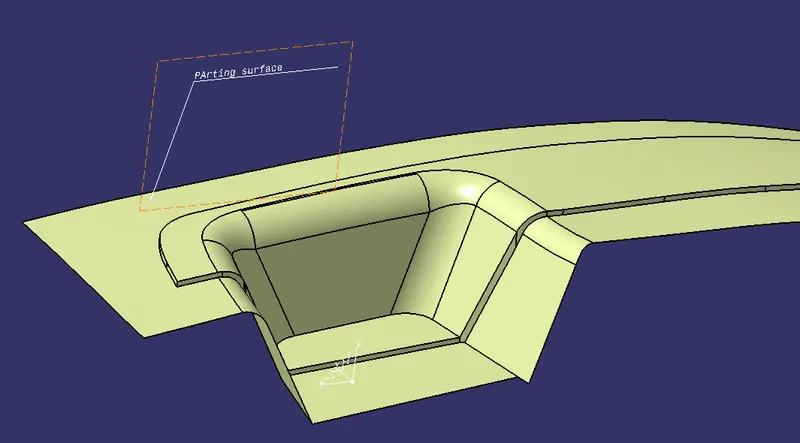

Parting LIne.

White line represents parting line og the object.
