Week 8 - Challenge 5 - Core & Cavity Design

MainOperation.java package Calculator; import java.io.BufferedReader;import java.io.File;import java.io.FileReader;import java.io.FileWriter;import java.io.IOException;import java.util.Scanner; public class MainOperation {private static int calCount =0; public static void main(String[] args) { PerformingMathOperations…

AIM To create CLASS B and CLASS C from CLASS A surface, creating Solid-Body, Tooling axis and performing Draft Analysis. TOOLING AXIS Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis.   DIFFERENT VIEWS OF COIN HOLDER   DRAFT ANALYSIS All areas are…

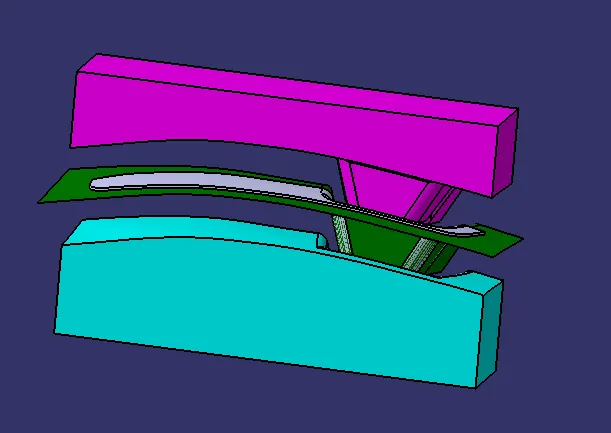

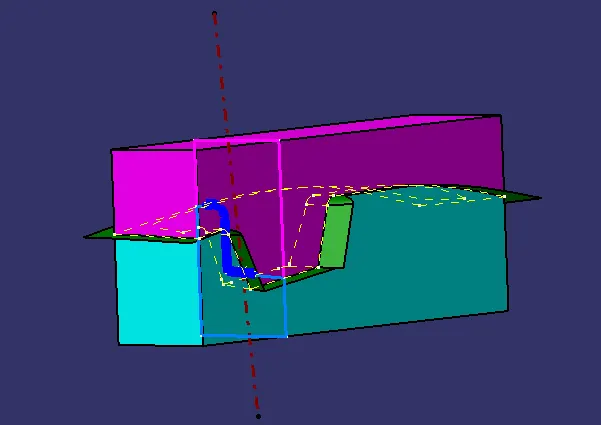

AIM To create Core and Cavity for the given Solid Body, and creating a Parting Line and Parting Surface. TOOLING AXIS  Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis. CORE AND CAVITY  The core is the male part which forms the internal shape…

AIM To create CLASS B and CLASS C from CLASS A surface, creating Solid-Body, Tooling axis, Slider axis and performing Draft Analysis.   TOOLING AXIS AND SLIDER AXIS Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis. Slider axis: When there are through holes,…

AIM  To create CLASS B and CLASS C from the given CLASS A surface and Master Section, creating Solid-Body, Tooling axis and performing Draft Analysis. TOOLING AXIS AND LIFTER AXIS GREENLINE represents the Tooling axis. BLUELINE represents the Lifter axis for Dog house with a 4-way locator.     CLASS…

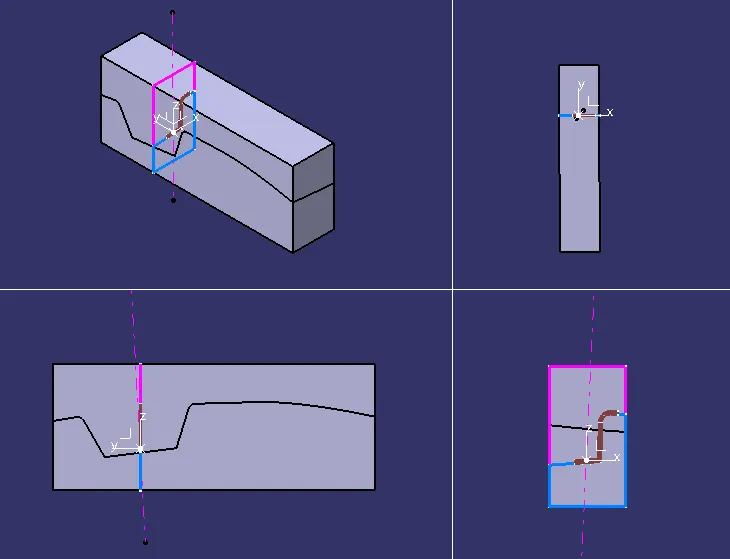

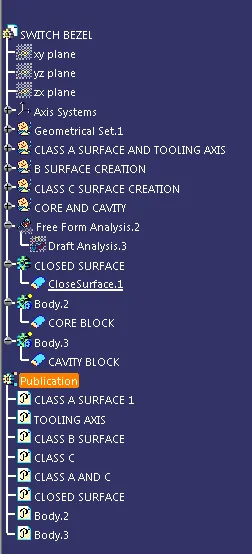

AIM To create CLASS B and CLASS C from CLASS A surface, creating Solid-Body, Tooling axis and performing Draft Analysis. TOOLING AXIS Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis.   DIFFERENT VIEW OF SWITCH BEZEL   DRAFT ANALYSIS  All areas…

AIM To create CLASS B and CLASS C from CLASS A surface, creating Solid-Body, Tooling axis and performing Draft Analysis. TOOLING AXIS Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis. DIFFERENT VIEWS CLASS A SURFACE All areas are with a minimum draft angle of…

AIM  To create Tooling Axis and Draft Analysis for the given Class-A surface. TOOLING AXIS Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis.   DRAFT ANGLE  All areas are with a minimum draft angle of 3 degrees.   FEATURE TREE CONCLUSION Draft…

                                                                                           …

Radar Mast isometric view Radar Mast front view Radar Mast side view Radar Mast top view Radar Mast feature tree     Yacht assembly isometric view Yacht assembly front view Yacht assembly side view Yacht assembly top view Yacht assembly feature tree Modelling Yacht in Solidworks   Aim     …

                                                                                           …
