Week 8 Challenge

Procedure:

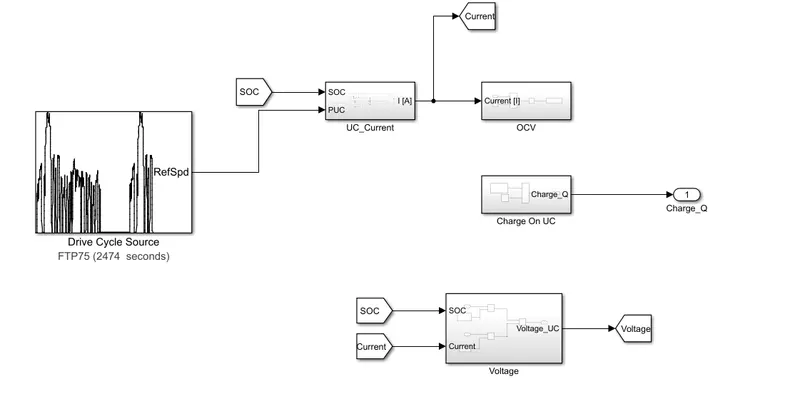

Signal builder block is used as a power demand source.

In the Ultracapacitor subsystem,current and voltage calculation subsystem and SOC calculation subsystem is

In the charge and voltage calculation subsystem,the current,voltage,open circuit voltage and charge calculation subsystem is formed.

Input to the current subsystem is power demand from the signal buider and feedback from the SOC.

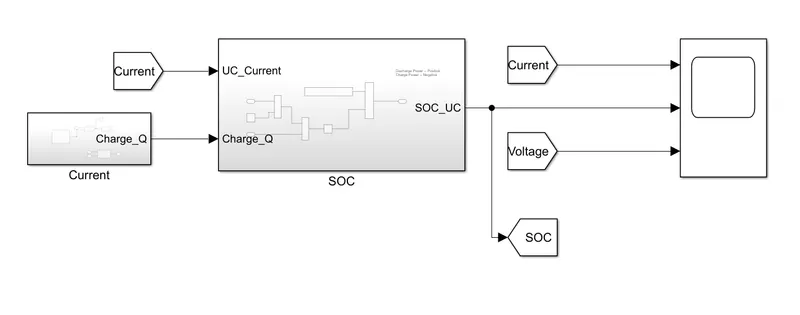

Then the SOC calcualtion also done here by using the formula.

Inside the Current Block:

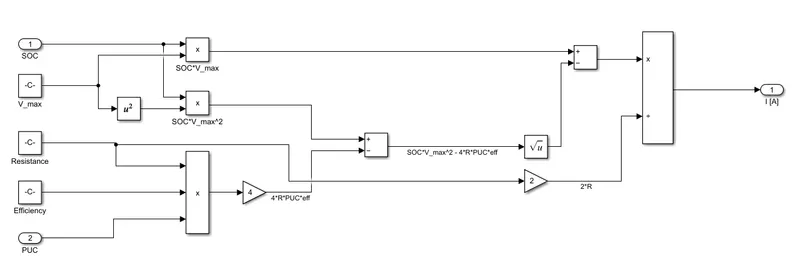

Inside UC Current:

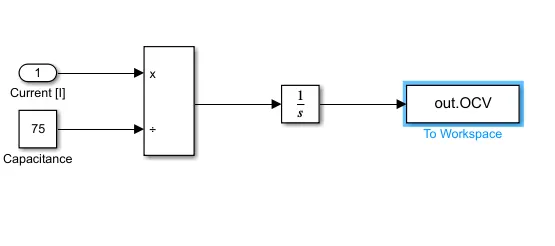

Inside OCV:

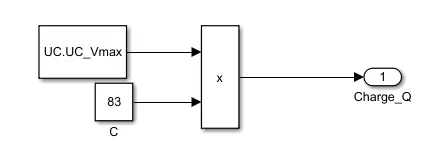

Inside UC Charge:

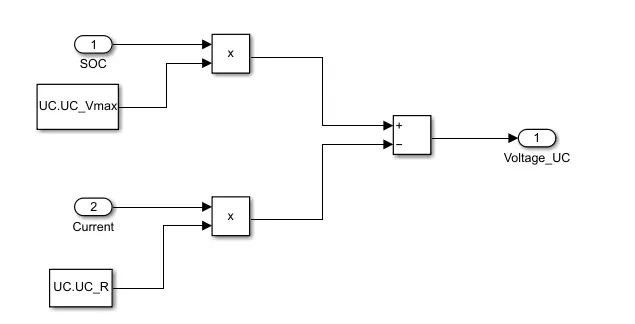

Inside Voltage:

Here the outputs we are fetching are: Current, Voltage, SOC.

Formulas for calculating SOC and current are:

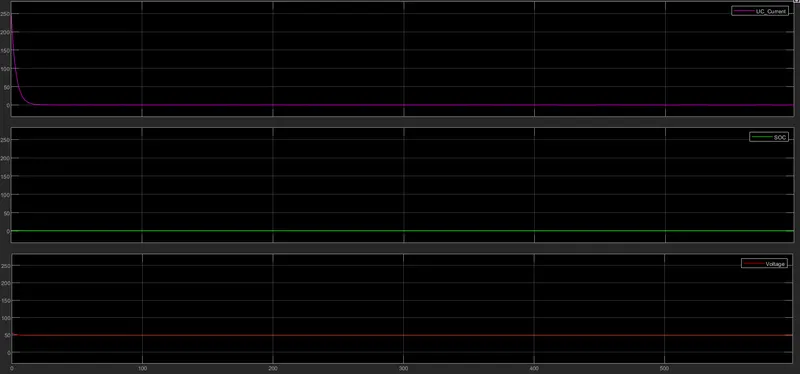

Output of the UC model at 598sec:
