Week 8 - Challenge 4 - Coin Holder Design

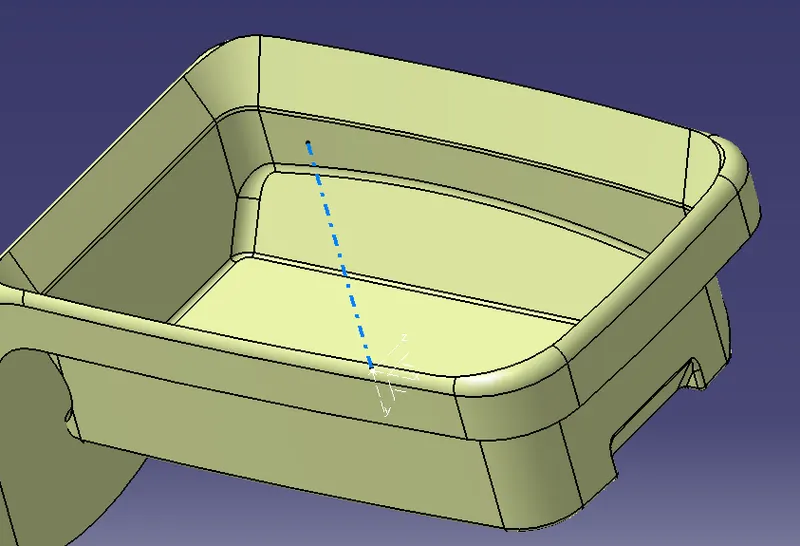

after importing the model from stp file creation tooling axis by creation of line perpedicular to the base because walls are perpendicular.

so if we bisect the lines from the the intersection of walls it also creates the same perpendicular line to base

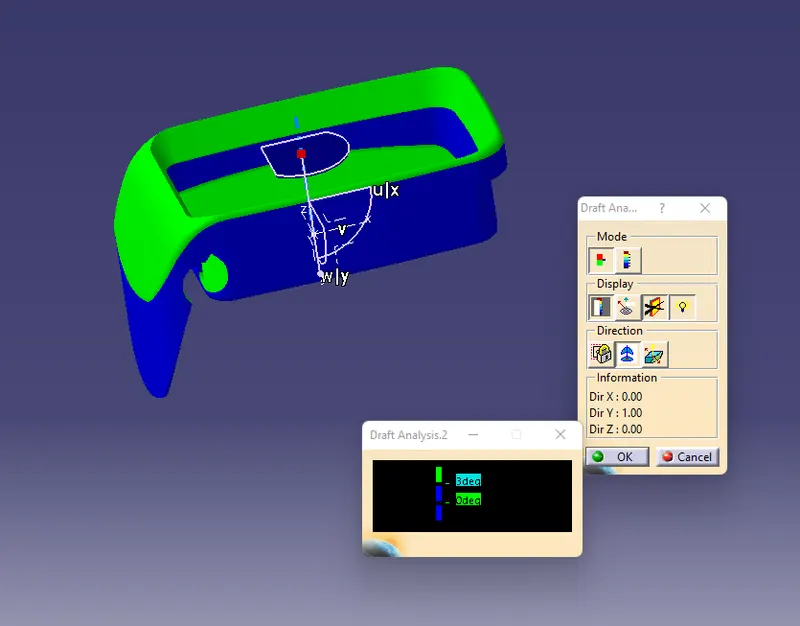

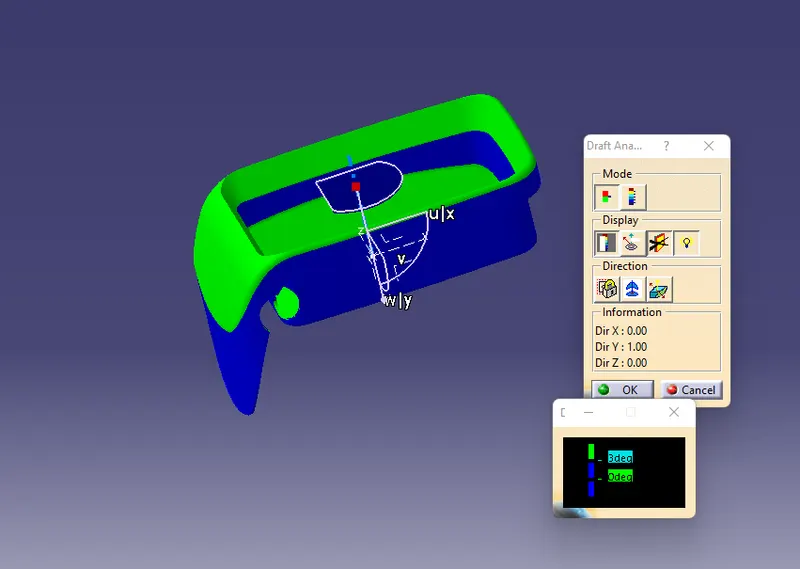

draft analysis made on both plastic componants in material shading condition by locking the compass in tooling direction and locking the compass in tooling direction. by clicking on the toolig dirction on to body surface it shows the result if surfaces not clears the tooling direction inverse the tooling dirction or change the angle for tooling axis.

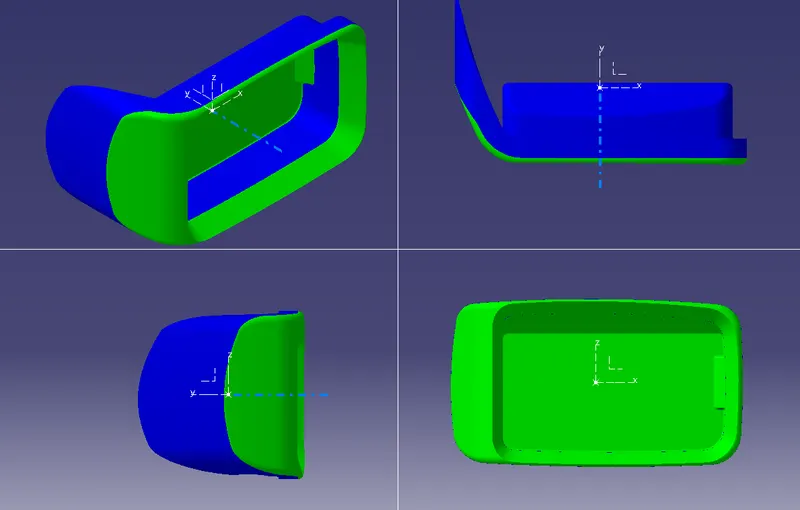

solid body draft analysis

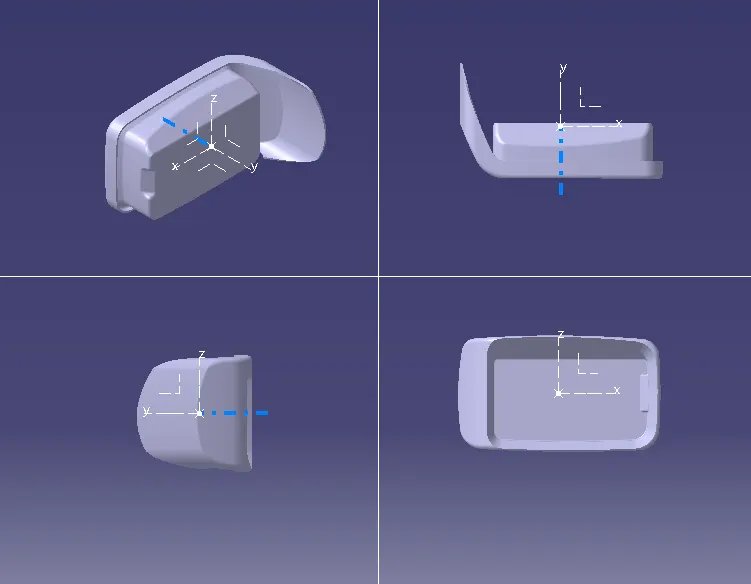

plastic body view

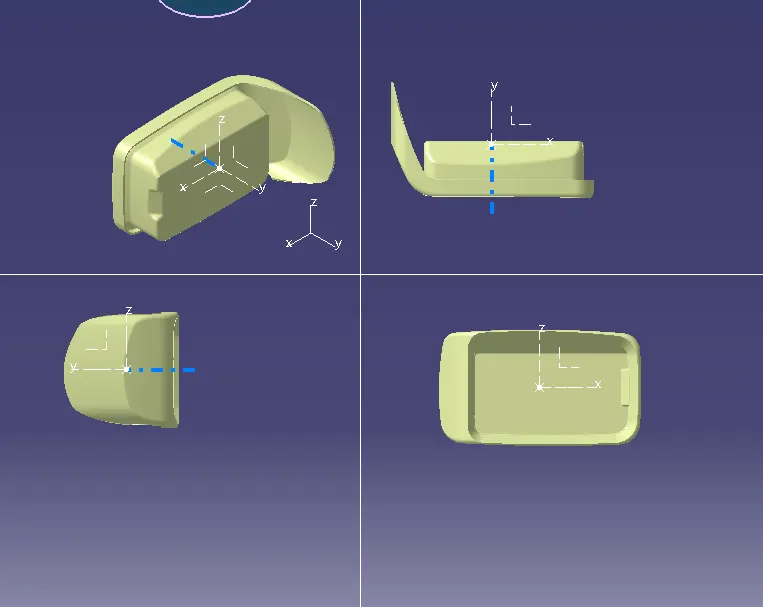

solid body images

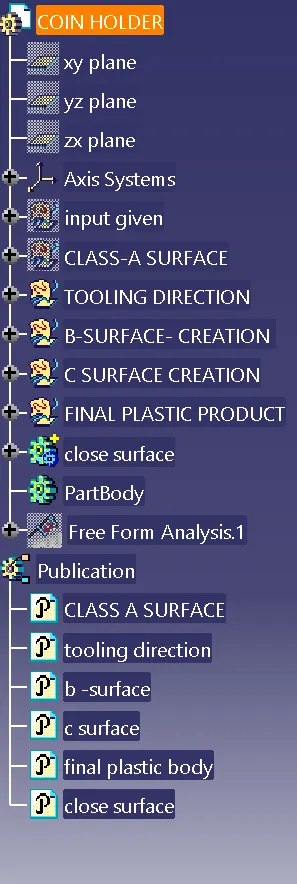

tree structure
