Week 8 - Challenge 4 - Coin Holder Design
REPORT
ABSTRACT: In this project I tried to design and replicate a complex model of a coin holder. I tried to replicate it with the help of creation of multiple surfaces. My ultimate goal in this project is to create a replica of a coin holder and analysis the design by using draft analysis method.
INTRODUCTION: In the initiation of this challenge I am provided with the CLASS A surface of the coin holder. After that I analze it and selected the target spot for the creation of tooling axis. I selected a base spot which open from one side and surrounded by three angled walls. I analyze and measure every critical spot and created the tooling axis for the draft analysis. After that I created several references to achieve my objective.

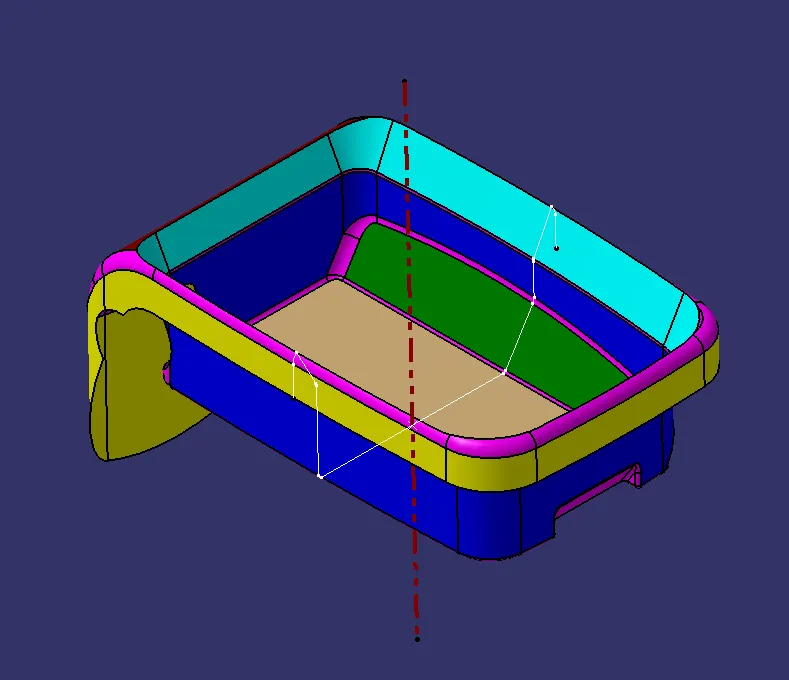

METHODOLOGY: The approach to achieve my final goal is started with creation of tooling axis that I created by intersecting the CLASS A surface from YZ plane.

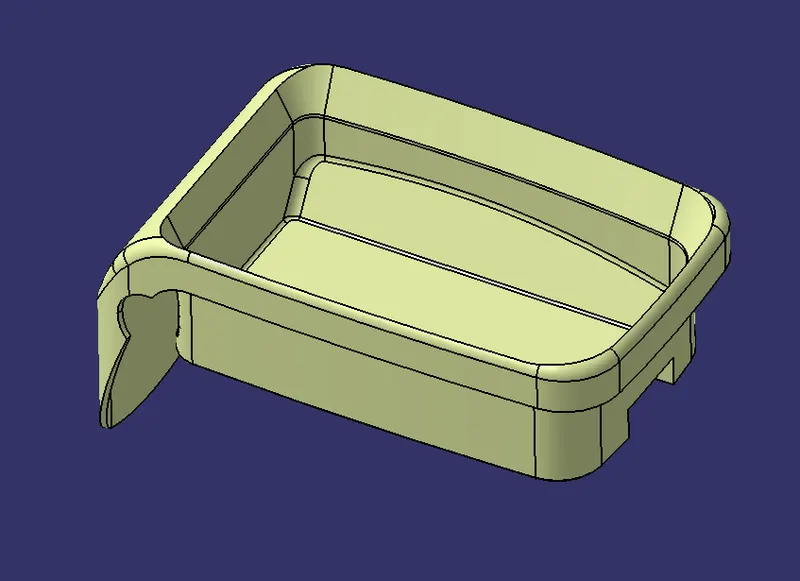

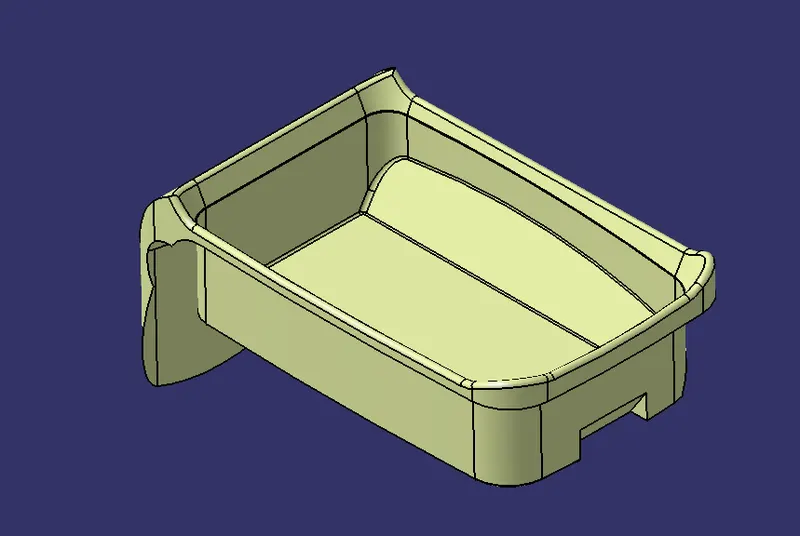

After that I shifted to other important phase of creating CLASS B SURFACE. In creation of Class B surface I started with extracting the important faces from CLASS A SURFACE. Then I untrimed every extracted surface and at last extrapolate everything for easiness in trimming. Then I trimmed every extrapolated surface to obtain the required one. At last step I give fillet to the sharp edges.

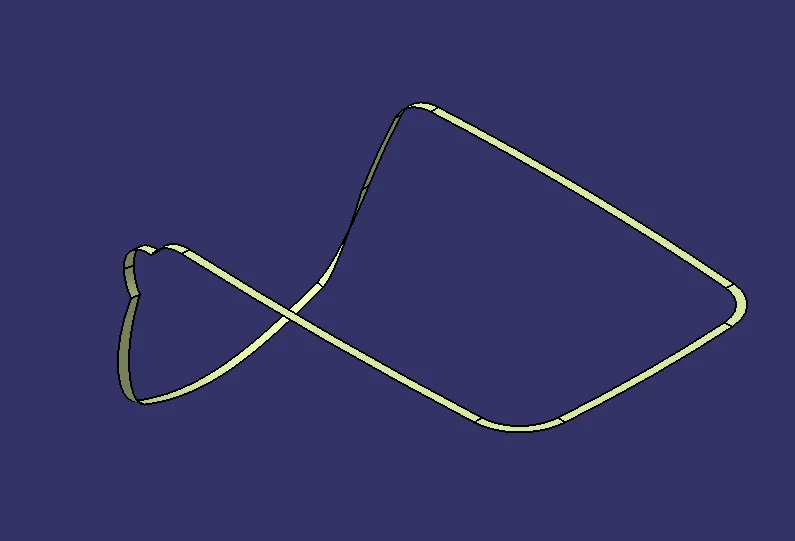

Then my final step is to create the CLASS C surface by using the SWEEP command. For this I used CLASS A surface and achieved the result is as:-
RESULTS:
The first result which I achieved is by integration of CLASS A and CLASS B and CLASS C surfaces and the final result in surfacing is obtained is as \

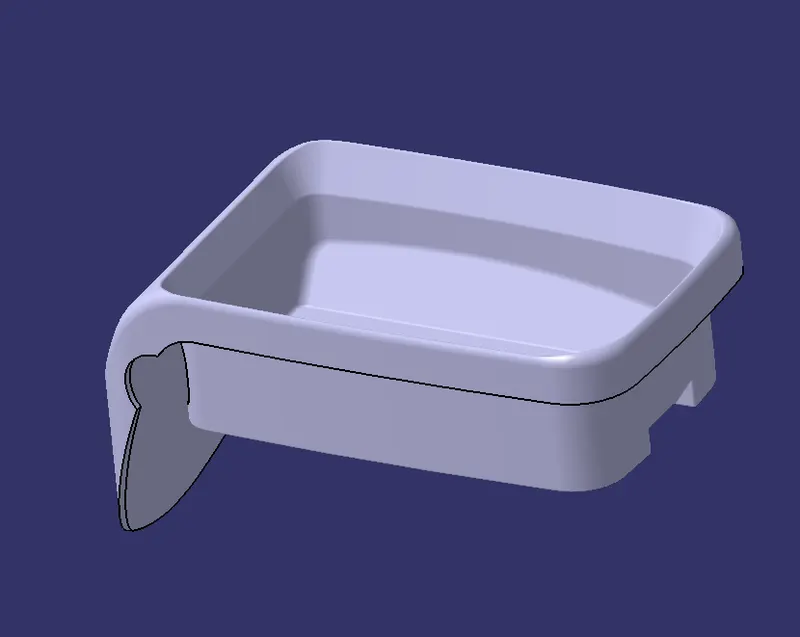

After that I shifted my workbench and gave close surface command in part work bench. The solid surface which I received from that is
OBSERVATION:
The result that I obtained is mentioned above and after that I put the obtained result in under the analysis. The analysis process is known as the draft analysis.

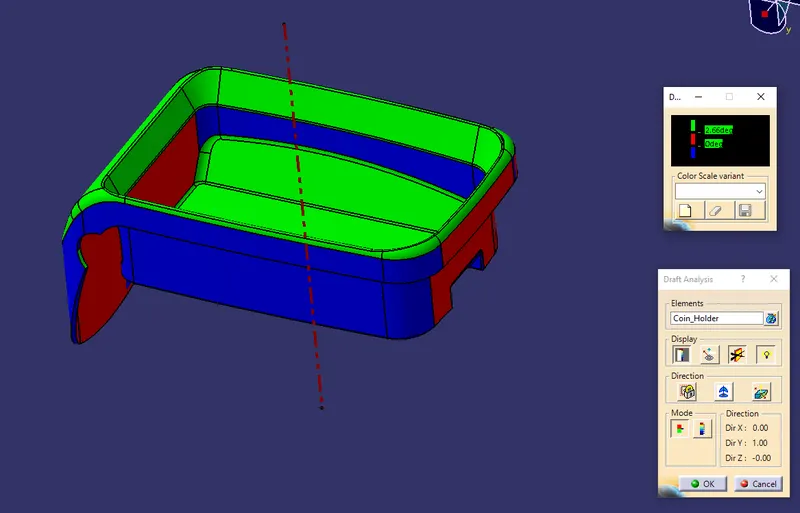

- DRAFT ANALYSIS OF COMBINED SURFACES

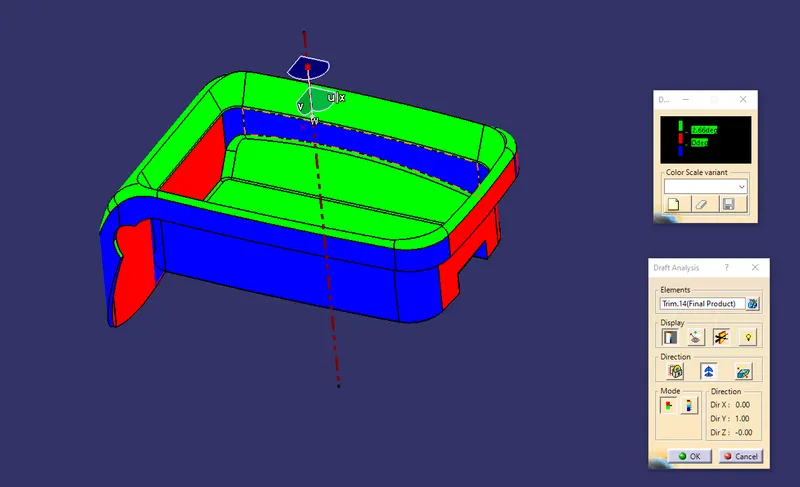

- DRAFT ANALYSIS OF SOLID SURFACES
THE FINAL OBTAINED RESULT IS THE DRAFT ANGLE AND THE DRAFT ANGLE FOR DESIGNED COIN HOLDER IS 2.66 DEGREES.
