Week 8 - Challenge 4 - Coin Holder Design

DRAFT ANALYSIS REPORT

• JOIN THE GIVEN SEPERATE CLASS A SURFACES
• CHECK WHETHER THE CLASS A IS COMPLETELY JOINED OR HAVING ANY DISCONTINUITY

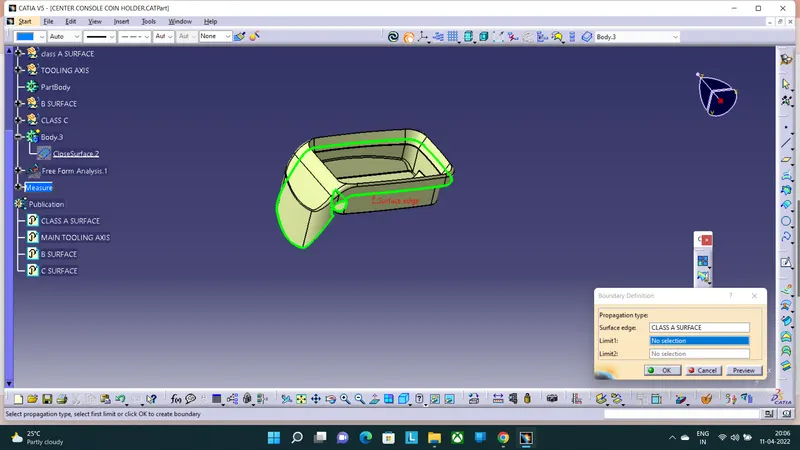

• USING BOUNDARY , EXTRACT COMMAND

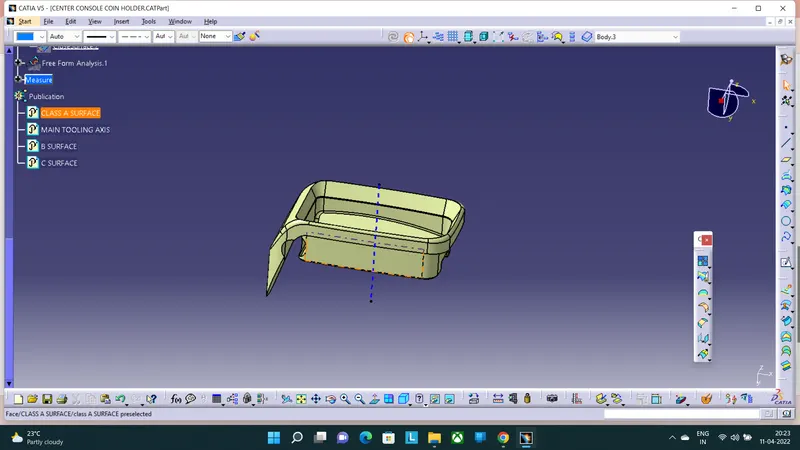

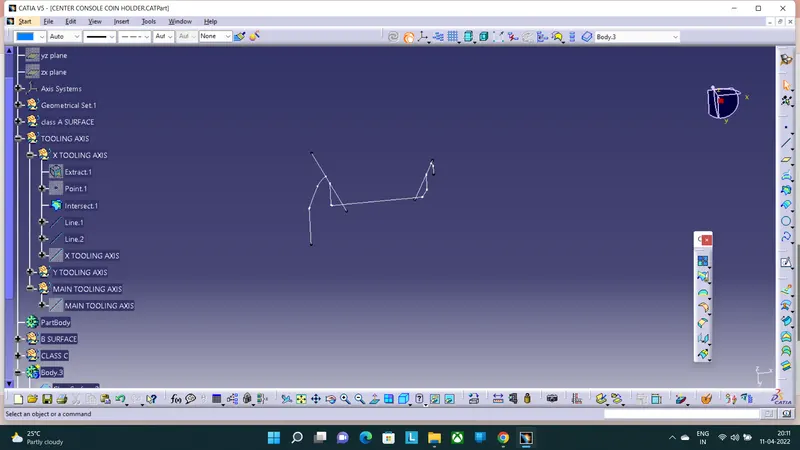

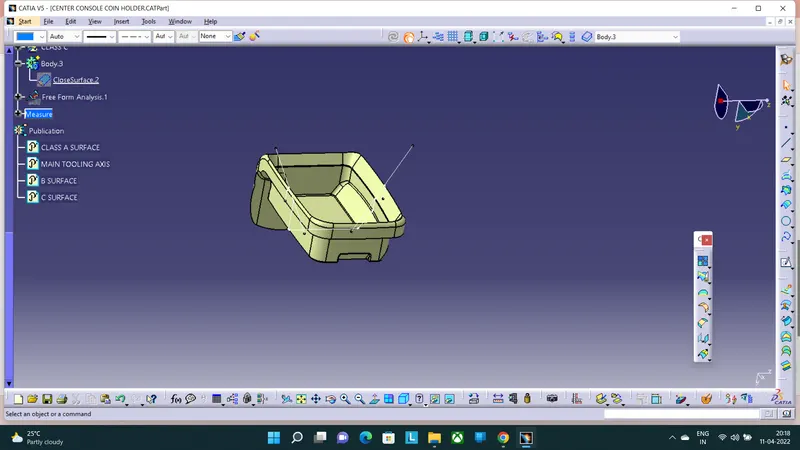

TOOLING AXIS ( BISECTING METHOD )

• CREATE THE POINT ON THE BIN SURFACE AND INSERT THE AXIS SYSTEM
• INTERSECT THE ZX PLANE WITH THE CLASS
• USING POINT TO PONT LINE COMMAND CREATE THE LINE
• CREATE THE BISECTING LINE ( X TOOLING AXIS )
• INTERSECT ZY PLANE WITH THE CLASS A SURFACE
• USING POINT TO PONT LINE COMMAND CREATE THE LINE
• CREATE THE BISECTING LINE ( Y TOOLING AXIS)
• BISECT THE X AND Y TOOLING AXIS WE WILL GET THE MAIN TOOLING AXIS

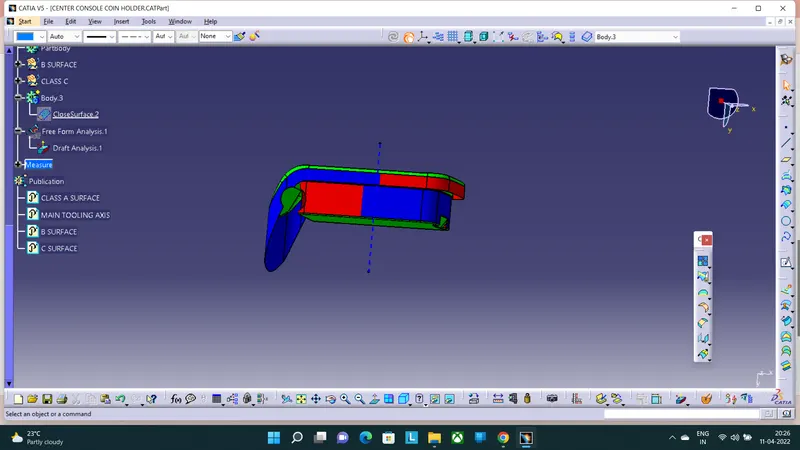

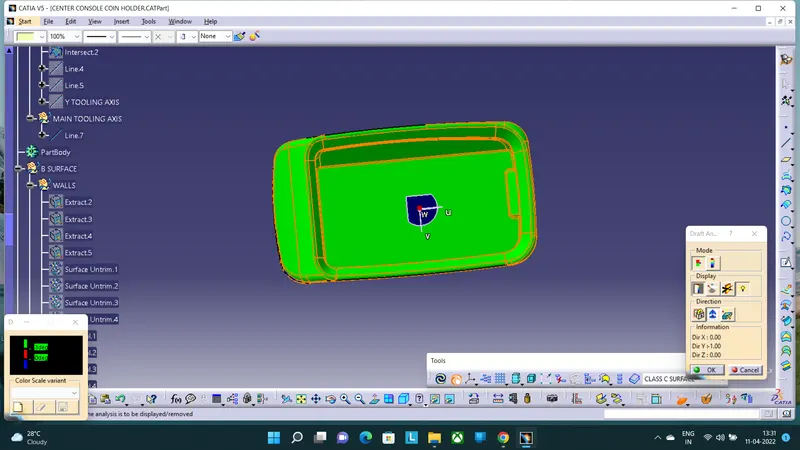

PERFORMING DRAFT ANALYSIS

INSERT ->ANALYSIS-> FEATURE DRAFT ANALYSIS

ALIGN THE COMPASS TO THE TOOLING AXIS

THERE IS NO NEGATIVE DRAFT FROM TOP

HAS THE CLASS A HAS 0 DEGREE DRAFT IT CANNOT CLEAR EVEN WHEN WE CREATE THE SIDE TOOLING AXIS

SO THE CLASS A DESIGNER SHOULD REWORK ON IT

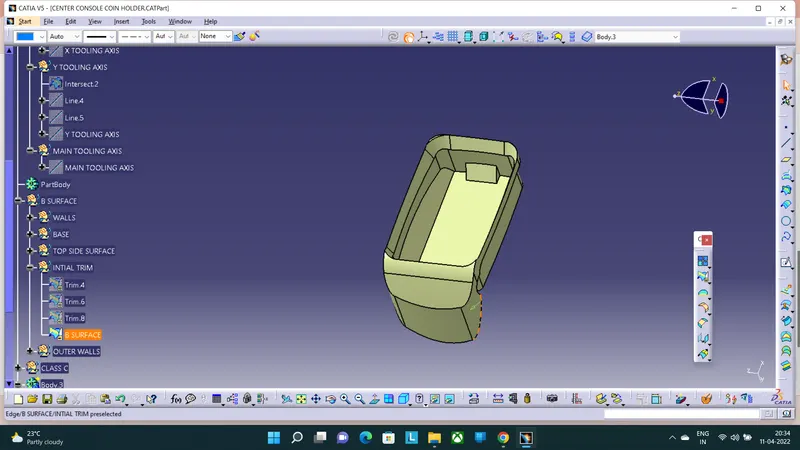

CLASS B SURFACE

CLASS C SURFACE

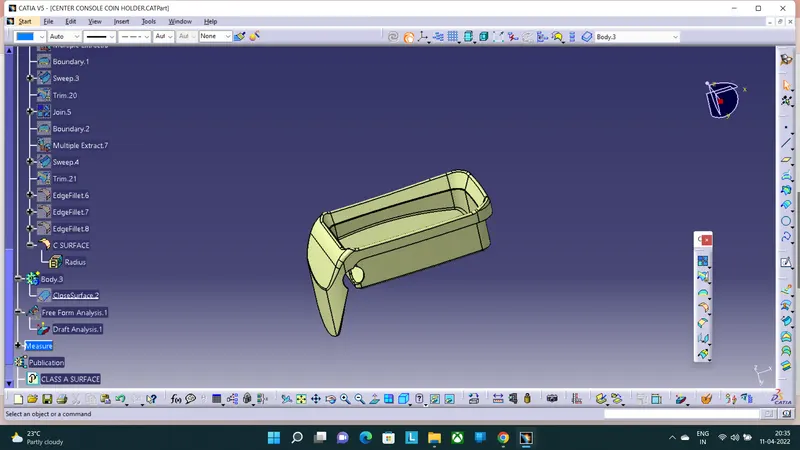

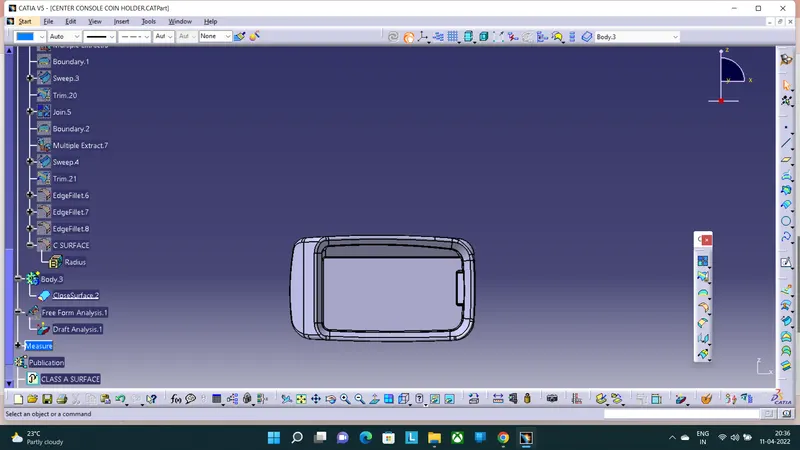

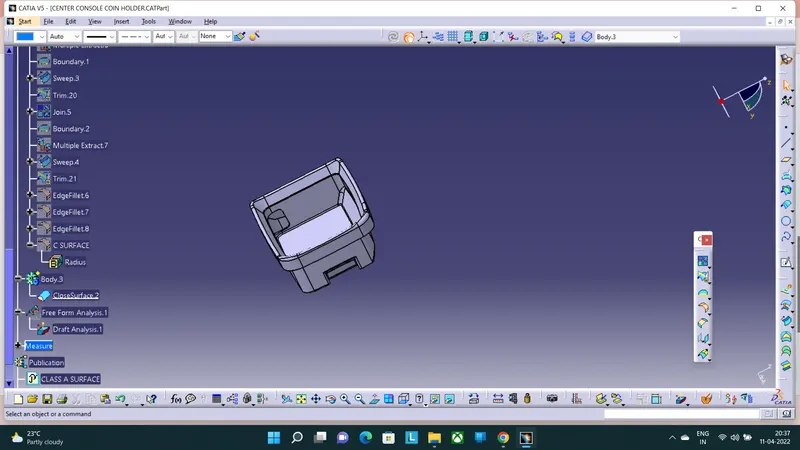

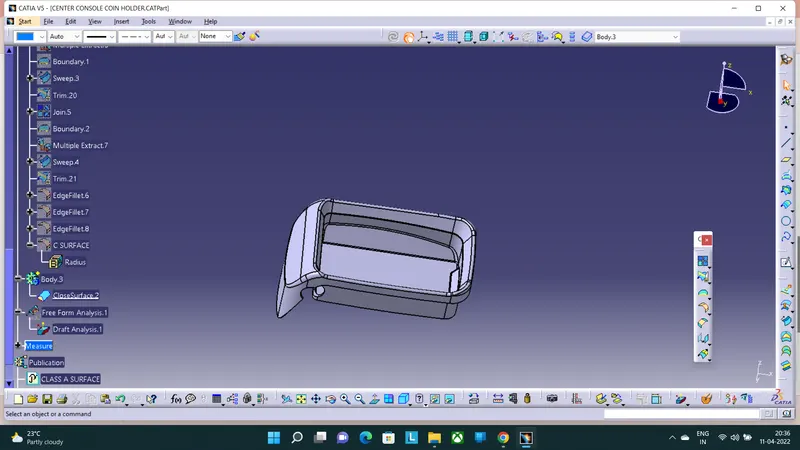

FINAL PLASTIC COMPONENT

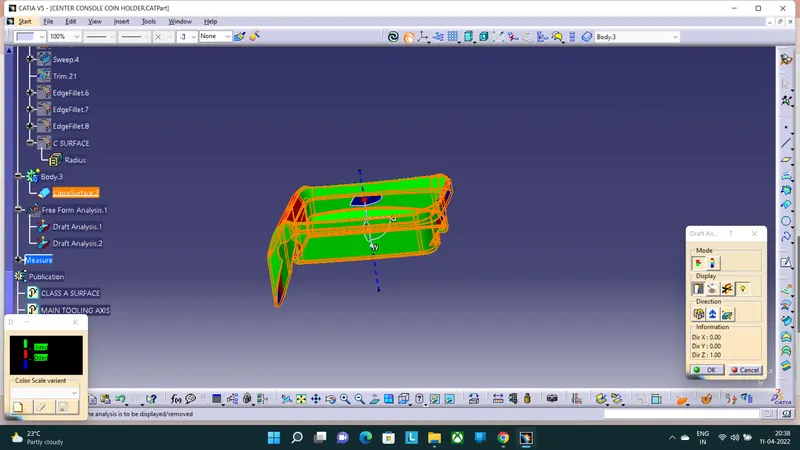

FINAL COMPONENT DRAFT ANALYSIS
