Week 8 - Challenge 3 - Switch Bezel Design

DRFAT ANALYSIS REPORT

     WE HAVE TO ENSURE WHETHER THE CLASS A SURFACE IS PROPERLY JOINED HAS NO DISCONTINITY WE CAN ENSURE IT BY

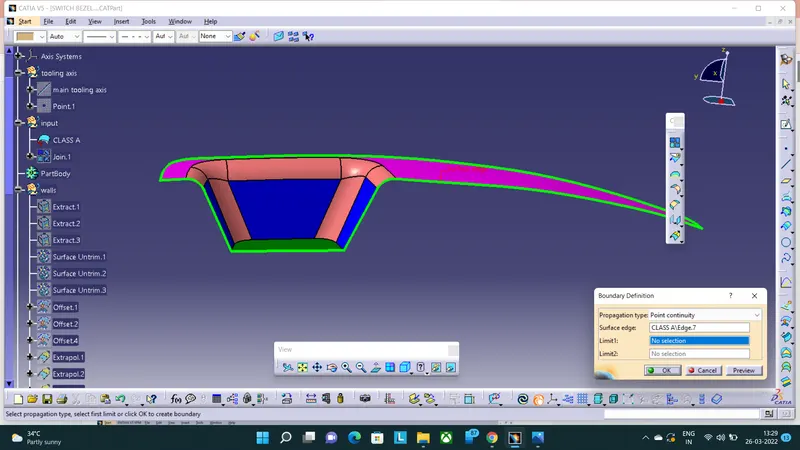

• BOUNDARY COMMAND
• JOIN COMMAND

ANALYSIS THE CLASS A SURFACE VISUALLY TO SEE WHICH DIRECTION WILL BE SUITABLE FOR TOLLING DIRECTION SO THAT THE PART SHOULD CLEAR IN THE MAIN TOOLING DIRECTION ITSELF WITHOUT SIDE CORE

TOOLING AXIS - THE DIRECTION IN WHICH THE CORE AND CAVITY OPENS UP AND CLOSE

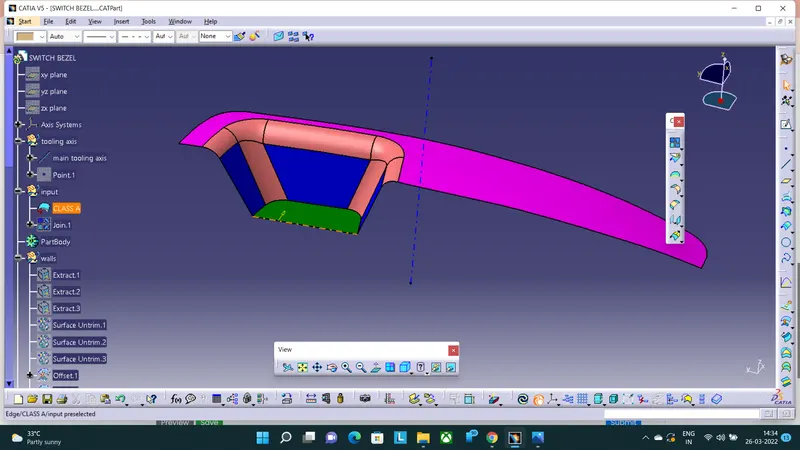

HERE WE HAVE USED ALONG AXIS DIRECTION METHOD TO CREATE THE TOOLING DIRECTION

• USE THE JOIN COMMAND IN THE CLASS A SURFACE

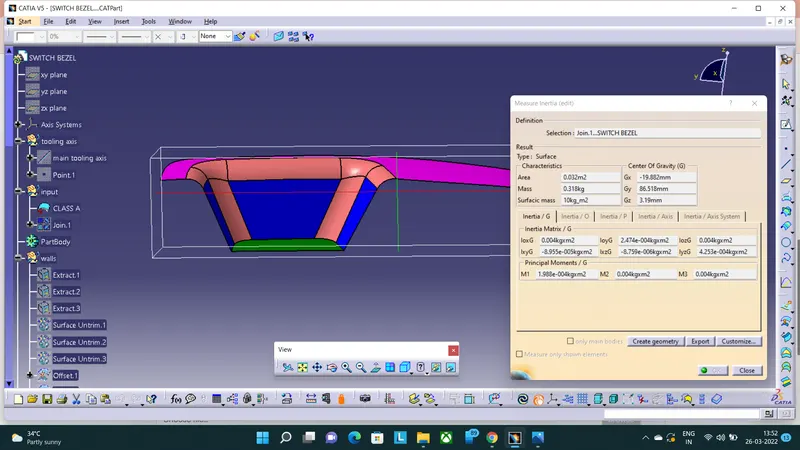

• MEASURE INERTIA > JOINED > CREATE GEOMENTRY > CENTER OF GRAVITY > OK
• POINT CREATED
• USE THE POINT TO CREATE THE MAIN TOOLING AXIS
• POINT TO DIRECTION LINE COMMAND IN Z AXIS

DRAFT ANALYSYS

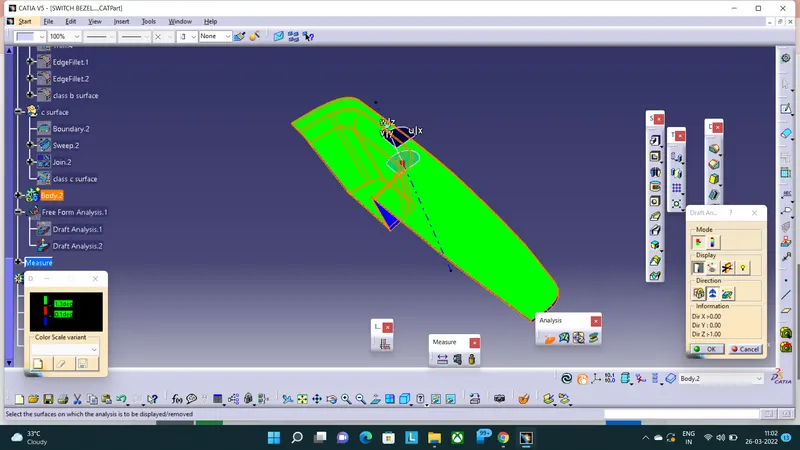

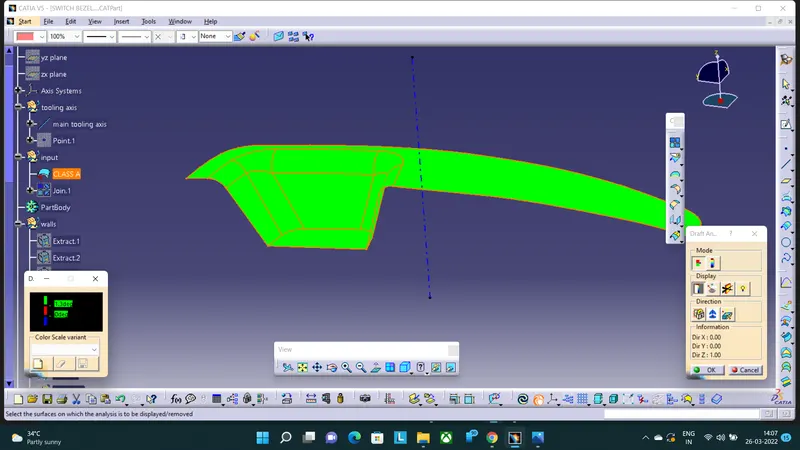

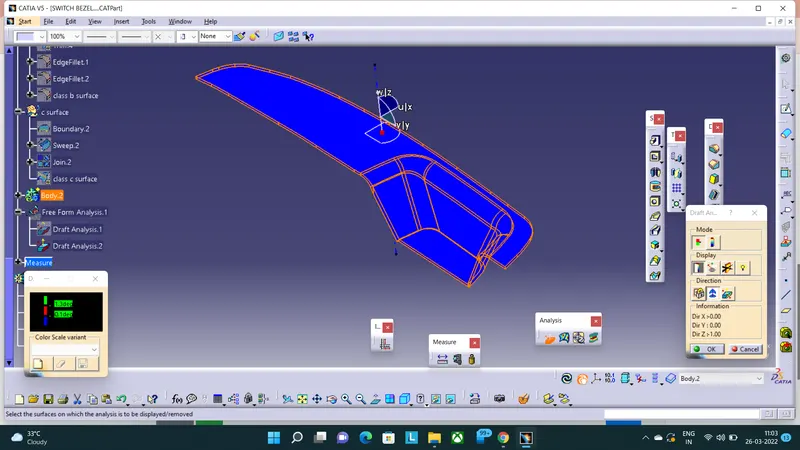

• INSERT >ANALYSIS >FEATURE DRAFT ANALYSIS
• MAKE SURE THE MATERIAL MODE IS IN CUSTOMIZE BEFORE WORKING ON DRAFT ANALYSIS
• ALLIGN THE COMPASS WITH THE MAIN TOOLING AXIS
• CLICK THE SURFACE
• MINIMUM OF 1/2 TO 1 DEGREE DRAFT IS ACCEPTED BUT AS THE MORE PRESICE COMPONENT I S COSTLIER TO MAKE 3 DEGREE DRAFT IS WIDLEY ACCEPTED

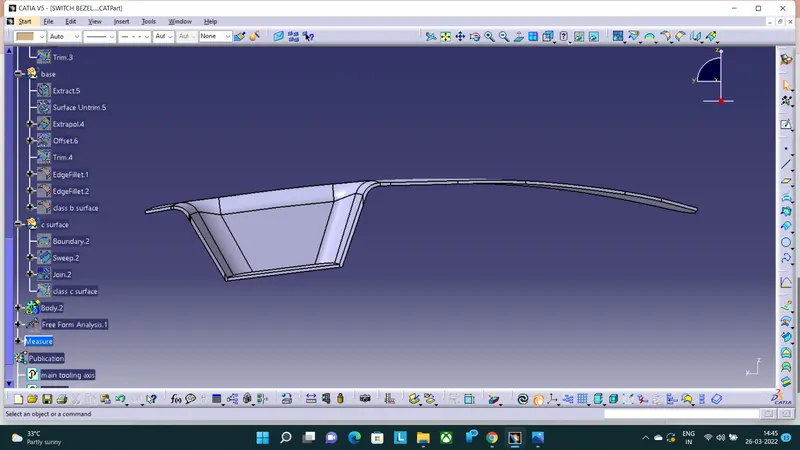

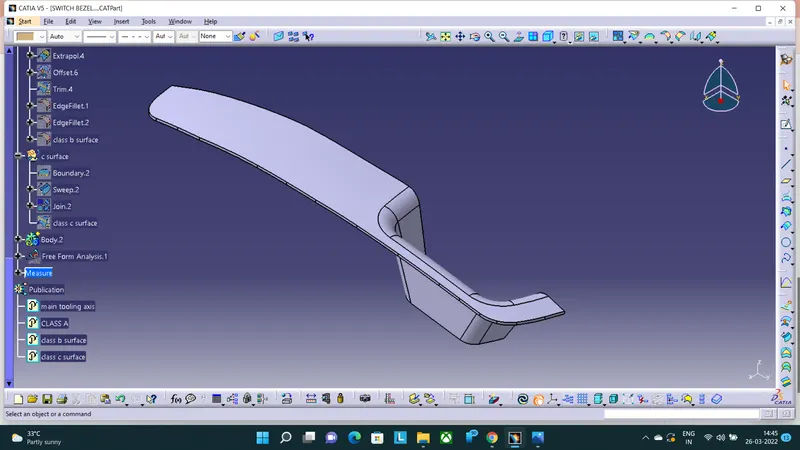

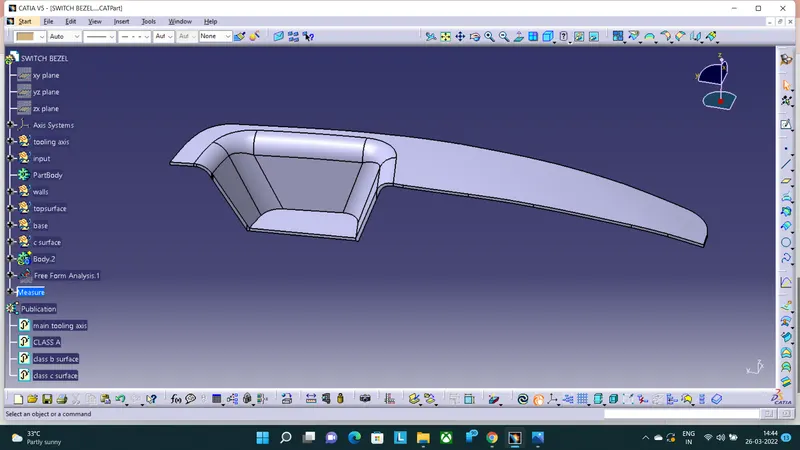

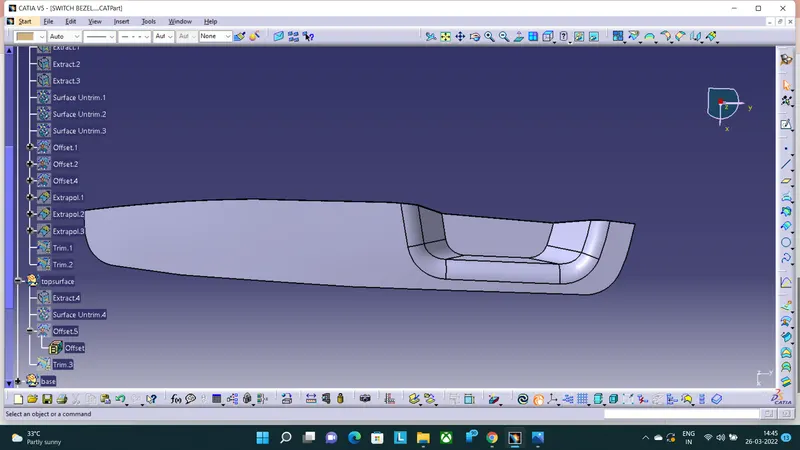

• FINAL PART DRAFT ANALYSIS
