Week 8 - Challenge 2 - Base Bracket Design

DRAFT ANALYSIS REPORT

HOW TO LUBRICATE DRAFT ANALYSIS

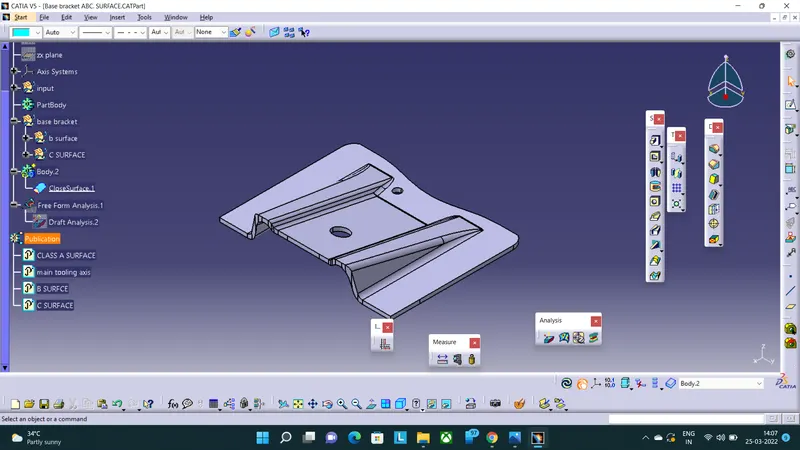

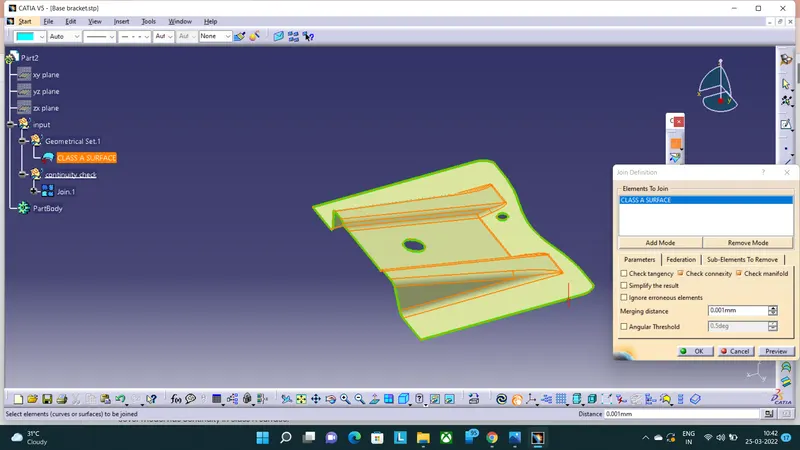

HAVE TO ENSURE THE GIVEN CLASS A SURFACE IS PROPERLY JOINED , IT CAN BE DONE BY

• BOUNDARY COMMAND
• JOIN COMMAND

ANALYSIS THE PART MANUALLY TO SEE WHICH DIRECTION WILL BE SUITABLE FOR MAIN TOOLING AXIS

• TOOLING AXIS - THE DIRECTION IN WHICH THE CORE AND CAVITY OPEN UP AND CLOSE

BY ANALYSING XYZ DIRECTION , Z WILL BE AN CORRECT TOOLING DIRECTION THO IT WILL BE AN DUMMY ONE HAVE TO CREATE THE REAL ONE USING BISECTION METHOD

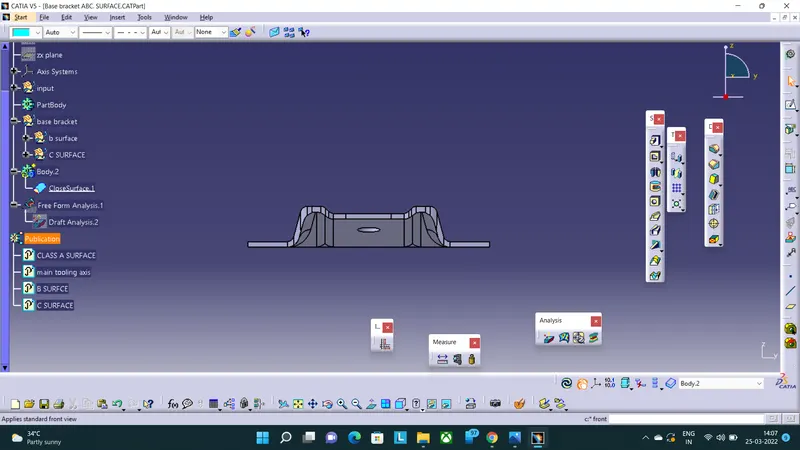

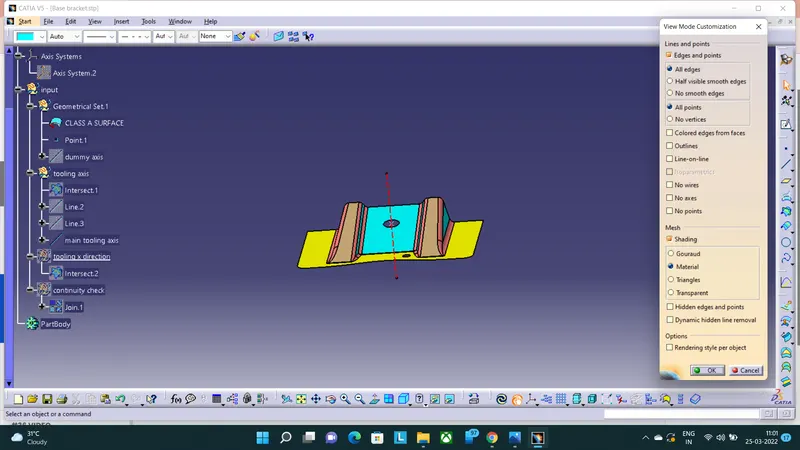

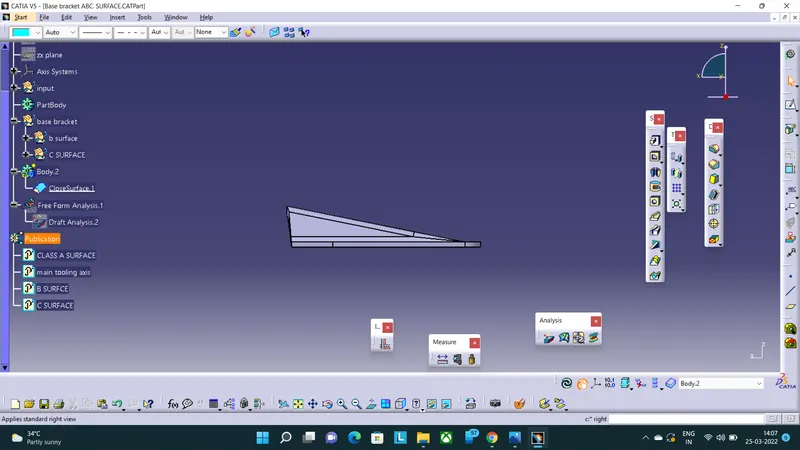

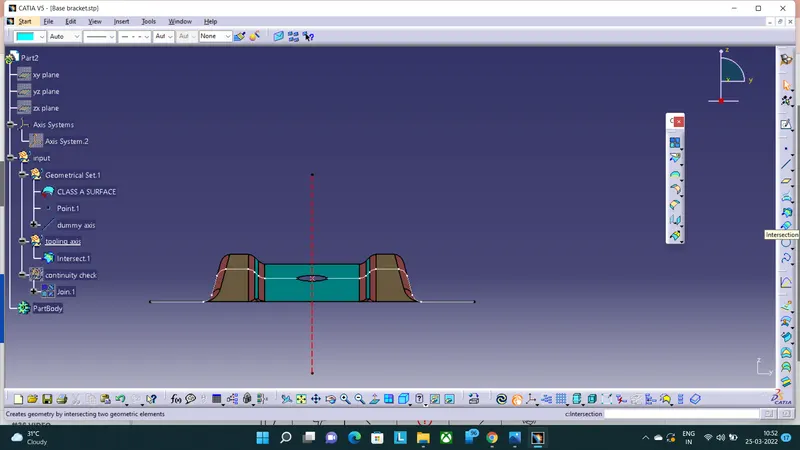

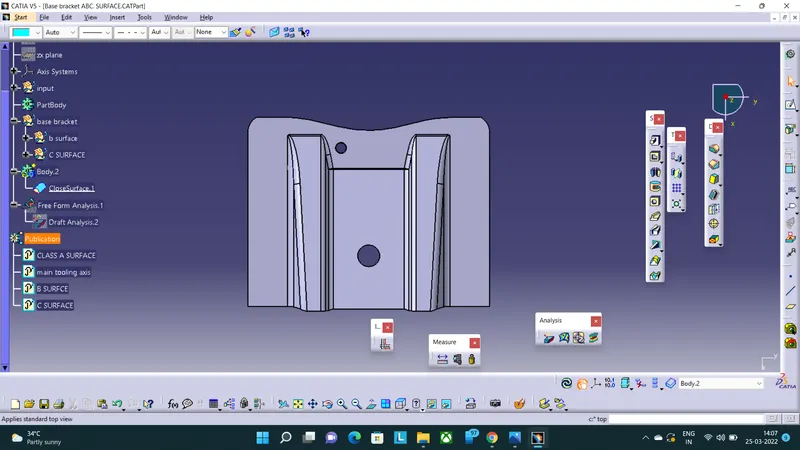

MAKE AN AXIS SYSTEM AND INSERT THE ZY PLANE WITH CLASS A SURFACE RESULTING YOU WILL GET AN LINE , THEN WE HAVE TO ROOT OUT THE SURFACE WHICH WILL CREATE PROBLEM WHILE TOOLING AND MALKE A LINE ALONG THE SURFACE USING POINT TO POINT LINE AND SAME ON THE OTHER SIDE , THEN BISECT THE TWO LINE WE GET MAIN TOOLING DIRECTION

DRAFT ANALYSIS

INSERT > ANALYSIS > FEATURE DRAFT ANALYSIS

BEFORE DRAFT ANALYSING MAKE SURE THE MATERIAL MODE IS IN CUSTOMIZE

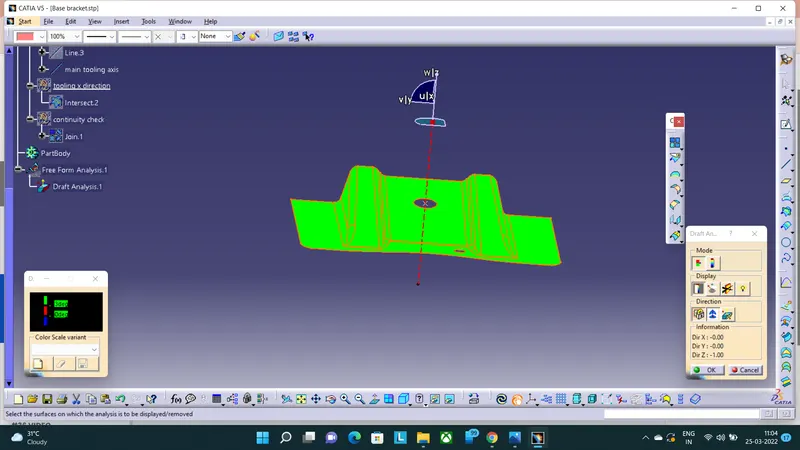

ALLIGN THE COMPASS WITH THE TOOLING AXIS AND CLICK THE SURFACE THE RESULT WILL BE DISPLAYED

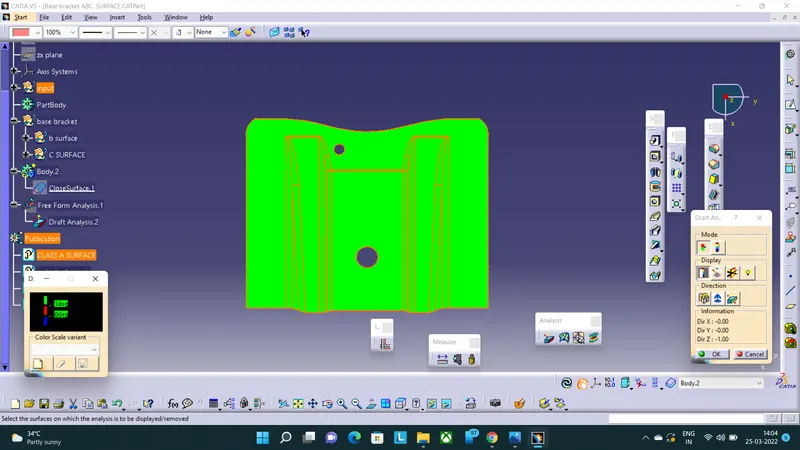

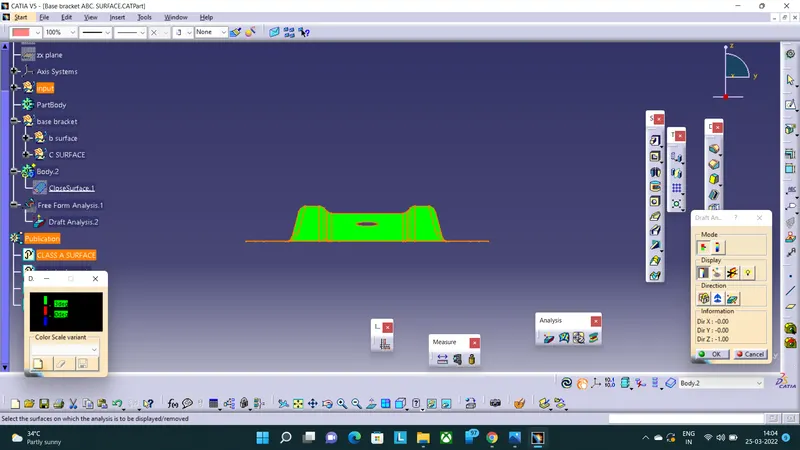

IT IS SEEN THAT THE SURFACE IN GREEN COLOR HAS MORE THAN 3 DEGREE DRAFT WHICH IS REQUIRED FOR THE TOOLING FEASABILITY
