Week 8 - Challenge 4 - Coin Holder Design

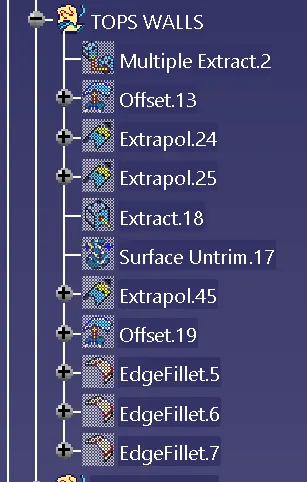

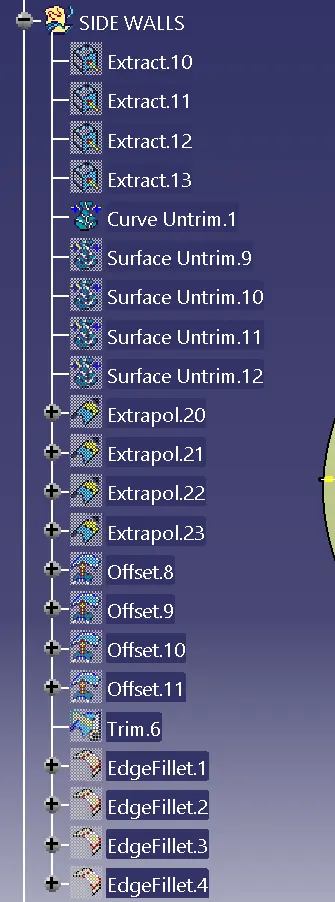

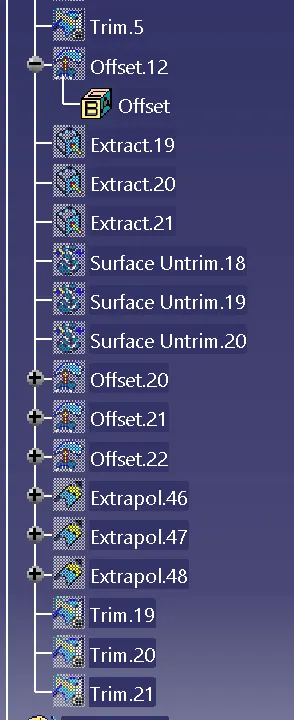

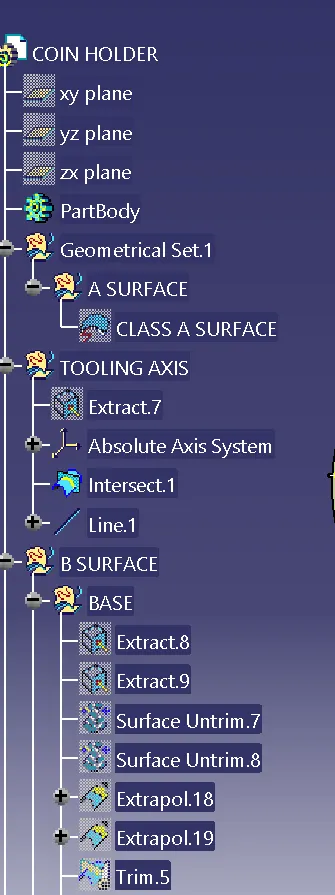

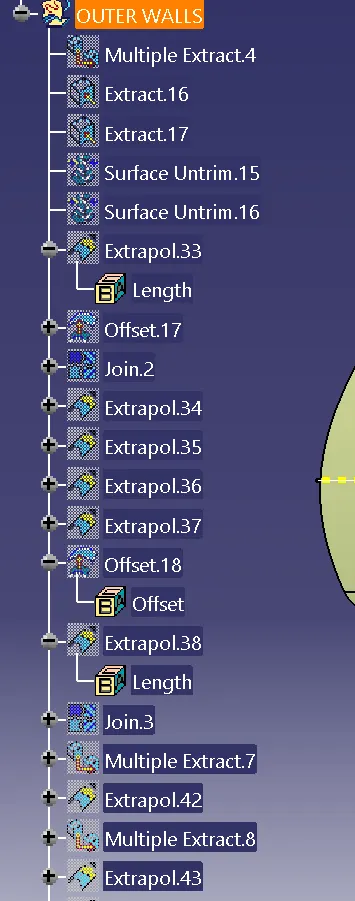

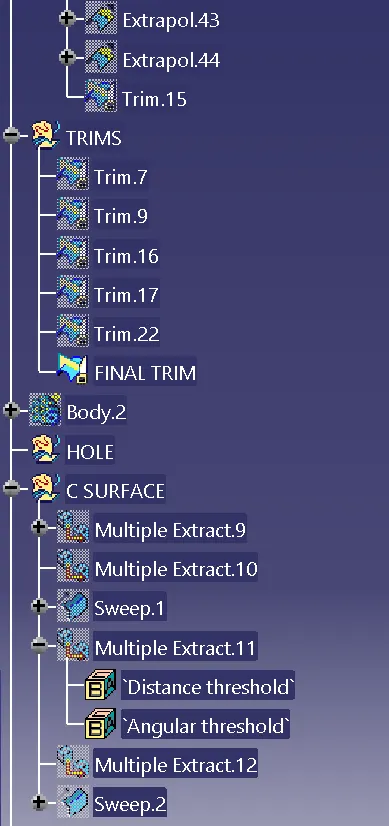

TREE STRUCTURE:

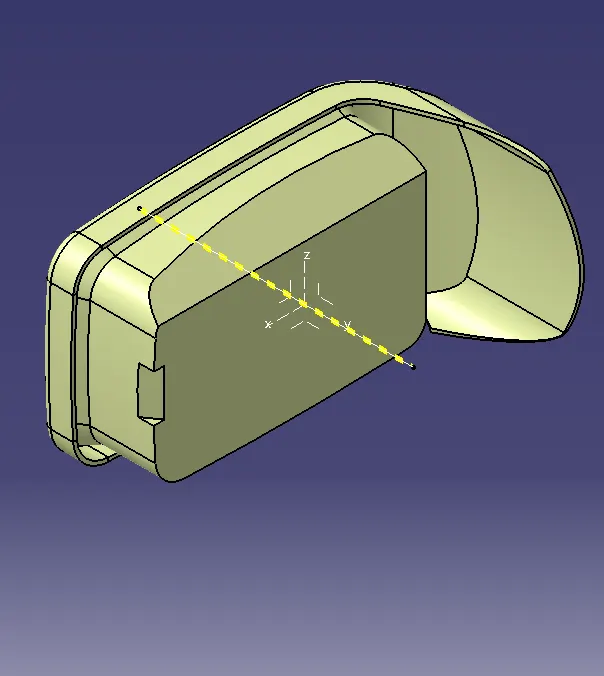

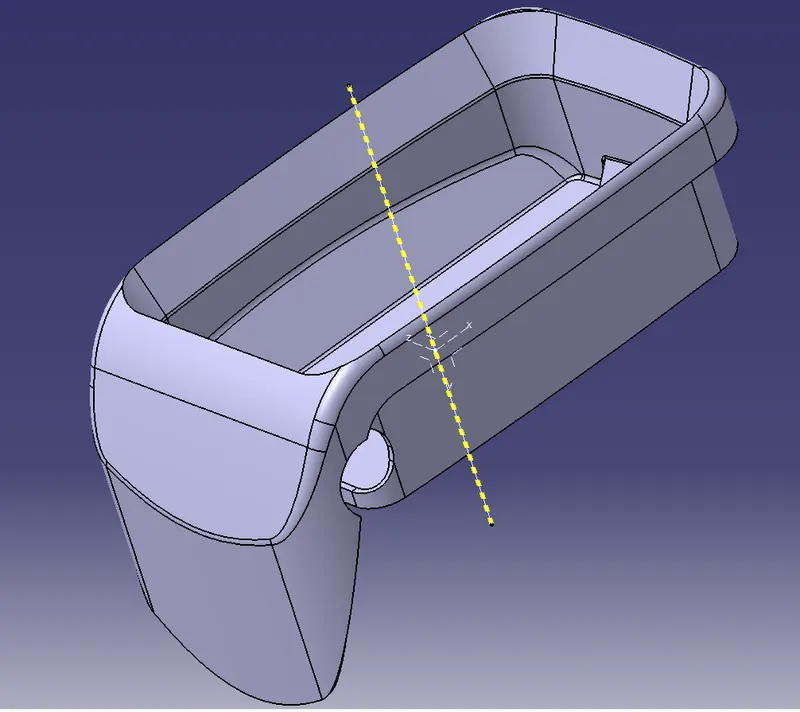

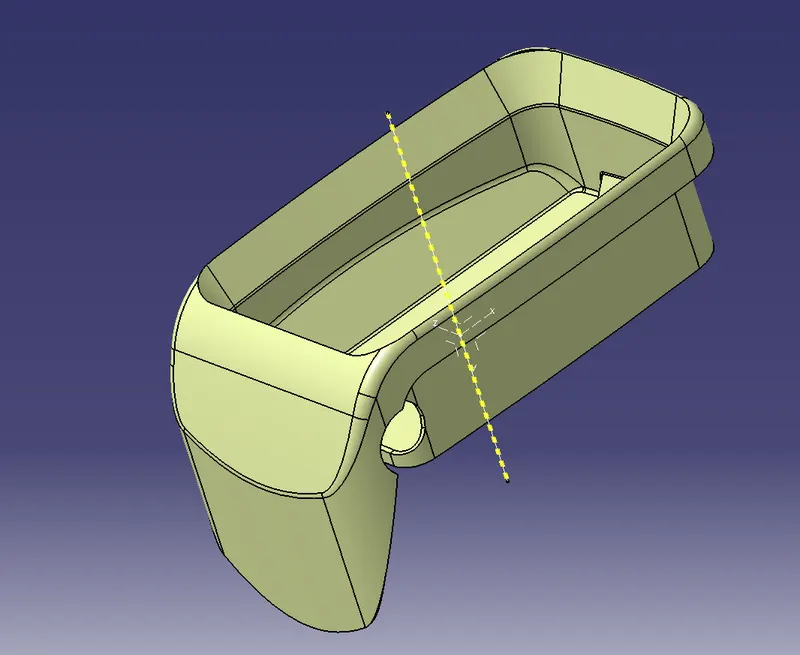

ISOMETRIC VIEW:

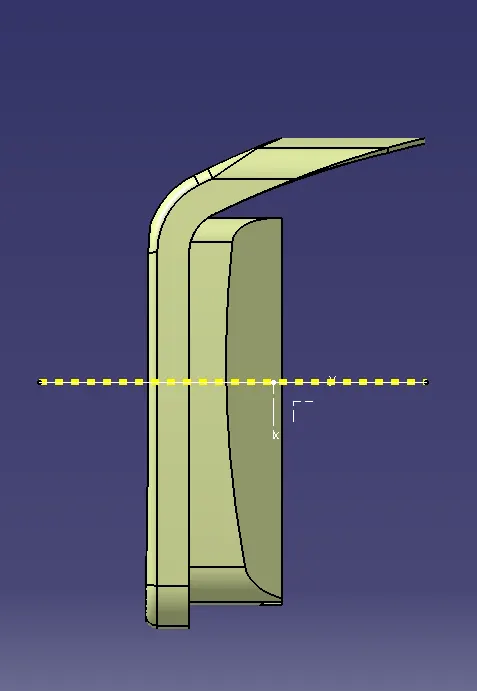

SIDE VIEW:

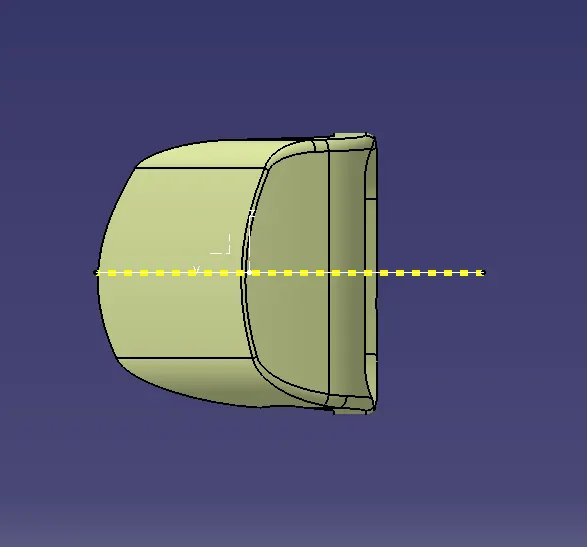

TOP VIEW:

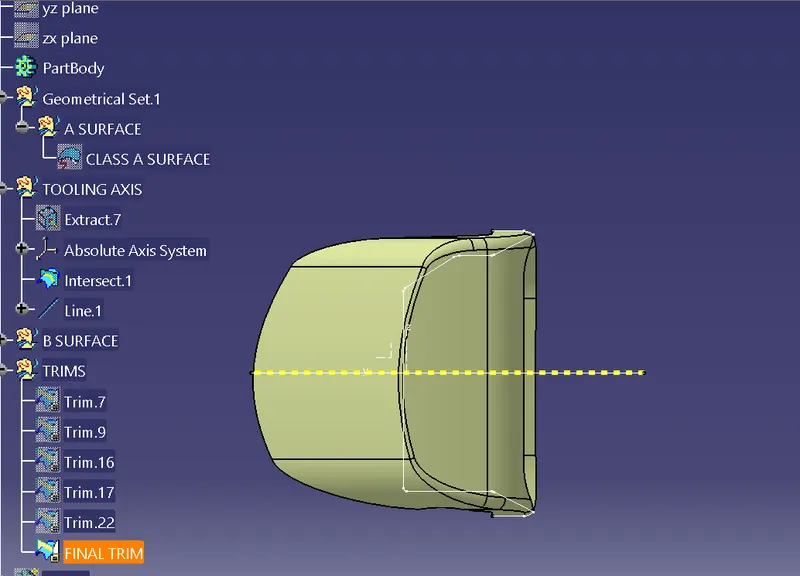

TOOLING AXIS:

The tooling axis is created using the base surface of the coin holder and the intersection is taken in yz axis which is the bisecting axis of the product

and the point is place in the centre of the base and the line is drawn using point and dirction .

DRAFT ANALYSIS:

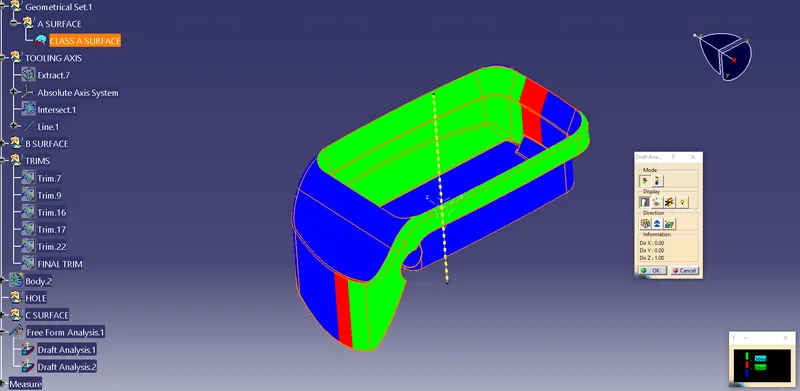

The draft analysis of CLASS A SURFACE:

The minium draft angle 3 degree and the areas which clear is show in green colour

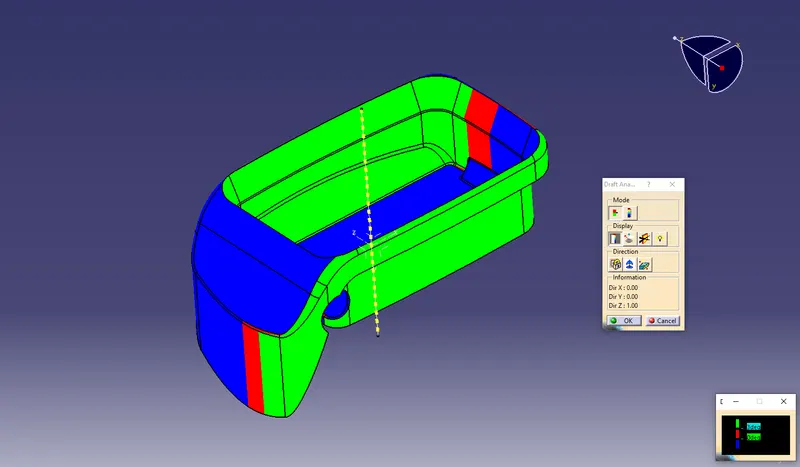

The draft analysis of FINAL PRODUCT :

The minium draft angle 3 degree and the areas which clear is show in green colour

SURFACE VIEW:

CLOSED SURFACE VIEW:
