Radar Mast & Final Assembly of Yacht

1)

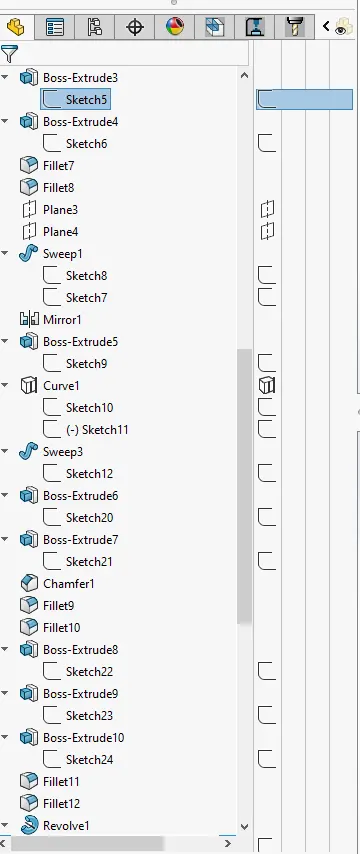

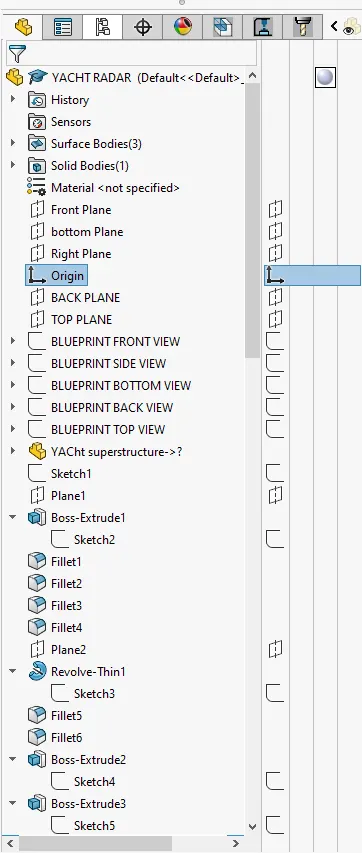

MANAGER TREE OF RADARMAST :

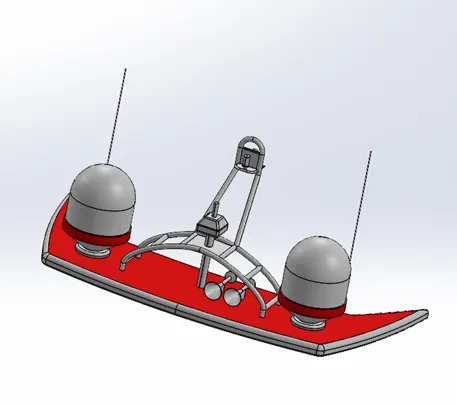

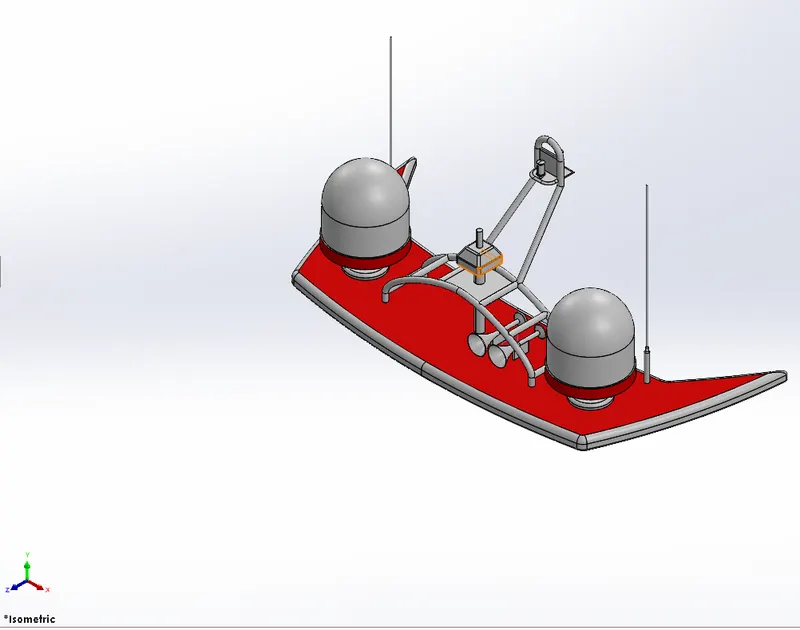

ISOMETERIC VIEW OF RADARMAST:

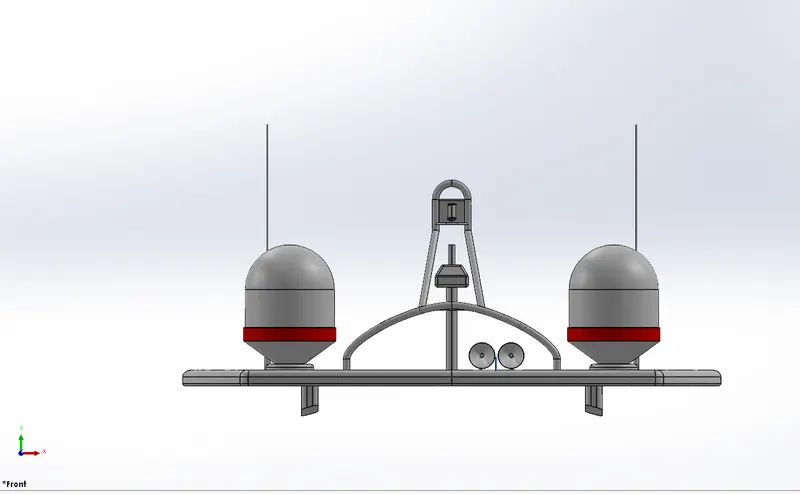

FRONT VIEW OF RADARMAST :

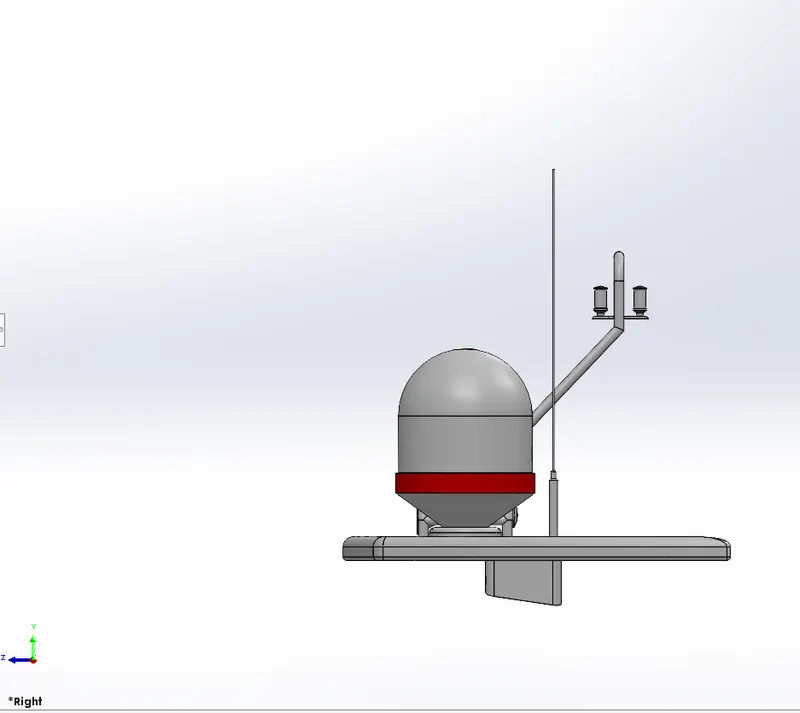

SIDE VIEW OF RADARMAST:

2)

YACHT ASSEMBLY REPORT:

MODELING AND RENDERING OF YACHT USING SOLIDWORKS:

OBJECTIVE:-

• The main objective is to create solid modeling of different parts in YACHT.
• How to assemble different parts of the YACHT.
• Creating a rendered image using Photo View 360.

INTRODUCTION:-

SOLIDWORKS version used for creating YACHT:-

• Solid works 2020
• Photo view 360

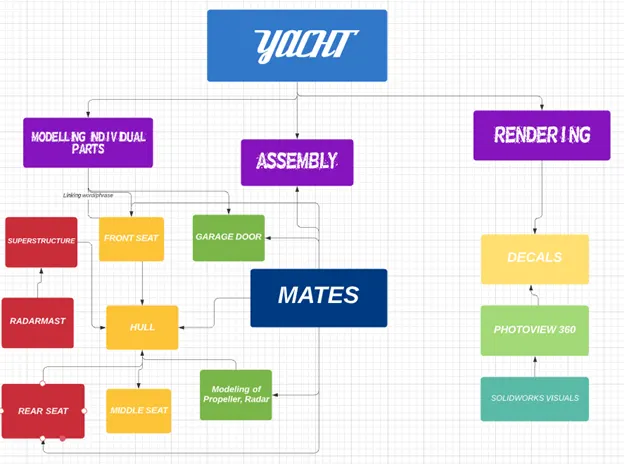

FLOW CHART: -

TOOLS AND FEATURES:-

SKETCH:-

Sketch is a two-dimensional representation for converting 2D sketch to 3D modeling. In solid works, there are different sketch options to create a sketch and these are known as sketch entities:-Line, Circle, Spline, Rectangle and Arc.

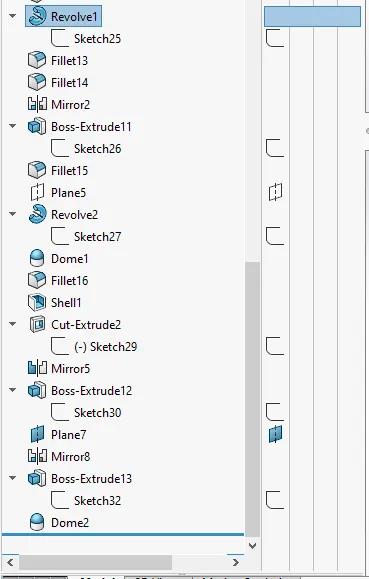

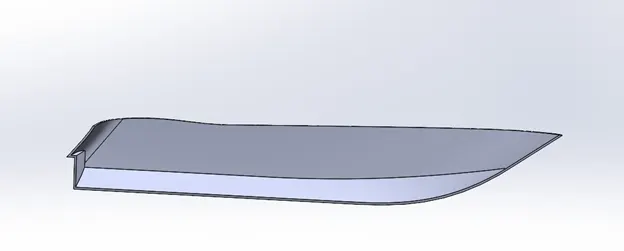

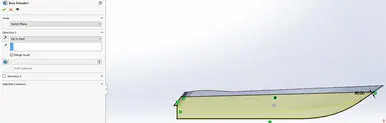

HULL:

EXTRUDE BOSS/BASS:-

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude up to next in both directions and also offset it to require distance.

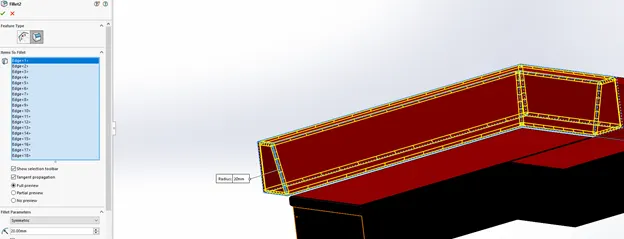

FILLETS:-

This is to create a curve surface on the profile edges on solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduce time consumption.

EXTRUDE CUT:-

It is used to remove materials from a solid model in desired patterns and also it can be extruded with both directions.

TRIM ENTITIES:-

There are two entities:

• Extend entities: - which allows the broken lines to intersect each other and this can be done only in 2D sketch.
• Trim entities: - this helps to remove unwanted extended line with are intersecting.

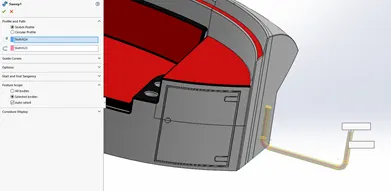

SWEPT SURFACE:-

Surface generated from section curve positioned along the path.

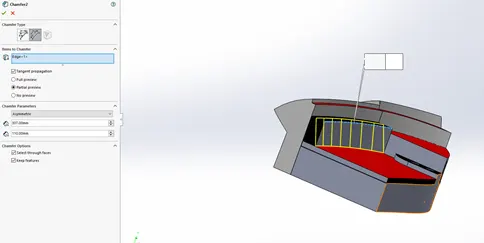

CHAMFER:-

It is similar to the fillet feature but in chamfer, it cuts the solid model intersection area into recurred length and angle.

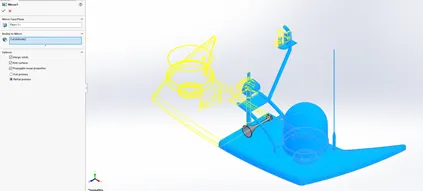

DYNAMIC MIRROR:-

To make the solid body identical to each other this feature is used.

FILLETS:-

This is to create a curve surface on the profile edges on solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduce time consumption.

REVOLVED BOSS/ EXTRUDED:-

Create a sketch with a centre line, a plane or a axis for revolve.

EXTRUDE CUT:-

It is used to remove materials from a solid model in desired patterns and also it can be extruded with both directions.

CHAMFER:-

It is similar to the fillet feature but in chamfer, it cuts the solid model intersection area into recurred length and angle.

SWEPT SURFACE:-

Surface generated from section curve positioned along the path.

COMPOSITIVE CURVE:-

When the two curve profile are broken this composite curve helps to join and make it a complete smooth single curve.

SPLIT TOOL:-

This tool is very handy, when two or more solid bodies intersect in between or intersect each other than split tool allows to delete unwanted solid body formation and gives a clean look.

EXTRUDE BOSS/BASS:-

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

FILTTER:-

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

CHAMFER:-

It is similar to the fillet feature but in chamfer, it cuts the solid model intersection area into recurred length and angle.

REVOLVED BOSS/ EXTRUDED:-

Create a sketch with a center line, a plane or an axis for revolve.

DOME:-

This tool provides a smooth curve on the face of the profile.

LINEAR PATTERN :-

Feature is used to create a different number of patterns required to create the linear pattern.

EXTRUDE BOSS/BASS:-

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

FILLETS:-

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time

REVOLVED BOSS/ EXTRUDED:-

Create a sketch with a center line, a plane or an axis for revolve.

SPLIT TOOL:-

This tool is very handy, when two or more solid body intersect in between or intersect each other then split tool allows to delete unwanted solid body formation and gives a clean look.

FILLET:-

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

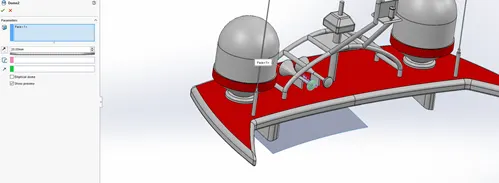

SHELL:-

It is use to create thickness of the profile

REVOLVED BOSS/ EXTRUDED:-

Create a sketch with a centerline, a plane, or an axis for revolve.

EXTRUDE BOSS/BASS:-

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

EXTRUDE CUT:-

It is used to remove materials from a solid model in desired patterns and also it can be extruded in both directions.

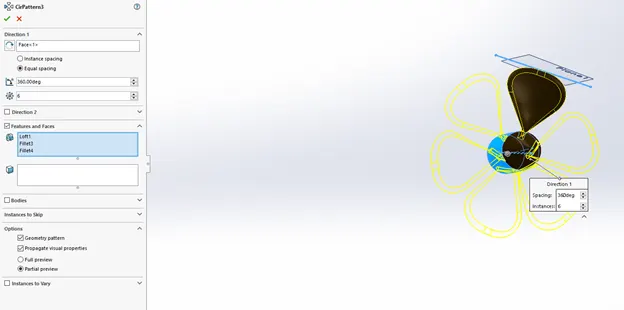

CIRCULAR PATTERN:-

Feature is used to create a different number of patterns required to create the circular pattern.

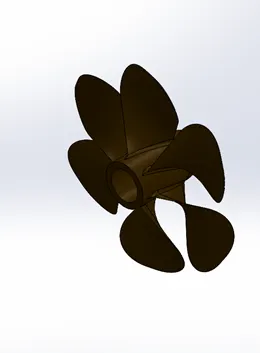

PROPELLER :

COMBINE:-

Combine feature is used to combine two or more bodies when intersecting to each other and make it a single body.

FILLETS:-

This is to create a curve surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

CHAMFER:-

It is similar to the fillet feature but in chamfer, it cuts the solid model intersection area into recurred length and angle.

REVOLVED BOSS/ EXTRUDED:-

Create a sketch with a centerline, a plane, or an axis for revolve.

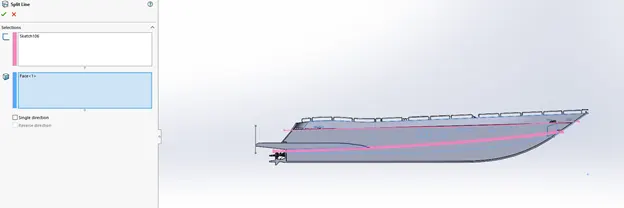

SPLIT TOOL:-

This tool is very handy, when two or more solid body intersect in between or intersect each other than split tool allows to delete unwanted solid body formation and gives a clean look.

FILLETS:-

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

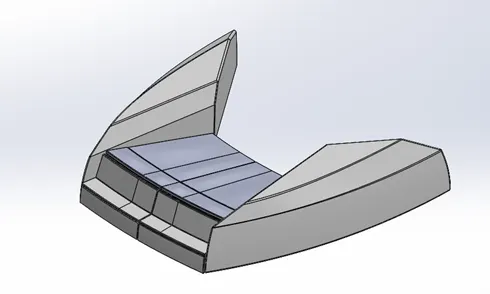

REAR SEAT:

REVOLVED BOSS/ EXTRUDED:-

Create a sketch with a center line, a plane, or an axis for revolve.

EXTRUDE BOSS/BASS:-

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

EXTRUDE CUT:-

It is used to remove materials from a solid model in desired patterns and also it can be extruded in both directions.

CIRCULAR PATTERN:-

Feature is used to create a different number of patterns required to create the circular pattern.

COMBINE:-

Combine feature is used to combine two or more bodies when intersecting to each other and make it a single body.

FILLET:-

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

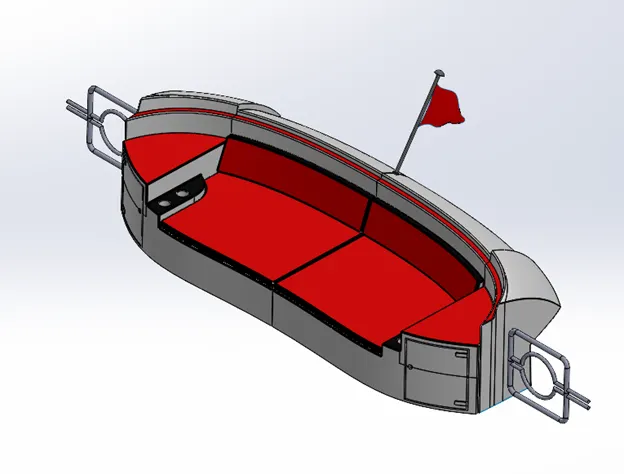

MIDDLE SEAT:

CHAMFER:-

It is similar to the fillet feature but in chamfer, it cuts the solid model intersection area into recurred length and angle.

REVOLVED BOSS/ EXTRUDED: -

Create a sketch with a centerline, a plane, or an axis for revolve.

EXTRUDE BOSS/BASS: -

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

FILLET: -

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

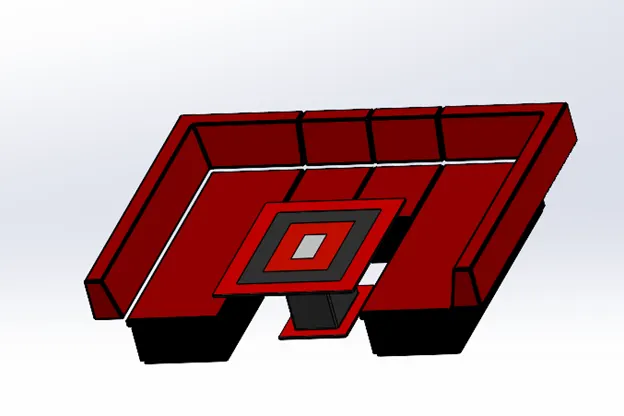

FRONT SEAT :

LINEAR PATTERN : -

Feature is used to create a different number of patterns required to create the linear pattern.

EXTRUDE CUT: -

It is used to remove materials from a solid model in desired patterns and also it can be extruded in both directions.

DOME : -

This tool provides a smooth curve on the face of the profile.

SWEPT SURFACE: -

Surface generated from section curve positioned along the path.

COMPOSITIVE CURVE: -

When the two curve profile are broken this composite curve helps to join and make it a complete smooth single curve.

DYNAMIC MIRROR: -

To make the solid body identical to each other this feature is used.

COMBINE: -

Combine feature is used to combine two or more bodies when intersecting to each other and make it a single body.

LOFTED SURFACE: -

Surface generated by existing edges creating a smooth tangent between the selected curves.

DOME: -

This tool provides a smooth curve on the face of the profile.

EXTRUDE CUT: -

It is used to remove materials from a solid model in desired patterns and also it can be extruded in both directions.

SPLIT TOOL: -

This tool is very handy, when two or more solid bodies intersect in between or intersect each other than split tool allows to delete unwanted solid body formation and gives a clean look.

EXTRUDE BOSS/BASS

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

FILLET

This is to create a curved surface on the profile edges of the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

EXTRUDE BOSS/BASS

This feature is to convert 2D into a solid modeling only when the 2D sketch is completely closed. It also allows to extrude the surface in both directions and also offset it to require distance.

COMBINE

Combine feature is used to combine two or more bodies when intersecting to each other and make it a single body.

FILLET

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

SHELL

It is used to create thickness of the profile.

RADAR MASTER:

SURFACE KNIT

Which create one single solid surface body from multiple solid surface body.

SUPER STRUCTURE:

COMPOSITIVE CURVE

When the two curve profile are broken this composite curve helps to join and make it a complete smooth single curve.

SURFACE LOFT

This feature is used to fill the gap between the two curved surfaces.

DYNAMIC MIRROR

To make the solid body identical to each other this feature is used.

FILLET

This is to create a curved surface on the profile edges on the solid model by selecting the required lines or the face. This fillet also has a feature to select multiple lines which reduces time consumption.

SHELL

It is use to create thickness of the profile.

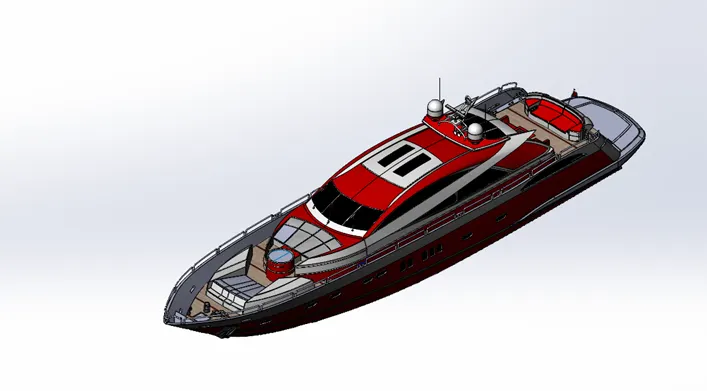

YACHT OF ASSEMBLED MODEL: -

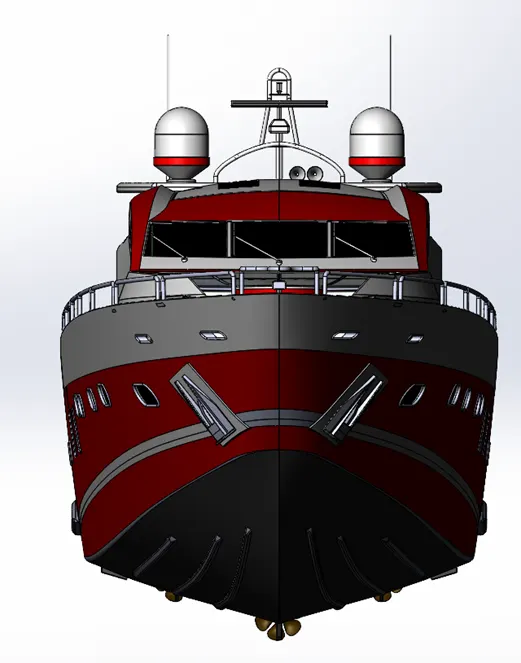

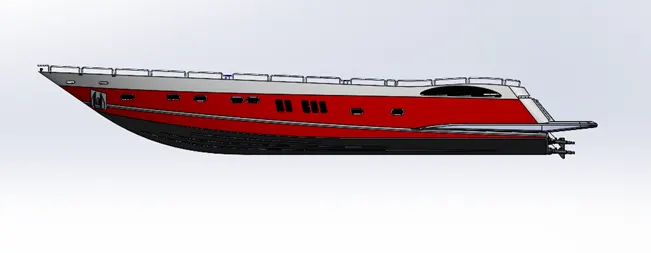

YACHT'S FRONT VIEW:

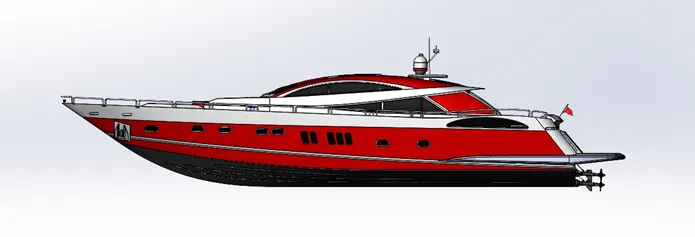

YACHT 'S SIDE VIEW

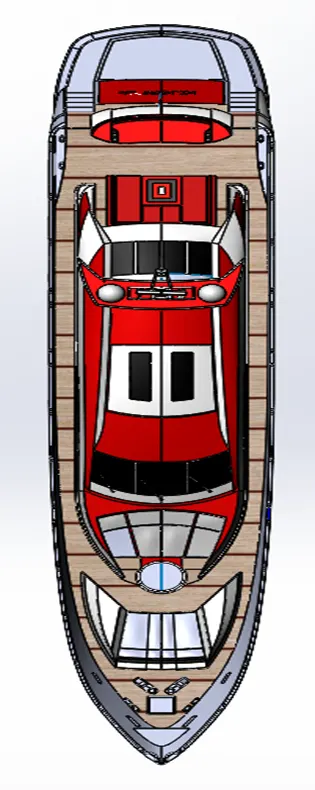

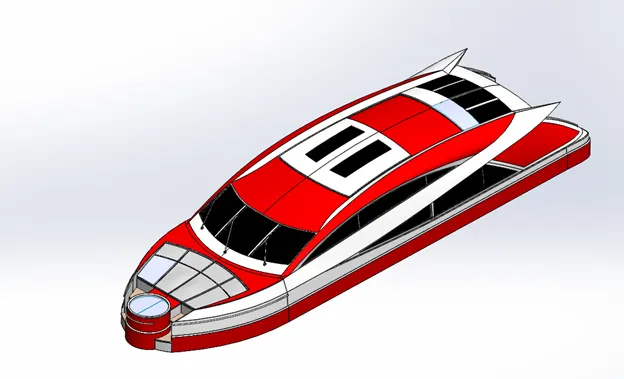

YACHT 'S TOP VIEW:

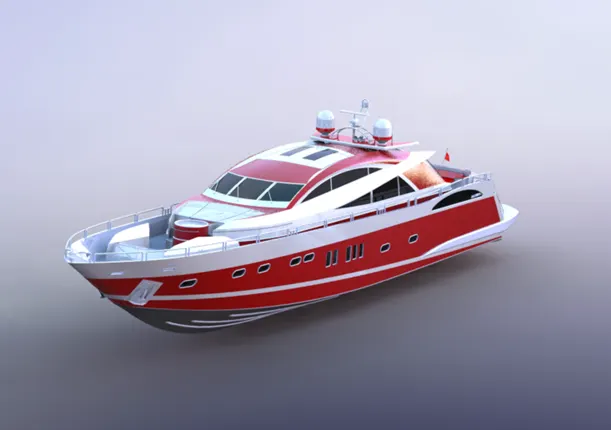

RENDERING IMAGE1:

RENDERING IMAGE 2:

RENDERING IMAGE 3:

CONCLUSION:

• knowledge about converting a sketch into solid modeling and
• good knowledge of assembling of parts.
• learn how to render an image by adding different types of materials, camera views, and background images.

THANK YOU.
