Week 8 - Challenge 3 - Switch Bezel Design

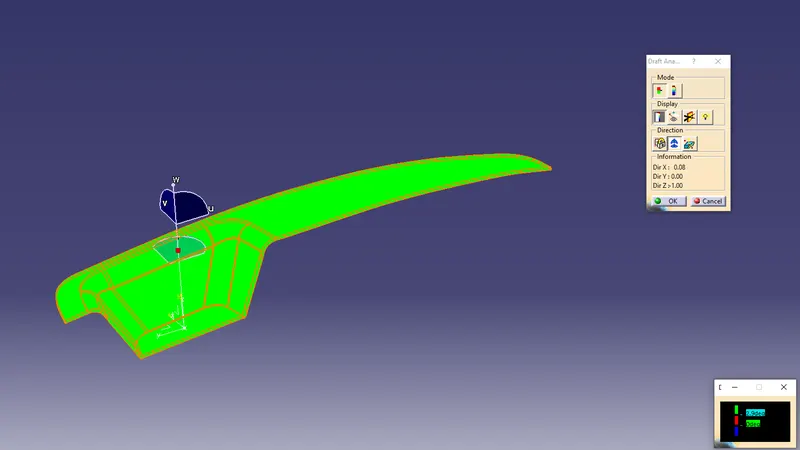

bezel switch design draft analysis :
the thichness of the switch bezel component is 2.5 mm .INSERT > ANALYSIS > DRAFT ANALYSIS. take the compass and place it on the tooling axis and then click on the switch bezel component change the minium value to 2.9 .

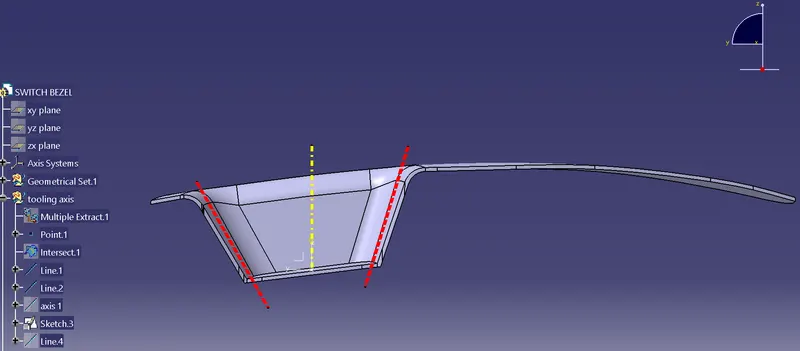

bezel switch design tooling axis :
the tooling axis of the switch bezel component is created using a class a surface and then we have to take multiple extract of class a surface and then we have to insert a point on the base surface of the switch bezel component using the on surface option in the type menu bar using the point insert a axis system on the point and then take a intersection of the class a and draw two line on yz plane and then get a bisecting plane form those two lines 1 & 2 and get line 3

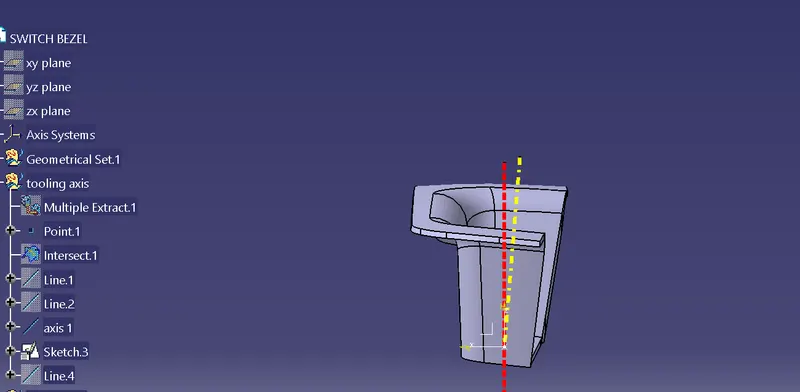

Then take a intersection of the class a and draw two line on zx plane since we have only one line from intersecting we create line from the center axis and give 4deg and then get a bisecting plane form those two lines 4 & 5 and get line 6
take line 6 and line 3 and create a bisecting line 7 and name it TOOLING AXIS
CHANGE THE THICKNESS AND COLOUR .
A SURFACE:

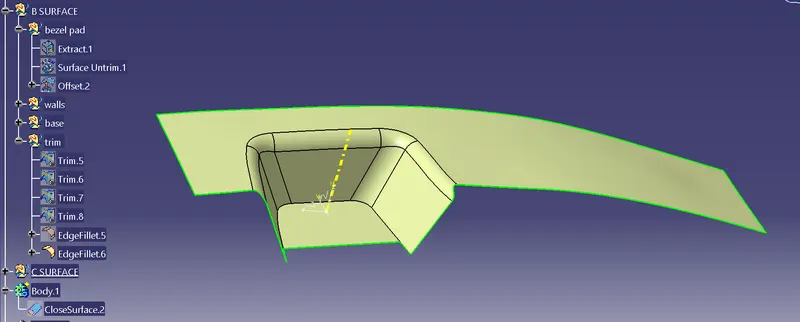

B SURFACE:
Bsruface is created using the A surface.the three walls are taken as extract and using untrim surface tool untrim the the three side wallsand offset them to 2.5mm since the thickness of the component is 2.5mm.and now create a geomentric set and name it WALLS.take extract of the base and and offset it to 2.5mm downward direction.and now create a geomentric set and name it BASE .and now create trim geomentric set and trim the sruface. and create a edge fillet for 2.5/the fillet value .

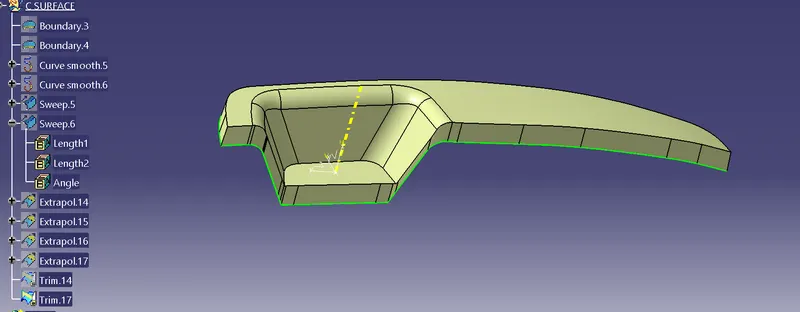

C SURFACE:
c surface is created using boundary tool and selecting the edges of surface A .and creating a smooth curve for both the the boundary . now we use the sweep tool to extrude the surface .extrapol the edges and then trim them surface C is created.

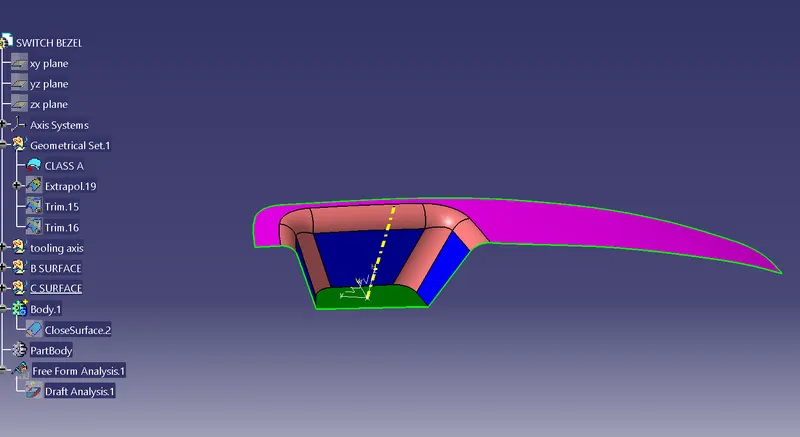

CLOSED SURFACE:
hence the Switch Bezel Plastic component through the given Class-A surface. through creating surface b and surface c the closed body surface has been created .

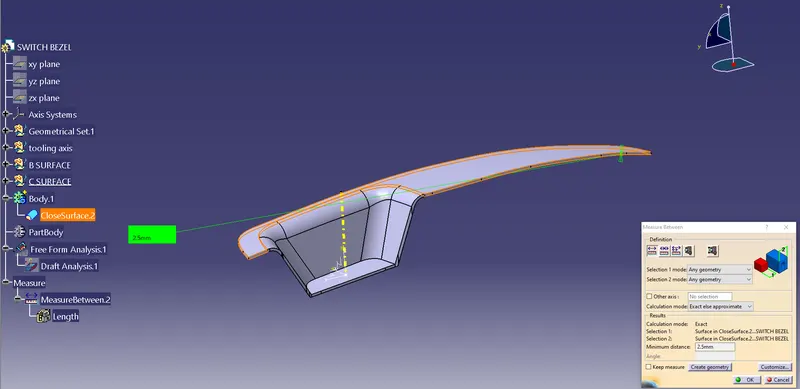

THICKNESS OF THE COMPONENT IS 2.5mm.
