Week 8 - Challenge 4 - Coin Holder Design
DESIGN OF COIN HOLDER :-

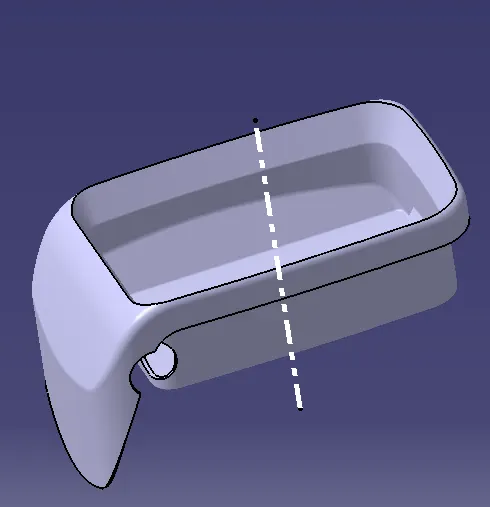

COMPLETE FEATURE OF DESIGN OF COIN HOLDER DESIGN
PROCEDURE:-
- Initially create a tooling axis on the given class A and check, is that draft analysis of class is satisfying the design rules or not
- If it satisfied the design rules then extract all the surface of the class A surface and offset it to 2.5 mm
- Then create a B surface by using some commands like trim,extrapulate,trim etc.,
- After that create the C surface by using sweep command and trim it with respect to A and B surfaces
- Make sure that the final trimmed body has no boundaries
- Then close the surface by using close body command and do the draft analysis

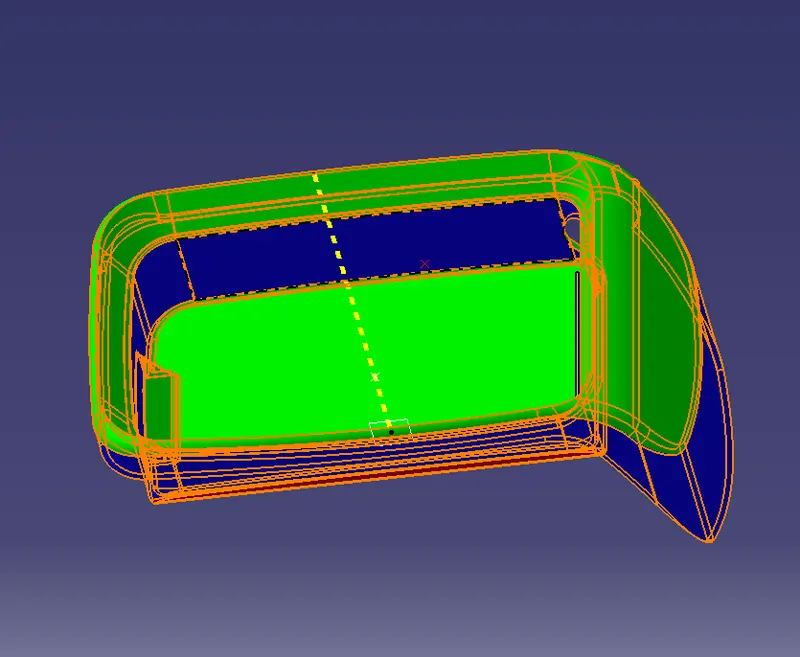

FINAL MODEL OF A COIN HOLDER DRAFT ANALYSIS
