Week 8 - Challenge 4 - Bumper

Drawing type :3D

Bumper with Draft Analysis

Objective:

The main objective of this challenge is to create the Bumper coponent through the Given Class A surface by the tooling axis and Draft Analysis to the Class A and final Class C of Bumper.

Tooling axis:

We should keenly observe and study the class A surface to create the tooling axis for the component,for the above given Bumper X axis is the best suitables tooling axis so i tried to create with x,y,z method and i found that the Draft analysis not clear completely so i did Normal to surface method and it clear the Draft analysis.

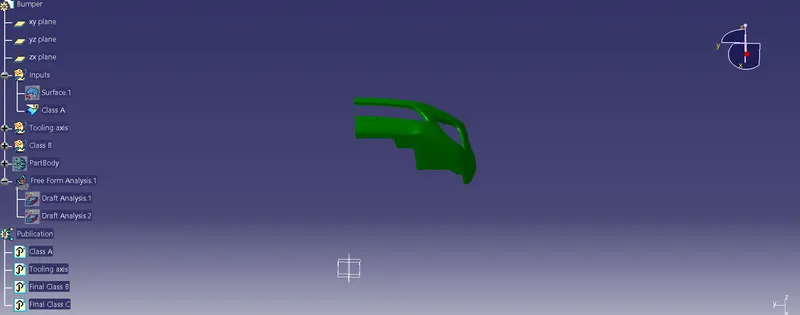

Class A surface:

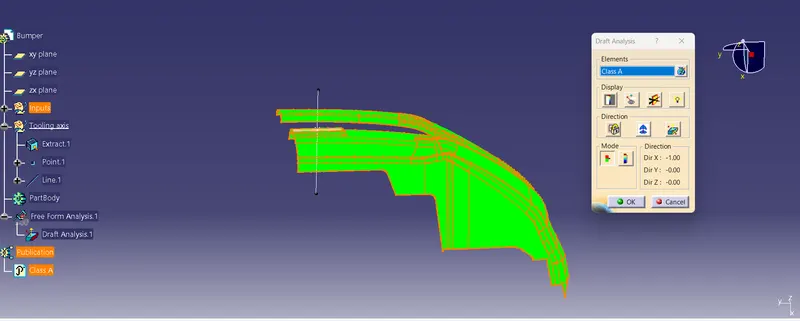

Draft analysis for Class A:

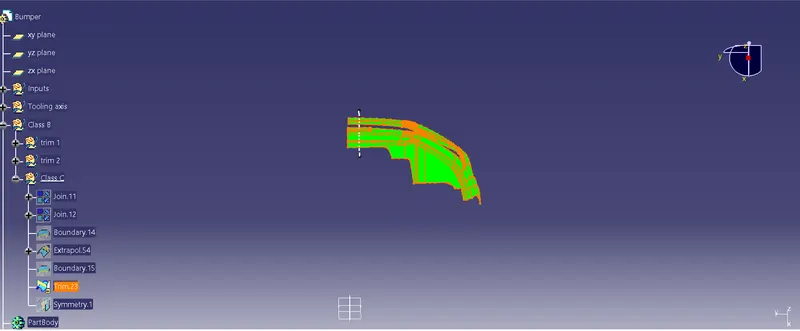

Draft analysis for Final Class C:

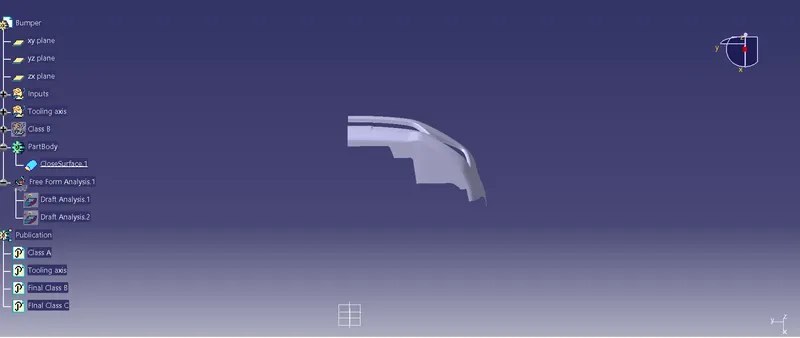

Close surface :

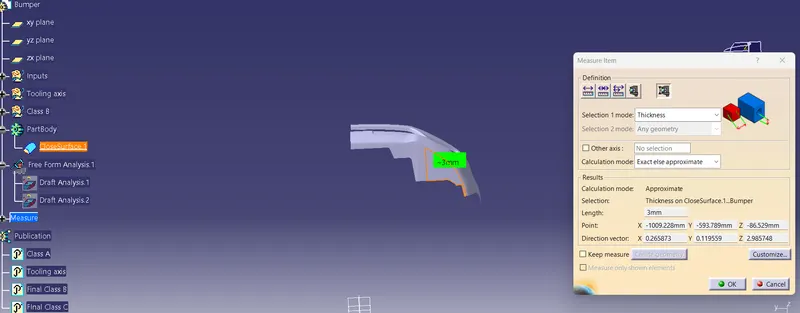

Thickness checking:

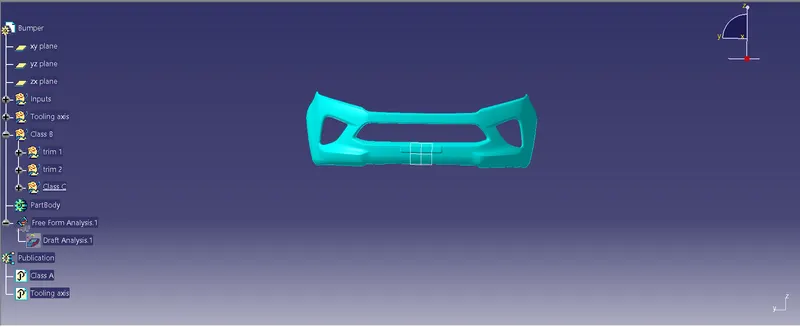

Full view:

Learning outcome:

1.How to form the tooling axis for Bumper

2.To capture Class B and Class C properly

3.To check the feasibility of the component
