Week 8 - Challenge 4 - Bumper

AIM:- TO Create the Bumper Plastic component through the given Class-A surface and the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Procedure:-

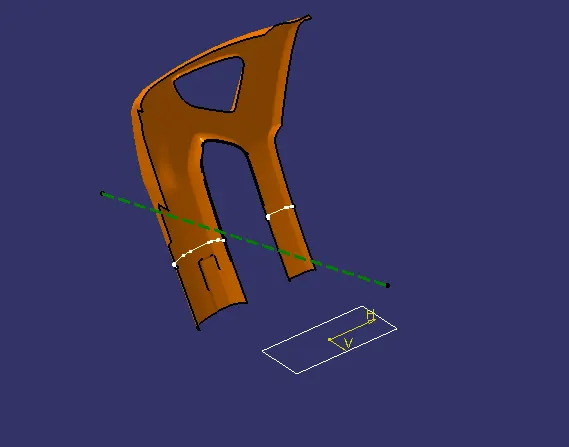

first i created the maion tooling axis from the class A surface by creating the plane and intersect the surface a with the plane and created the sketch and bisect the two lines and created the main tooling axis.

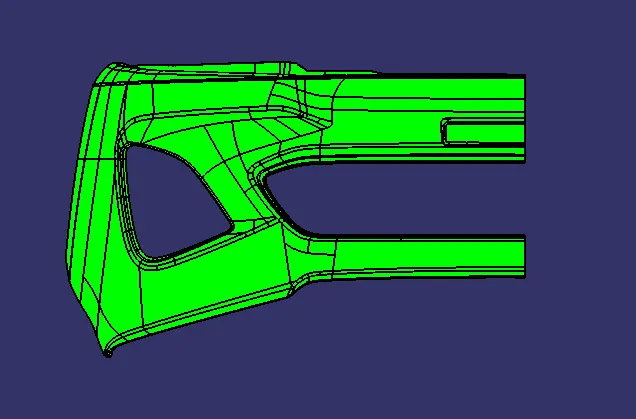

CLASS A SURFACE

MAIN TOOLING AXIS

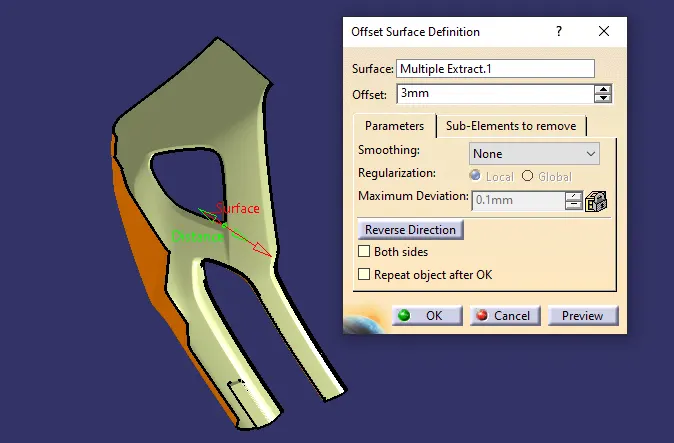

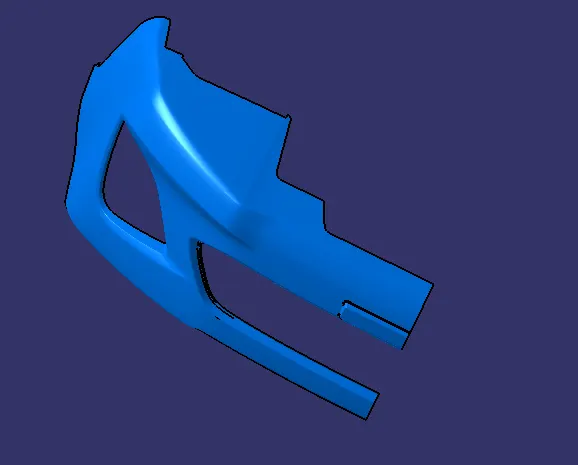

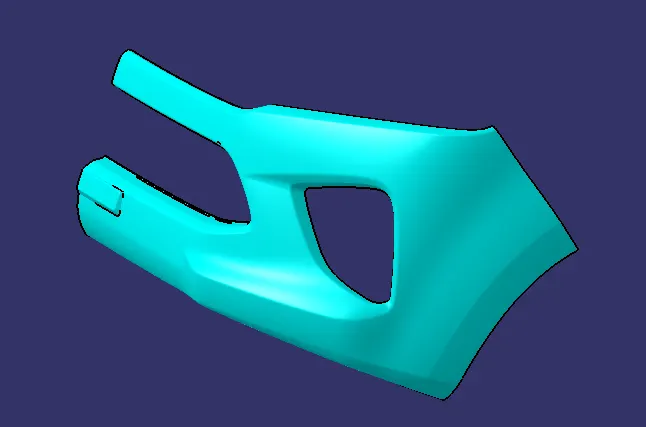

creating the class B surface by offseting the class A and clear all the patches that are left after the offset as shown below

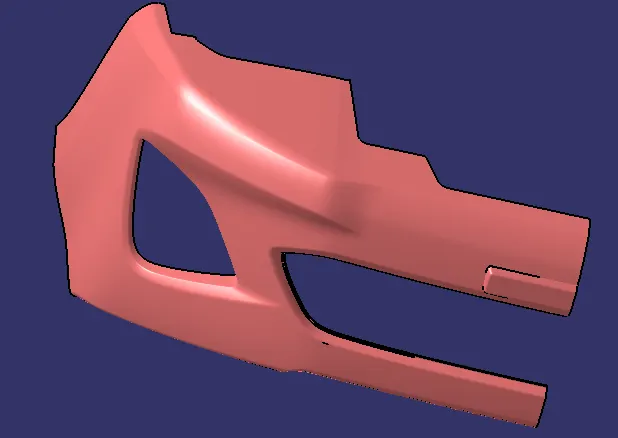

and finally create the class B as shown below

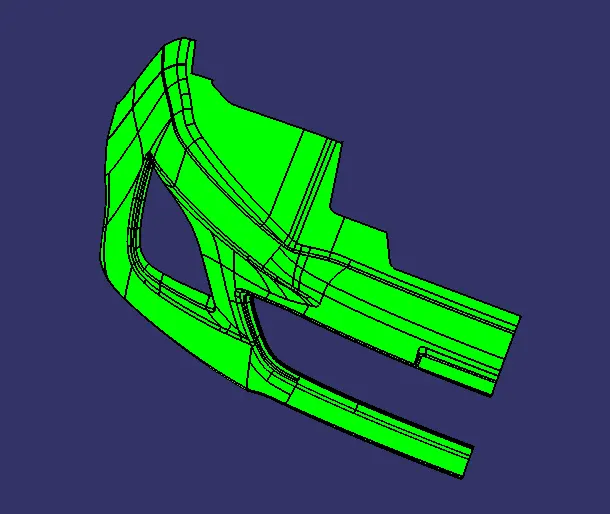

then create the class C by taking the boundary from the class A and sweep with the reference surface and created the class C as shown below

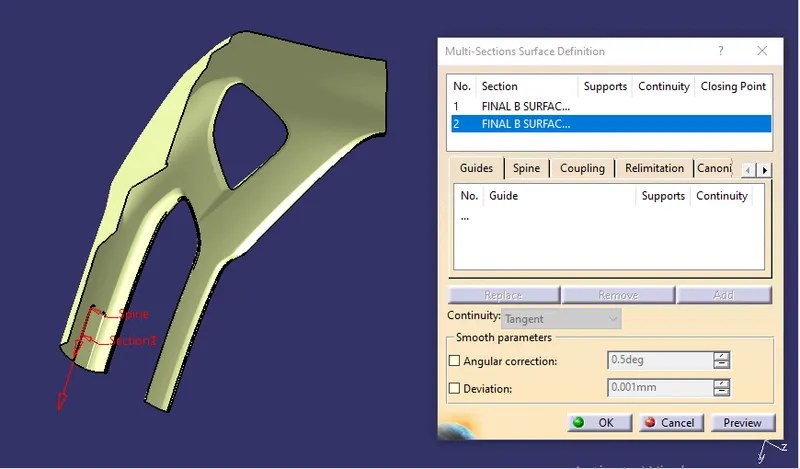

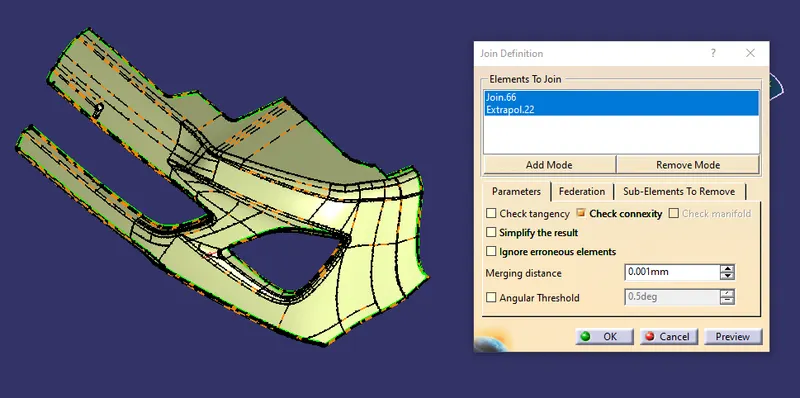

By using the tool multiextrapolate and sweep with the reference surface of class A created the small and small sweep and final join all the sweep and join with the class A and created the class A and class C as shown below

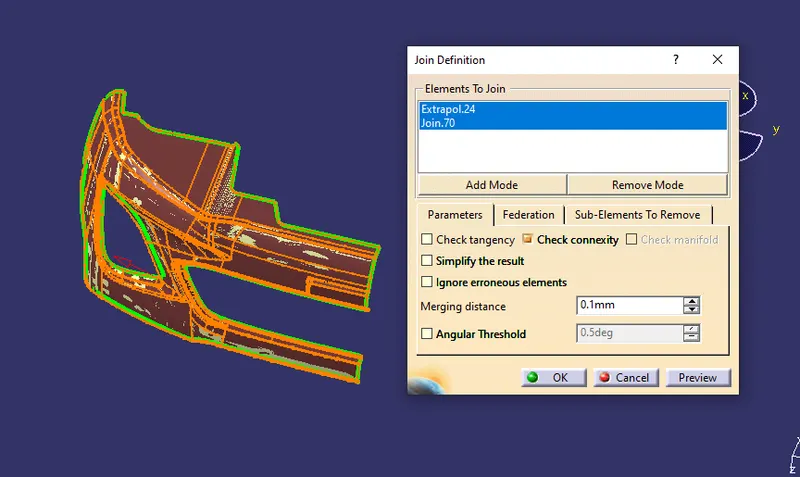

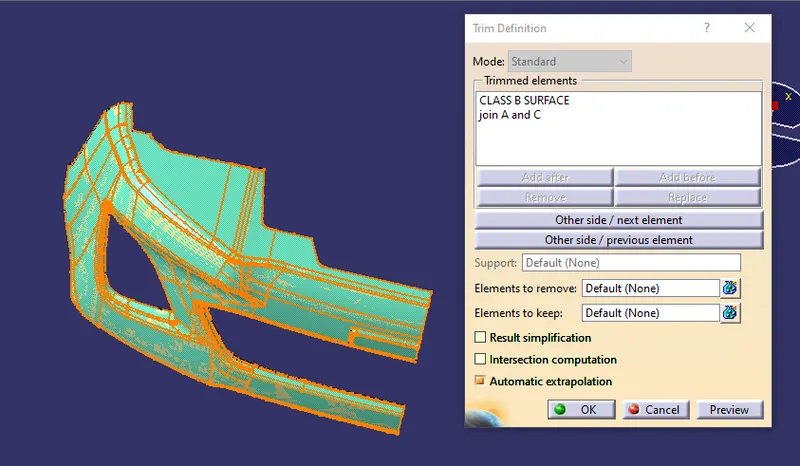

and then trim both the join A and c with the class B as shown below

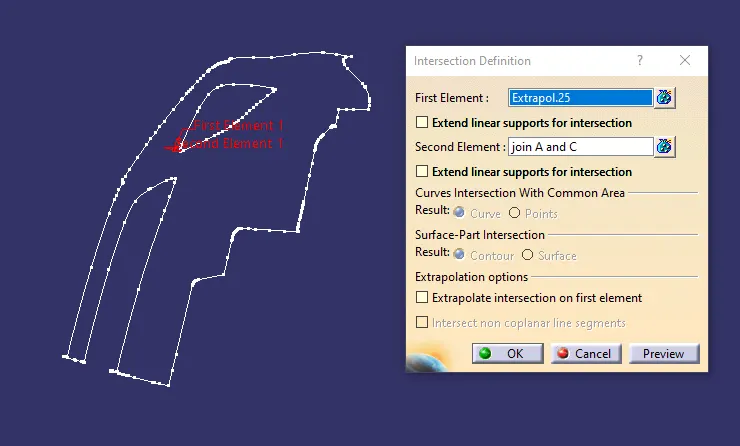

first i checked the intersectiuon between the join and the class B

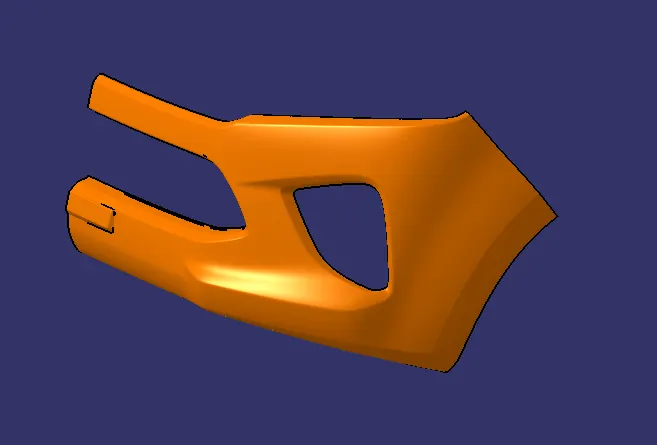

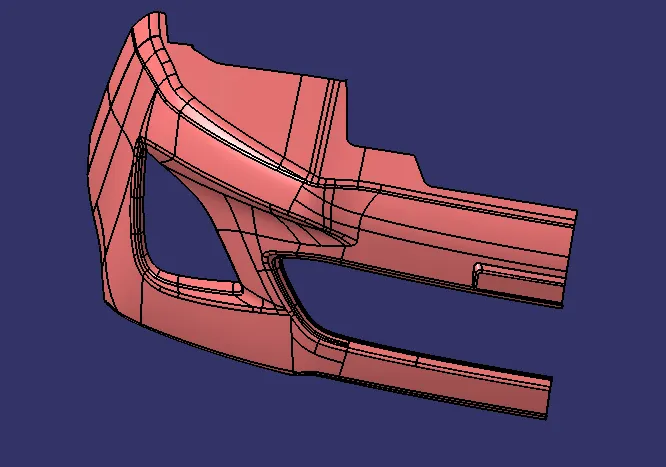

FINAL TRIM

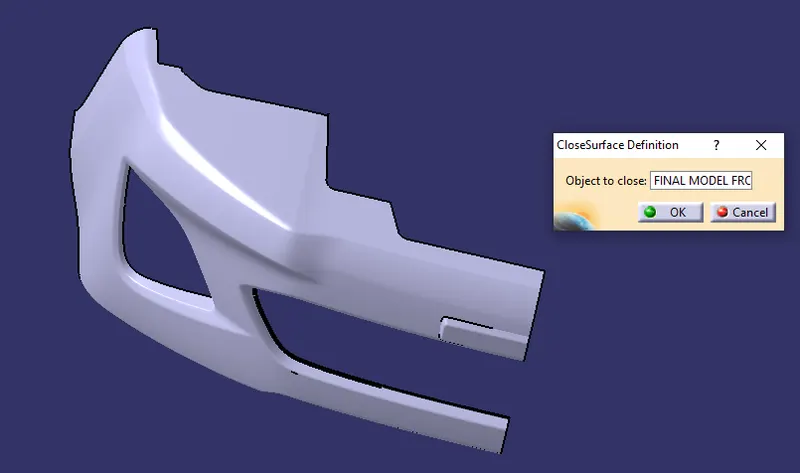

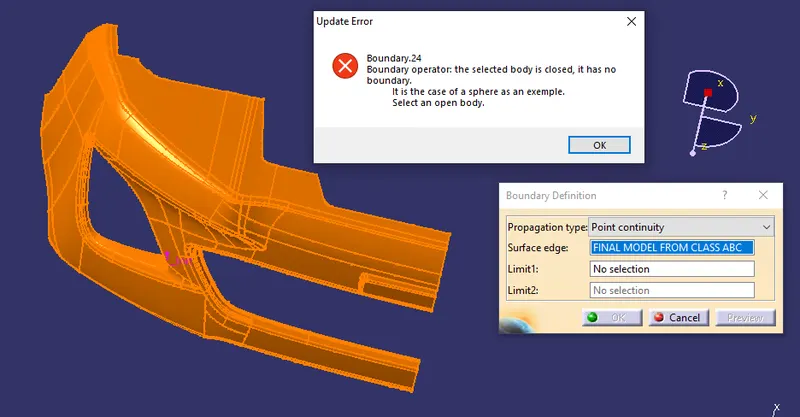

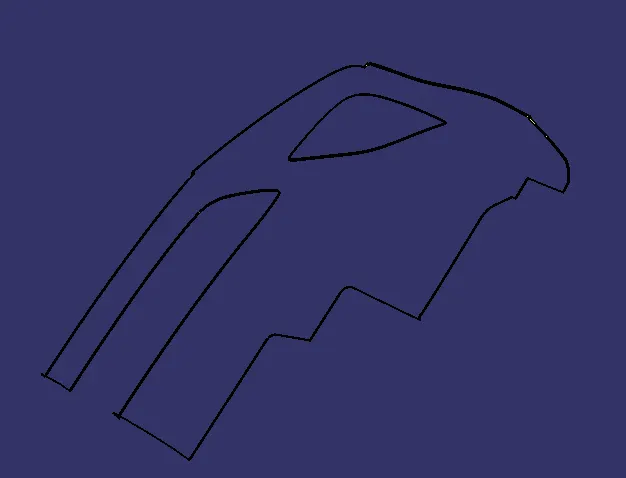

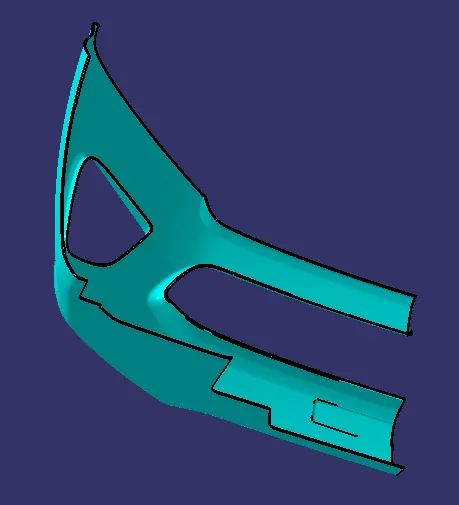

Checked the close boundary and checked in the part design for the close surface and shown below

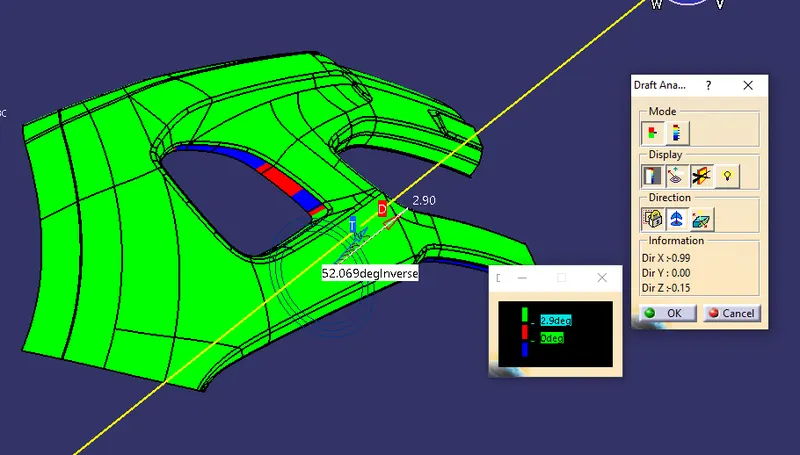

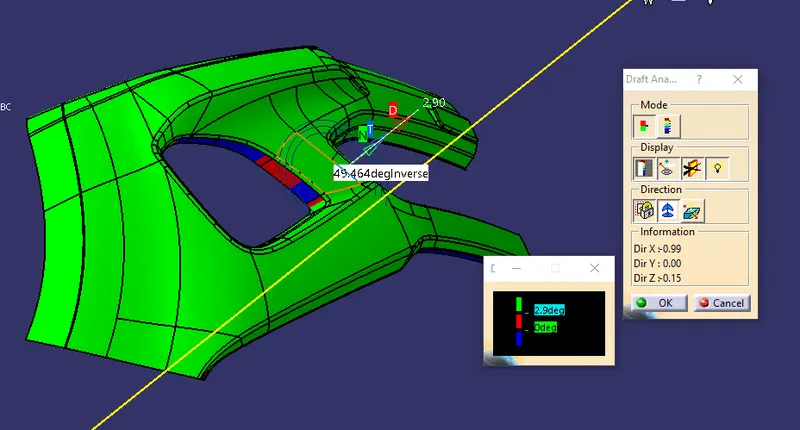

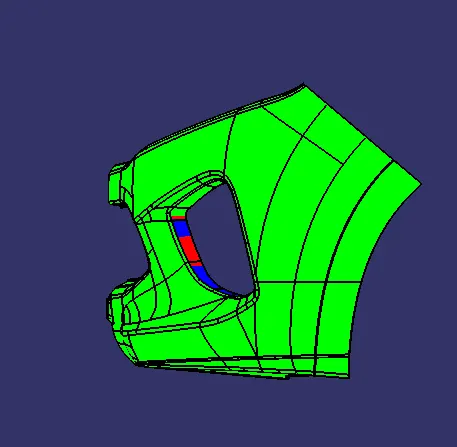

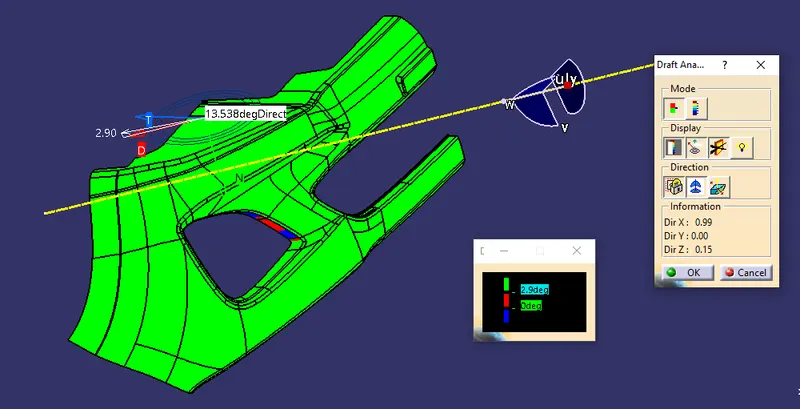

DRAFT ANALYSIS OF CLASS A

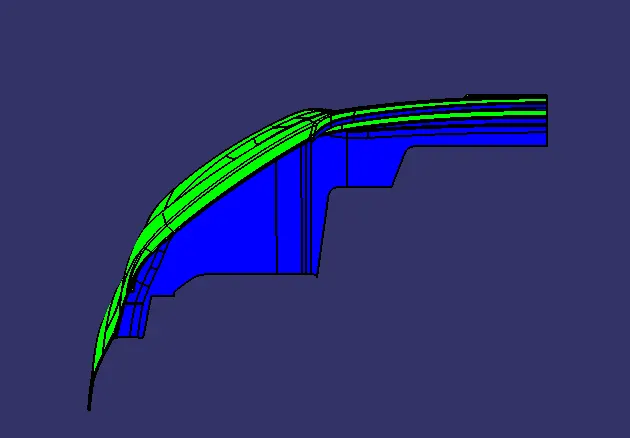

DRAFT ANALYSIS OF CLOSE SURFACE OF CLASS A B AND C

ORIENTATION VIEW

ISOMETRIC VIEW

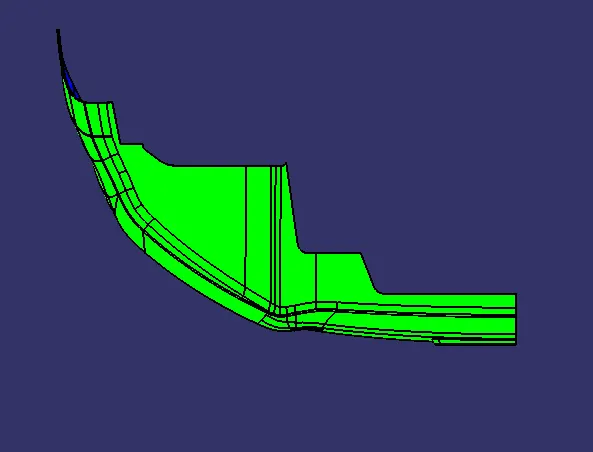

TOP VIEW

CONCLUSION:-

Finally created the class B and class C from the class A and created the close surface model of the bumper and done the draft analysis and gave the orientation view.
