Week 8 - Challenge 4 - Bumper

Aim : To design a bumper with a given Class A surface as per mentioned thickness 3mm.

Given Input : Class A surface

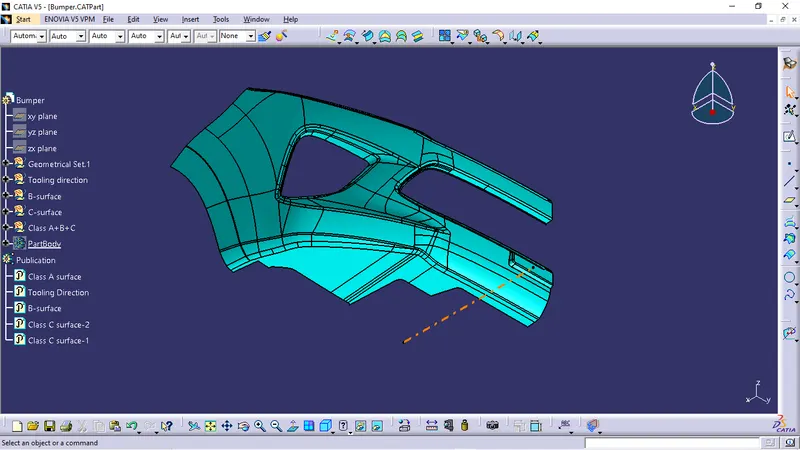

Tooling Direction :

The orange center line is the tooling direction.

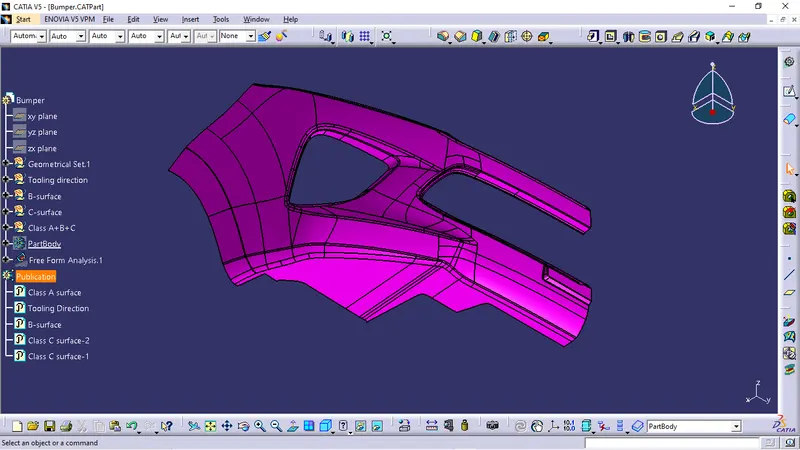

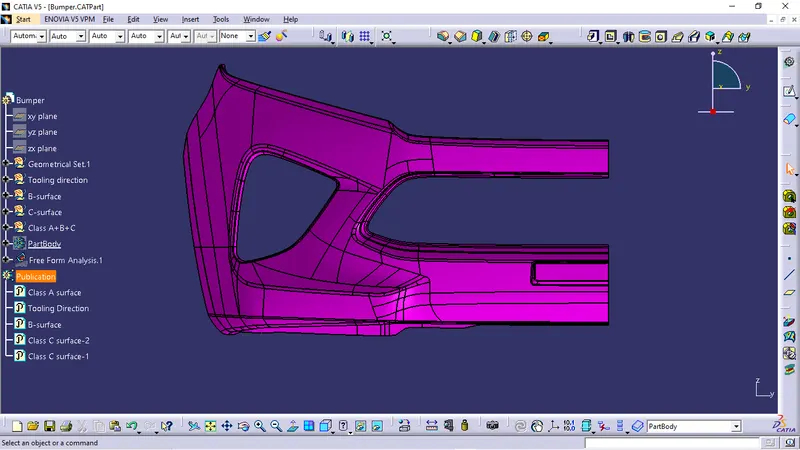

Draft analysis:

Draft analysis done to Class A surface along tooling direction with 3degree draft to check weather it is passing my tooling direction or not.

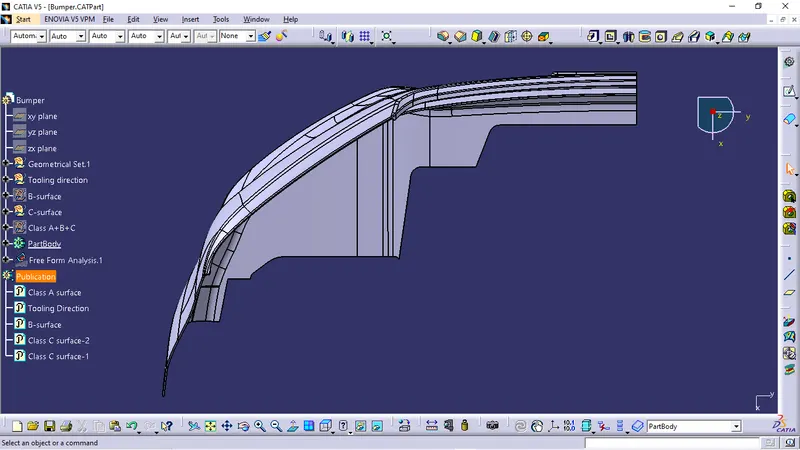

Class B surface :

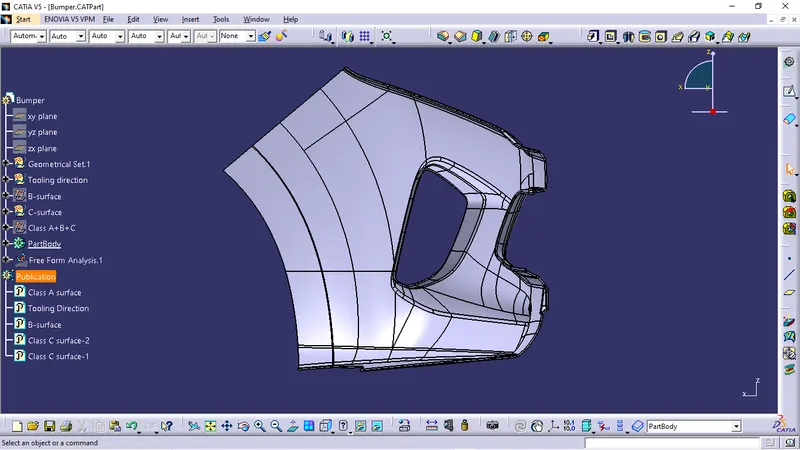

Class C surface :

Class A+B+C :

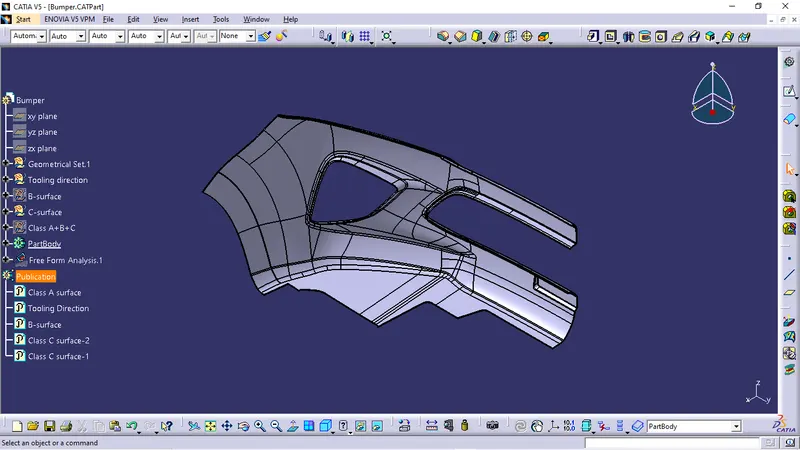

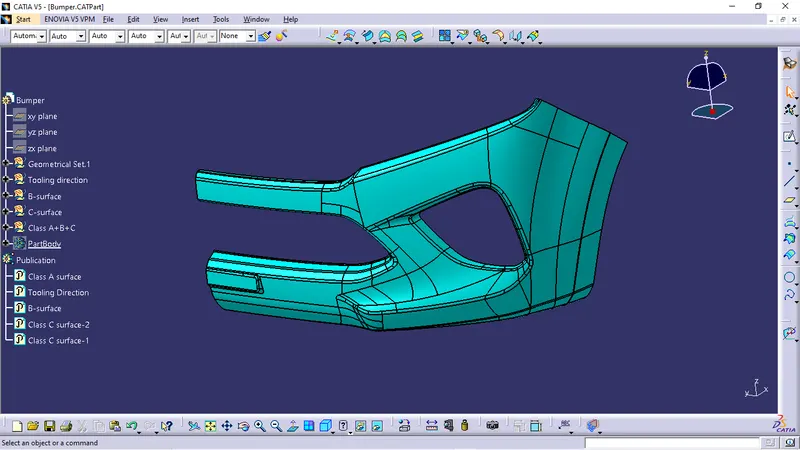

Part Body :

After joining the Class A+B+C surfaces, Converted all those surfaces to part body.

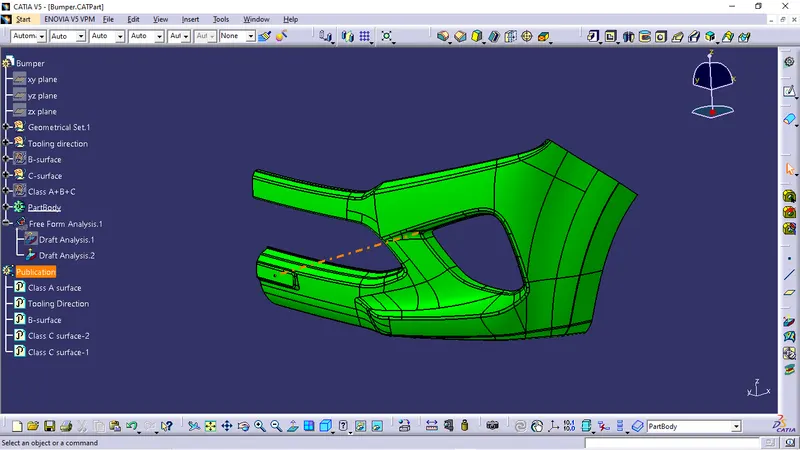

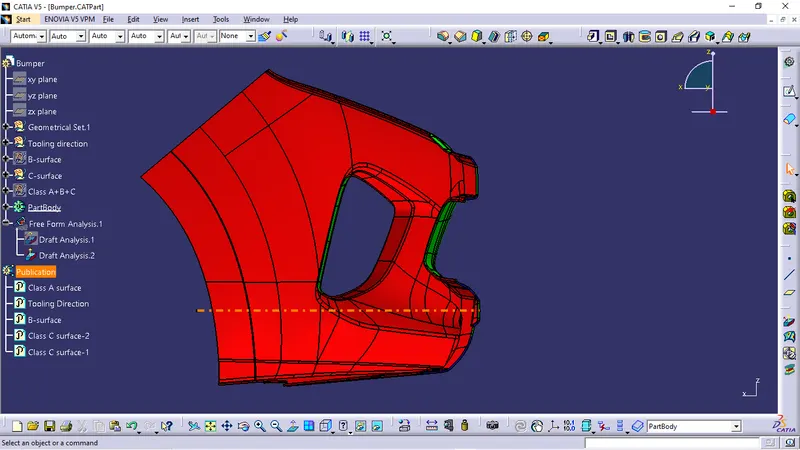

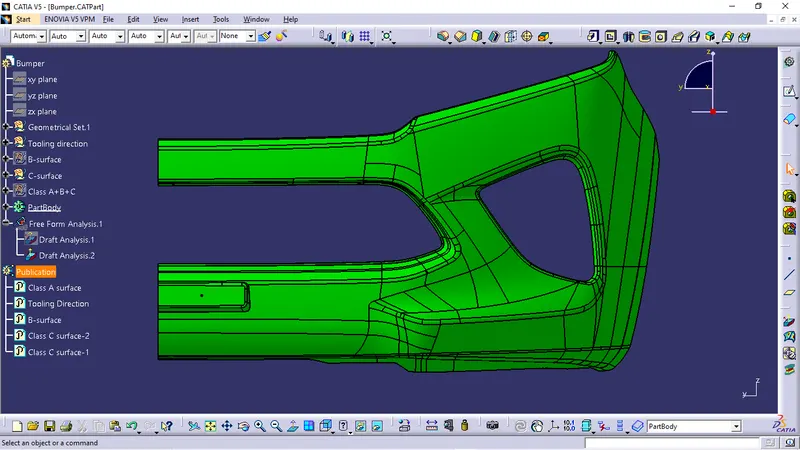

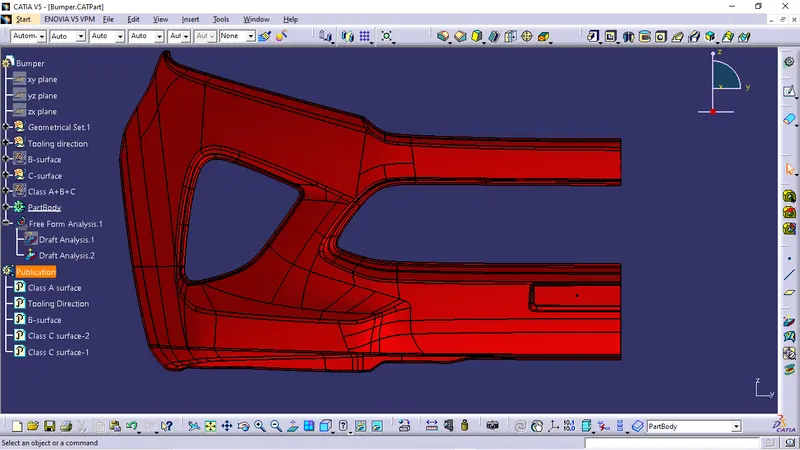

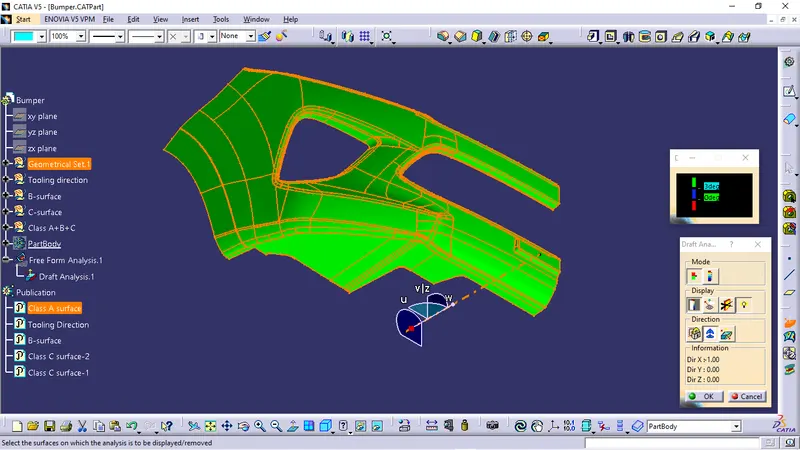

Draft Analysis :

Draft analysis done to part body along tooling direction with 3degree draft.
