Week 8 - Challenge 4 - Bumper

Aim:- To Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Tooling Axis:-

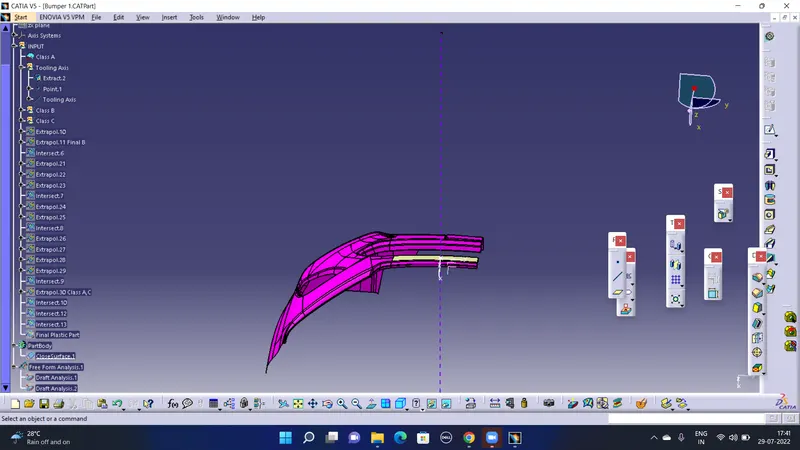

Here, the bumper front face part is taken as a surface to which the tooling axis is taken. A point is taken after extracting the face and the a line normal to the surface passing to through the point taken is our Tooling Axis.

Draft Analysis on Class A:-

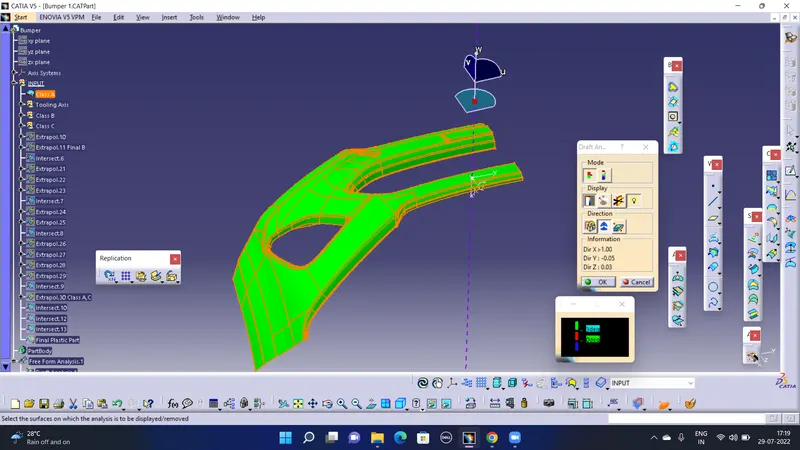

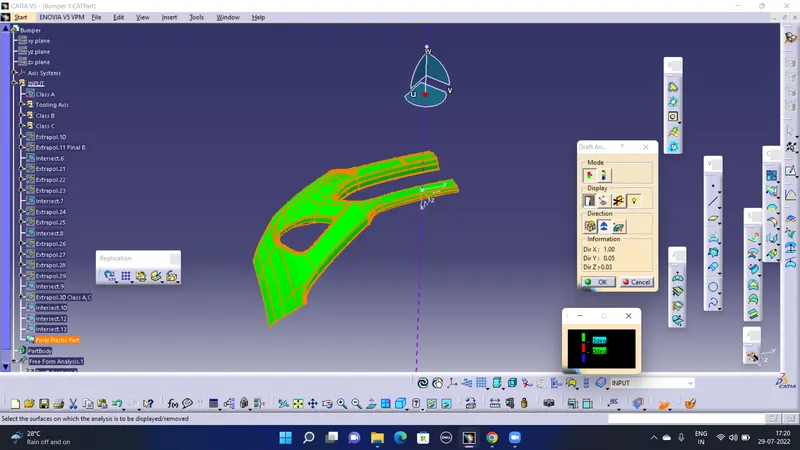

Here draft analysis is done on 3 degree angle and it shows green colour which indicates smooth ejection of part.

Draft Analysis on Final Plastic Part:-

In the post part analysis, the draft analysis was done taking the 3 degree angle and it shows green colour, which means smooth ejection of part.

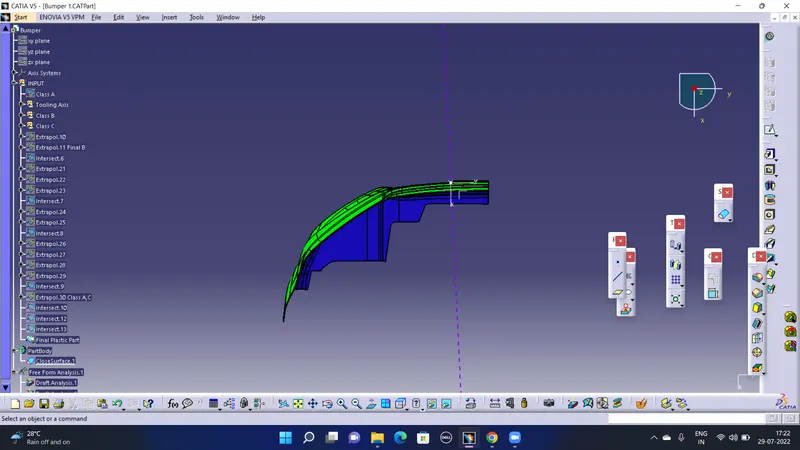

Geometrical Sets And Part Body:-

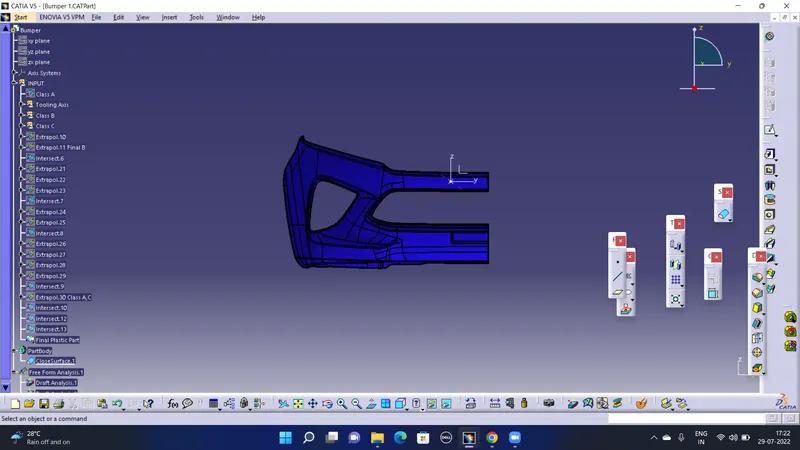

• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

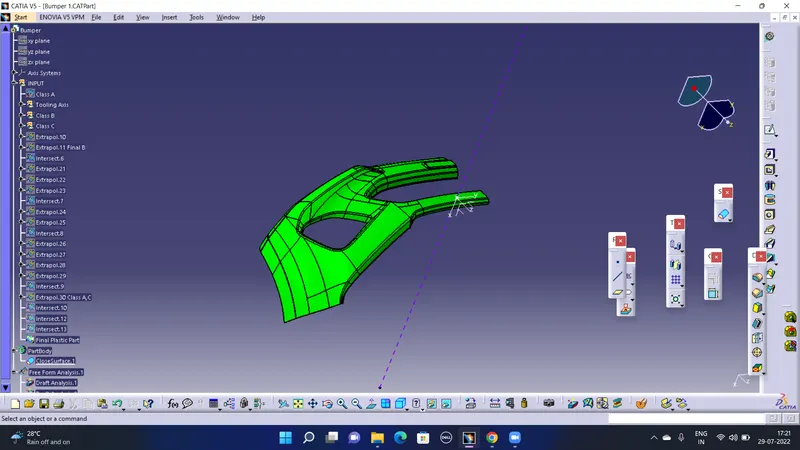

Isometric View:-

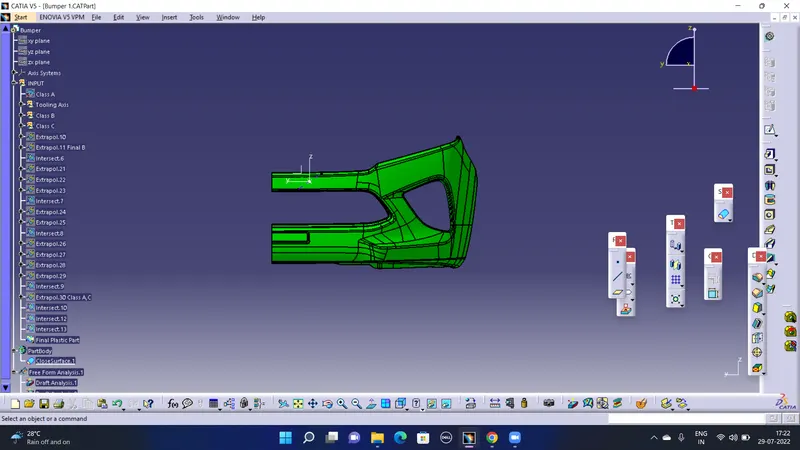

Front View:-

Back View:-

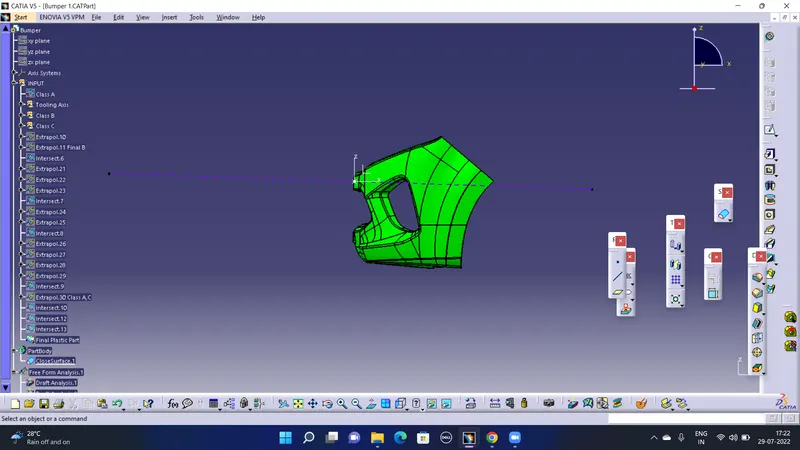

Left Side View:-

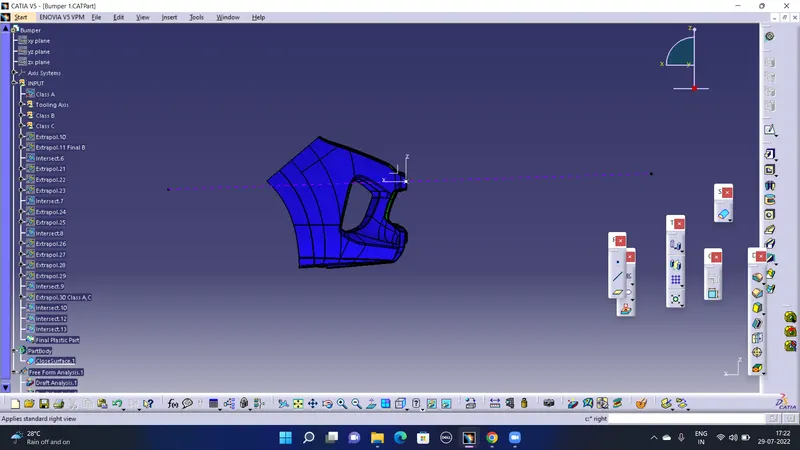

Right Side View:-

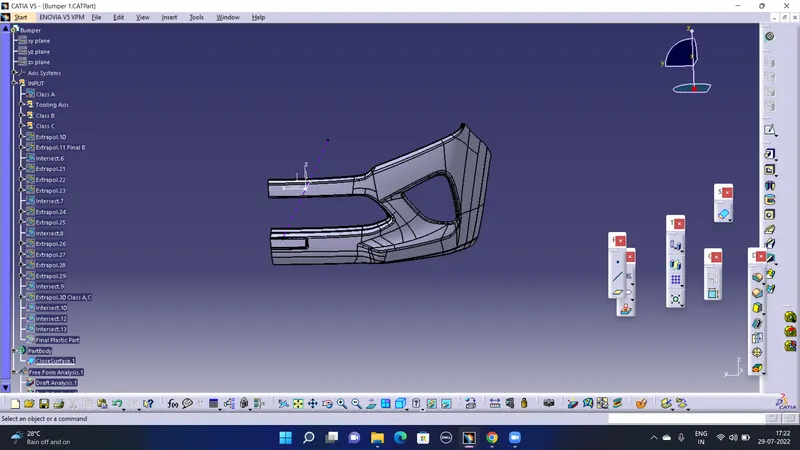

Top View:-

Conclusion:- All the screenshots for tooling axis, draft analysis, geometrical sets and part body and various views of part are added to the report.
