Week 8 - Challenge 4 - Bumper

Draft angle

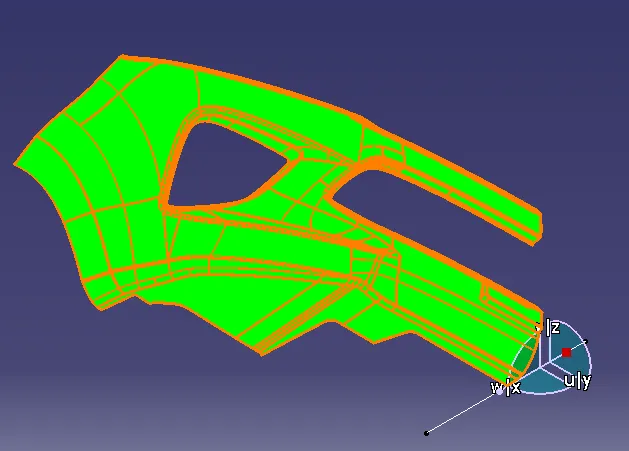

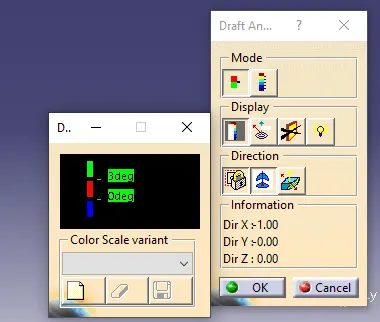

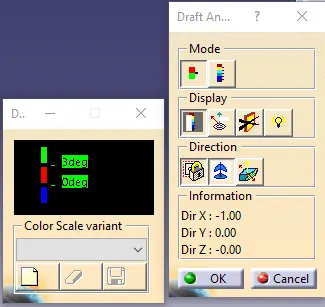

Draft analysis helps to detect if your drafted part is easily removable from the mold
All plastic components will have a minimum draft of 0.5 to 3 deg.
If a mold wall is perpendicular to the part ejection ,there will be ample friction or interference between the mold and the part which will not allow one to release from the other

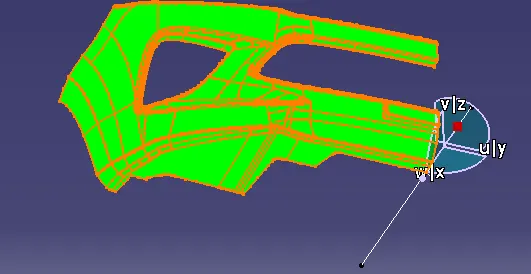

Tooling Axis

The tooling axis is a direction along which the core and cavity tends to move.
Here the tooling axis is created in direction, which is normal to one of the Flat surface of the Bumper

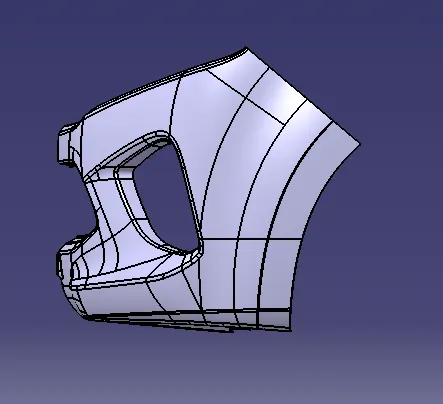

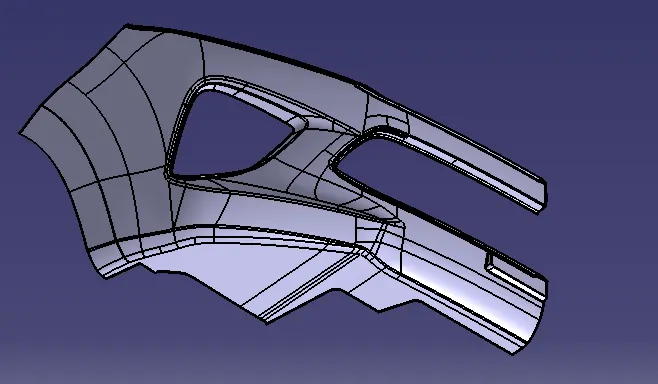

Isometric View
