Week 8 - Challenge 4 - Bumper

AIM:The objective of the project is to design BUMPER and to do a draft analysis for it by creating the required tooling direction with the help of TOOLING AXIS METHOD and perform draft analysis.

INTRODUCTION: BUMPER is a plastic component used in vehicles, the Class A surface is provided for creating a solid component with a thickness of about 3 mm. Class A surface: It is also called a styling surface, which consists of textures and represents the part having surfaces with a curvature continuity.

REPORT-

CONSIDERATION :

• Class – A surface should be aesthetically smooth
• Class – B surface should have all the supporting features like ribs.
• Parting Line should coincide with the B surface since flashing couldn’t affect the aesthetic of Class – A.
• Class – C surface should also pass the draft analysis.

Objective:

• Geometrical sets should have a proper name based on the sketches present inside them.
• All the sketches should be created under the Geometrical set.
• Use the CLOSE SURFACE feature to make a solid body from the surface.
• To publish the Tooling Axis, Class A, B, and C surface.
• Ensure Proper Tree Structure.

Class A Surface :

1. Visible surface and aesthetic look.
2. Surface with textures.
3. Surfaces provided by customer(OEM).
4. Don't have any features like(rib, snap, bosses, etc) on class A surface.
5. Class A surface is made from scanned data with different software like alias etc.
6. Surfaces which are having CURVATURE CONTINUITY IS CALLED class-A.

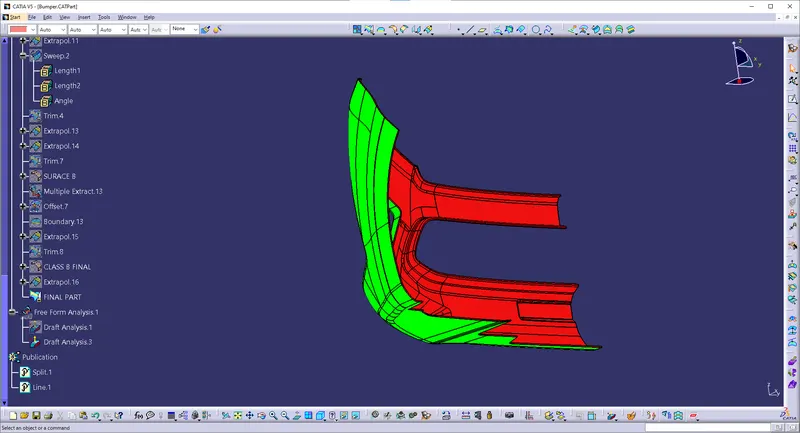

DRAFTING ANALSYIS FOR CLASS A SURFACE :

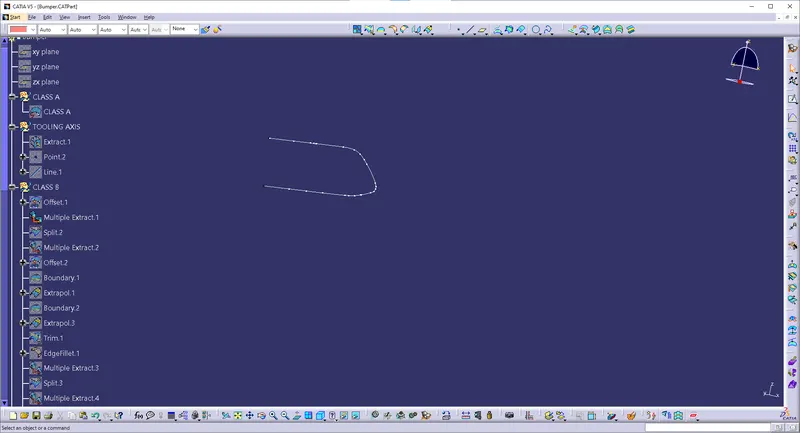

• CLASS A BASE is extracted and a point at the centre is created with referance to the base of CLASS A.
• Then, using project intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.
• DRAG THE COMPASS TO THE AXIS LINE AND CLICK DIRECTION .

CLASS B SURFACE:

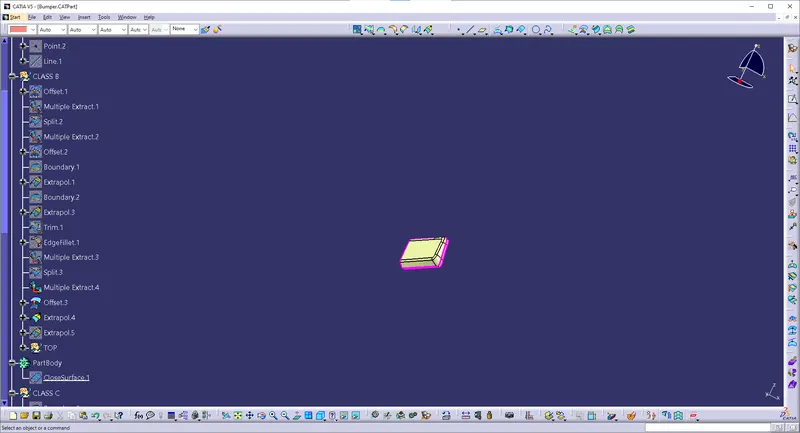

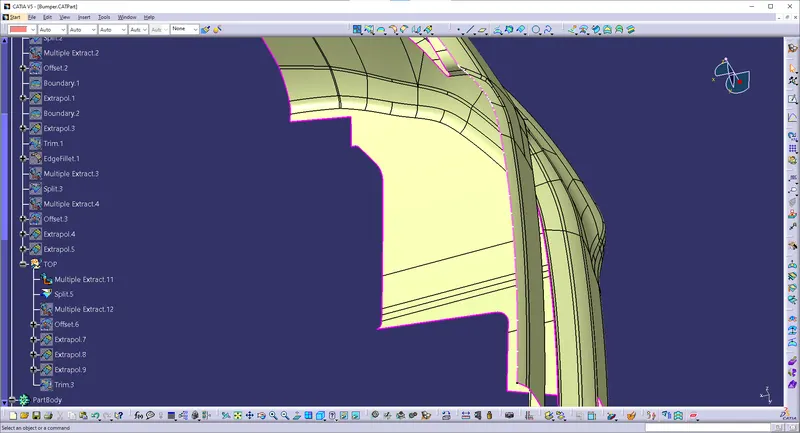

• For creating the class-B surface the required surface except the offset surface have been extracted and then untrimmed all the surface.
• Then all the surfaces have been extrapolated to get intersections between them.
• Since the thickness of the coin holder is 3mm the B-Surface was offset to 3mm and the required trim operations must be carried out.

operations:

• extract
• untrim
• offset
• extrapol
• multiple extract

CLASS C SURFACE:

Class C SURFACE:

• It is the combination of Class A, Class B and Class C surfaces.

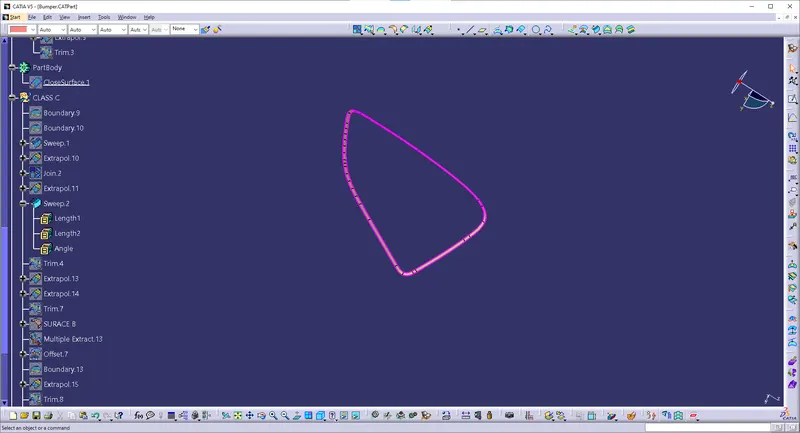

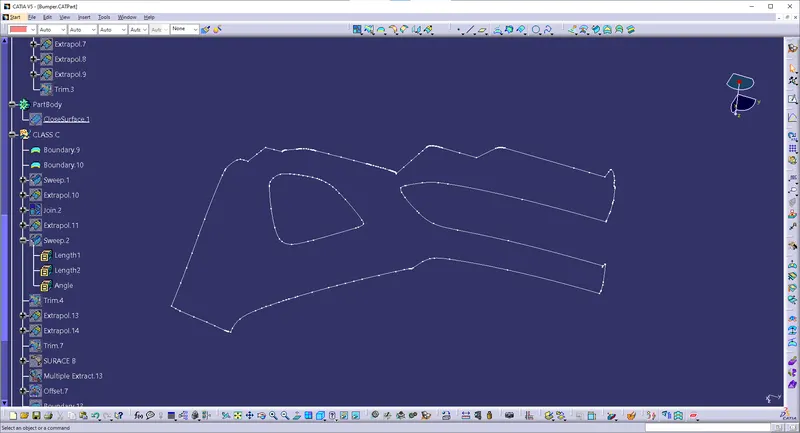

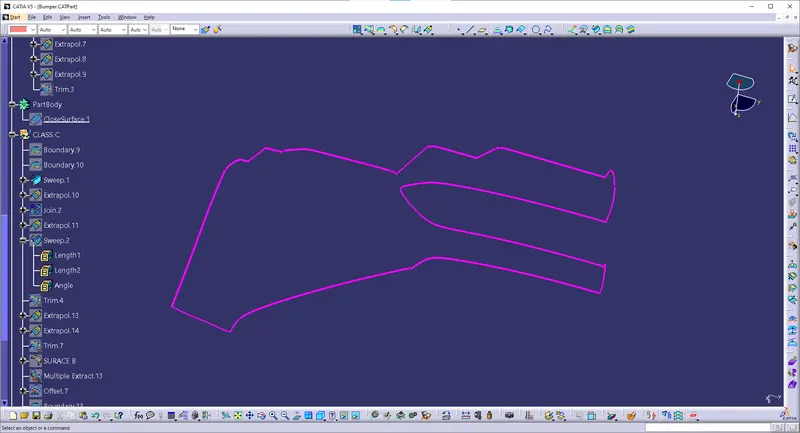

• To create a class C surface, I used the sweep command by considering the outer boundary of the class A surface.
• In the sweep command, go to the 'line' command in the 'profile' block and the subtype is 'with draft direction'.
• Now select the outer boundary and tooling axis, give 90 deg in the angle and select the direction to sweep, in this condition the class B surface is under the class A surface so select the inside down arrow to sweep.
• The same procedure is repeated for the two circles on the class A surface. Now I joined all the sweeped surfaces by using the 'join' command and then I trimmed the Class A, Class B and Class C surfaces to make a closed surface, to make a Solid body.

OPERATION'S:

• BOUNDARY
• SWEEP
• SMOOTH CURVE'S
• EXTRAPOL
• TRIM
• MULTIPLE EXTRACT
• JOIN

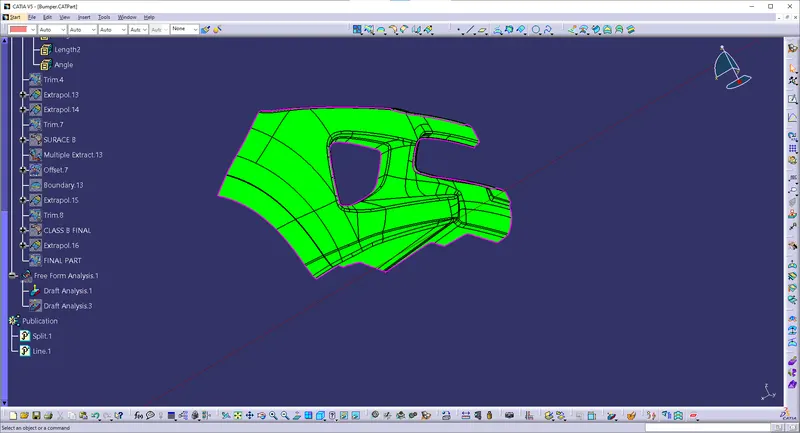

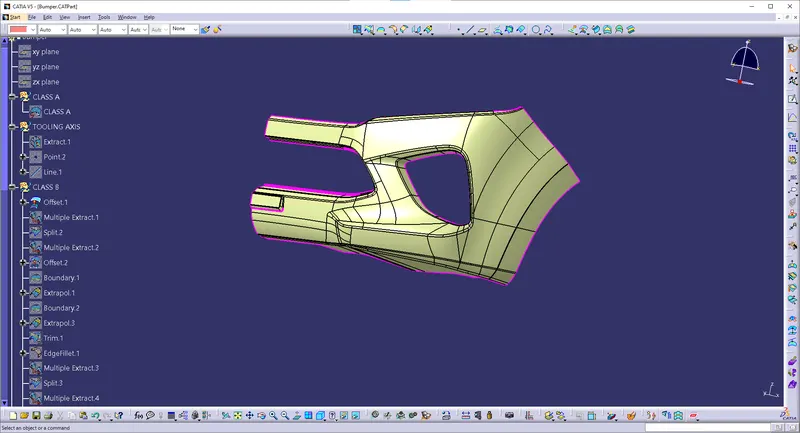

TOOLING AXIS FOR C:

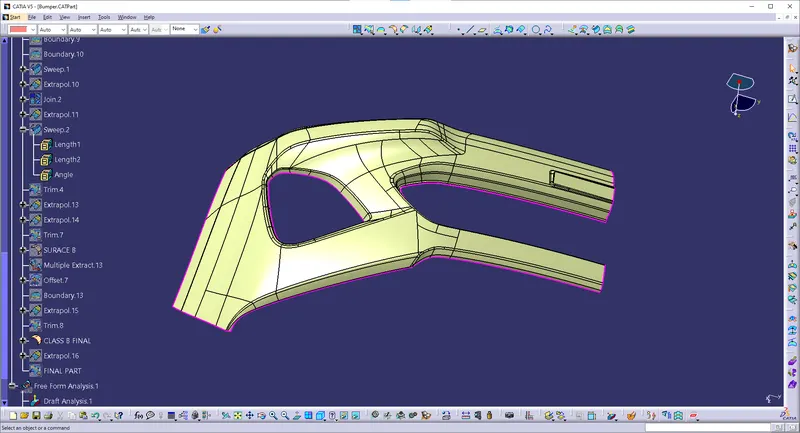

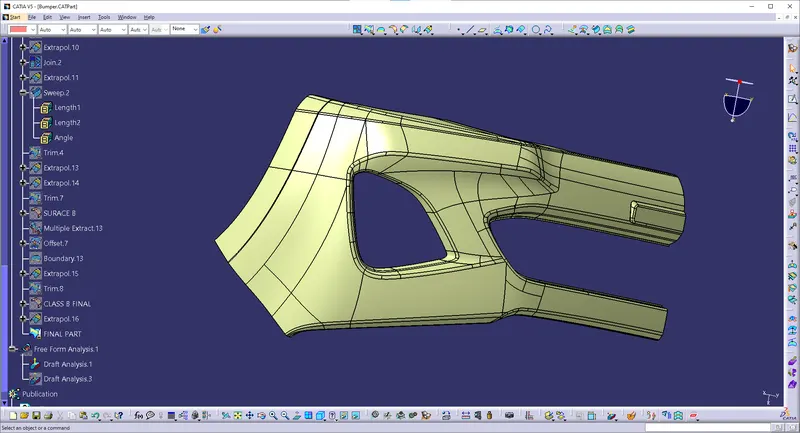

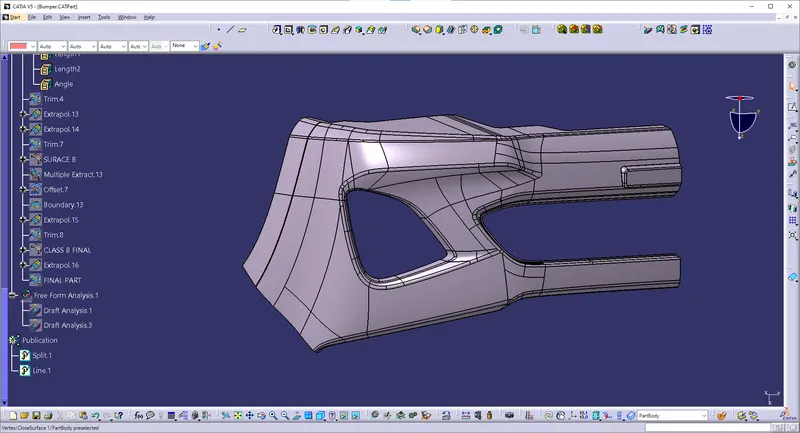

FINAL PART:

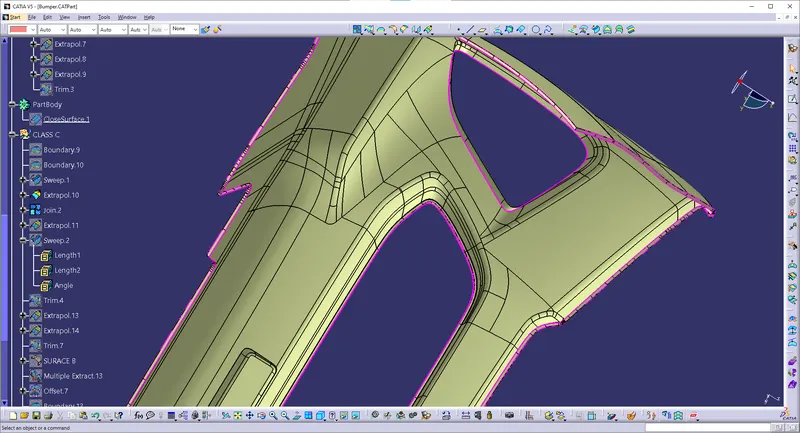

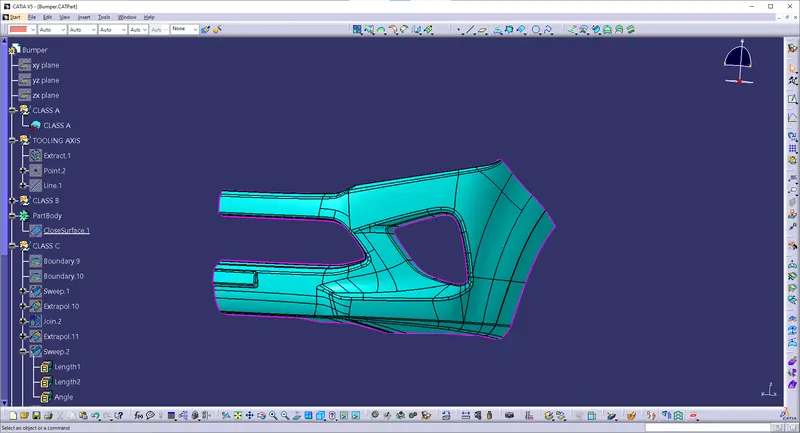

SOLID PART:

CONCLUSION:

The Design of Plastic Component - BUMPER from Class A is completed using concepts of Draft angle, Draft Analysis, Tooling Axis, Class B and Class C creation and converting Closed surface to a solid part.
