Week 8 - Challenge 4 - Bumper
Draft angle: The degree of taper of the side wall of the mold or the angle of clearance designed to aid the removal of a part from a mold.
Most of the parts have a draft angle of min 3, but while designing we follow the general thumb rule of 1-degree draft per 1-inch depth.
Draft angle is provided along the TOOLING AXIS.
Tooling Axis: It is the direction in which the core and cavity of the mold move for the removal of the component inside it.
Creation of Tooling Axis:
- First, inspect the given CLASS A surface. Use the join feature to check whether the surface has a continuous boundary or not.
- Then check the direction in which the component can be easily molded without any complications.
- I have observed that the given component can be easily extracted from mold along the x-axis.

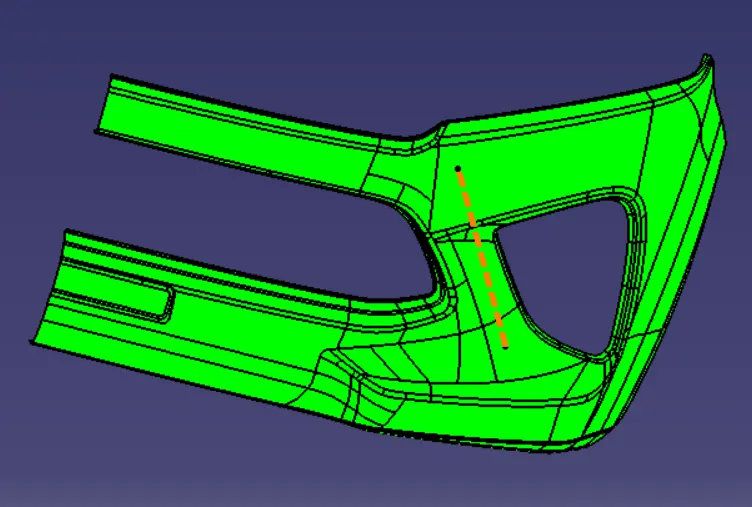

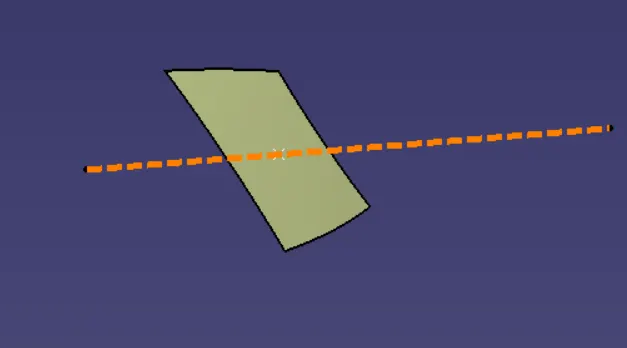

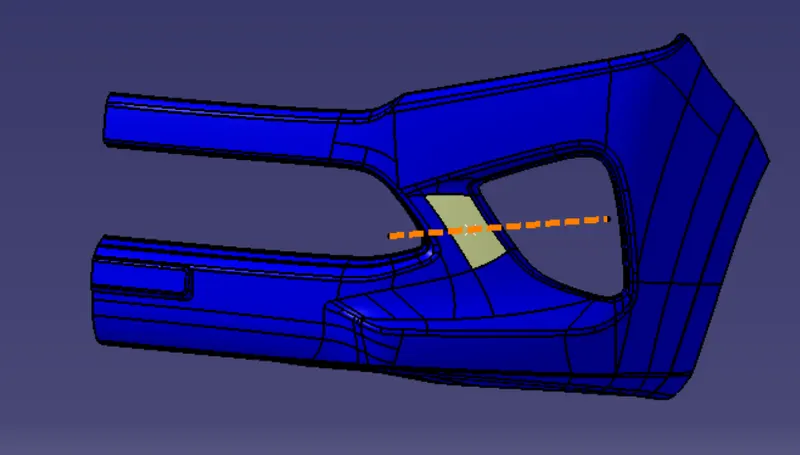

- So I randomly selected a surface and created a point at the center and created a line along the x-axis.
Draft Analysis Using Tooling Axis:

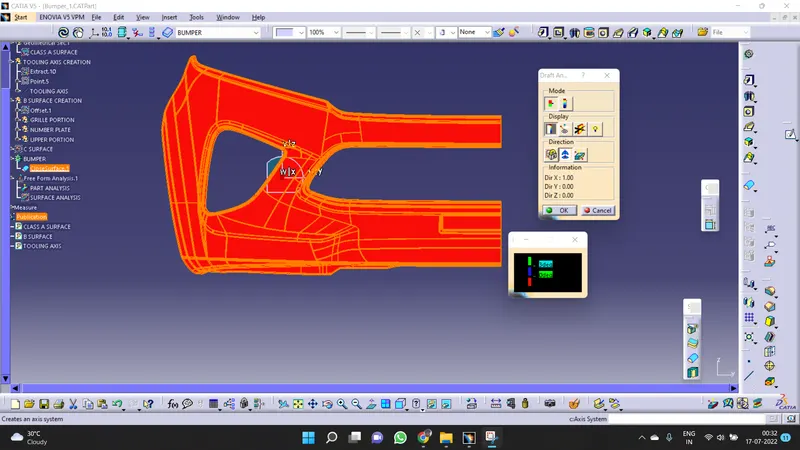

- After generating the Tooling Axis of the given CLASS A surface, insert the feature draft analysis from the analysis toolbox.

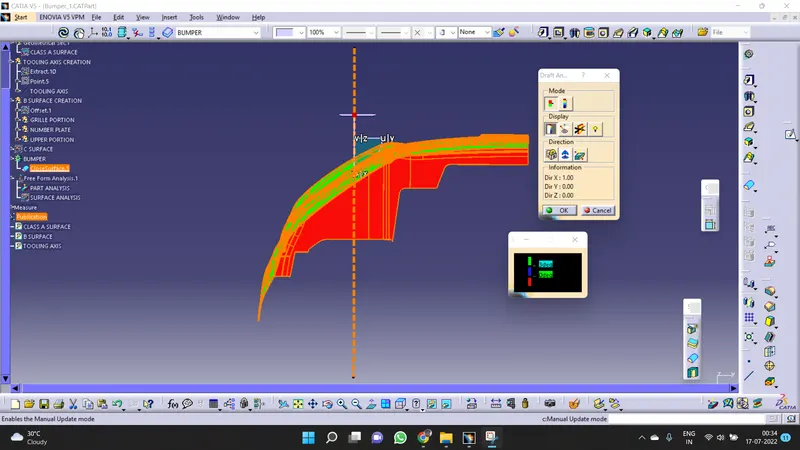

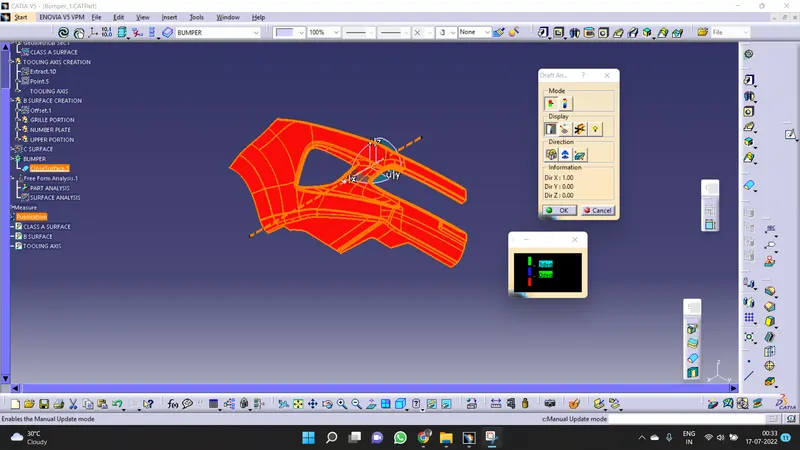

- Drag the axis system and try to align along the Tooling Axis.

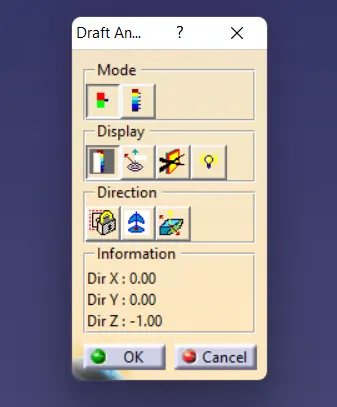

- We observe the Draft analysis box that contains the mode, display, direction, and information of the tooling axis.

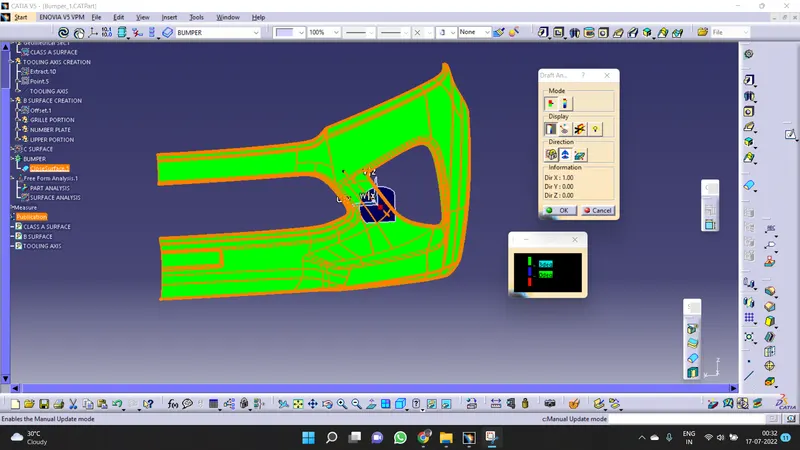

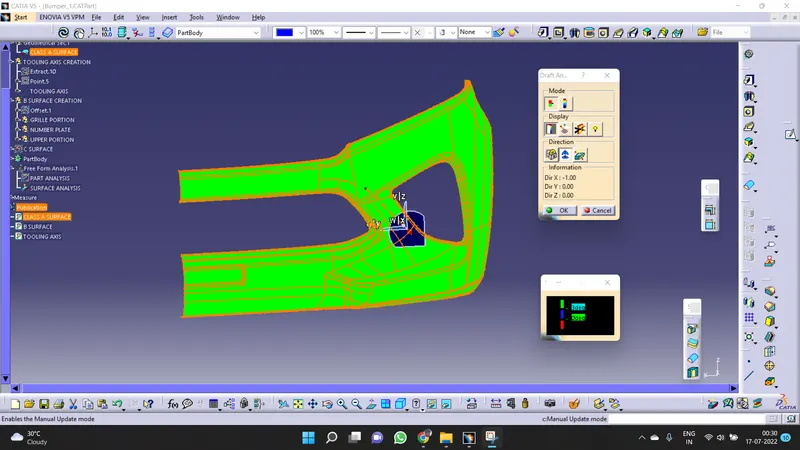

- Using the Draft analysis box complete draft analysis is performed and different draft angles are coded in different colors.
