Week 8 - Challenge 4 - Bumper

creation of tooling axis

tolling axis is created by bisectig the two axis lines which are clearing the tooling direction both z and the y direction. these lines are drwan by taking the reference of the intersection of the the plastic body and the the respective planes.

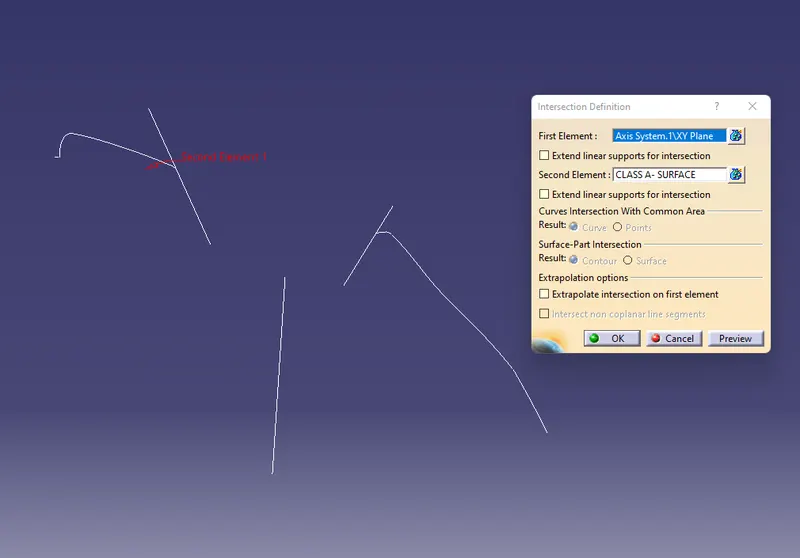

tooling axis in z dirction

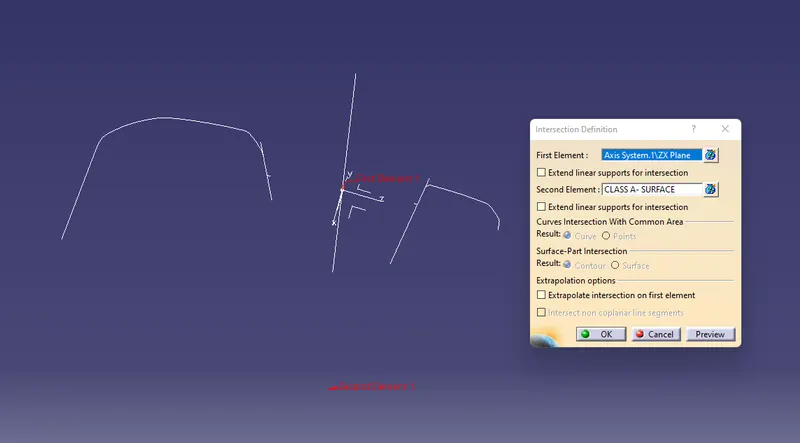

tooling axis in y direction

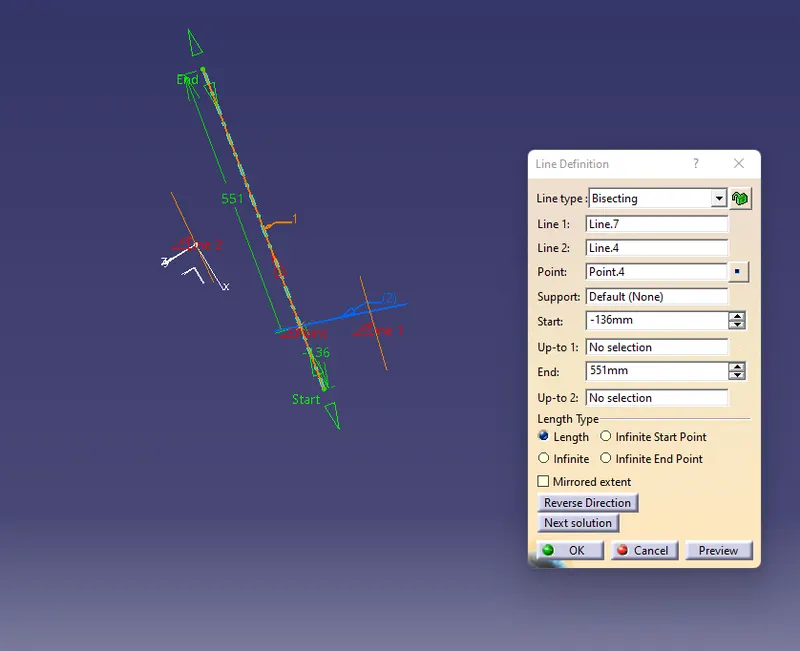

main tooling axis

draft analysis

draft analysis made on both class-A surface and final plastic componant by locking the compass in tooling dirction and by clicking the on the surface of the class-A surface and final plastic componant. If some are not clearing the tooling axis changing the angle in colour variant or adjusting the tooling axis by slight difference.

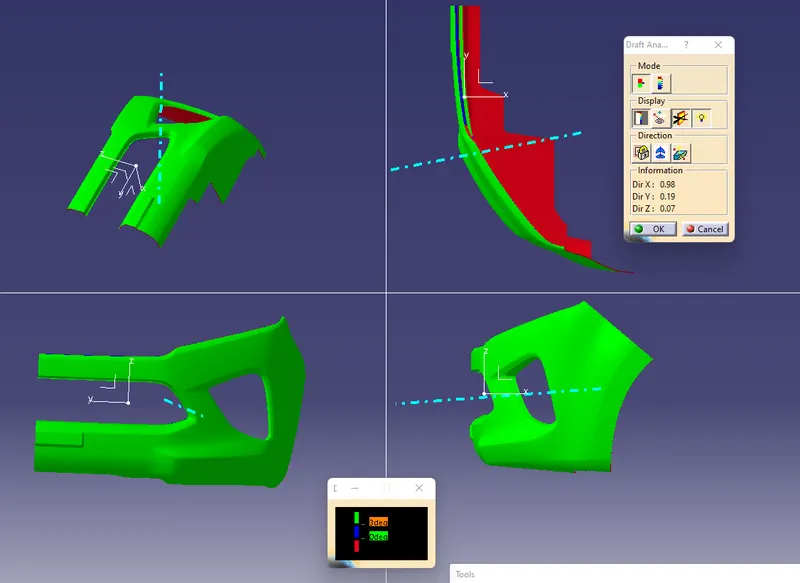

draft analysis on class-A surface

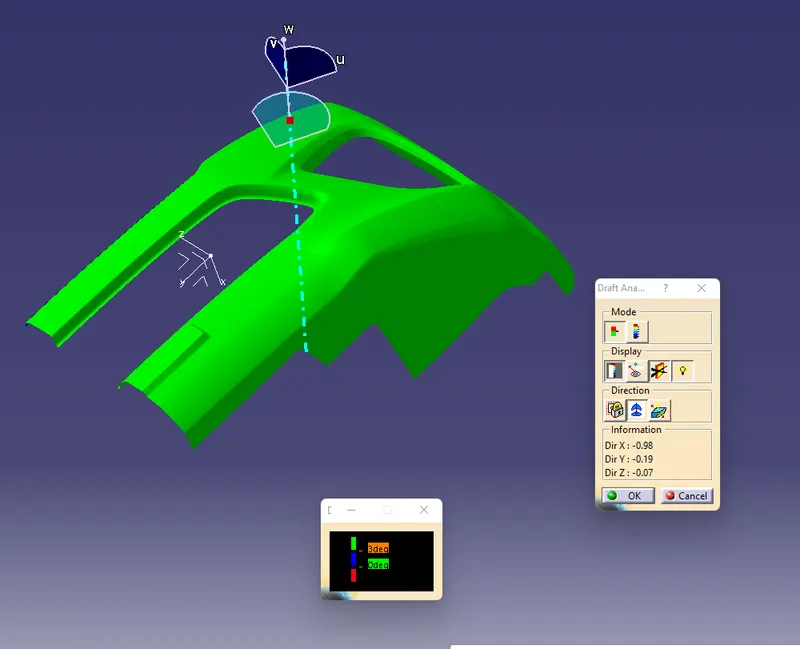

draft analysis on plastic componant

publication are created for the final componants to creating the links for original componants and direct acess to comopnants in the product

itself .

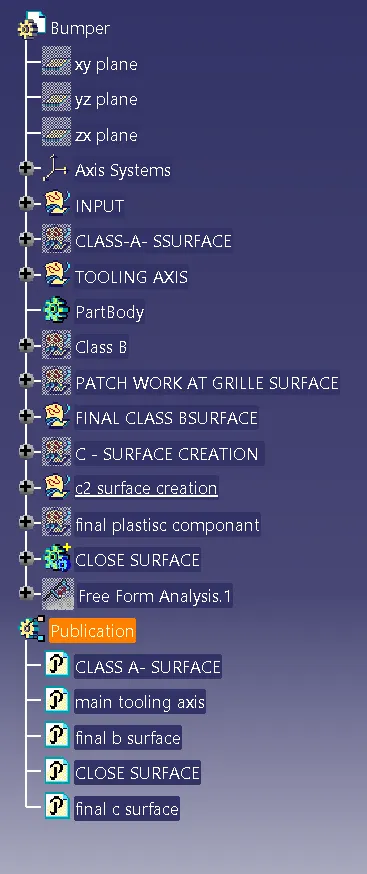

tree structure
