Switch Bezel Design using CATIA V5

AIM OF THE CHALLENGE :

TO PERFORM DRAFT ANALYSIS FOR GIVEN PART(SWITCH BEZEL) AND TO CREATE THE COMPONENT THROUGH THE GIVEN CLASS A SURFACE

Procedure:

Draft : Drafts are defined on molded parts to make them easier to remove from mold.

Drafting methods:

1. By explicitly selecting the object.
2. By selecting the neutral element

Major industries uses minimum draft angle of 3mm.

Procedure for draft analysis

• First we check the contuinity of the given Class A surface.
• Check the three directions(X,Y and Z) and decide which is the best possible direction to produce a mold.
• A fan with several drafted surfaces that is oriented in part location. That the draft analysis initially assumes a Z-axis direction.
• At Z-axis direction the faces are either positive or negative draft so the Z-axis we taken as dummy tooling axis. We need to create a perfect tooling axis.

Tooling Axis creation

Tooling axis: Direction in which mold opens or core and cavity opens.

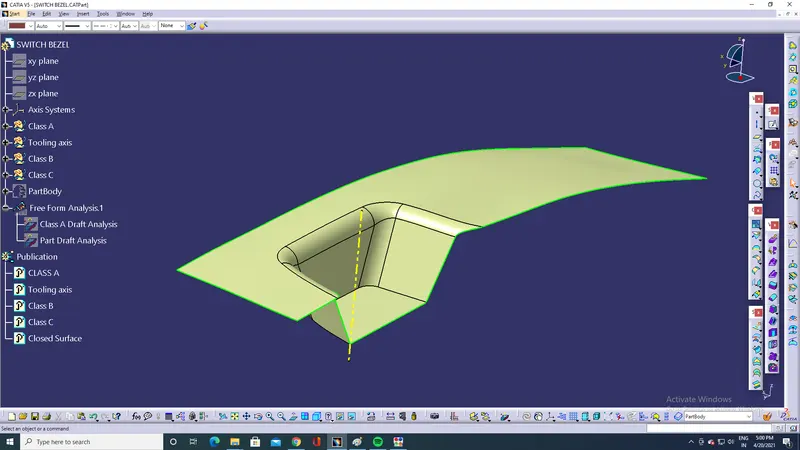

Fig: Given model.

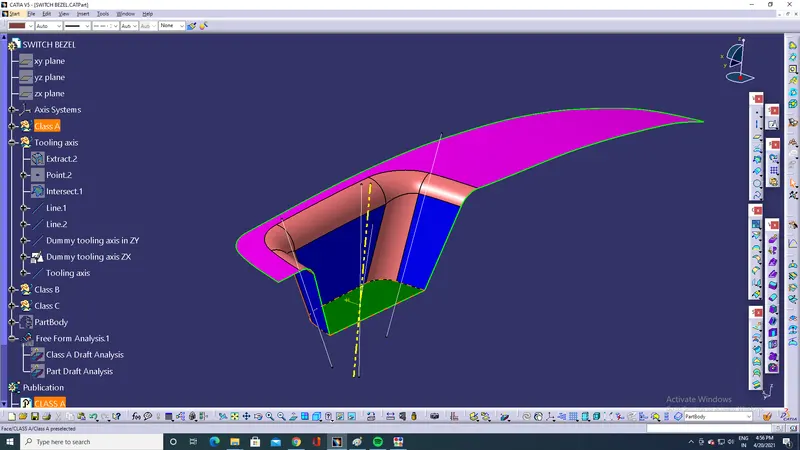

To create tooling axis by using Bisecting method

• The base surface is extracted.
• Then the center point is created using the point>on the surface at 0.
• Axis system is created at that point.
• Then the lines are created using 'lines'>'Point to point' along the slant surfaces.
• Bisecting line is created from these lines by using 'lines'>'Bisecting line'. This is the tooling axis for the part.

Lets do draft analysis

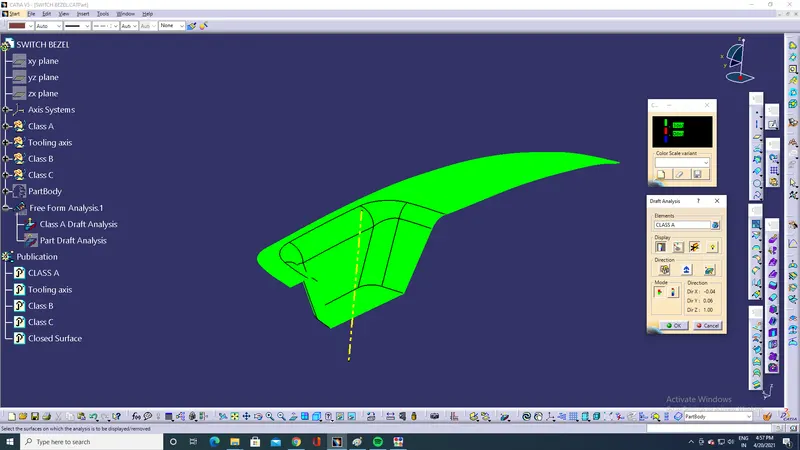

Change the shading style to "shading with material". Go to insert>analysis>Feature draft analysis. Select compass icon in draft analysis dialogue box and drag the compass and place it on tooling axis and select lock draft direction option. Swith to quick analysis mode to see whether the surfaces are passed draft angles or not.

Create Class B surface

• Class B surface was created from the class A surface using Extract or MultiExtract option.
• Class B surface was offseted at a distance of 2.5mm thickness from the class A surface.
• Fillets were applied after necessary calculations.

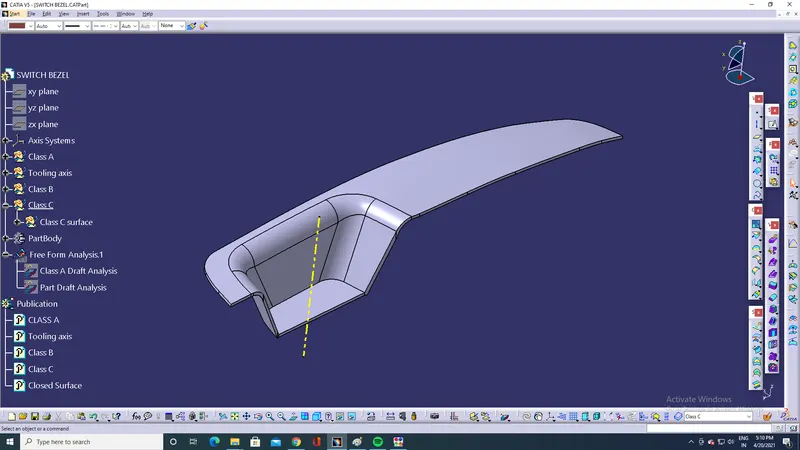

Create Class C surface

• Class C surface was swept along the boundary of Class A using Sweep option at an angle normal to the class A surface with respect to the tooling axis.
• A nominal draft angle of 3 degrees was applied.
• The Class C surface joined along withhe class A surface.

Go to swept>with respect to "line">"with draft direction" in subtype>select guide curve, draft direction, angle and length ok. Trim Extended surfaces.

Create a closed surface

• Class A, B and C surfaces were joined together to form a single closed surface.
• Trim the Class B surface with the joined Class A and C surface to get closed surface.

Create a solid part from closed surface

Insert a part body and create a solid part using closed in part workbench.

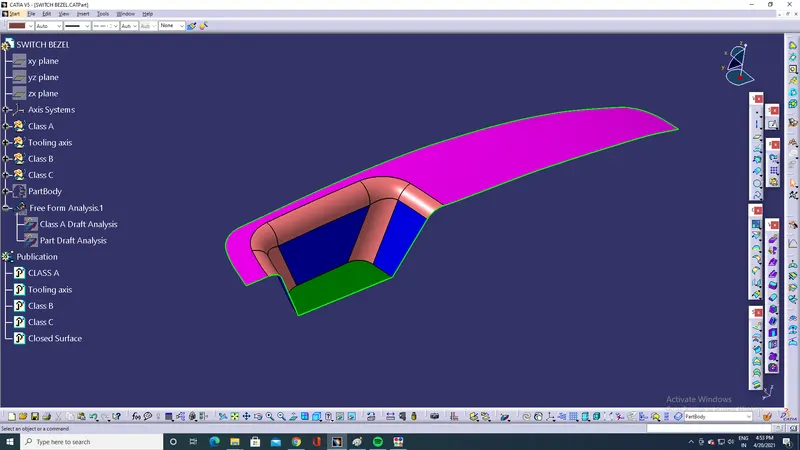

Final Model:

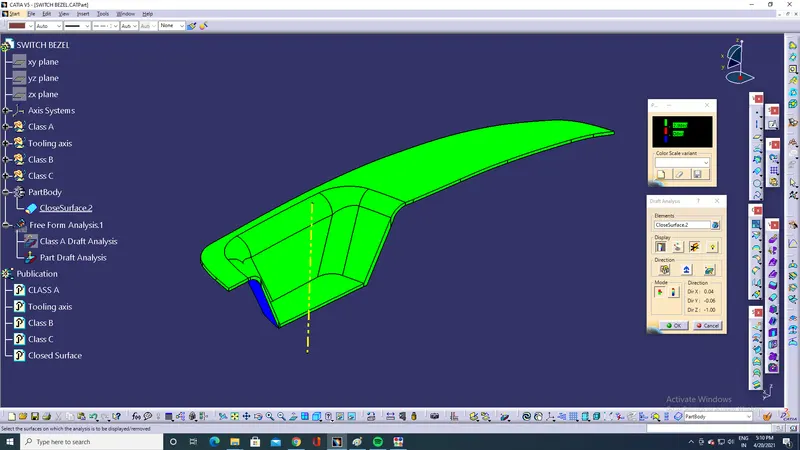

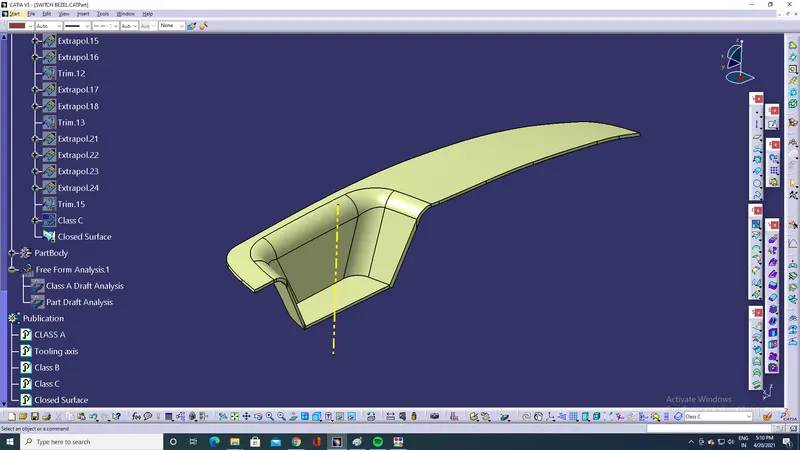

Draft anaysis of the solid part.

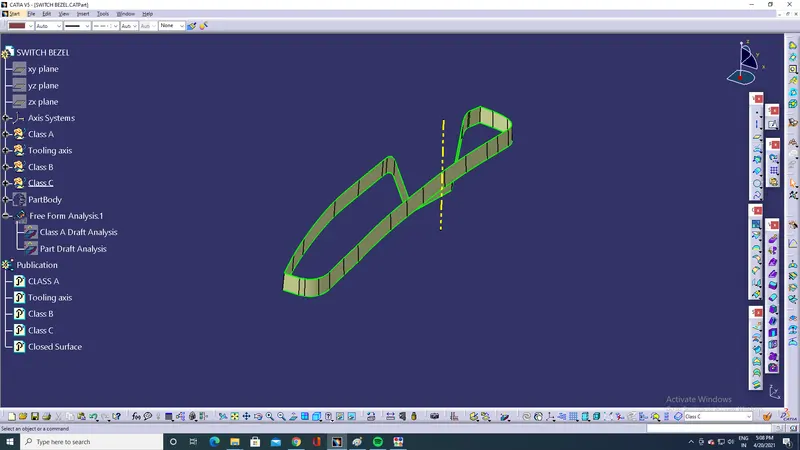

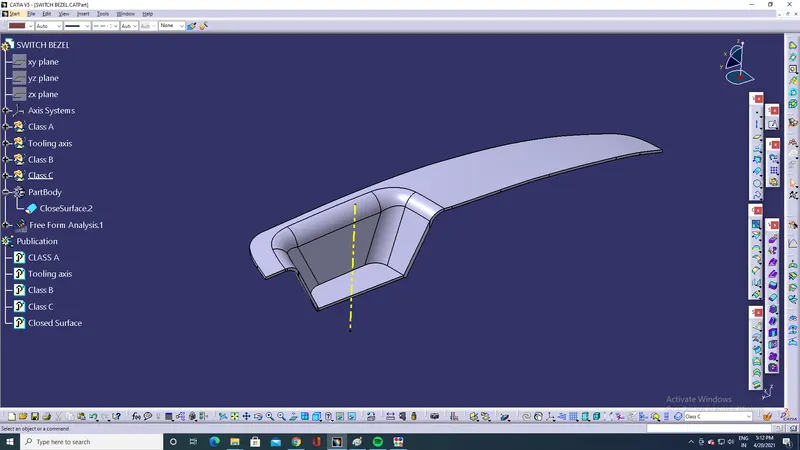

Final Part:

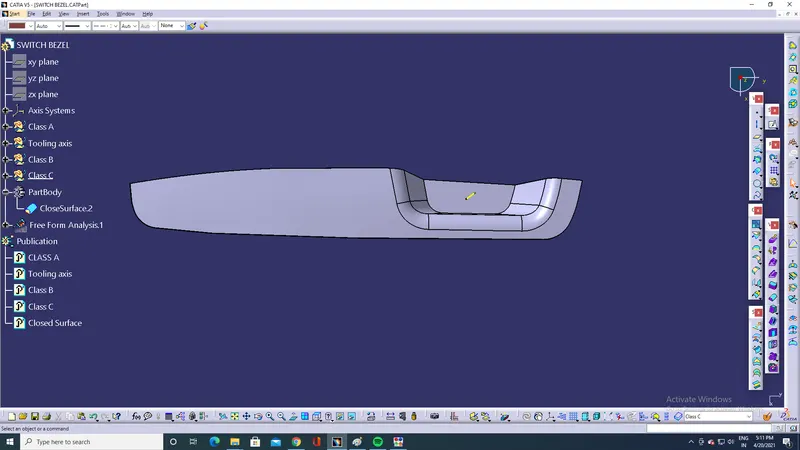

Front view

Top view

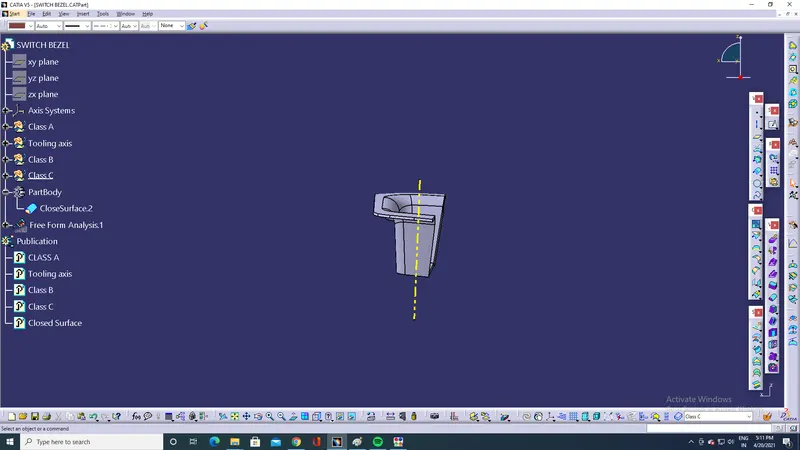

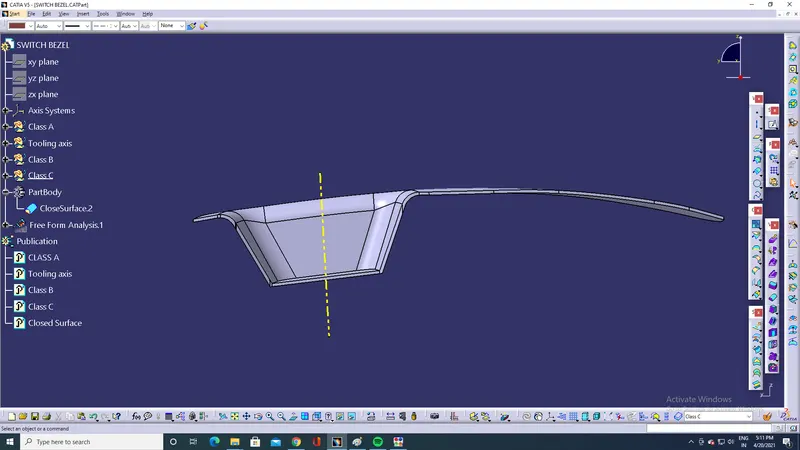

Side vew

Isometric view

CONCLUSION:

• Created tooling axis for Class A surface and checked for draft for the same.
• Created Class B and Class C surface and Joined Class A, B and C surface and Converted into Solid Part.
• Draft analysis is performed for solid part.
