Week 8 - Challenge 3 - Switch Bezel Design

AIM

Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 2.5 mm

PROCEDURE

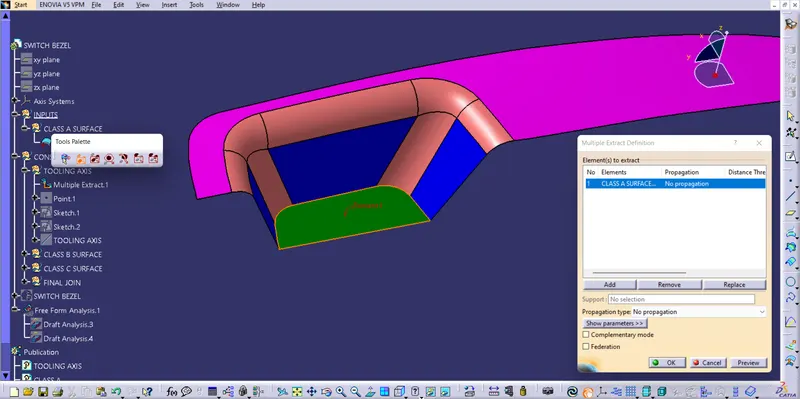

EXTRACTING

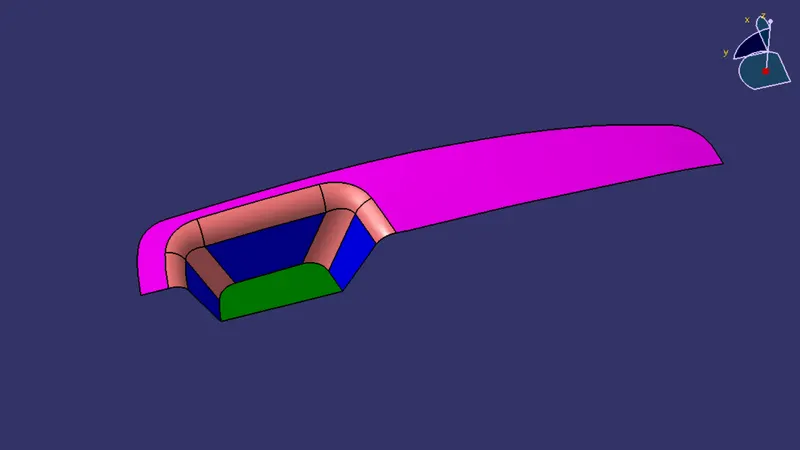

Extracting base part of the switch bezel using multiple extract tool.

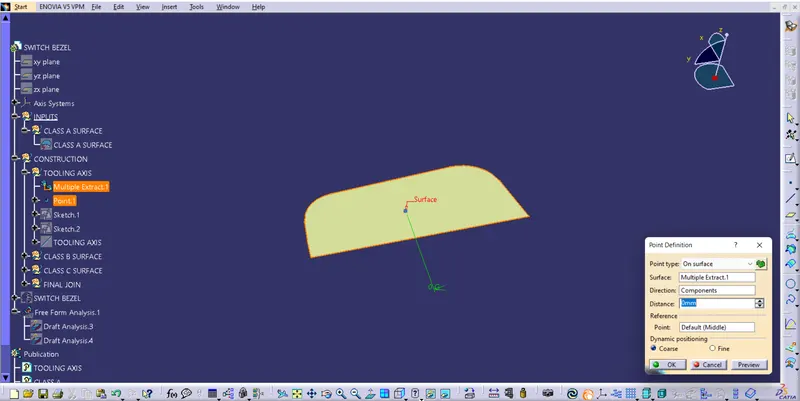

CREATING A POINT

A point is created in the extracted surface using point tool with point type as on surface.

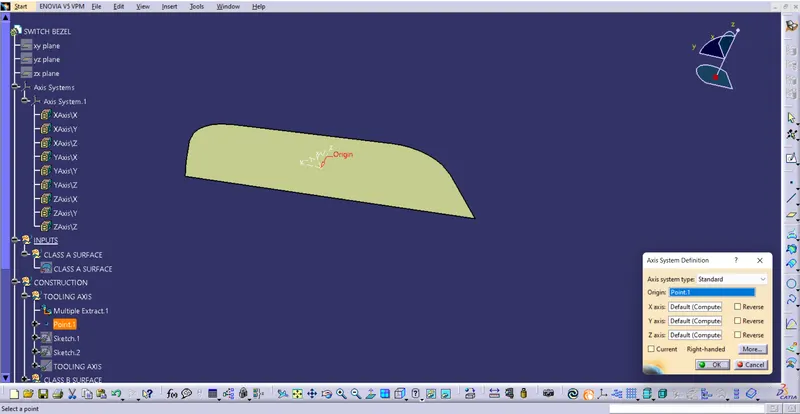

CREATING AXIS SYSTEM

Creating a new axis system on the reference point.

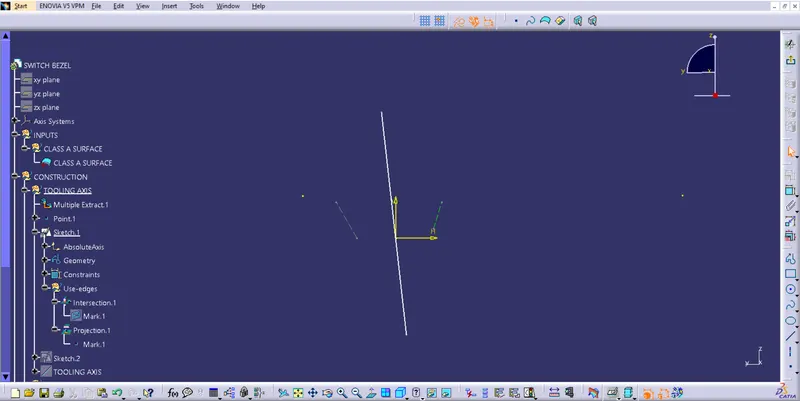

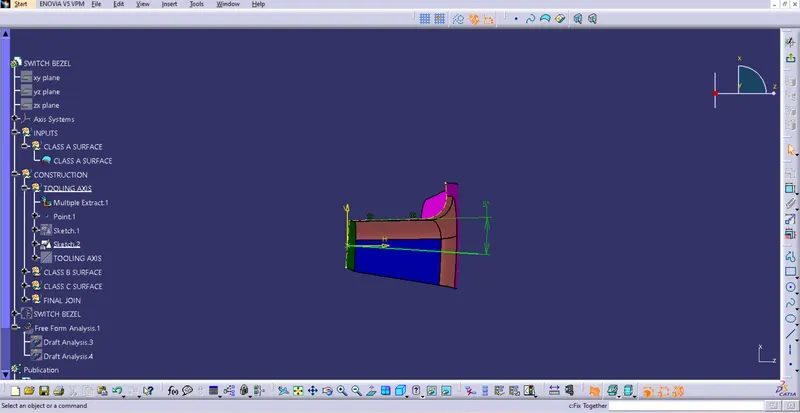

CREATING A AXIS WITH RESPECT TO SIDE WALLS

Using intersection and line tool side wall represending lines are drawn then using bisecting line tool the axis is drawn.

AXIS W.R.T THIRD WALL

A imaginary axis is drawn w.r.t the 3 rd wall with an angle 5 degree

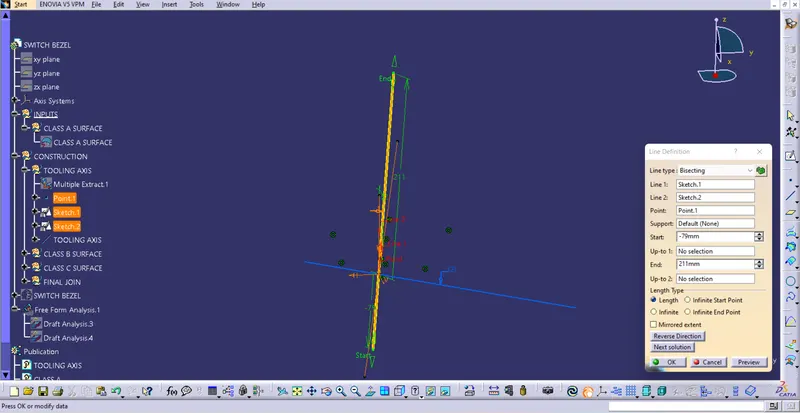

TOOLING AXIS CREATION

Final Tooling axis drawing using line tool with line type as bisecting and selecting early created 2 axises.

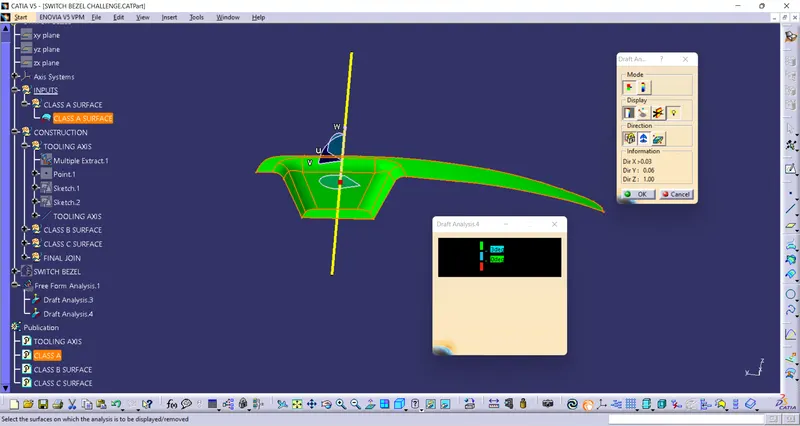

Draft analysis report Class-A

To perform draft analysis on the model:- Go to menu bar > select insert > Analysis > Feature Draft Analysis. To give the draft direction, use the compass and align Z-axis of it with the tooling axis. Once it properly aligned, lock the draft direction. A red point shown in the screen, select Base Bracket and it will show us the current of the model. Then go to display tab on draft analysis and select show Colour scale option and it will show the draft value. Set the Draft value to 3 deg under the colour scale variant and press ok.

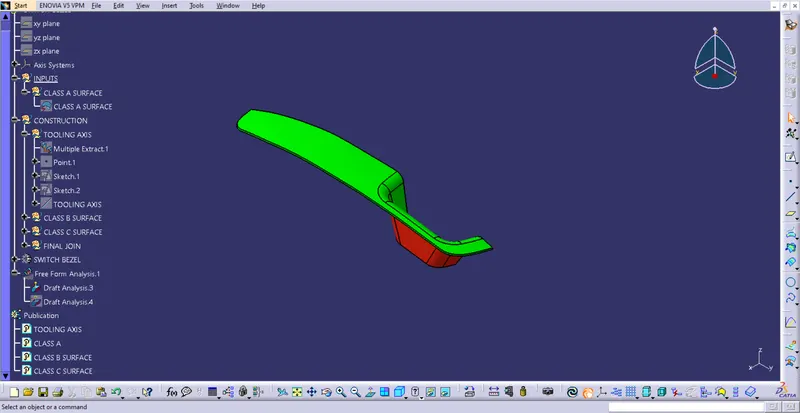

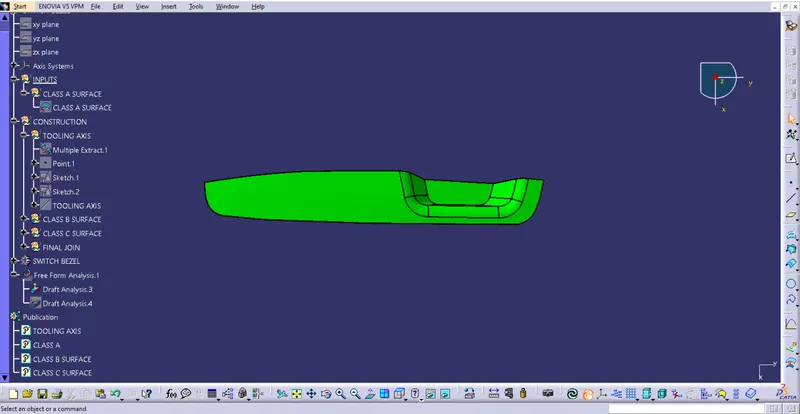

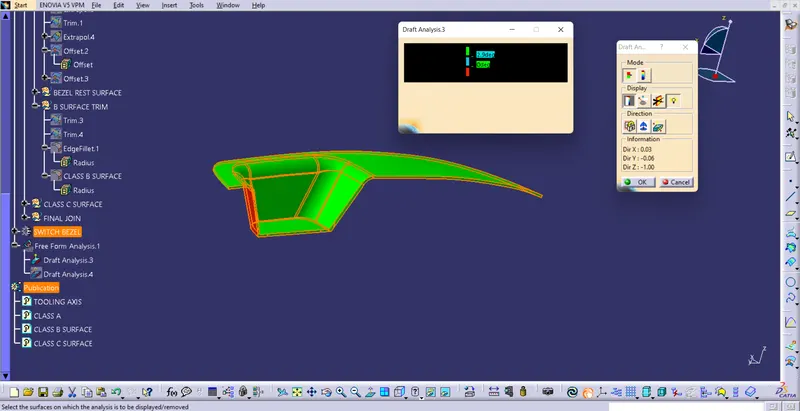

Draft analysis report for final plastic component

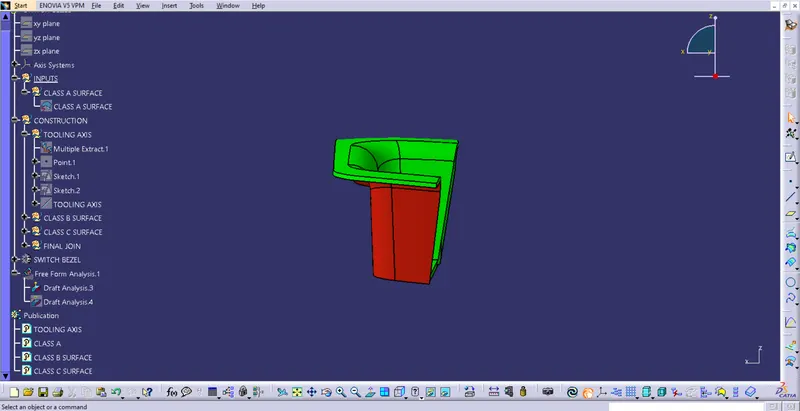

ISOMETRIC VIEW

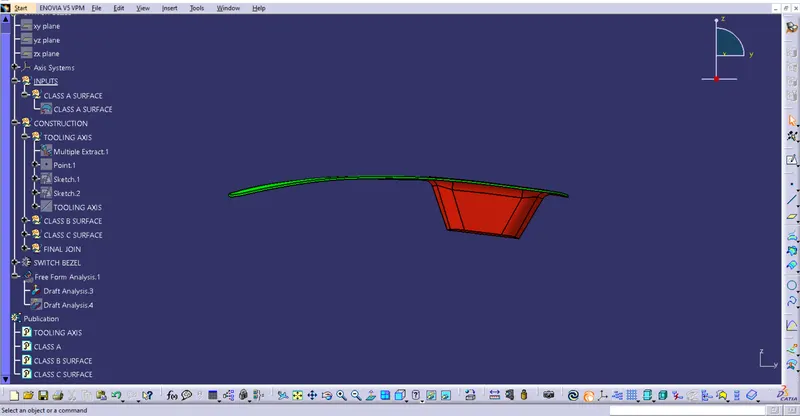

FRONT VIEW

SIDE VIEW

TOP VIEW

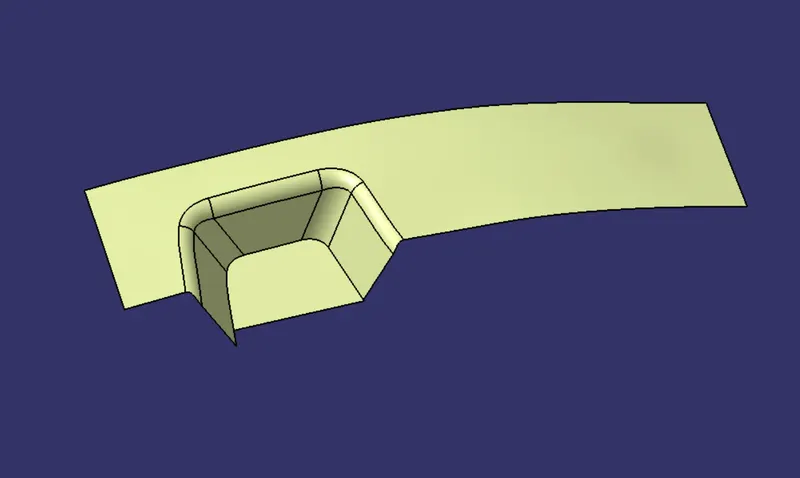

CLASS A SURFACE

CLASS B SURFACE

CLASS C SURFACE

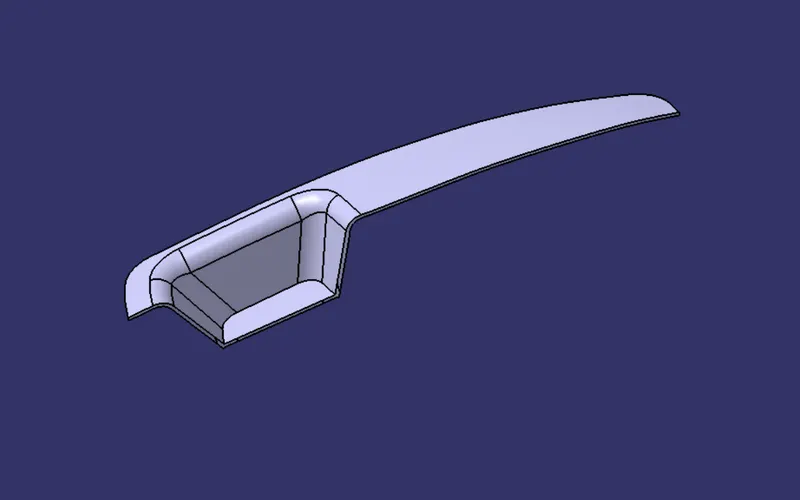

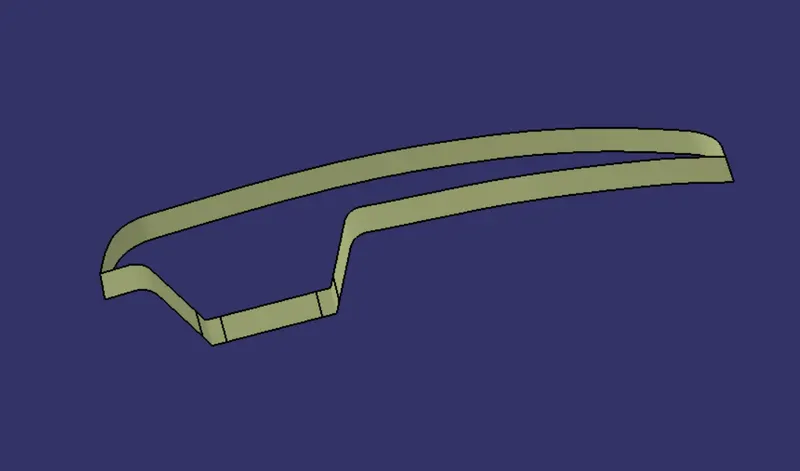

SOLID BODY
